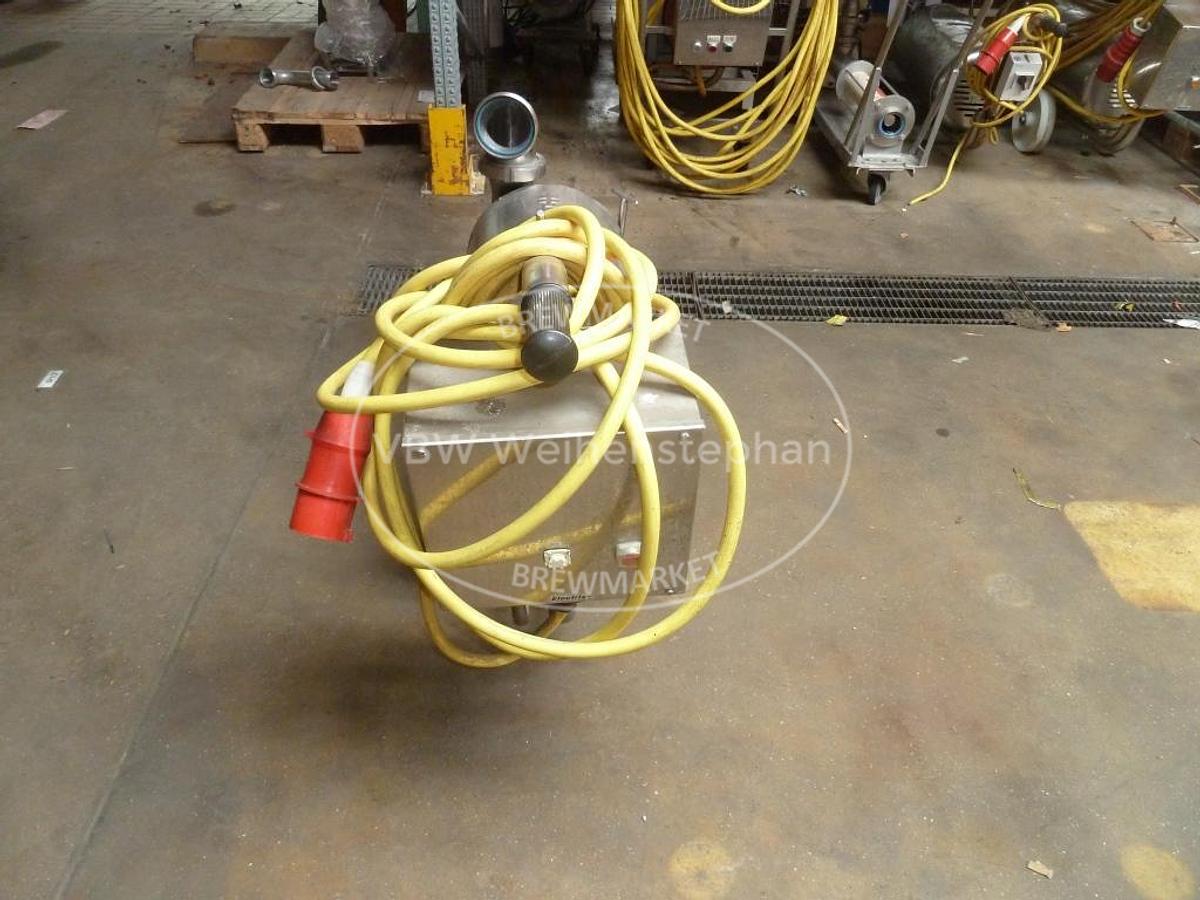

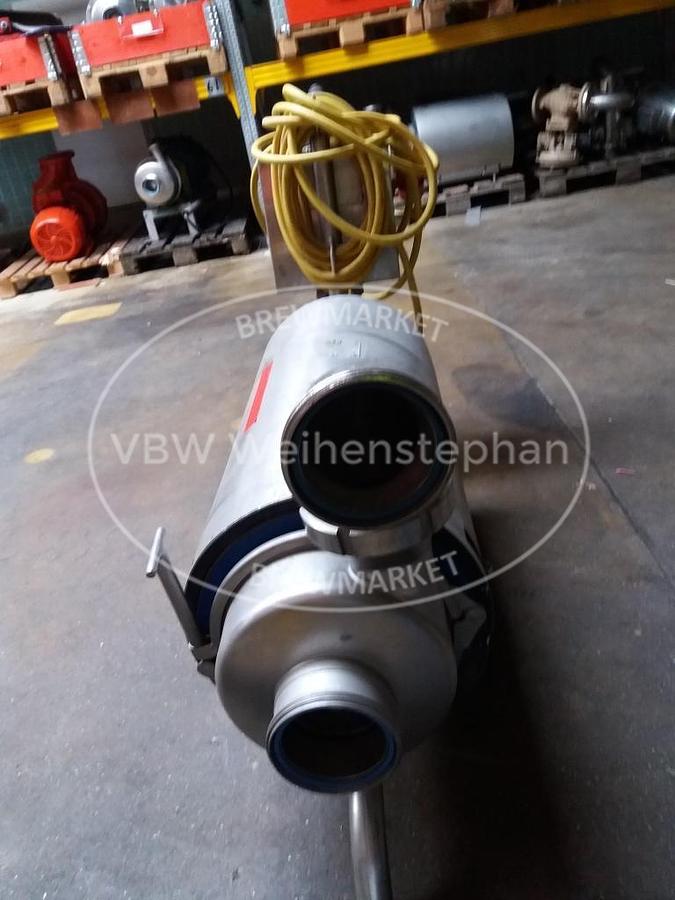

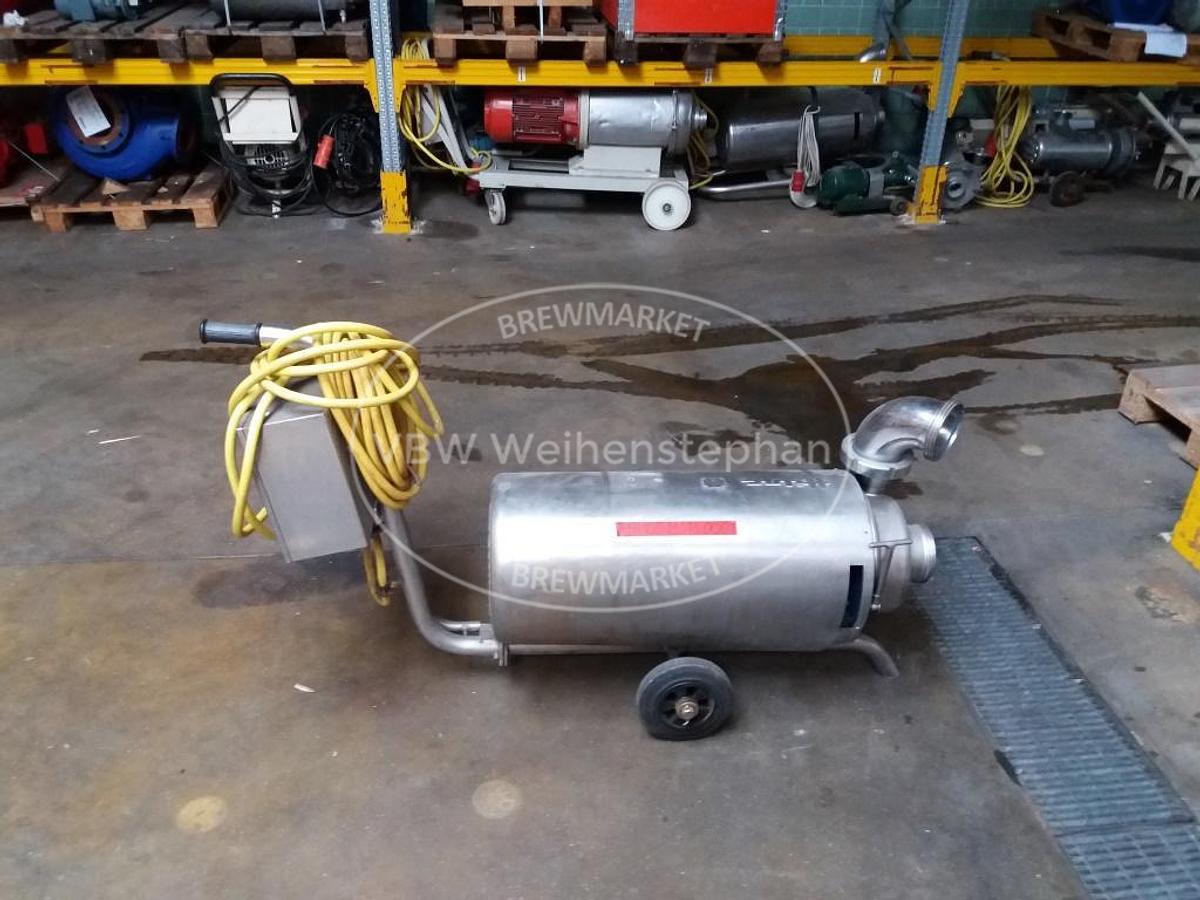

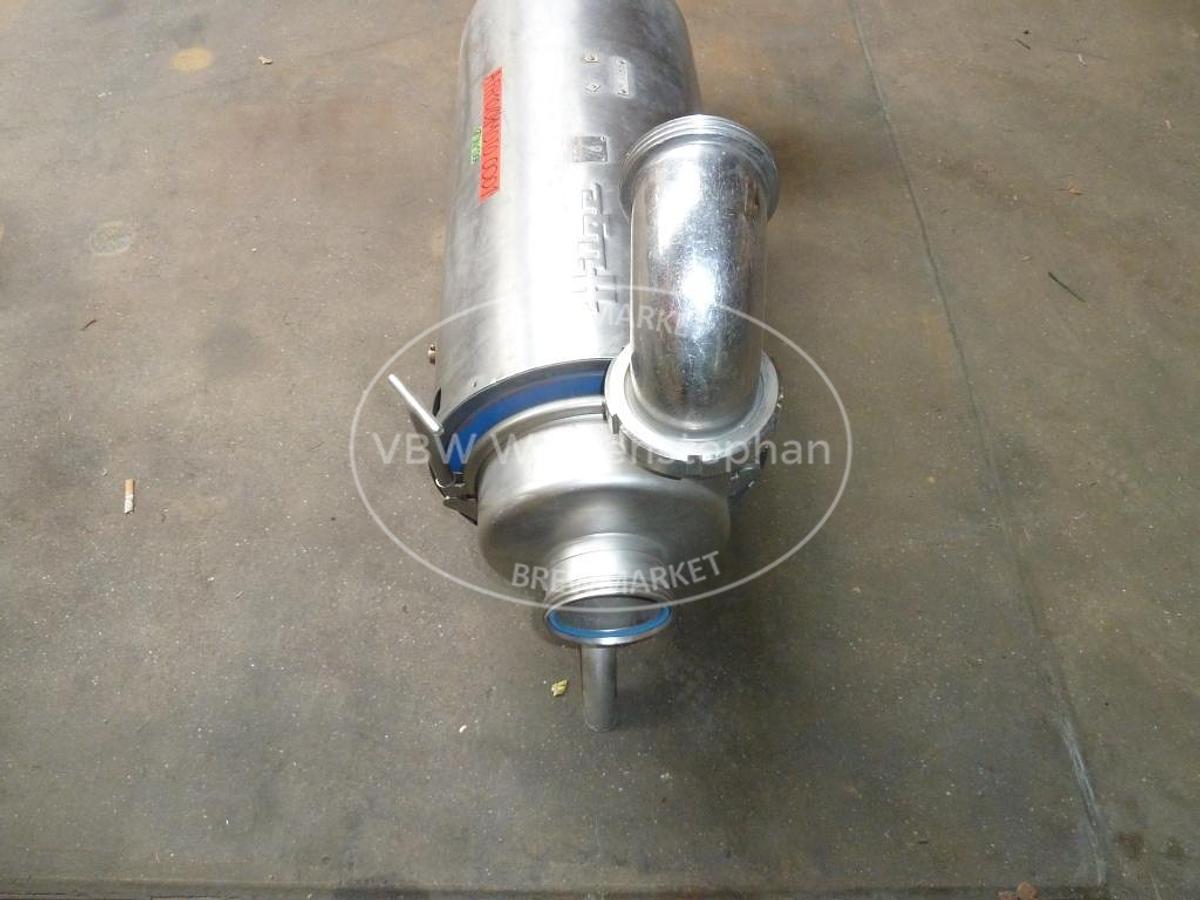

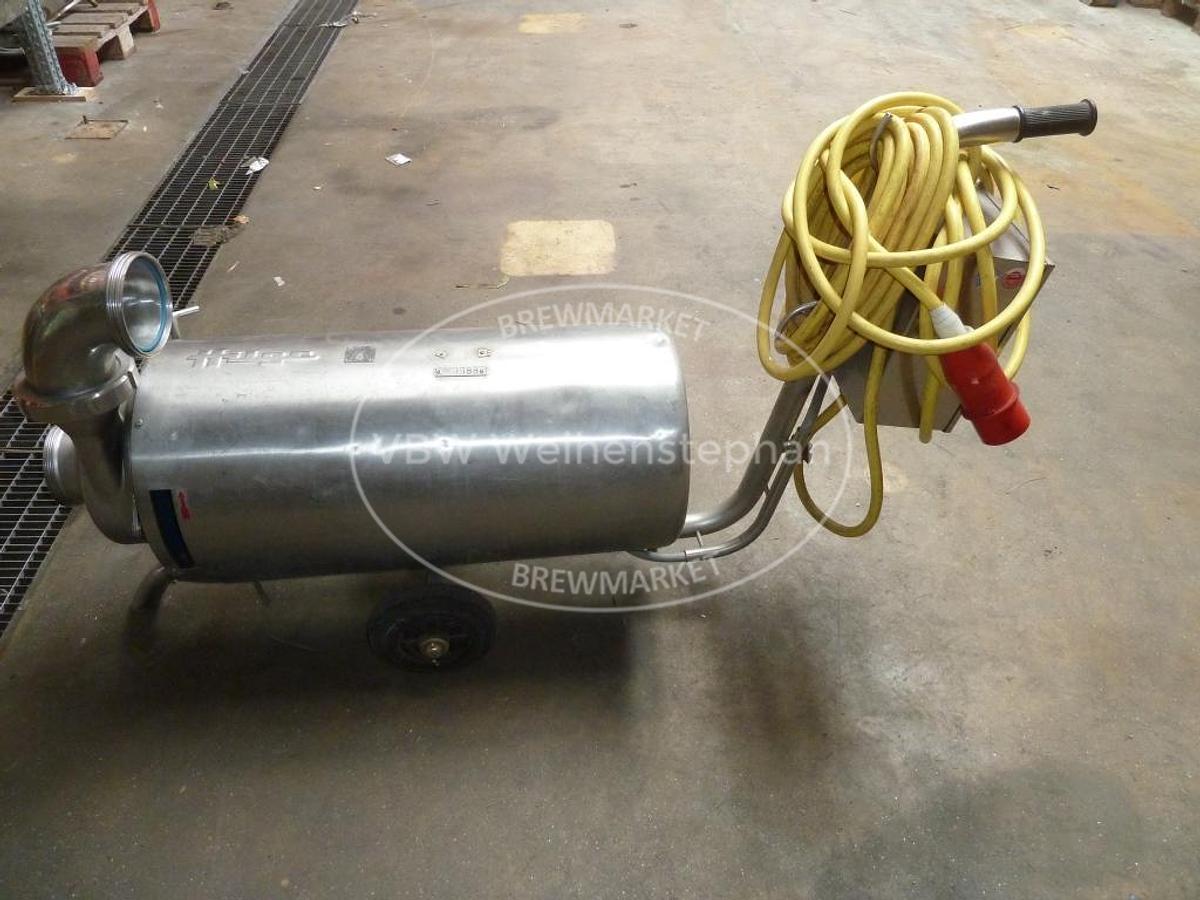

Mobile centrifugal pump, rotary pump
Mobile centrifugal pump, rotary pump
or
Call +49 (0) 8161-48333
Specifications
| Manufacturer | Hilge |
| Condition | Used |
| Artikelnummer | 203233 |
| Additional title | Stainless steel casing |
| Flow rate | 65 m³/h |
| Delivery pressure | 4 bar Delivery Head 40 m |
| RPM | 2900 1/min |
| Power factor | 0 cosφ |
| Power | 15 kW |
| Current | 30,5 / 17,6 A |
| Voltage | 380 V |
| Frequency | 50 Hz |
| Length | 1,47 m |
| Width | 0,4 m |
| Height | 0,87 m |
| Weight | 200 kg |
| Running direction | clockwise |
| Material | stainless steel housing |
| Base construction | mobile, with control cabinet and cable |
| Features | Motor: 1LA 5164-2AA, Nr: 81201911-002 connection: milk tube fitting, inlet DN 100, outlet DN 100 |
