Description

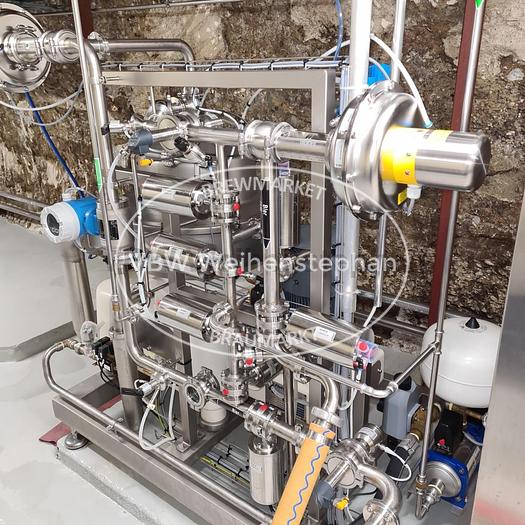

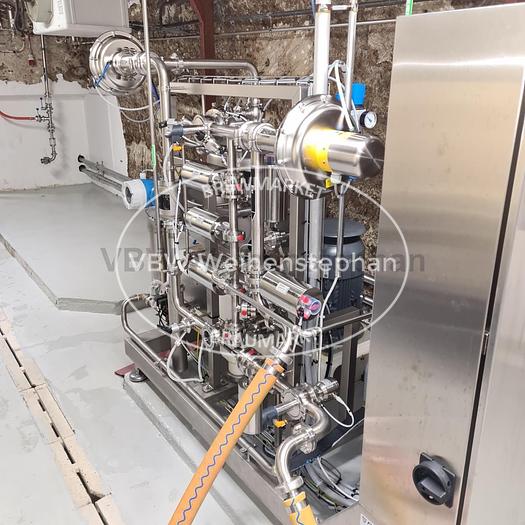

Drum separator, fully automated for biomass separation from fermentation processes. Turbidity adjustment via throughput and drum speed.
Specifications
| Manufacturer | Flottweg |
| Year | 2018 |
| Condition | Used |
| Stock Number | 205876FO |
| Capacity | 70 hl/h |
| Approx. bowl volume | 8 liter |
| Rotation speed | 7800 rpm |
| Min / max working temperature | 90 °C |
| Power | 15 kW |
| Current | 30 A |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Compressed air | 6 - 8 bar control air pressure |
| Length | 1158 mm |
| Width | 901 mm |
| Height | 1272 mm |
| Weight | 1500 kg |

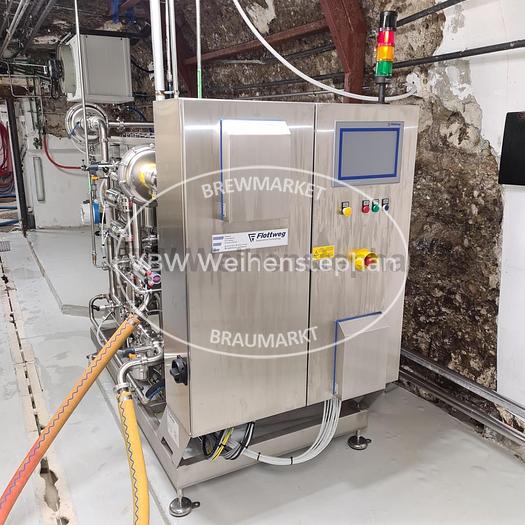

| Operation / Control | via touchpad on control cabinet |
| Material | Bowl AISI 316 stainless steel and SIS 2387 stainless steel, rest AISI 316 stainless steel and 1.4571 stainless corrosion resistant steel |
| Base construction | on frame and 4 dome feet |
| Features | Control cabinet with touchpad, pneumatic control valves, flow-, turbidity- und pressure meters of the machine sections Drive separator bowl, lubrication oil pump for the separator, control water system, solid matter pump |
