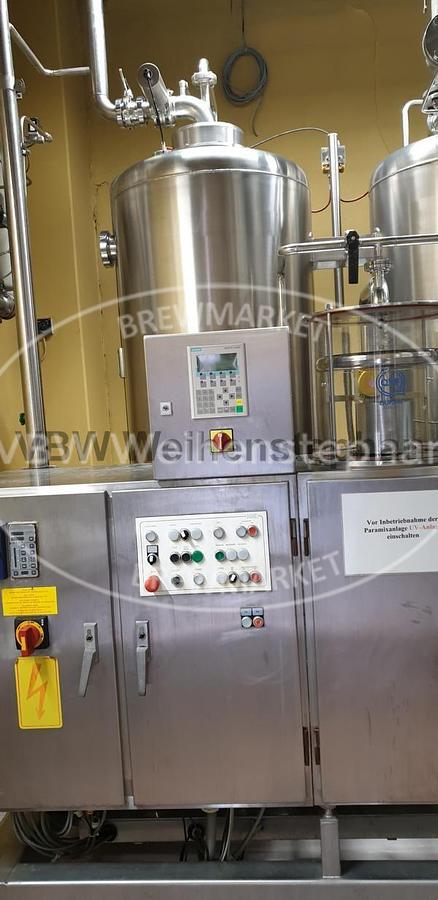

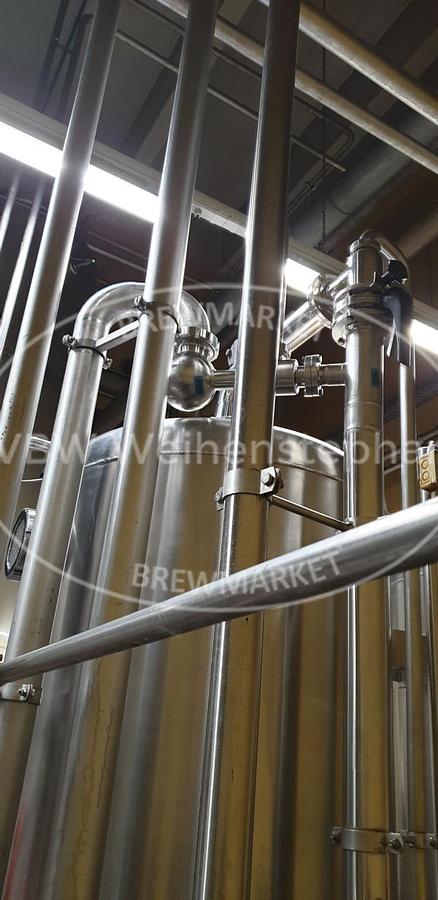

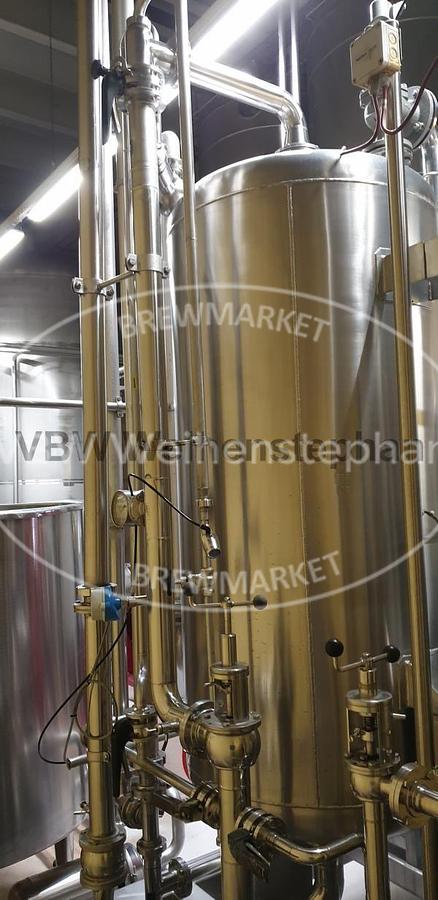

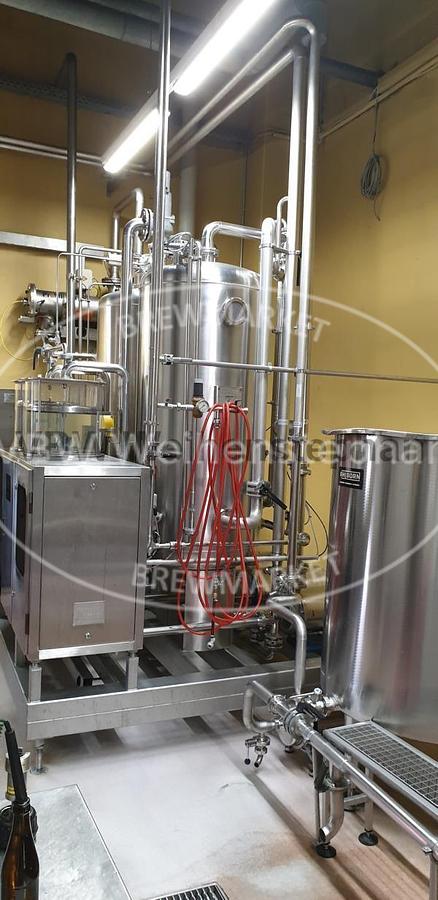

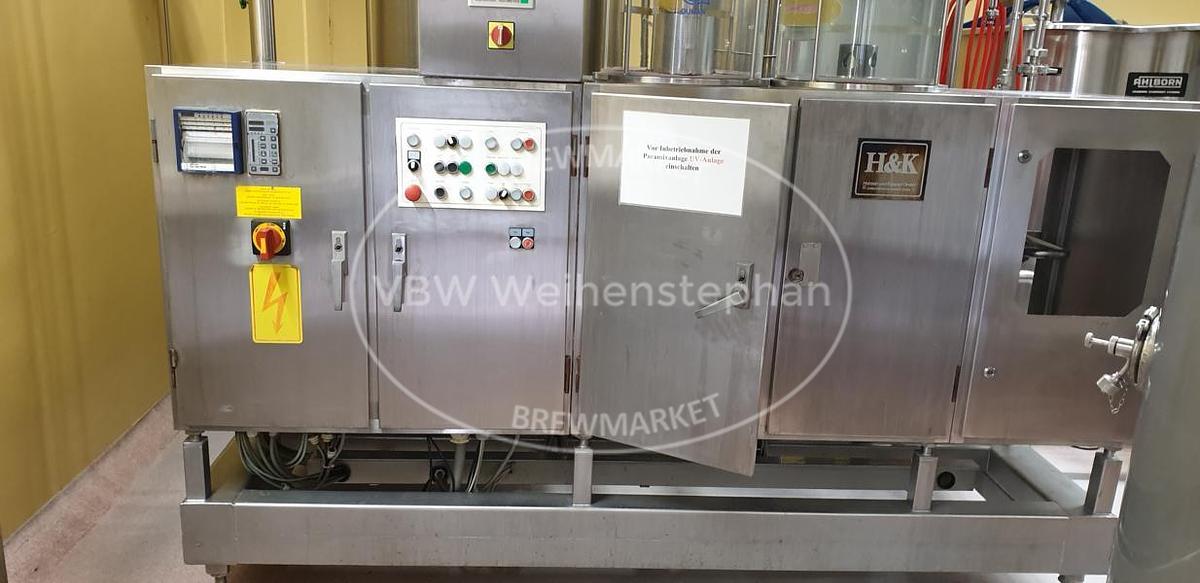

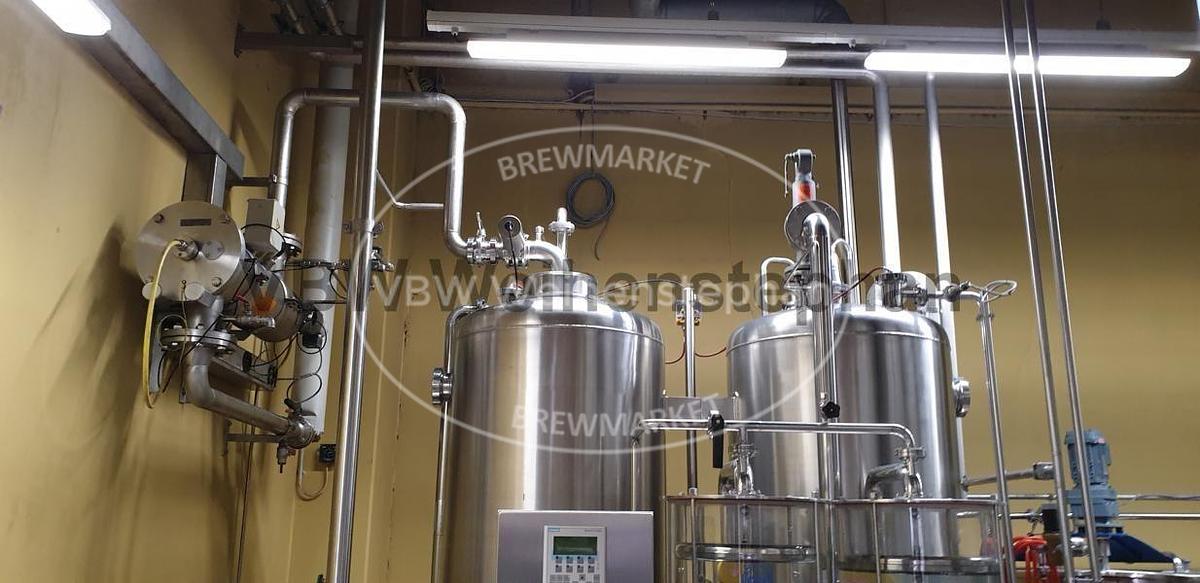

Paramix system with carbonation unit; 2010 (overhauled and modernized)

Description

This PARAMIX system is used to produce high- and low-carbonated beverages. The process comprises the following steps: 1. Degassing of the water, 2. Dosing and mixing of water and syrup, 3. Carbonation of the finished mixture. The system was retrofitted by FAMIX in 2009 and expanded to include the following components: - CO₂ impregnation unit - CO₂ pressure-temperature ratio regulator type BMS7 The regulator, including the control cabinet, is to be completely renewed again when the device is purchased. The system is ideal for the reliable and flexible production of a wide variety of soft drinks. Our team at VBW Asset Trade will be happy to answer your questions. Send us an inquiry or simply give us a call!

Specifications

Manufacturer	Holstein und Kappert
Year	2010
Condition	Used
Stock Number	205396ZM
Additional title	mixing unit 1983 - 2010
Capacity approx.	150 hl/h Mixing and carbonating
Length	2,9 m
Width	2,5 m
Height	2,5 m
Weight	3000 kg
Operation / Control	mixing unit semi automatic, carbonating unit automatic Siemens S7
Material	Stainless steel
Position	Frame mounted

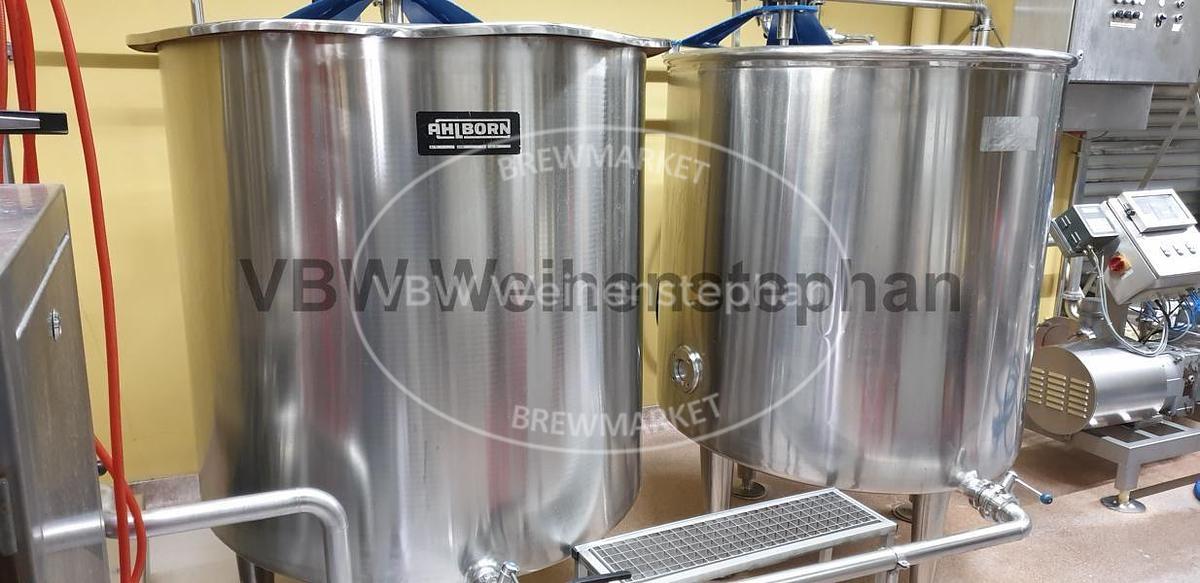

Features	2 pressure vessels (Product und Vacum), each 8,3 hl/ 8 bar, CO2-Pressure-Temperature regulator (FAMIX BMS7), Carbonising unit (FAMIX) Capacity 13000 l/h, PT 100, Pressure sensor, Pressure relief valve, CIP connection, control cabinet, HMI (Siemens), 2 mixing vessels with flap and agitator (Ahlborn, approx. 15 hl per vessel)
