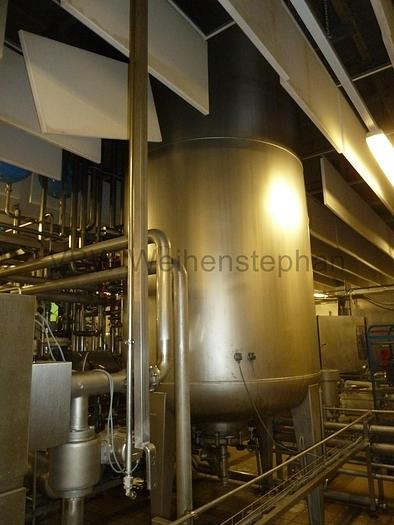

pressure tank / vertical / torospherical head
pressure tank / vertical / torospherical head
orCall +49 (0) 8161-48333
Specifications
| Manufacturer | Hinke Tankbau |
| Year | 1992 |
| Condition | Used |
| Stock Number | 201022-1 |
| Additional title | Buffer tank |
| Capacity | 130 hl |
| Working pressure | 5 bar |
| Width | approx. 1.930 mm |
| Height | approx. 5.725 mm |
| Weight | 1850 kg |
| Material | stainless steel |
| Position | vertical |
| Base construction | torospherical head, 4 feets |
| Features | Cone manhole DN500 with ROS flange DN80 (outlet), ROS flange DN80 (inlet, lower frame), 2 weld-on nozzles DN65 (cover), 2 DN50 (cover, bottom), 2 weld-on rings for PT100 (frame), 2 sleeves 1 / 2 "(cover, outlet), |
| Periphery | After consultation, we can equip the tank with the desired fittings. |
