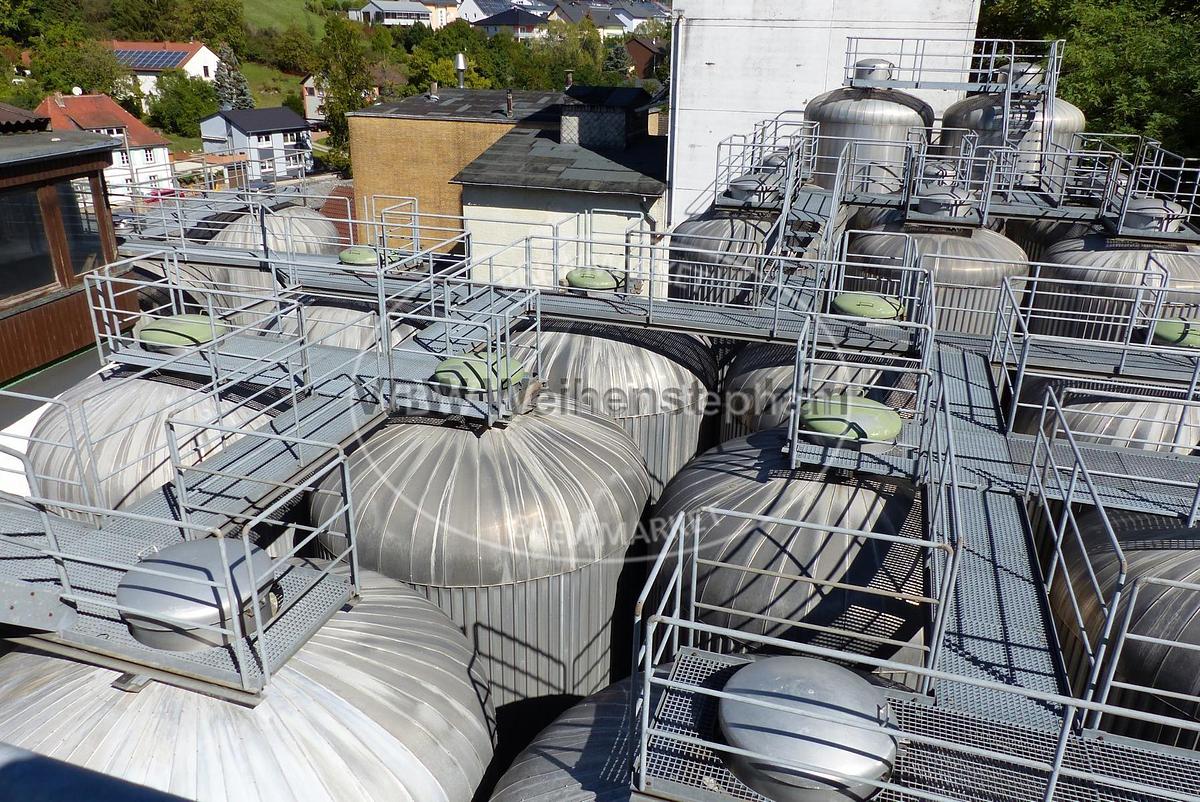

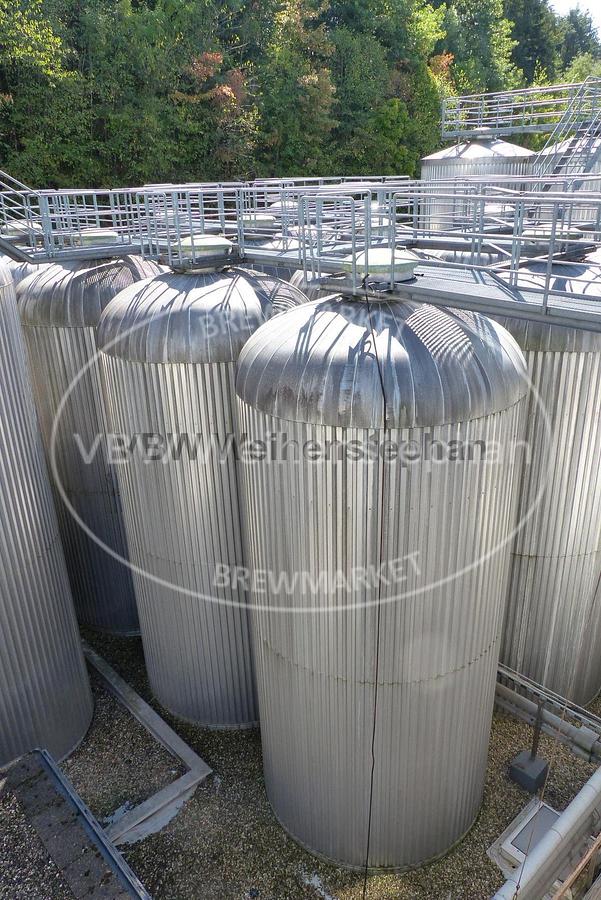

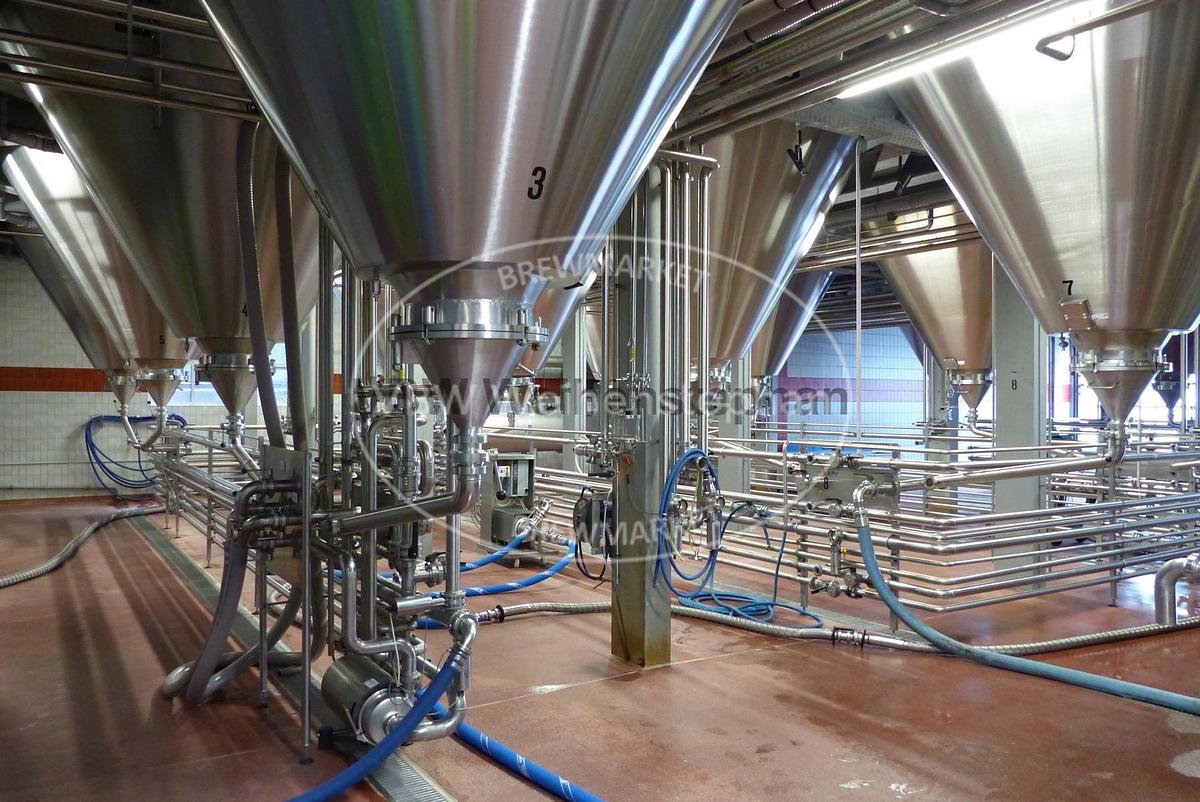

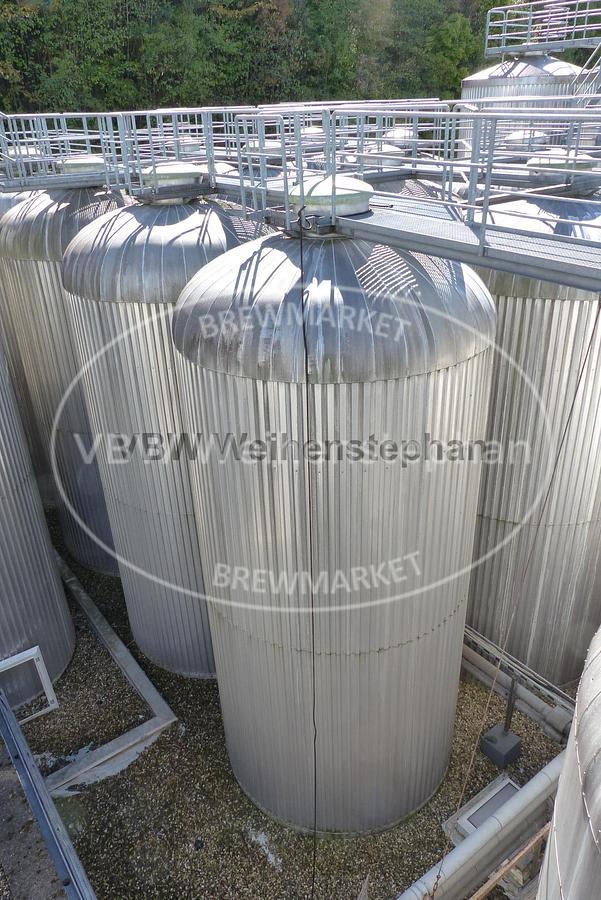

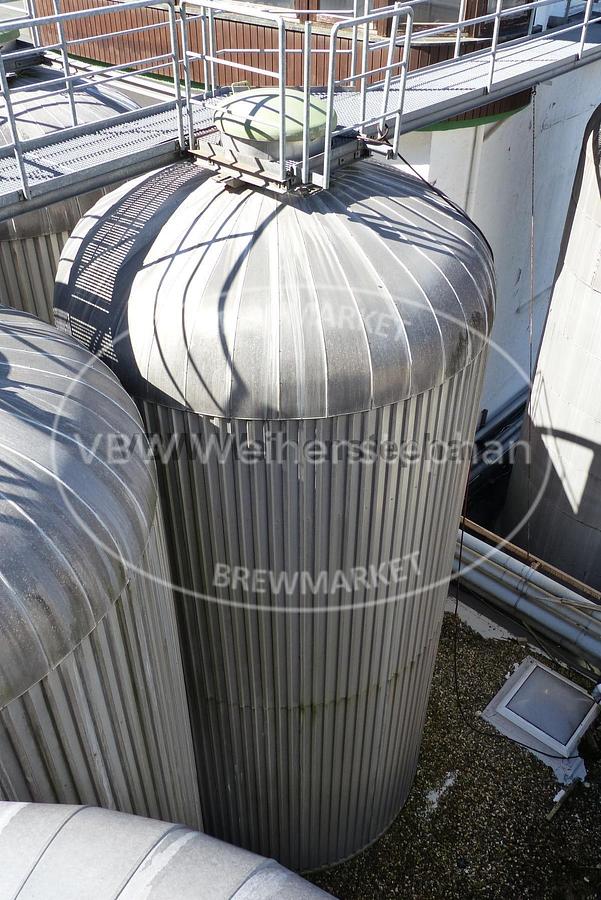

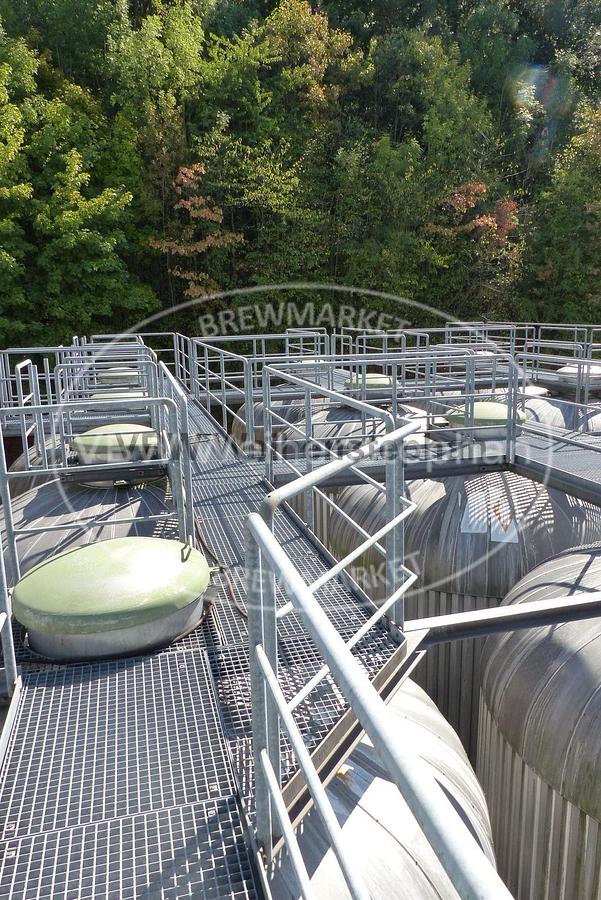

Cylindro-conical fermentation and storage tank (CCTs, 6 tanks)

Cylindro-conical fermentation and storage tank (CCTs, 6 tanks)

or
Call +49 (0) 8161-48333

Description

Cylindroconical fermentation and storage tank - Ammonia or glycol cooled, 1 x cone cooling, 3 x frame cooling. - Swivelling cone - Stainless steel - insulated - Standing frame, short - Cleaning air fitting with safety valve - Vacuum valve 6 tanks, also available individually or in partial quantities.
Show All

Specifications

ManufacturerGROSS Behälterbau GmbH
Year1988
ConditionUsed
Stock Number208051QK-1
Additional titleOutdoor tank for storing fluids
Capacity964 hl
Operating pressure2 bar
Lengthapprox. 12400 mm
Widthapprox. 3950 mm
Heightapprox. 3950 mm
Weight6220 kg
MaterialStainless steel 1.4301
Positionvertical
Base constructionshort supporting skirt
FeaturesCooling: 1 x cone cooling jacket, 3 x side wall cooling jacket; swivel cone; insulation; dearation and cleaning combination; safety valve; vacuum valve; temperature measurement
