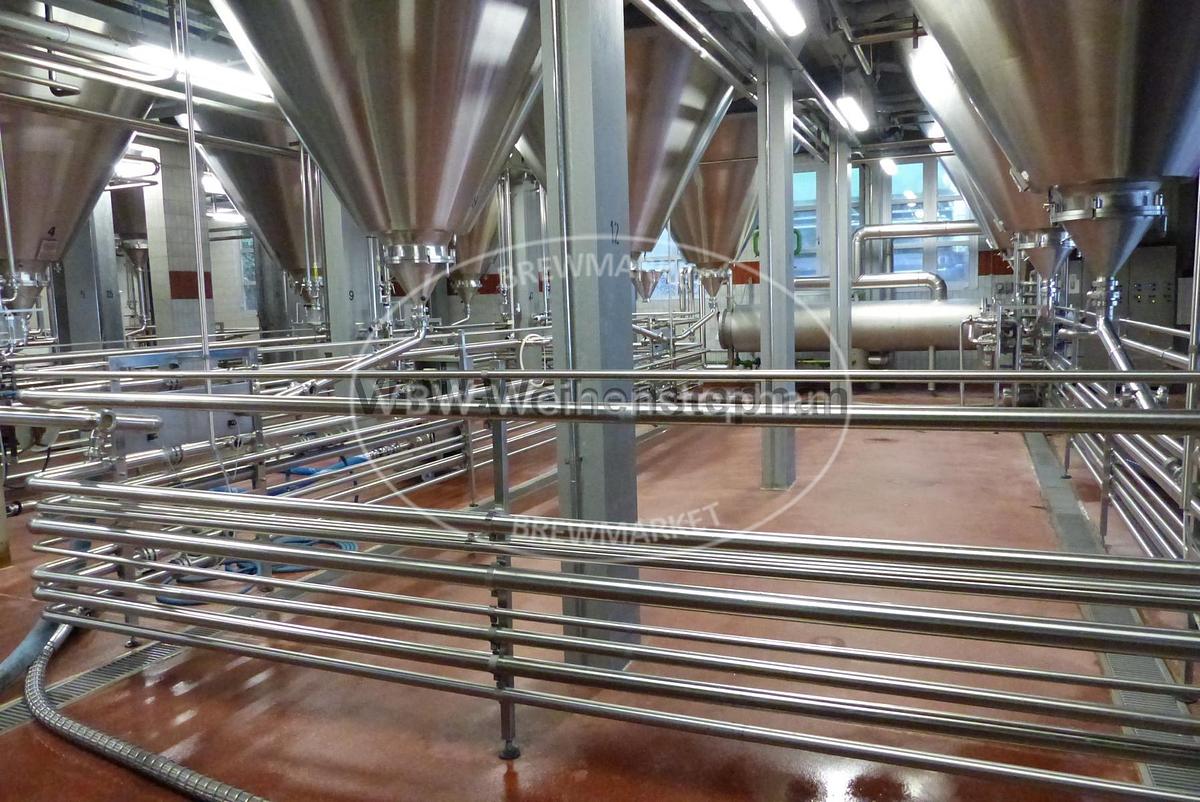

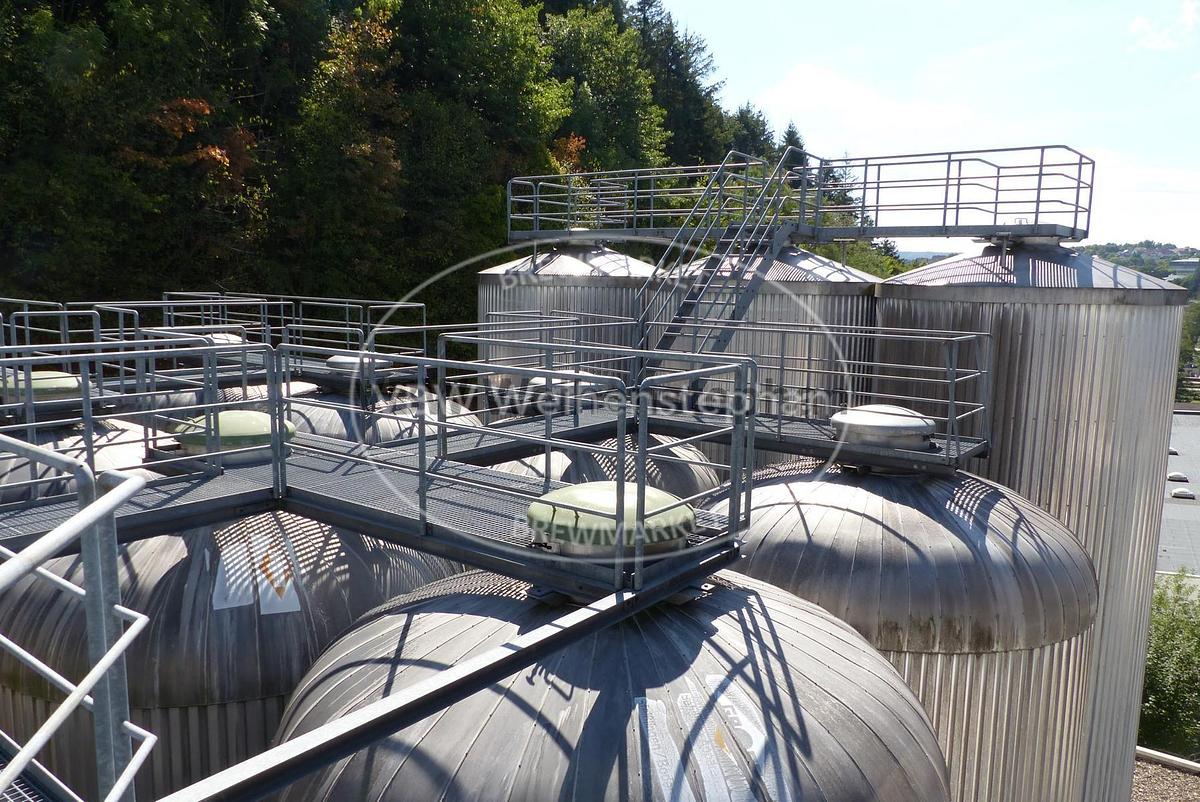

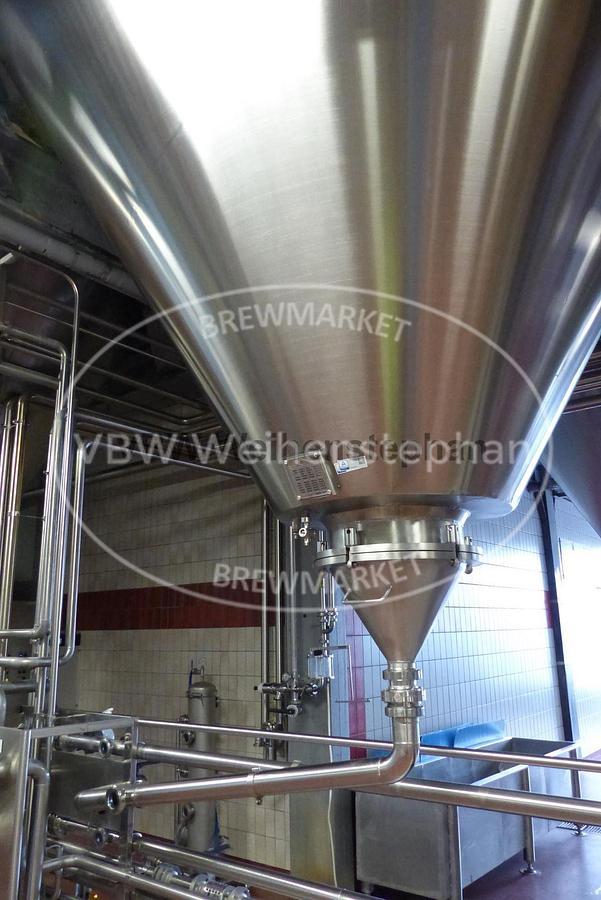

Cylindro-conical fermentation and storage tank (CCT)
Cylindro-conical fermentation and storage tank (CCT)
or
Call +49 (0) 8161-48333
Description
Cylindroconical fermentation and storage tank
- Ammonia or glycol cooled, 1 x cone cooling, 3 x frame cooling.
- Swivelling cone
- Stainless steel
- insulated
- Standing frame, short
- Cleaning air fitting with safety valve
- Vacuum valve
Specifications
| Manufacturer | GROSS Behälterbau GmbH |
| Year | 1991 |
| Condition | Used |
| Stock Number | 208052QK-1 |
| Additional title | Outdoor tank for storing fluids |
| Capacity | 964 hl |
| Operating pressure | 2 bar |
| Length | approx. 12400 mm |
| Width | approx. 3950 mm |
| Height | approx. 3950 mm |
| Weight | 6220 kg |
| Material | Stainless steel 1.4301 |
| Position | vertical |
| Base construction | short supporting skirt |
| Features | Cooling: 1 x cone cooling jacket, 3 x side wall cooling jacket; swivel cone; insulation; dearation and cleaning combination with safety valve; vacuum valve; temperature measurement |
