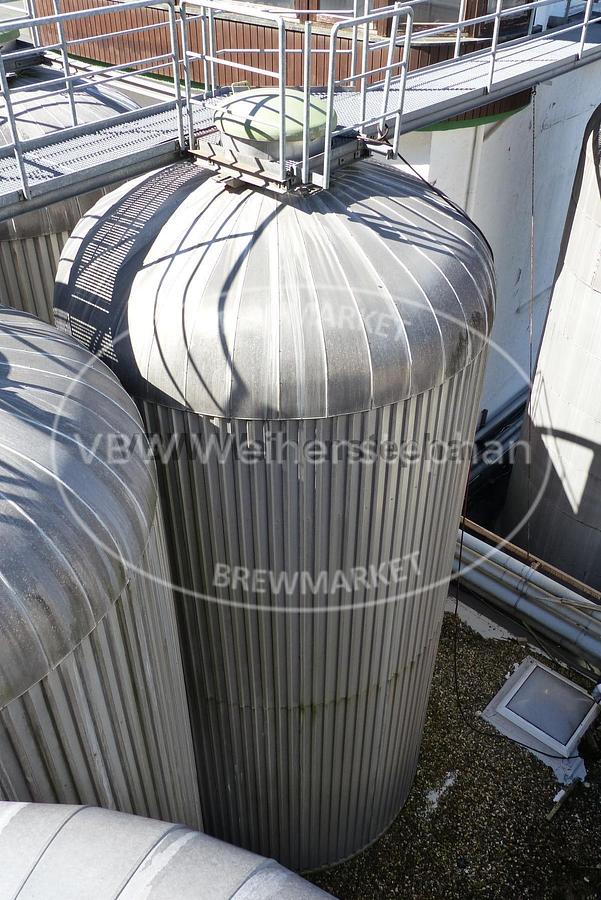

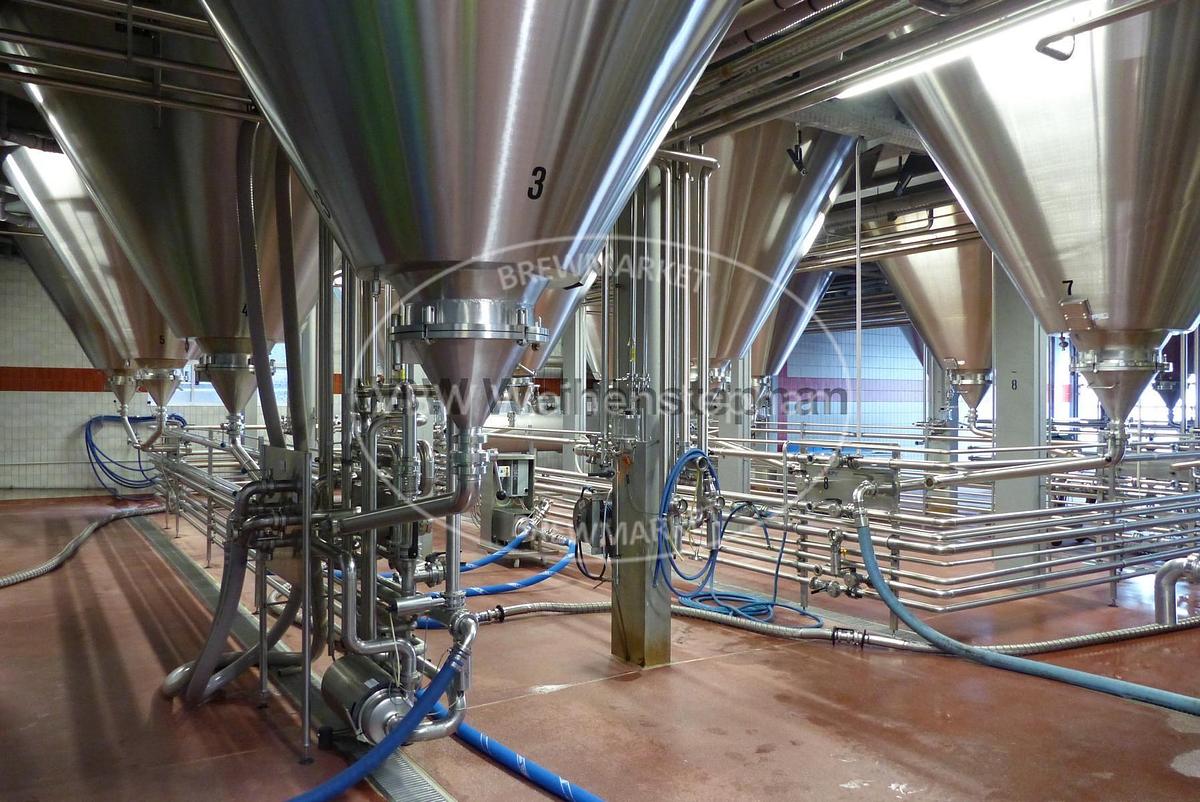

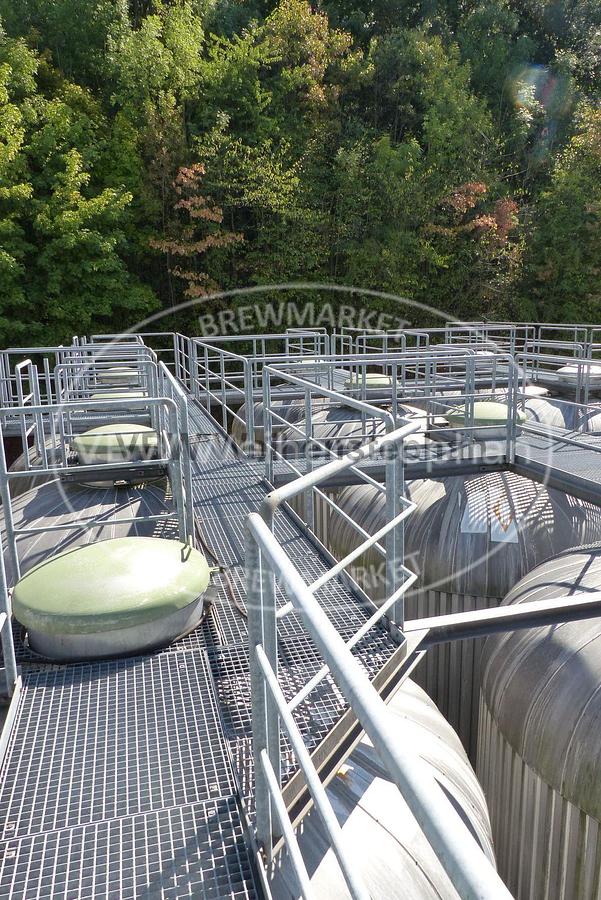

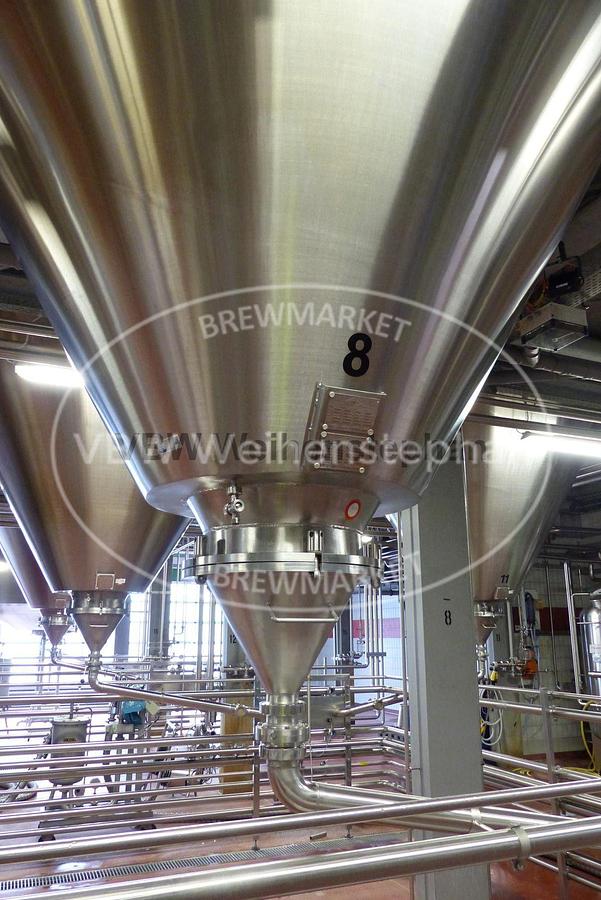

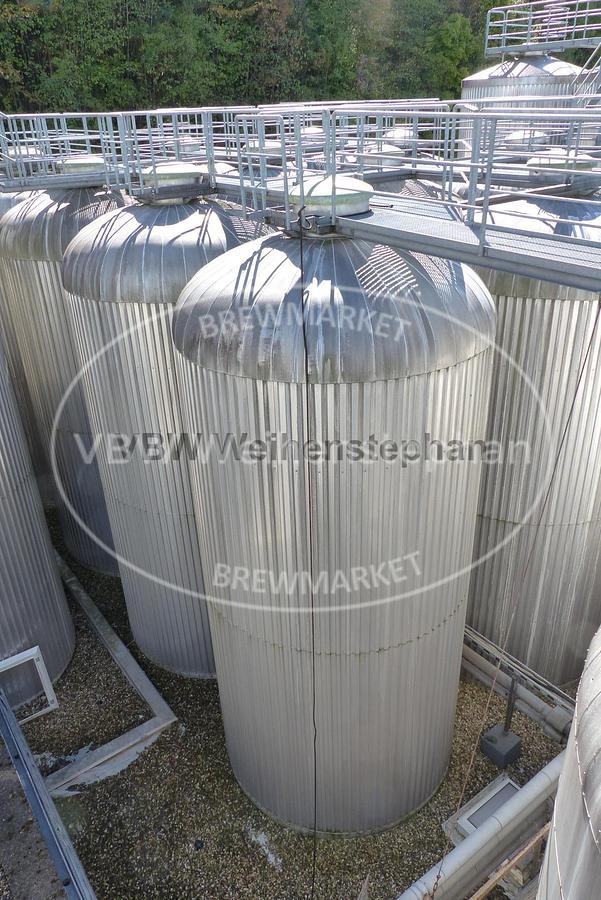

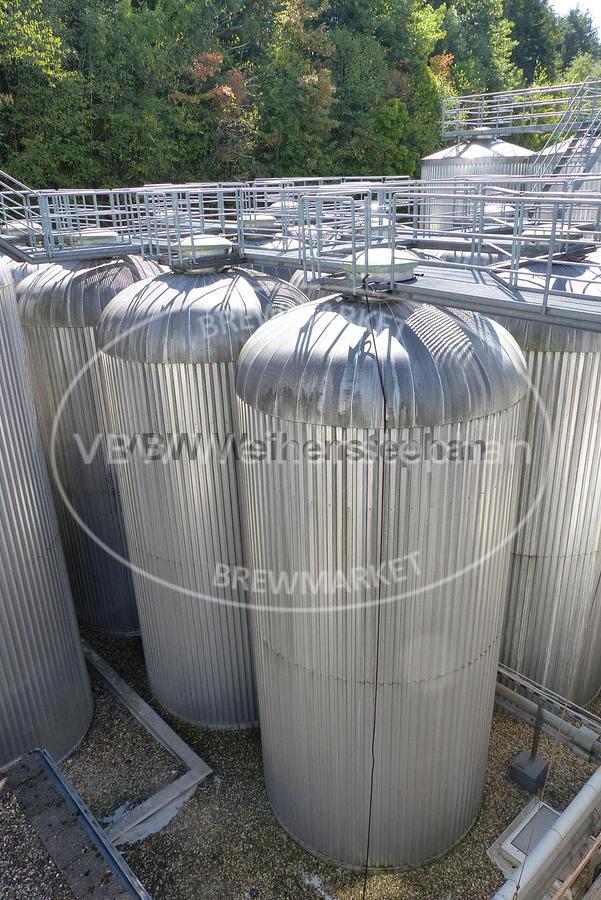

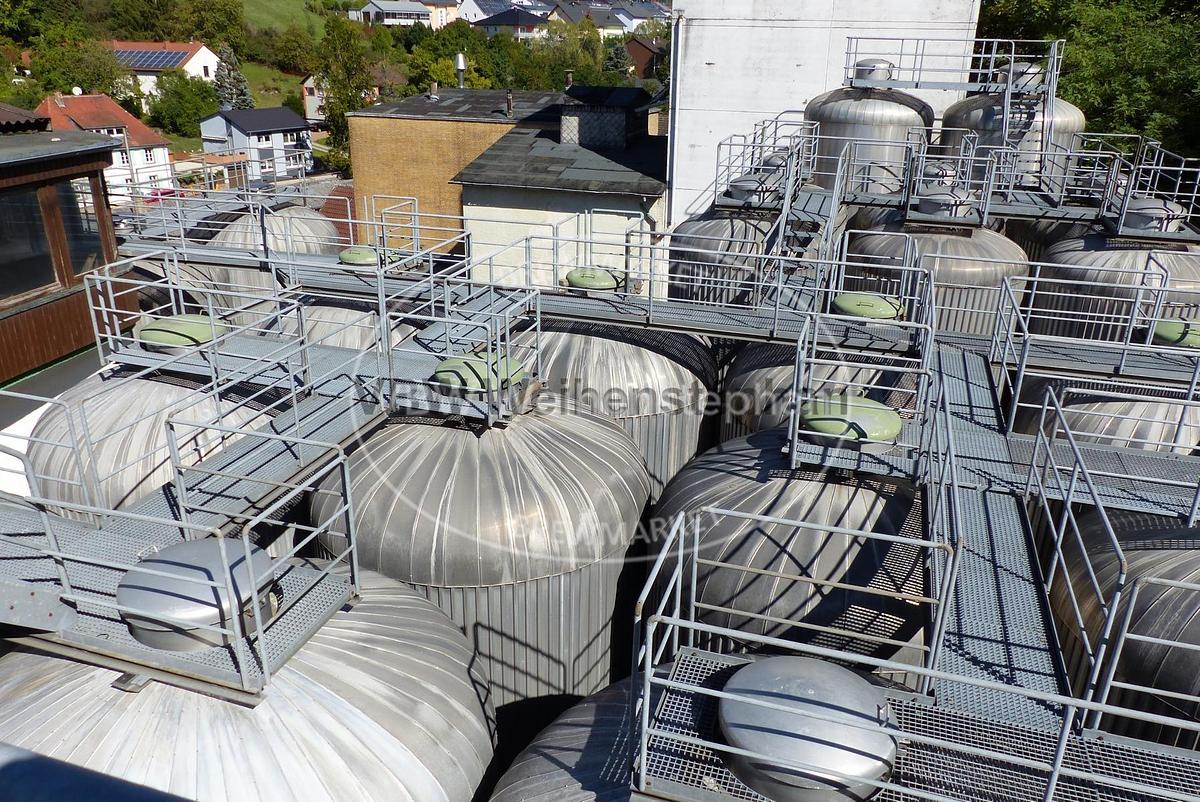

Cylindro-conical fermentation and storage tanks (CCT, 2 pcs. remaining)
Cylindro-conical fermentation and storage tanks (CCT, 2 pcs. remaining)
or
Call +49 (0) 8161-48333
Description
Cylindroconical 965 hl fermentation and storage tank
- designed for cooling with ammonia (can also be cooled with glycol), 1 x cone cooling, 3 x frame cooling
- Swivel cone
- stainless steel
- insulated
- Stand frame, short
- Cleaning air fitting with safety valve
- Vacuum valve
5 tanks, also available individually or in partial quantities.
Specifications
| Manufacturer | GROSS Behälterbau GmbH |
| Year | 1988 |
| Condition | Used |
| Stock Number | 208218QK |
| Additional title | Outdoor tanks for storing fluids; years of manufacture 1988 - 1991 |
| Capacity | 96450 l |
| Operating pressure | 2 bar |
| Length | approx. 12400 mm |
| Width | approx. 3950 mm |
| Height | approx. 3950 mm |
| Weight | 6220 kg |
| Material | Stainless steel 1.4301 |
| Position | vertical |
| Base construction | short supporting skirt |
| Features | 7 tanks; Cooling: 1 x cone cooling jacket, 3 x side wall cooling jacket; swivel cone; insulation; dearation and cleaning combination; safety valve; vacuum valve; temperature measurement |
