Cylindro-conical fermentation and storage tanks (CCT)
No longer available
Cylindro-conical fermentation and storage tanks (CCT)
Description

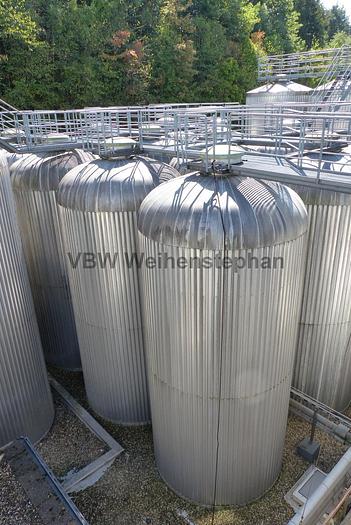

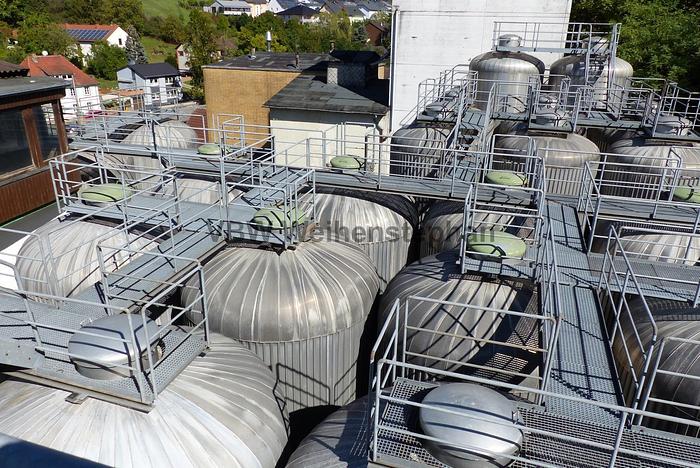

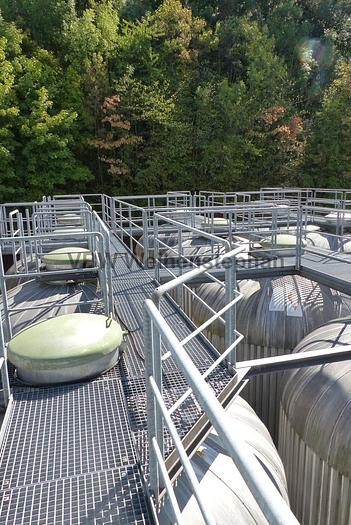

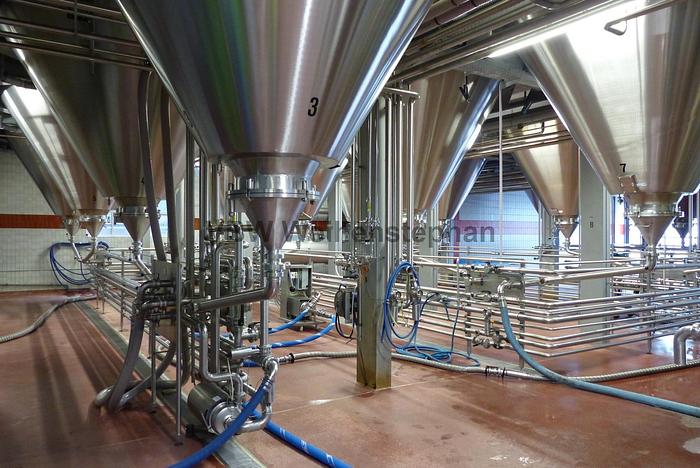

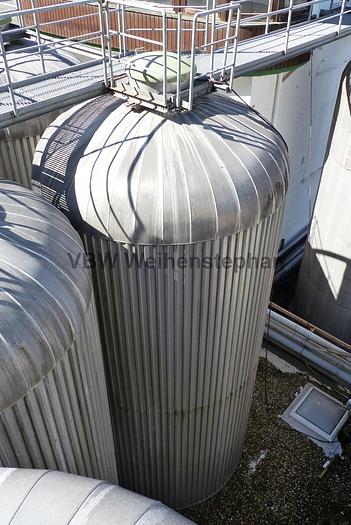

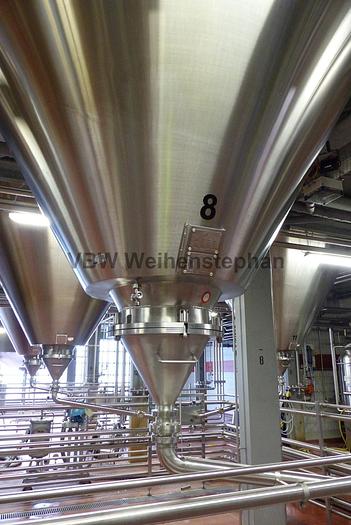

Cylindro-conical 965 hl fermentation and storage tank.
- coolable, 1 x cone cooling jacket, 3 x side wall cooling jacket
- swivel cone
- stainless steel
- insulated
- short supporting skirt
- deaeration and cleaning combination with safety valve
- vacuum valve
12 tanks, also available individually or in partial quantities.
Specifications
| Manufacturer | GROSS Behälterbau GmbH |
| Year | 1988 |
| Condition | Used |
| Stock Number | 208218QK-4 |
| Additional title | Outdoor tanks for storing fluids; years of manufacture 1988-1991 |
| Capacity | 964 hl |
| Operating pressure | 2 bar |
| Length | approx. 12400 mm |
| Width | approx. 3950 mm |
| Height | approx. 3950 mm |
| Weight | 6220 kg |
| Material | Stainless steel 1.4301 |
| Position | vertical |
| Base construction | short supporting skirt |
| Features | 12 tanks; Cooling: 1 x cone cooling jacket, 3 x side wall cooling jacket; swivel cone; insulation; dearation and cleaning combination; safety valve; vacuum valve; temperature measurement |
