Description

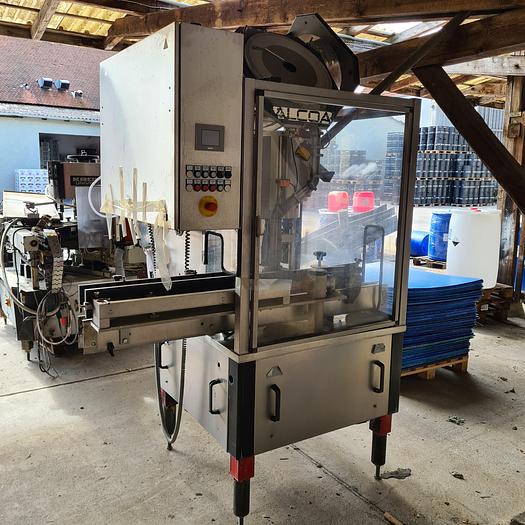

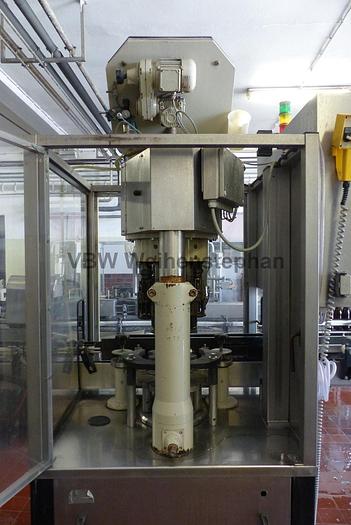

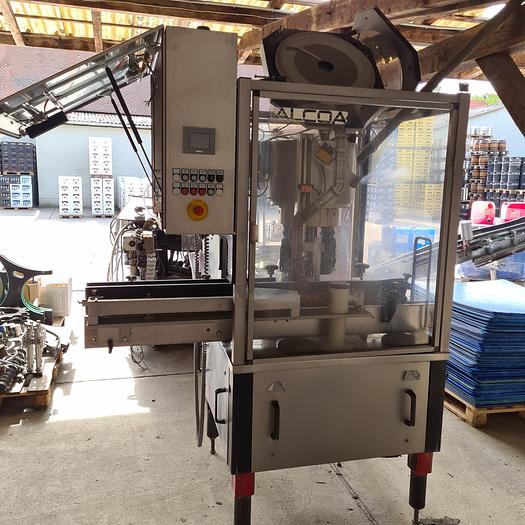

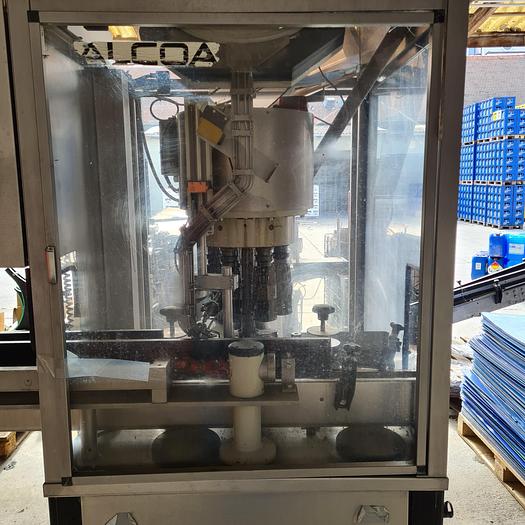

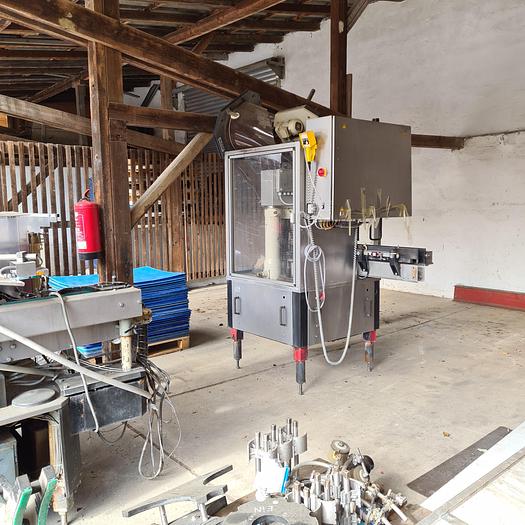

The Alcoa capping machine is designed to cap bottles and jars with aluminum screw-caps.

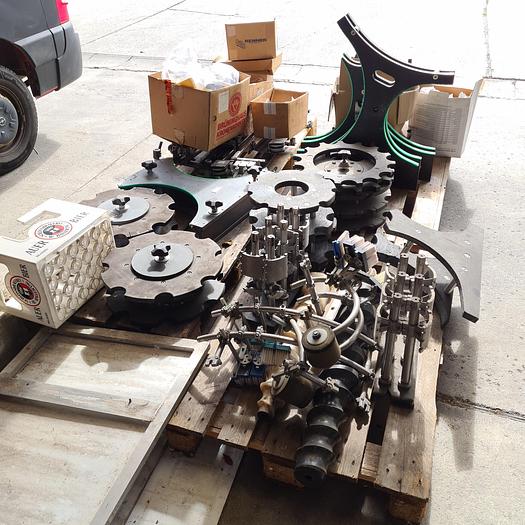

The bottles are fed from the filler, via various bottle cogs, to the upper part of the capper.
Specifications
| Manufacturer | Alcoa |
| Year | 1996 |
| Condition | Used |
| Stock Number | 207121QK-1 |
| Capacity | 18000 bph |
| Bottle diameter | 115 mm |
| Bottle height | 360 mm |

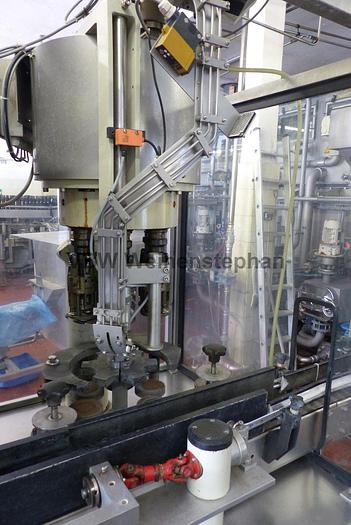

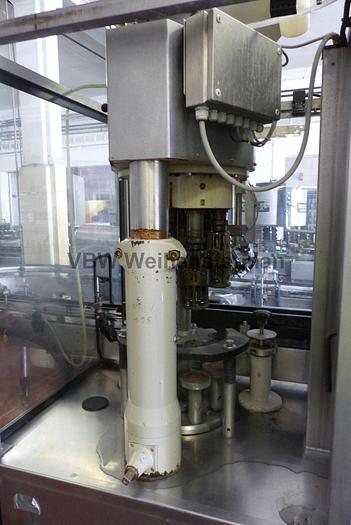

| Capping heads | 6 pc. Type VK-138 |
| Power | 3,25 kW |
| Current | 230/400 V |
| Voltage | 12 A |
| Frequency | 50 Hz |
| Compressed air | approx. 4 Nm3/h; 6 bar |
| Length | 1065 mm |
| Width | 1065 mm |
| Height | 1710 mm |
| Weight | 1850 kg |
| Formats | Cap type: ALU-Star 28 mm; 0,5 l Euro screw; 0,5 l NRW screw |

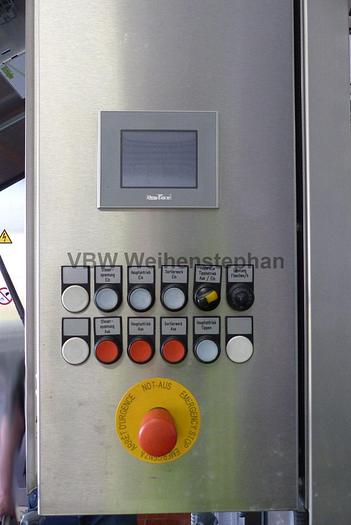

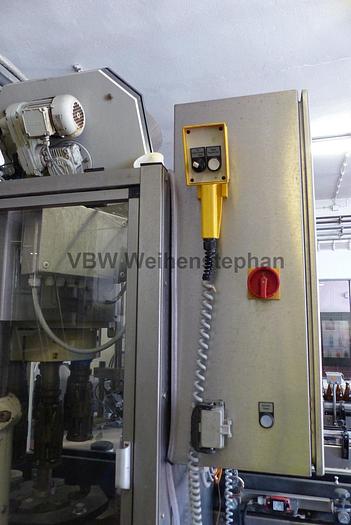

| Operation / Control | Electric cabinet with operating buttons / SPS S7-300 |
| Base construction | Frame with height-adjustable feet |

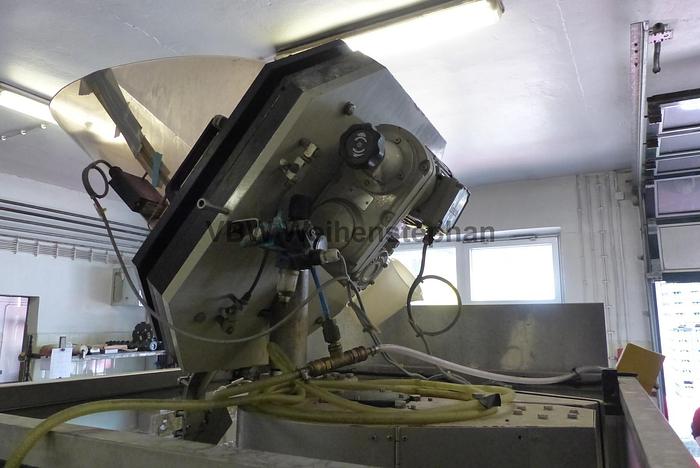

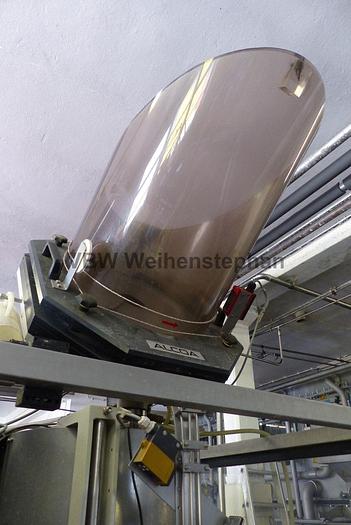

| Features | Cap hopper |
