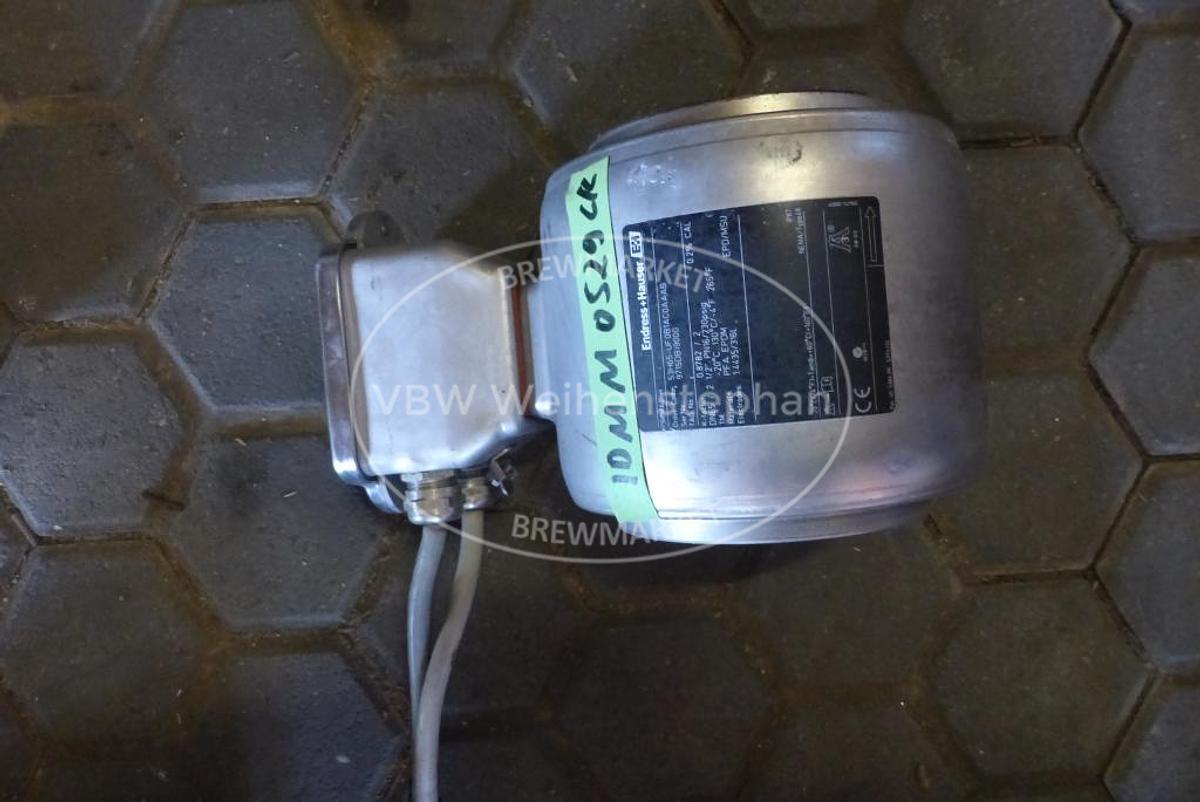

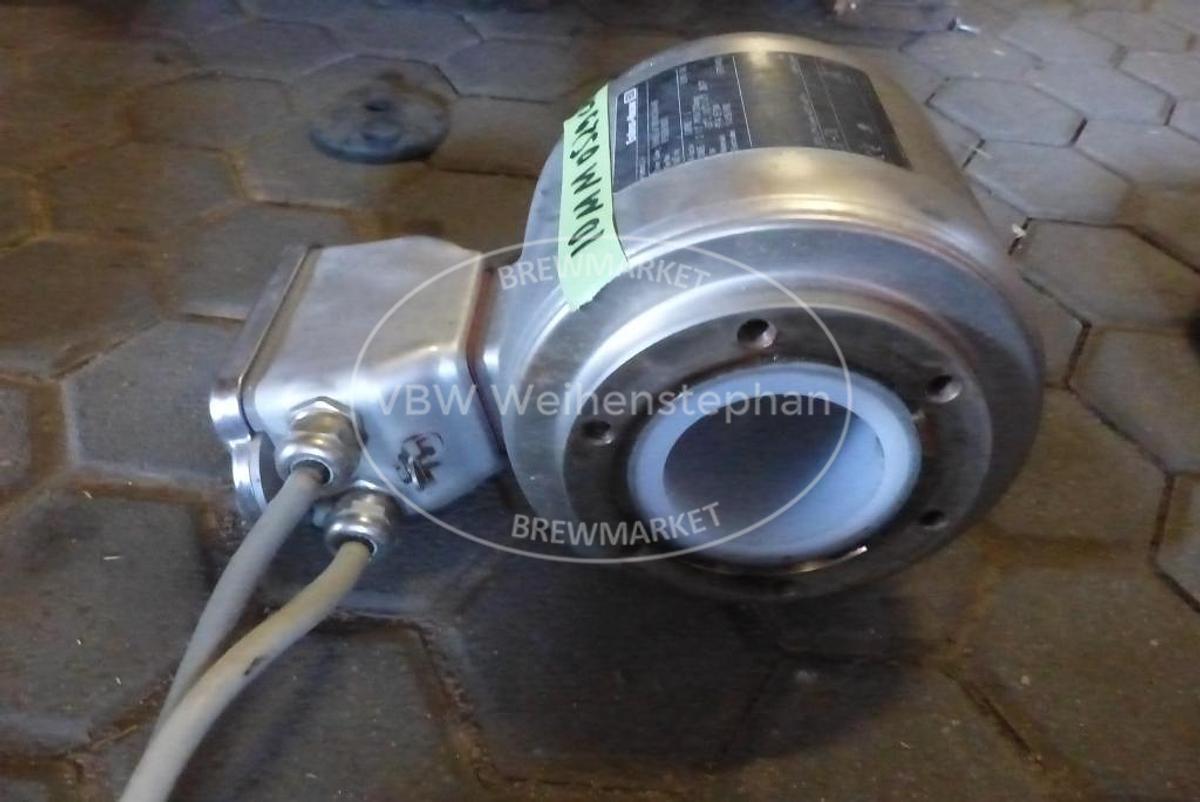

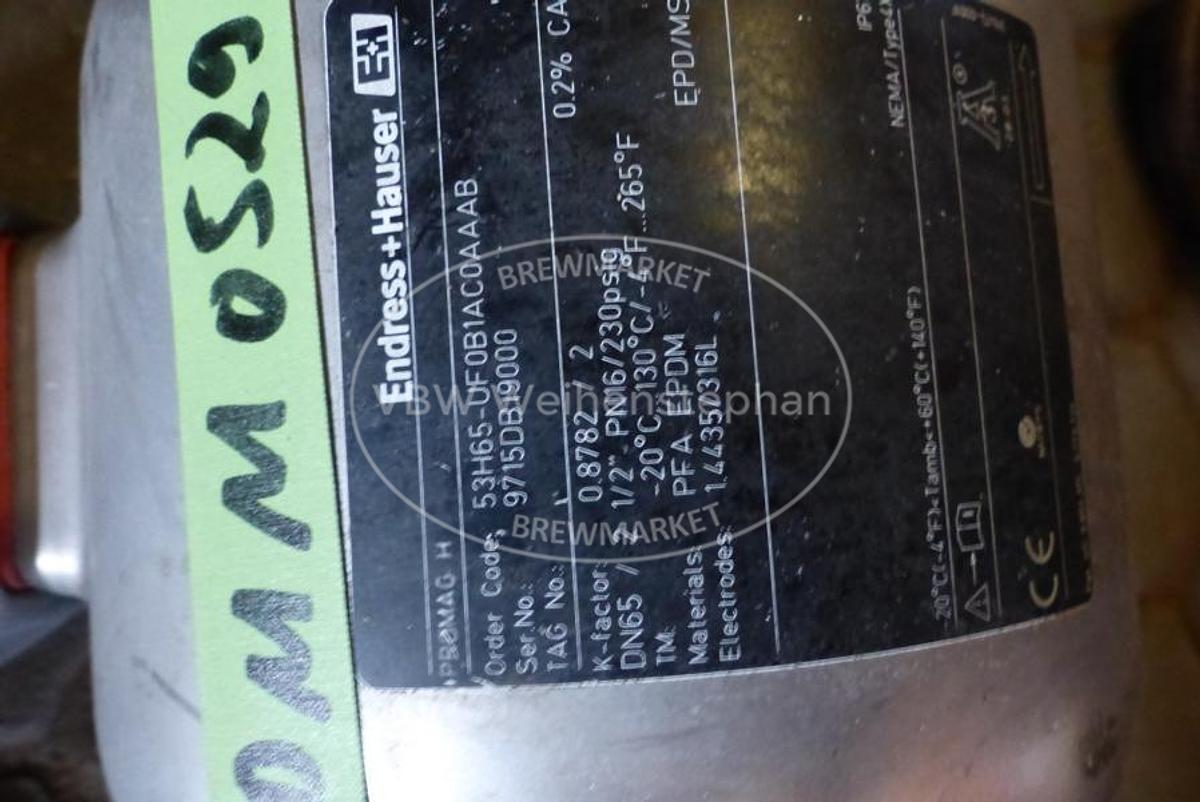

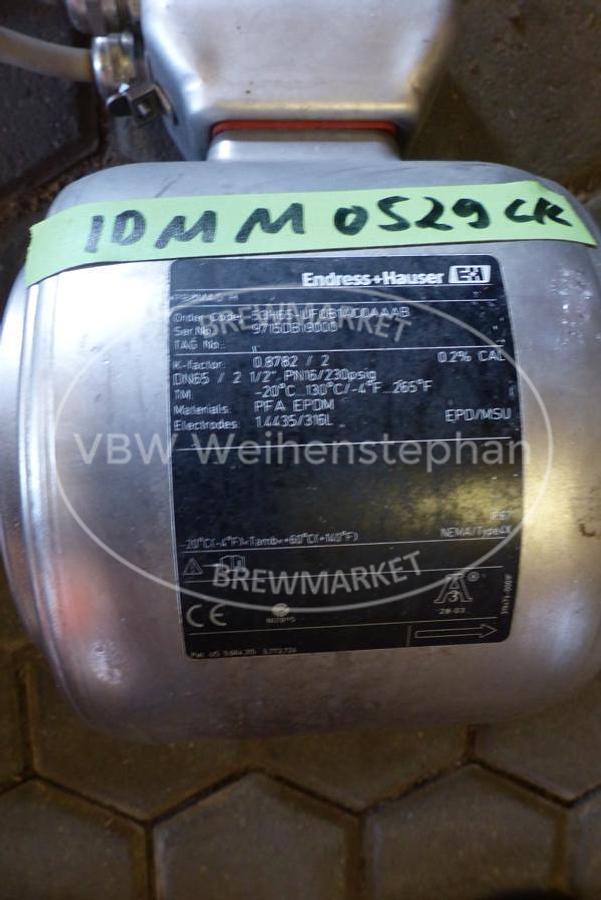

flow meter
flow meter
or
Call +49 (0) 8161-48333
Description
Application area (monitor flow).
Promag 53H: magnetic-inductive
all liquids with a minimum conductivity of ≥ 5 μS / cm (50 / 53H / 55H), demineralized water ≥ 20 μS / cm, 5 μS / cm (55H) or ≥ 50 μS / cm (10H) can be measured:
- drinks, e.g. Fruit juice, beer, wine
- Dairy products, fruit mixtures up to 30 l weight% (55H)
- salt solutions
- acids, alkalis, etc.
- Pulsating media streams
This flow meter is available in the following sizes: DN65. Please indicate the desired flowmeter size.
Specifications
| Manufacturer | Endress+Hauser |
| Condition | Used |
| Stock Number | 204288CK |
| Max. flow | 2000 l/min |
| Temperature range | 150 °C |
| Frequency | 50/60 Hz |
| Operation / Control | setting, software function: factory setting / basic version / on-site operation with three optical sensor keys |
| Material | housing: wall aluminum, IP67 NEMA4X |
| Base construction | measuring principle: magnetic-inductive |
| Features | process connection: welding socket DIN11850, 1.4404/316L |
