Storage tank (4 pcs.)
Storage tank (4 pcs.)
or
Call +49 (0) 8161-48333
Description

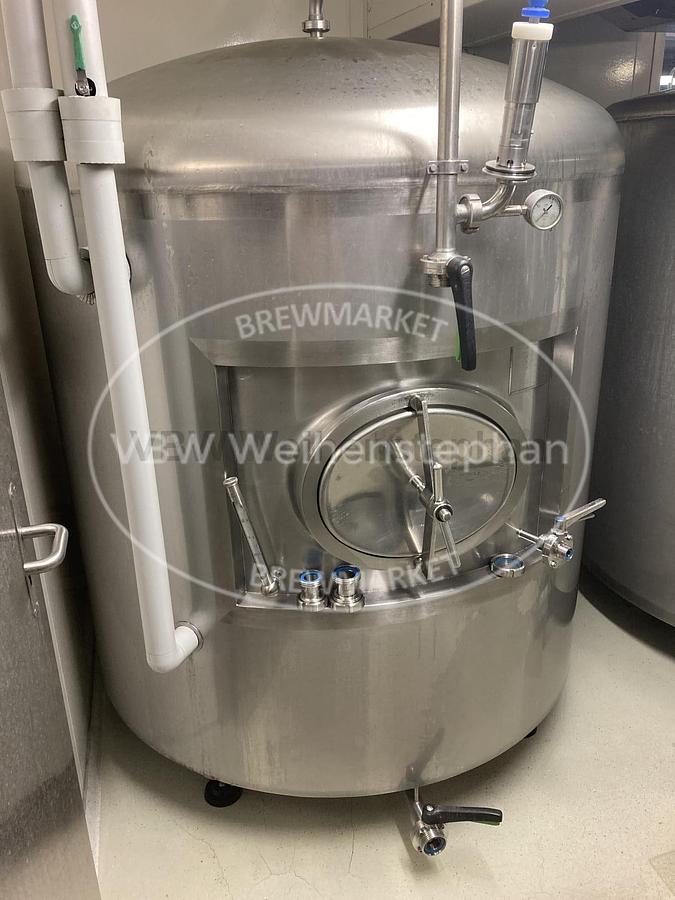

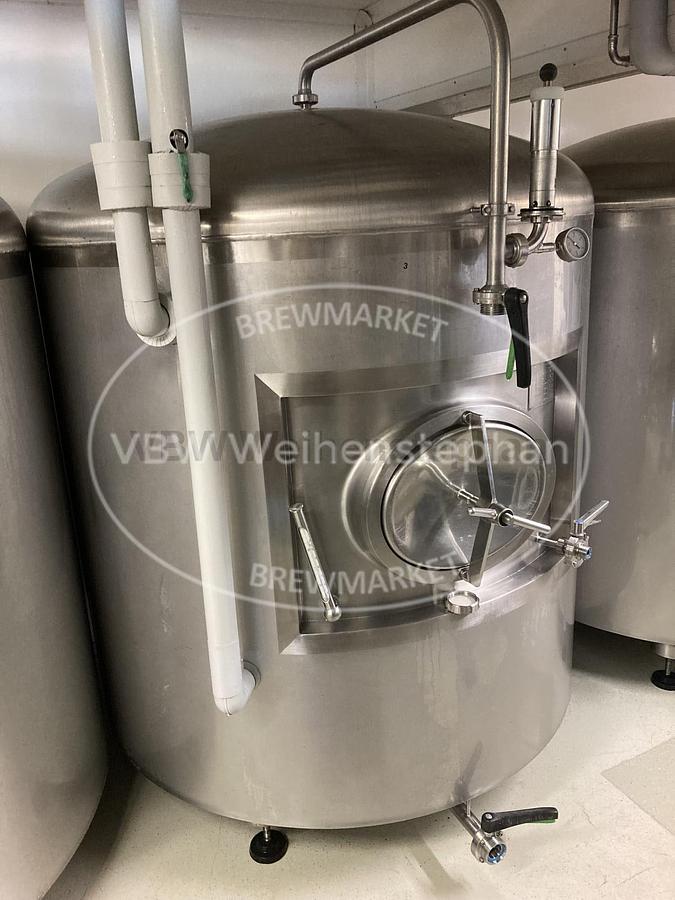

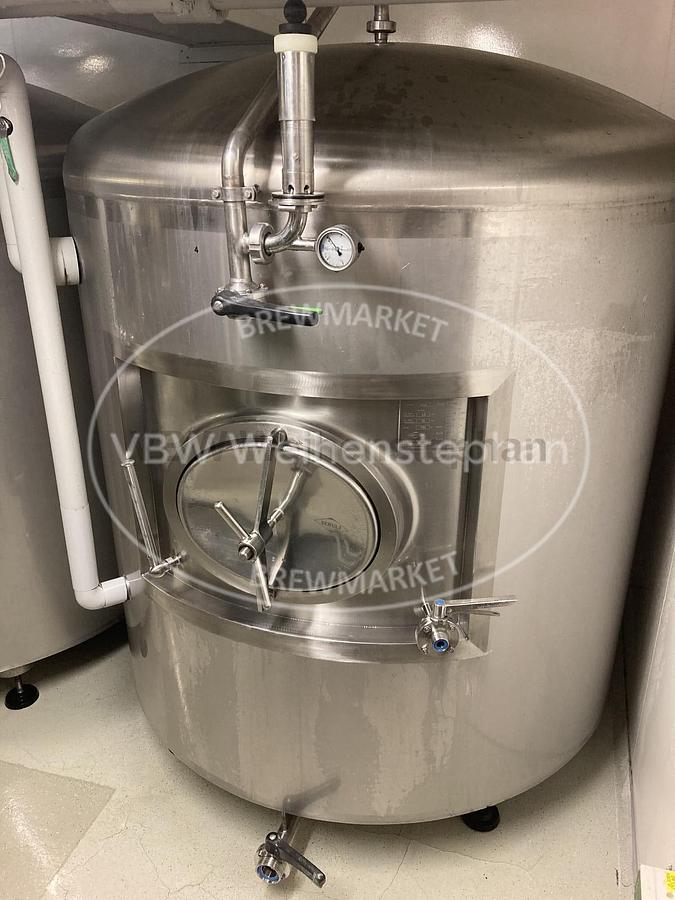

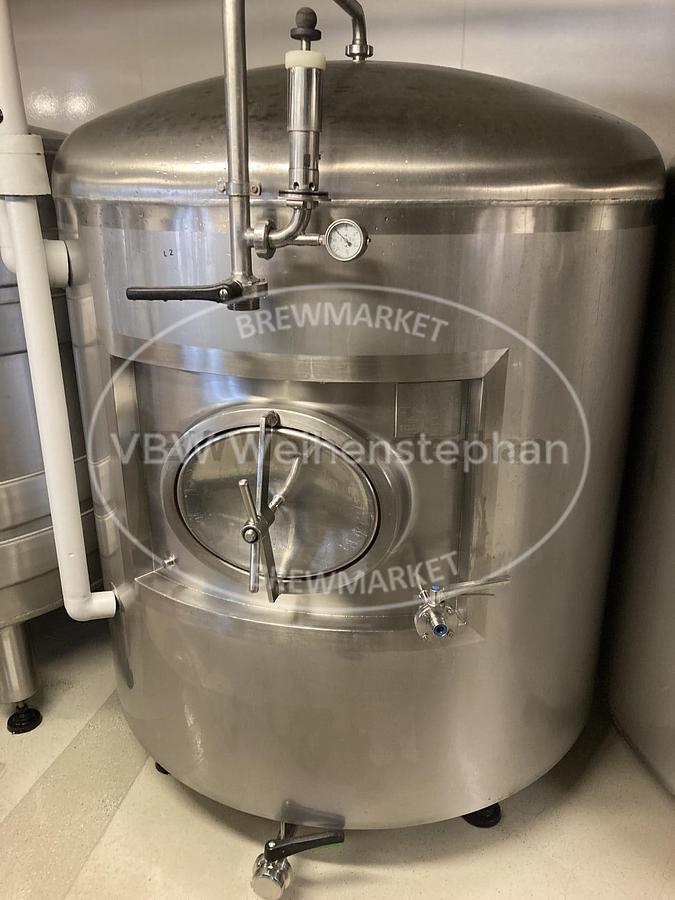

Stainless steel storage tank with a net capacity of approx. 20 hl; cooled via a double jacket on the shell and permanently welded insulation. Fitted with a cleaning pipe and a drain pipe. Connections for cooling pipes in the frame.
Specifications
| Manufacturer | KASPAR SCHULZ |
| Year | 2000 |
| Condition | Used |
| Stock Number | 208813MW |
| Additional title | coolable tank |
| Gross volume | 2150 l |
| Perm. working overpressure | 0.9 bar |
| Perm. working temperature | 20 °C |
| Length | 1600 mm |
| Width | 1600 mm |
| Height | 1900 mm |
| Material | stainless steel |
| Features | Manhole in the frame, spraying head with spraying head line and shut-off flap DN 25, safety valve and pressure gauge, outlet flap, thermometer; sampling flap height-adjustable tube feeet |
