Mixing tank system (with 3 tanks)
Featured
Mixing tank system (with 3 tanks)
or
Call +49 (0) 8161-48333
Description

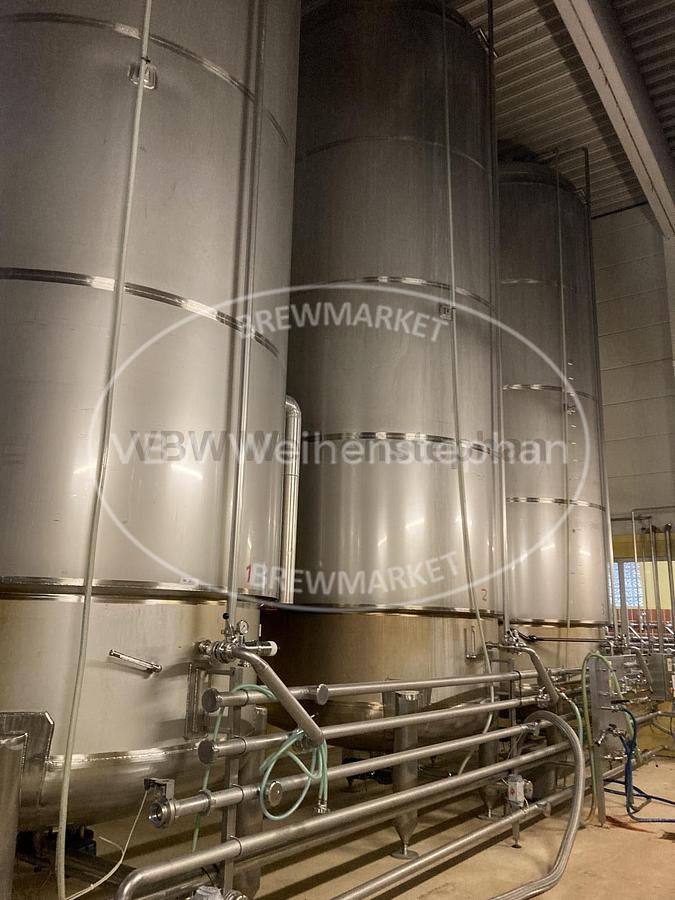

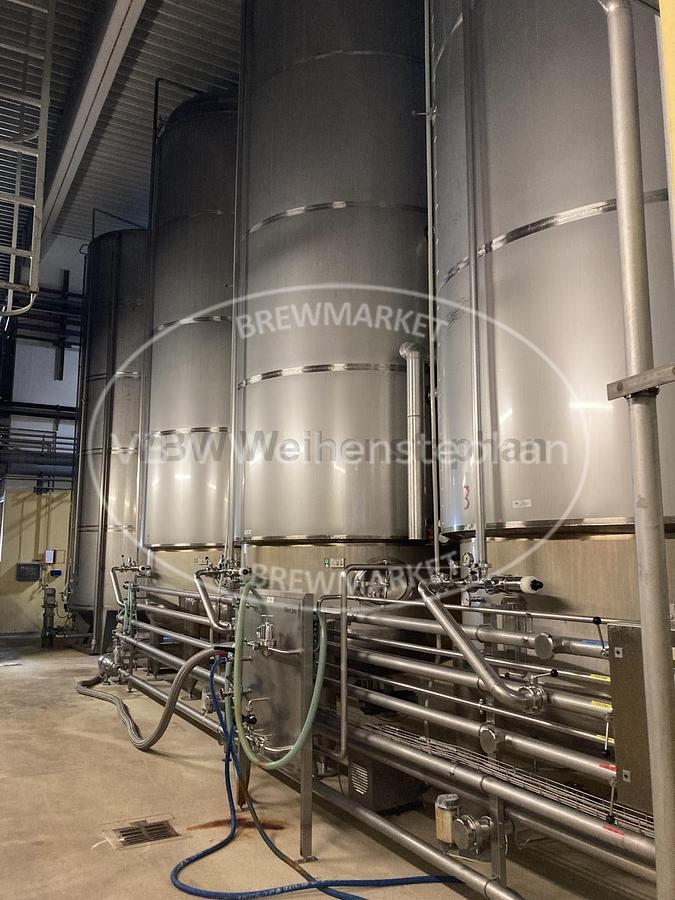

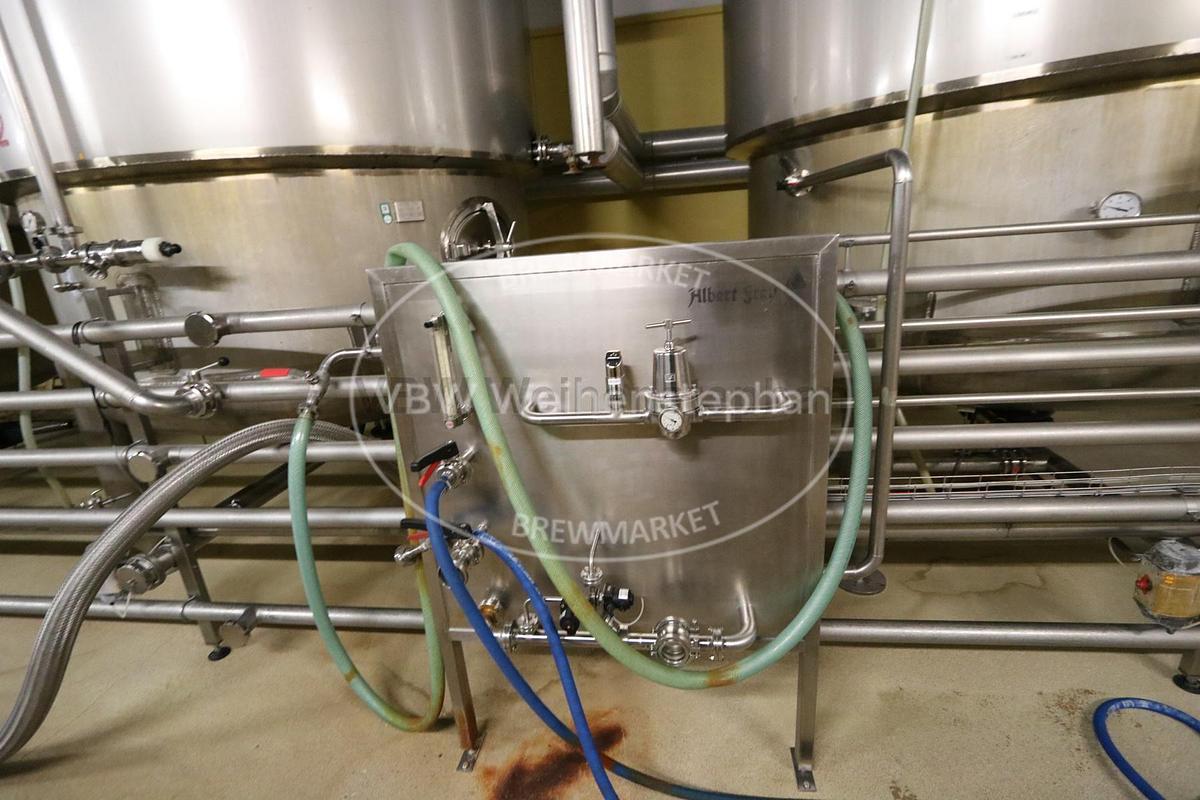

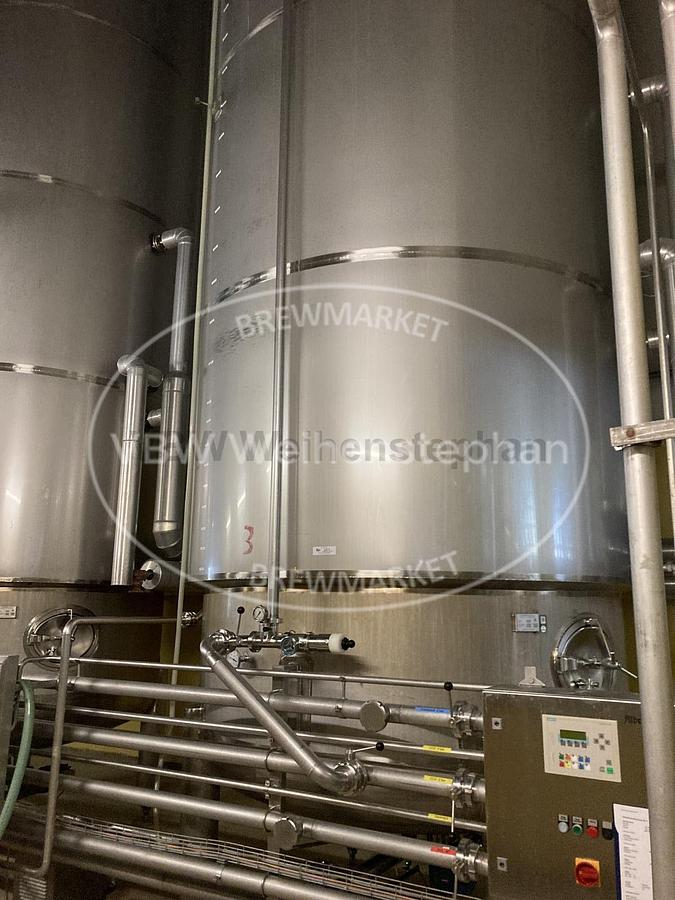

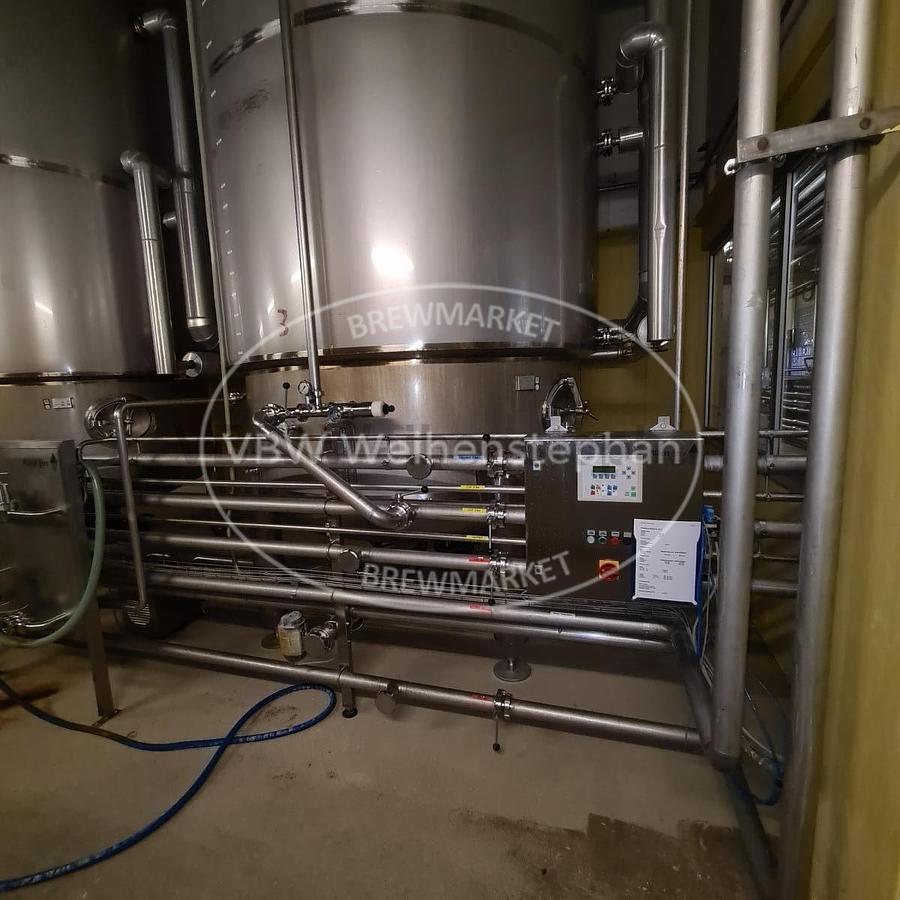

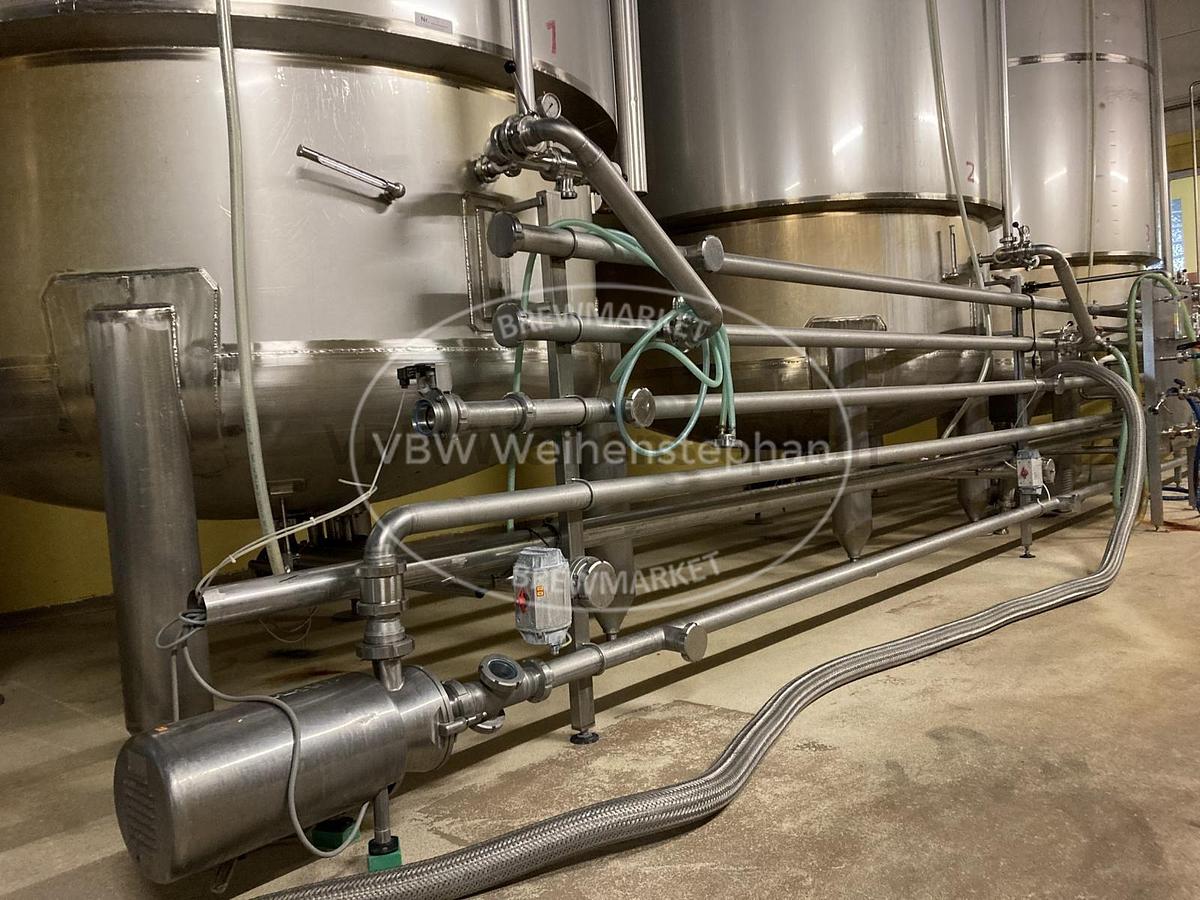

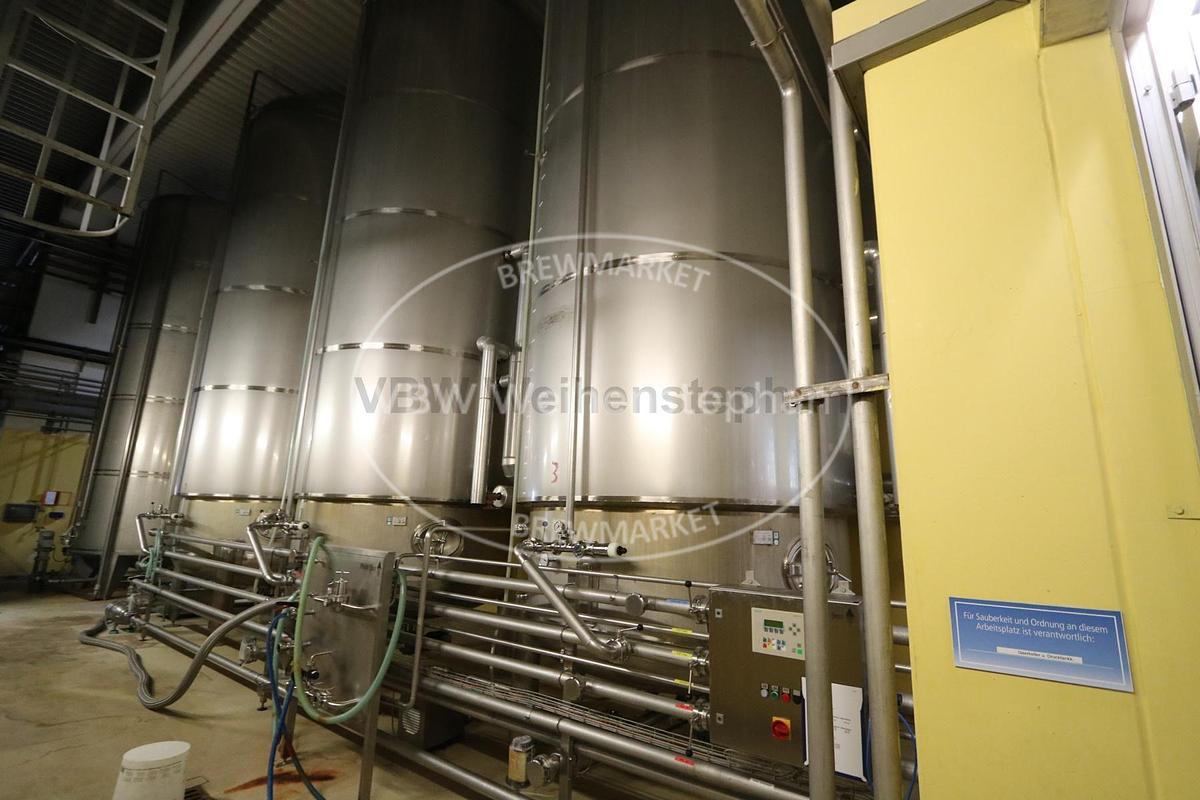

Complete mixing tank system comprising three vertical pressure tanks, each with two cooling zones, frame insulation, a bottom-entry agitator and various fittings. One of the tanks is also equipped with a CO₂ gas injection unit and a pump for tangential feed. A pipe fence, pipe panel, control cabinet and various measurement and control equipment and pumps complete the system.
Specifications
| Manufacturer | Ullmann |
| Year | 1991 |
| Condition | Used |
| Stock Number | 209322HN |
| Additional title | Insulated, coolable stainless steel pressure tanks as a mixing system with proce |
| Volume | 33000 l per tank |
| Max. pressure | 2 bar |
| Pump capacity | 28 m³/h |
| Operating temperature | 40 °C |
| Length | 2600 mm |
| Width | 2600 mm |
| Height | 8500 mm |
| Weight | 3900 kg |

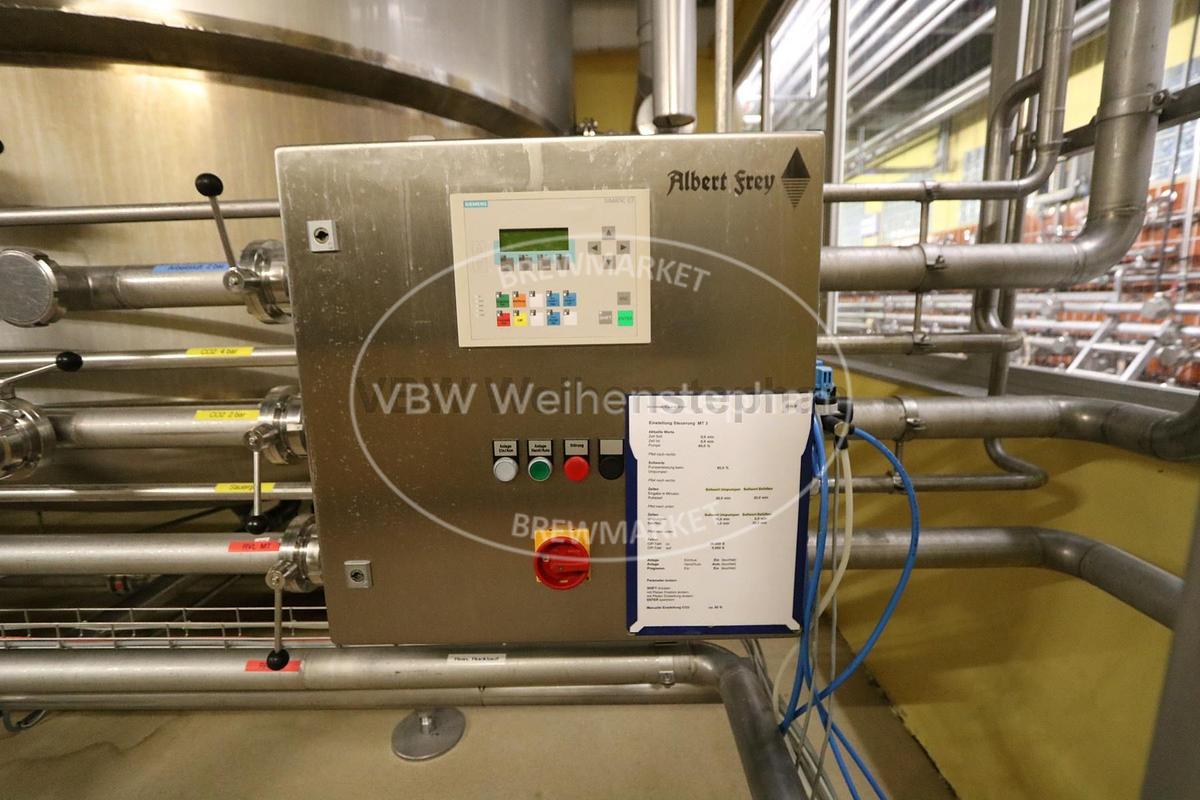

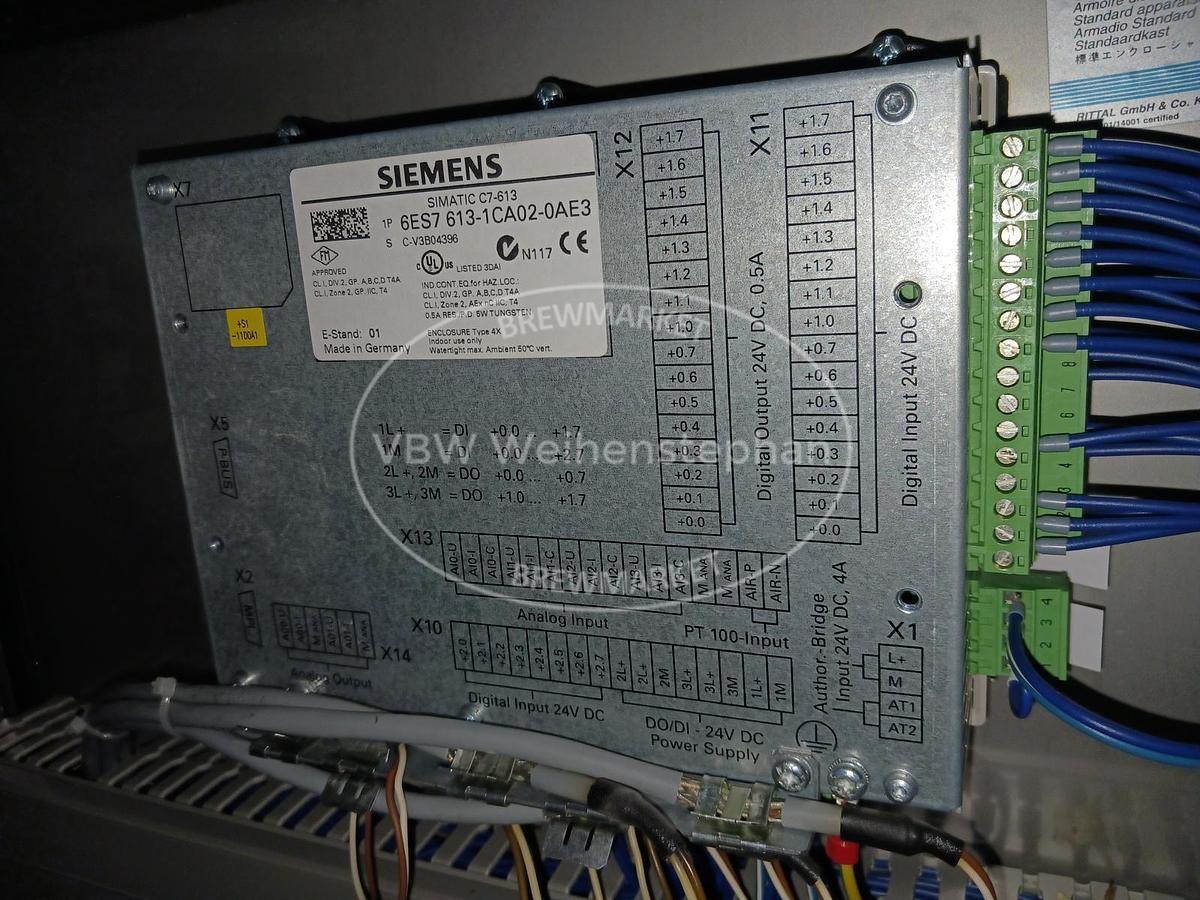

| Operation / Control | Rush-Flow-Dosing: SPS-Typ = C7-633, HMI = ProTool |
| Material | stainless steel 1.4301 |
| Position | free standing |

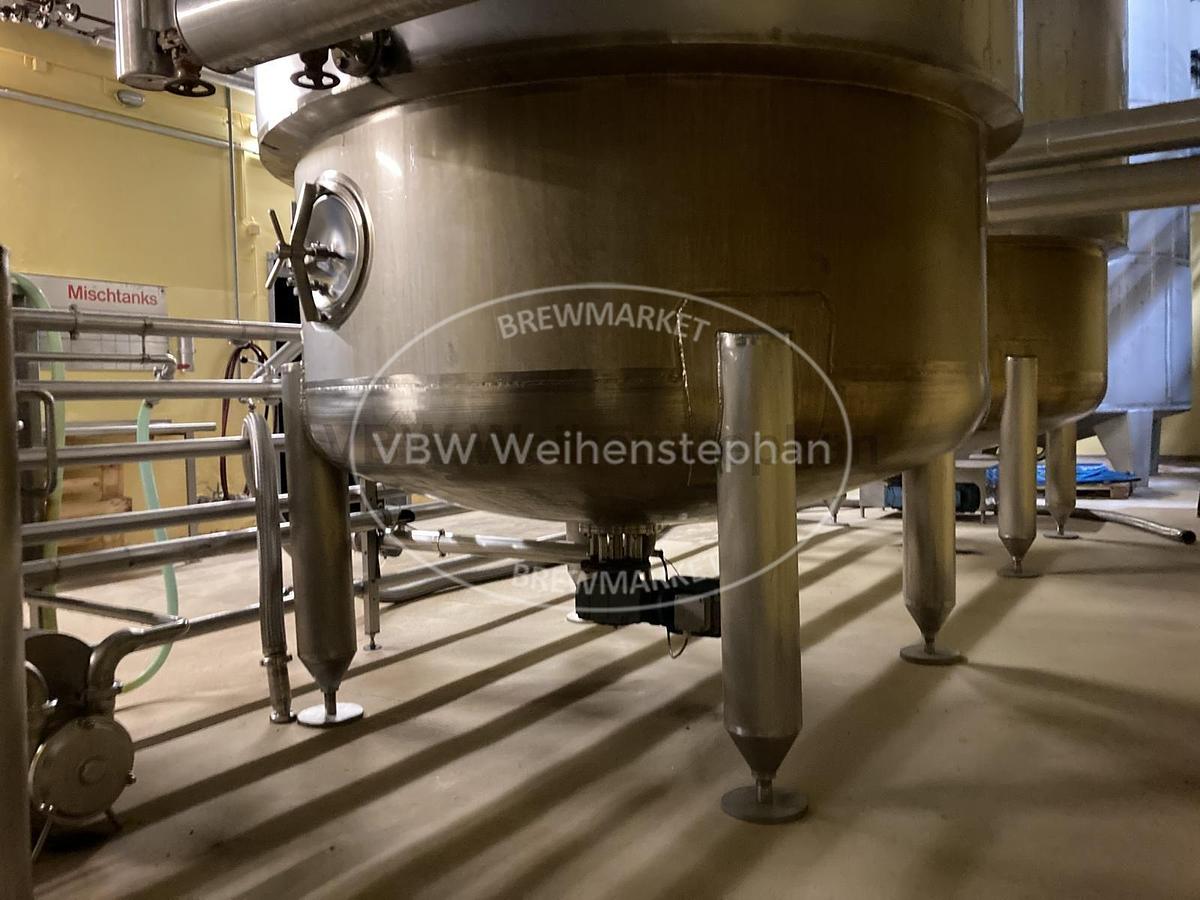

| Base construction | Cylindrical tank with dished ends and pipe feet on spherical caps |
| Features | 2 zone frame cooling, insulation with stainless steel sheet panelling, agitator in the base, manhole at the side, tank fittings; 2 pumps; pipe fence; panel with CO2 fumigation; measurement and control technology; control cabinet with control panel; Other: Pipe fencing, pipe panels, measurement and control technology. Pumps, CO₂ injection unit |
