Can filler and seamer
Can filler and seamer
or
Call +49 (0) 8161-48333
Description

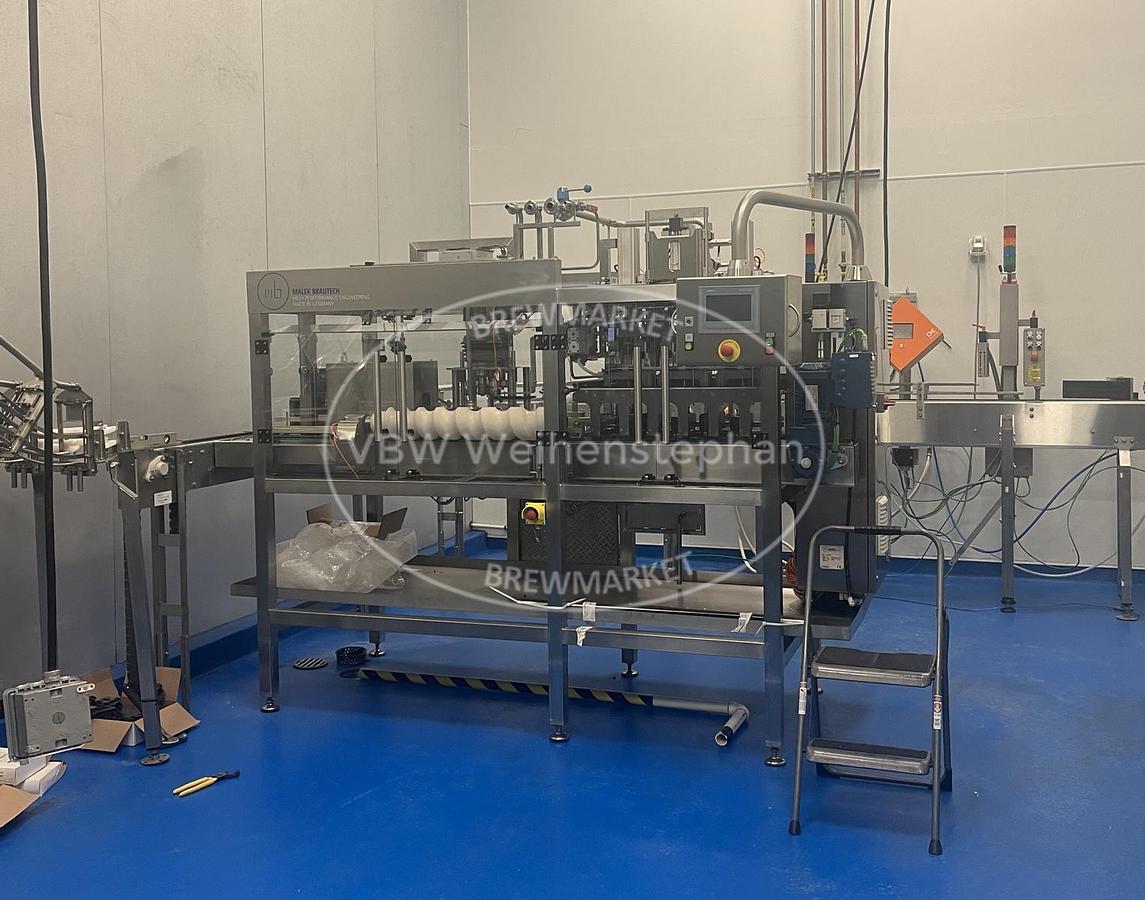

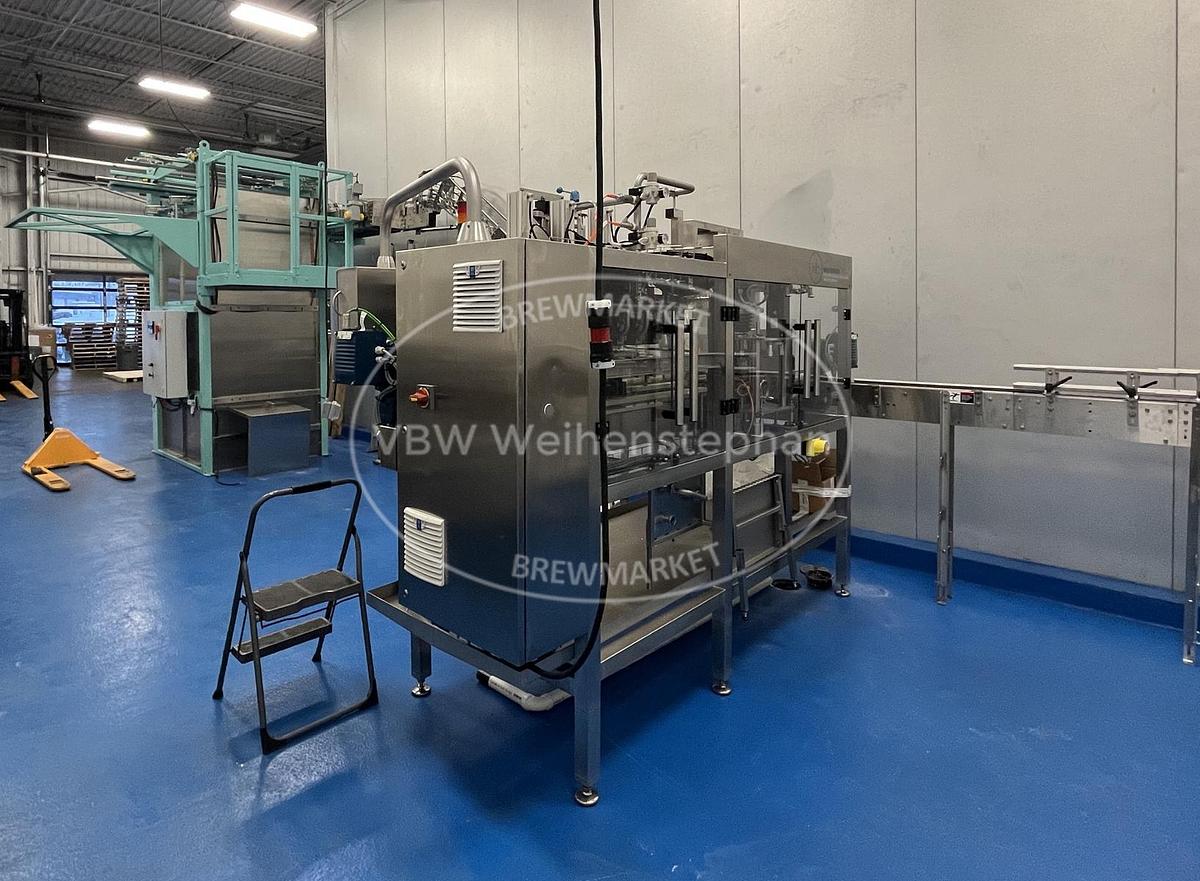

Linearly aligned can filler with rinser, filler, lid depositor and seamer in one block. Counter-pressure filling is controlled volumetrically. Format changeover for all standard can sizes.
Specifications
| Manufacturer | Malek Brautech |
| Year | 2022 |
| Condition | Used |
| Stock Number | 209591MW |
| Capacity | 2000 cans/h for carbonated drinks |
| Max. oxygen pickup on the filler | 25 ppb |
| Compressed air | IG 1/2", 6-10 bar |
| Length | 2774 mm |
| Width | 1100 mm |
| Height | 2000 mm |
| Formats | 12 oz and 16 oz cans, lid type 202 B64, conversion to other formats possible |
| Operation / Control | Siemens Simatic S7 |
| Features | 6 filling stations, 7 inch touchscreen with swivel arm, infeed screw, product buffer tank (3 bar), servo driven seamer, tunnel for can rinsing after filling, motors by SEW |
