Pallet wrapper
Pallet wrapper
or
Call +49 (0) 8161-48333
Description

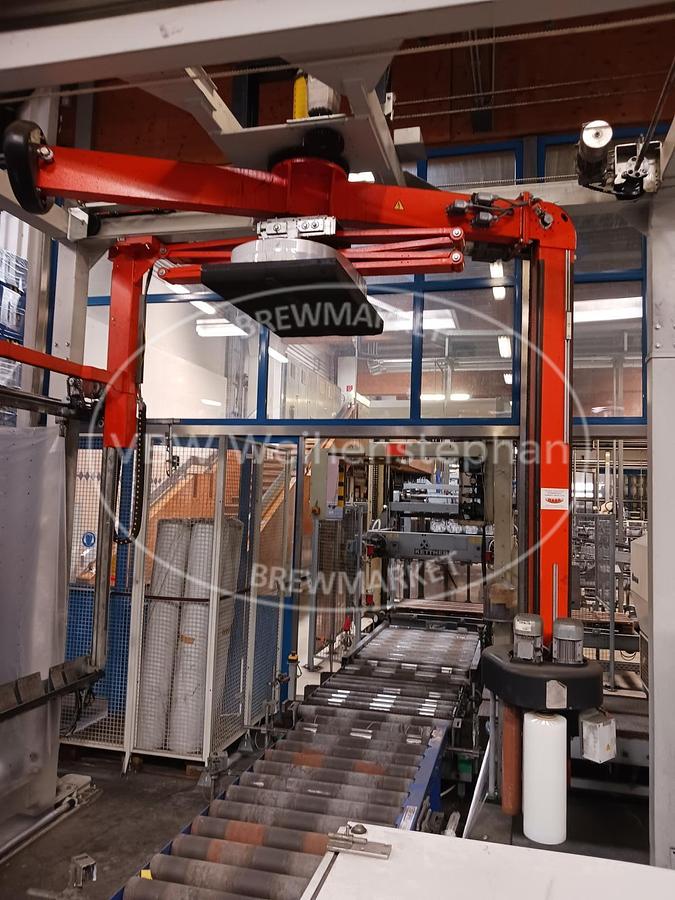

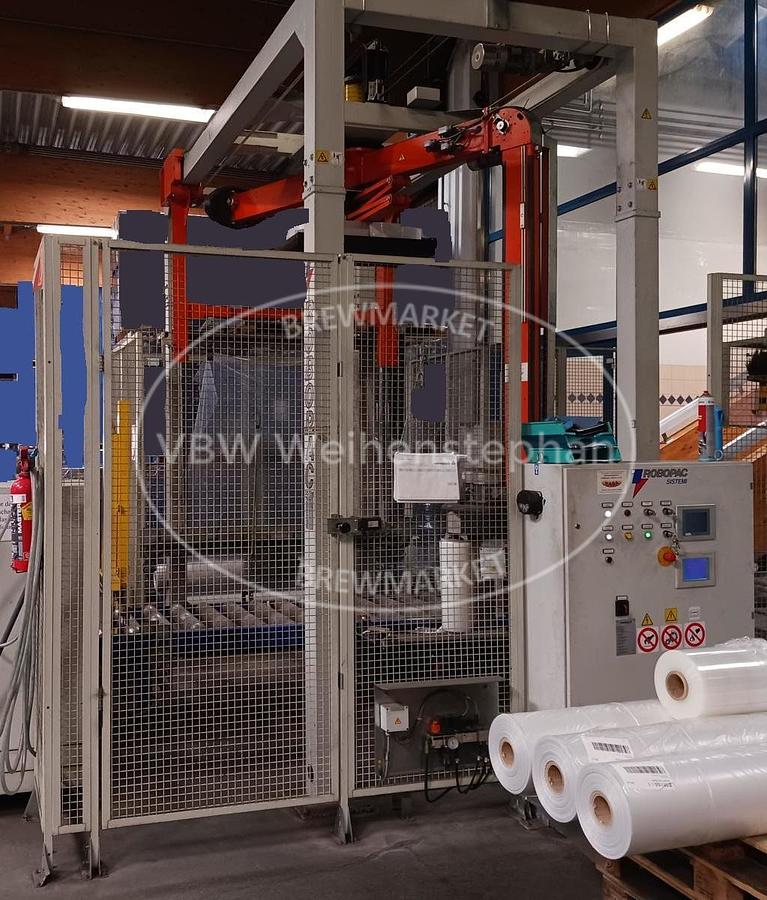

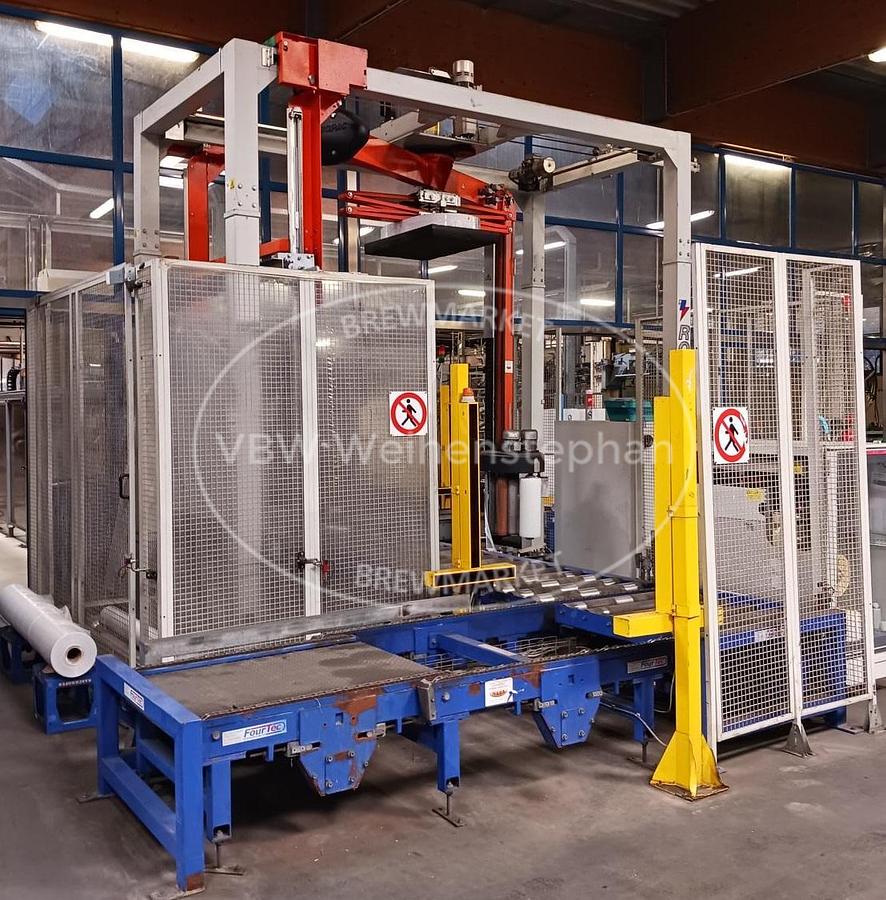

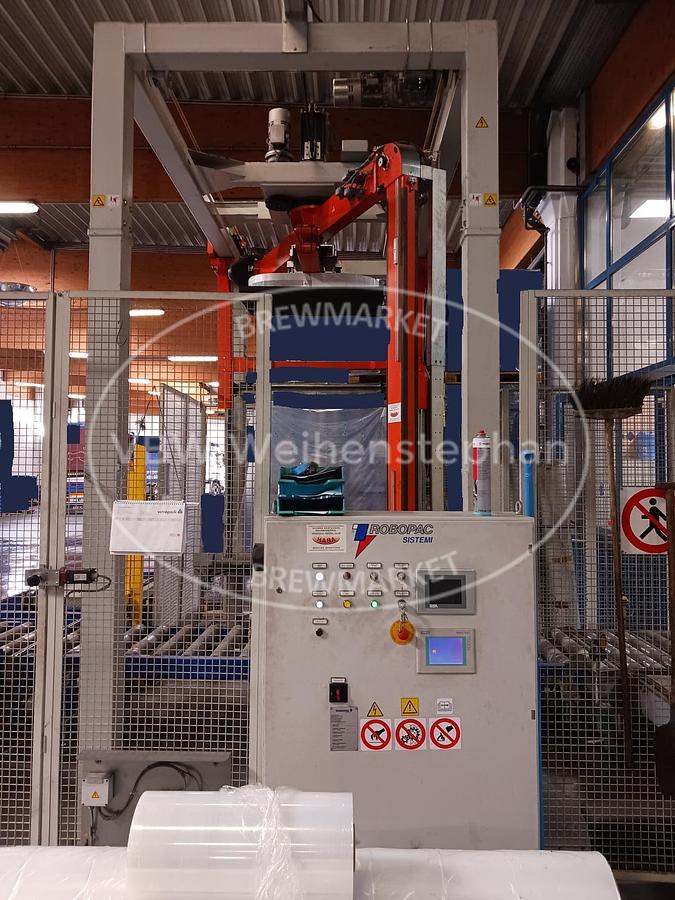

Rotary-arm satellite wrapper with integrated cover sheet dispenser for wrapping loaded pallets in stretch film. Pallet transport within the wrapping area, as well as subsequent pallet transport using a corner turner right up to and including pallet discharge, can be supplied as part of the package.
Specifications
| Manufacturer | ROBOPAC |
| Year | 2012 |
| Condition | Used |
| Stock Number | 209851MW |
| Additional title | Rotary-arm foil wrapper |
| Max. capacity | 55 pal/h at max. 1600 mm height |
| Rotation speed max. | 20 rpm |
| Power | 4 kW |
| Current | 7,5 A |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Weight | 1500 kg |
| Formats | Pallets with 1200 x 800 mm (max. 1200 x 1200 mm, min. 600 x 800 mm), palett standard height: 2.300 mm |
| Running direction | right -> left |
| Operation / Control | On-site control box |
| Material | Black steel painted |
| Position | free-standing |
| Base construction | Frame construction bolted to the floor |
| Features | Satellite winder with integrated cover sheet dispenser, Powerstretch film pre-stretching system "S:C:S:P", clamping system "Genesis", protective fencing and muting system, light barriers, pneumatic hold-down device, 2 roller conveyors in the winding area, pallet transport with corner transfer unit; pallet discharge |
