Description
Depalletising and palletising system for Euro pallets with PETCYCLE crates.

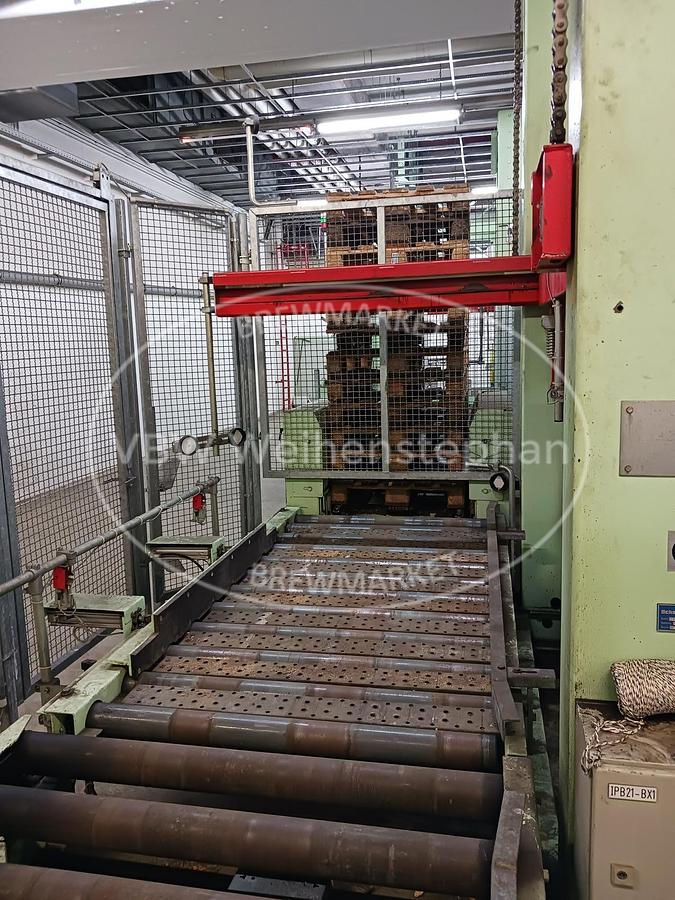

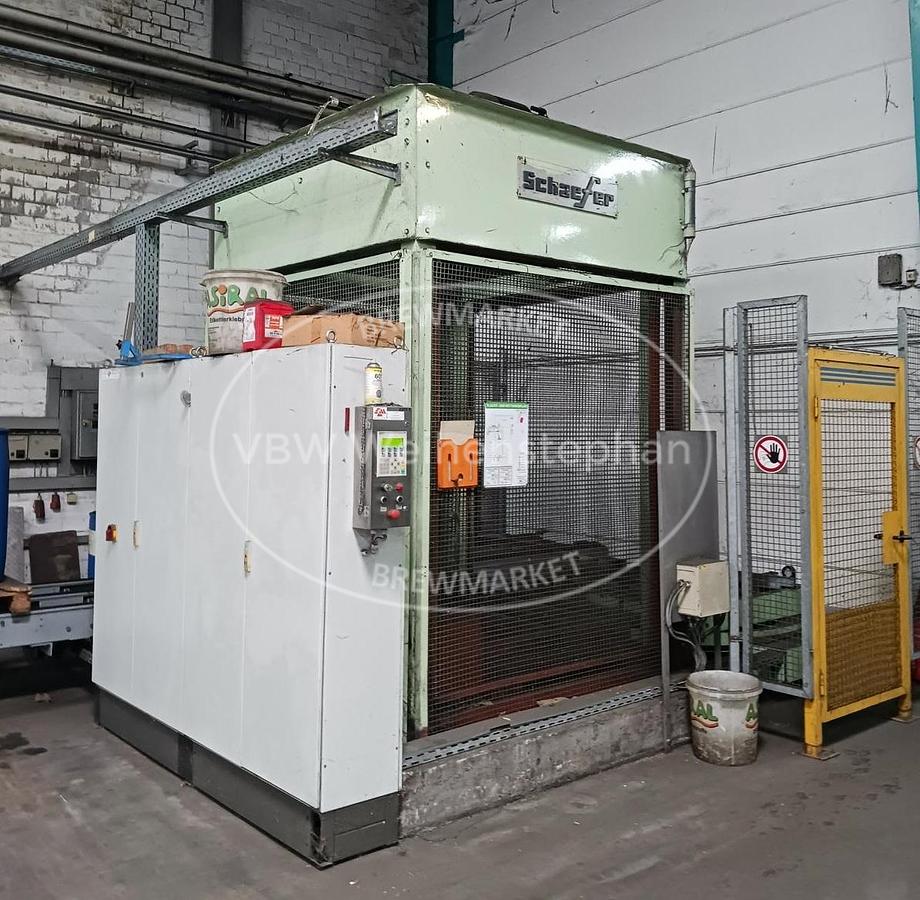

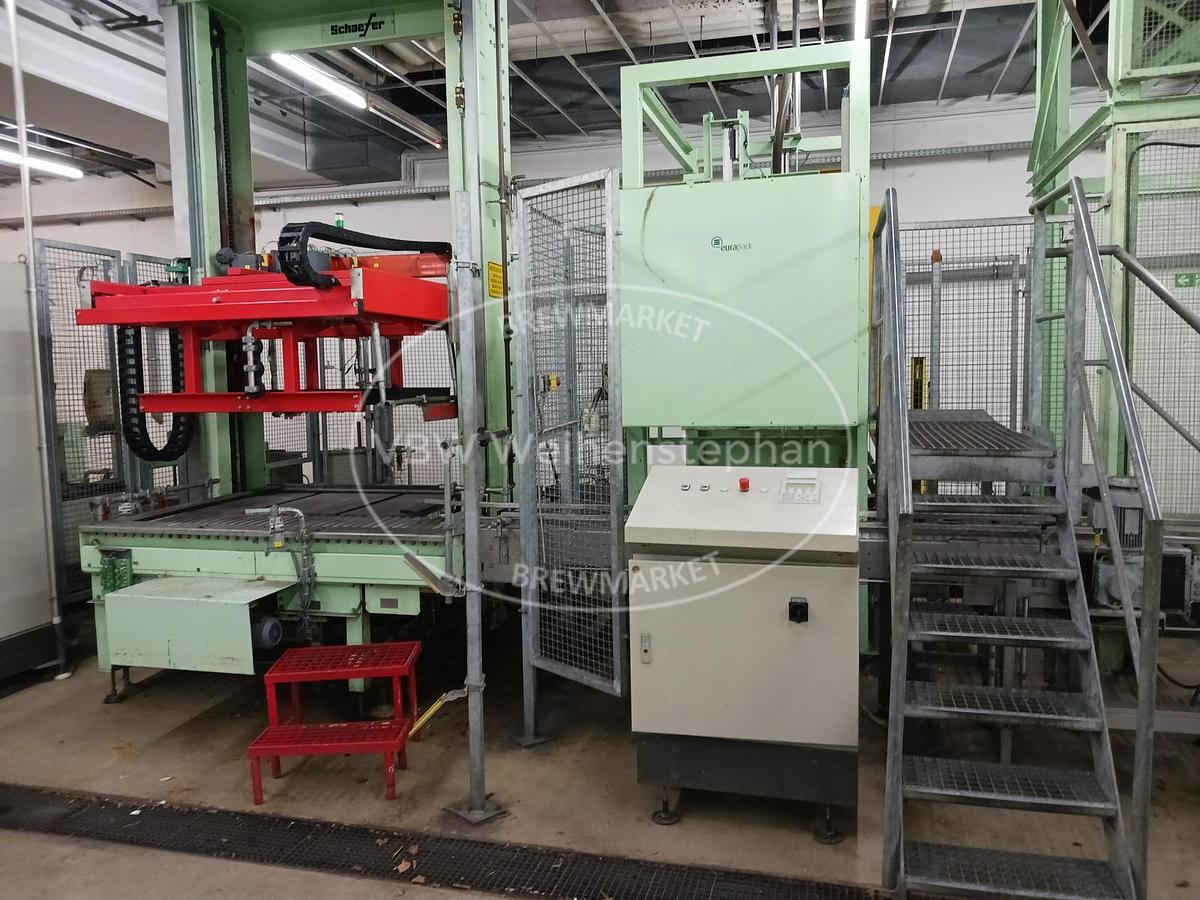

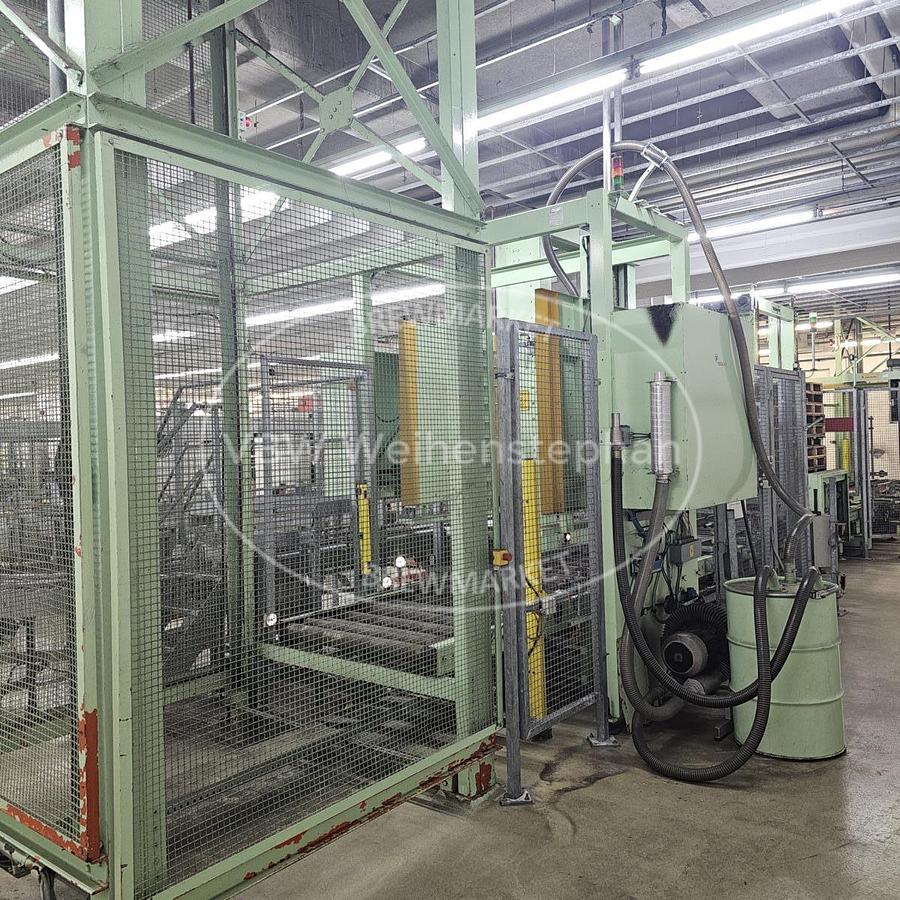

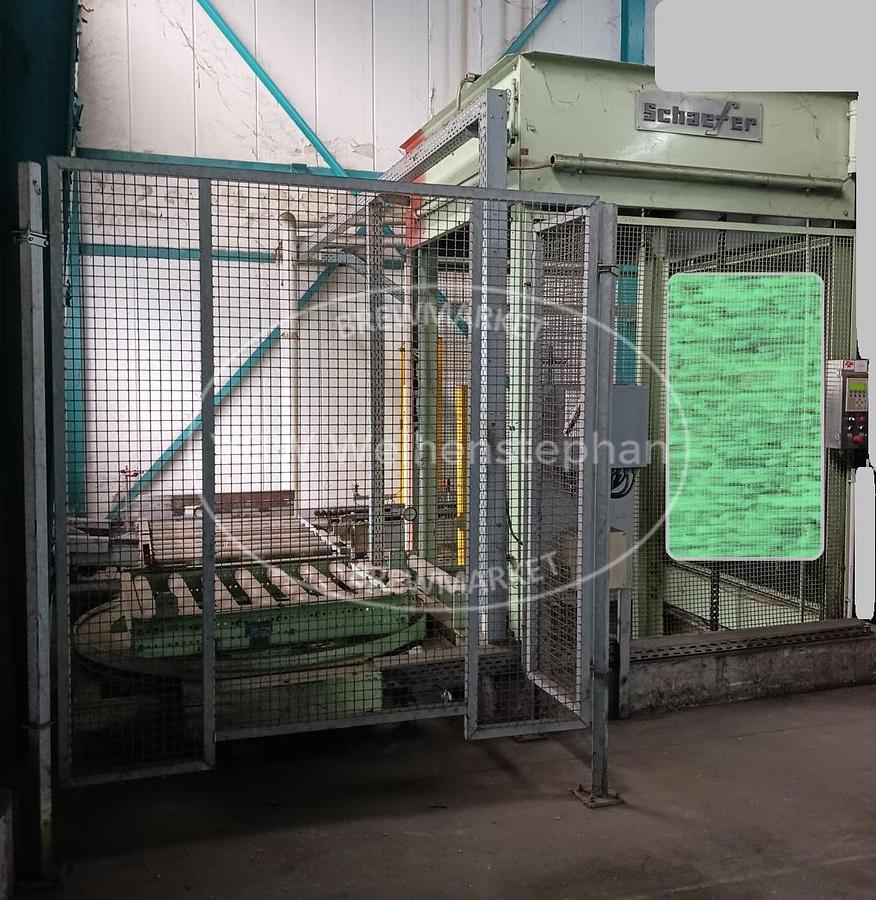

The empties pallets arrive via a lift from above. They first pass through a pallet denester, in which the empties are fixed, the transport securing cord is cut off and vacuumed. The crates are then destacked and transferred to the bottle ejector. The pallets continue to the pallet magazine/loader. After the pallets have been reloaded, they are secured with a cord and transported upwards in the second lift.
Our team at VBW Asset Trade will be happy to answer your questions. Send us an inquiry or simply give us a call!
Specifications
| Manufacturer | Schäfer |
| Year | 2000 |
| Condition | Used |
| Stock Number | 209853HG |
| Additional title | Depalletising and palletising |
| Unloading capacity | 3600 crates/h |
| Loading capacity | 3600 crates/h |
| Power | 21 kW |
| Voltage | 230/400 V |
| Frequency | 50 Hz |
| Compressed air | 6 bar, 30 Nm³/h |
| Formats | Euro pallet, PETCYCLE crates, 20 x 0.5 l (400 x 300 x 256 mm), 9 x 1.0 l, 6 x 1.0 l, 6 x 1.5 l (300 x 200 x 365 mm) |
| Running direction | right -> left |

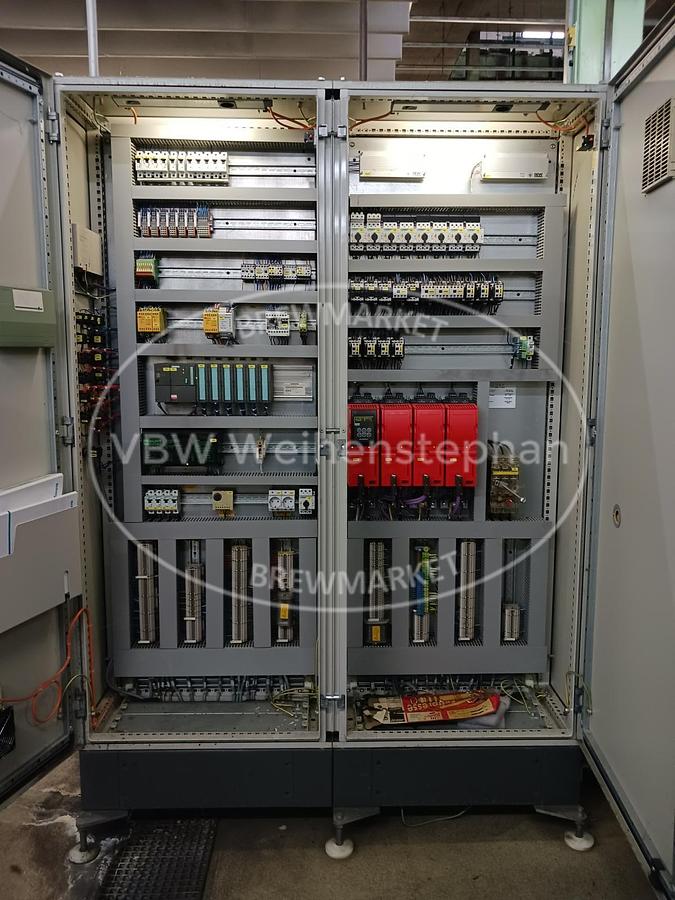

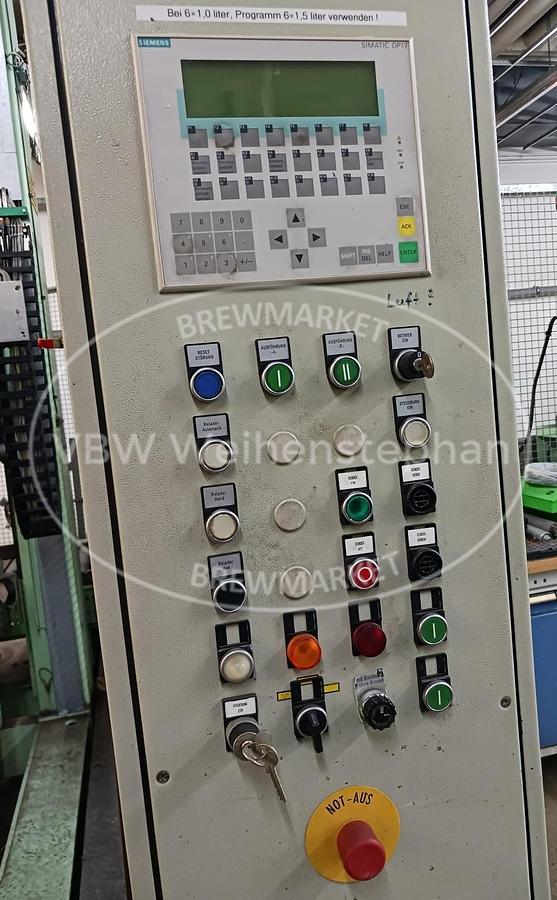

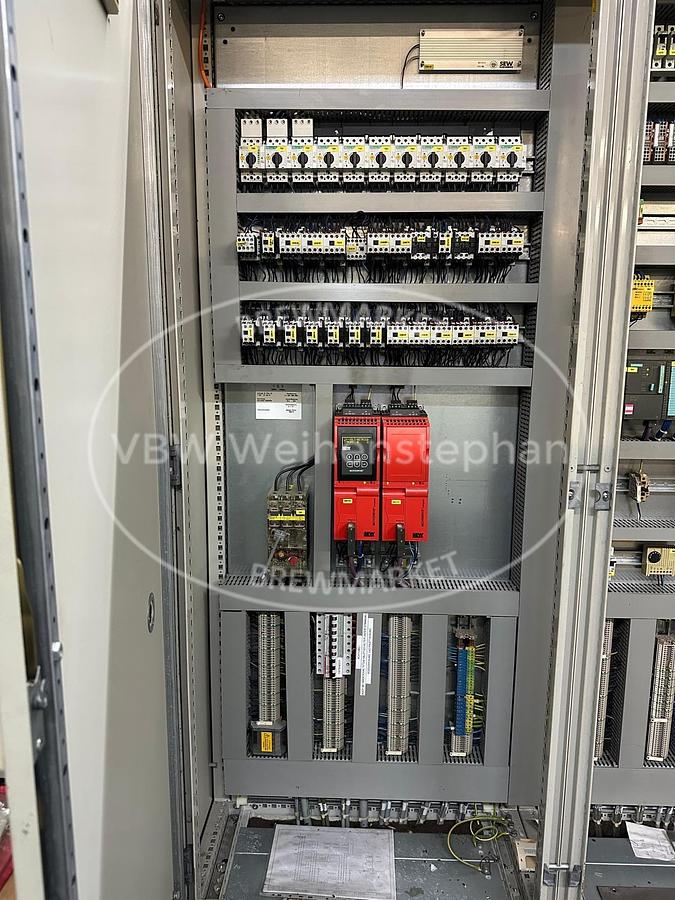

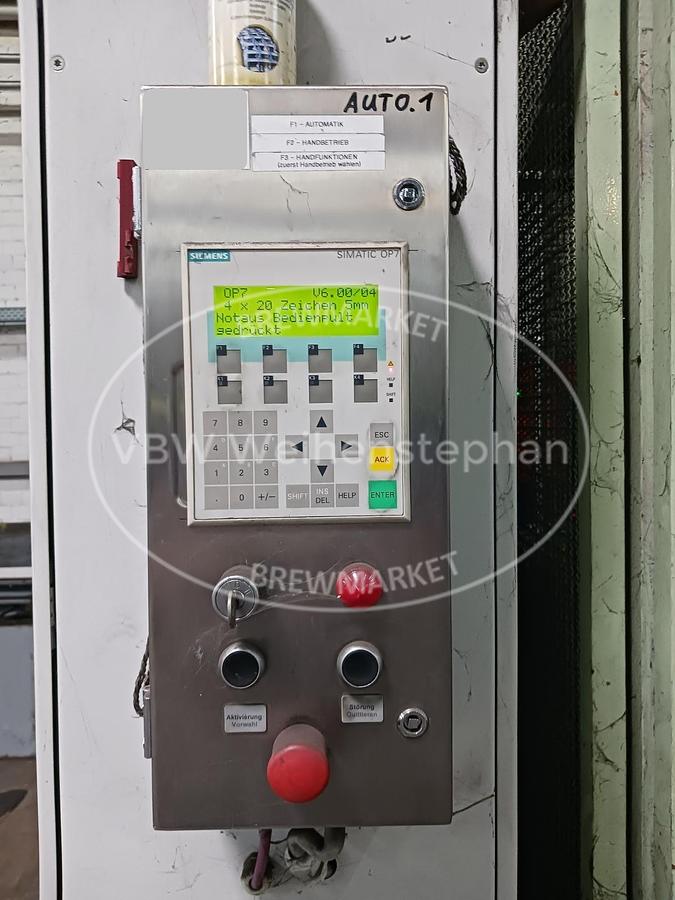

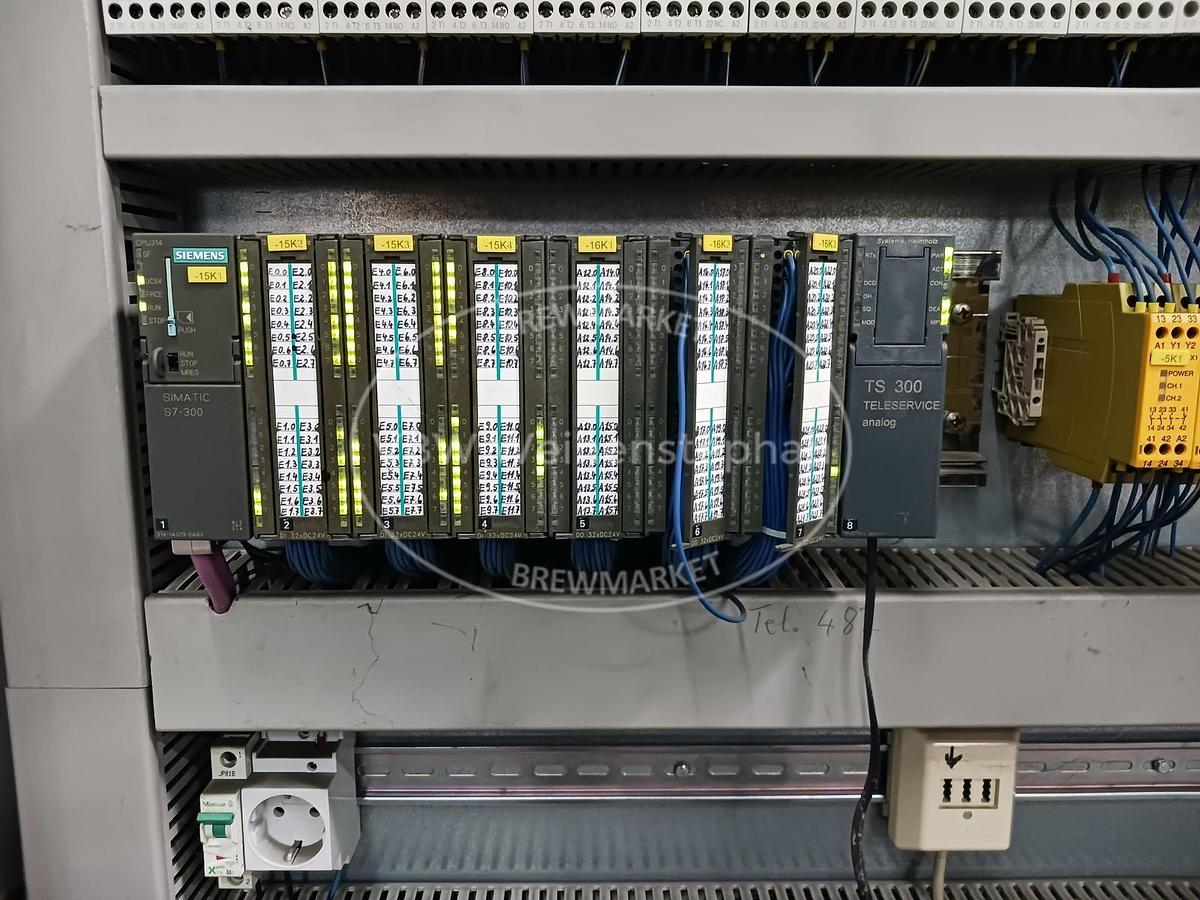

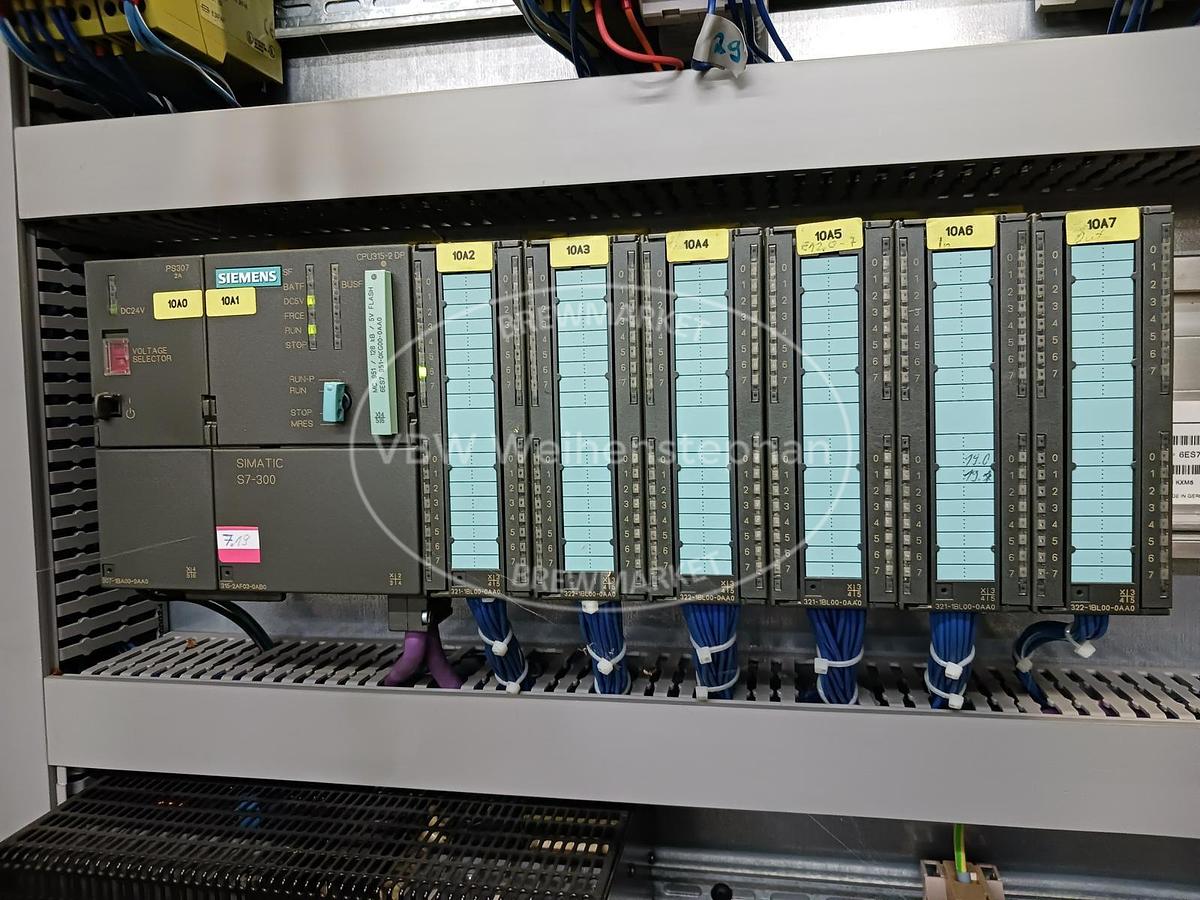

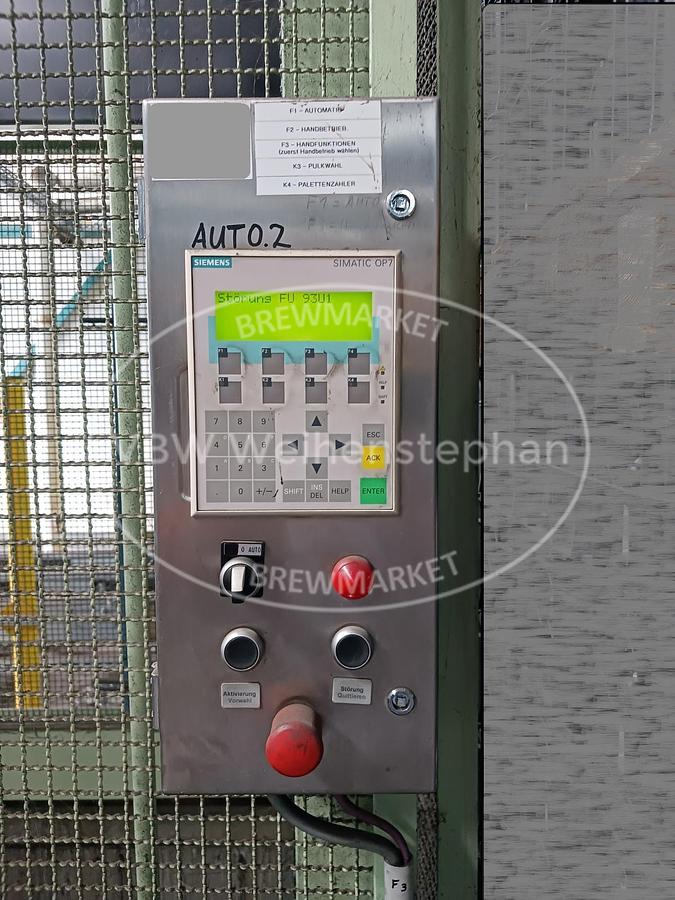

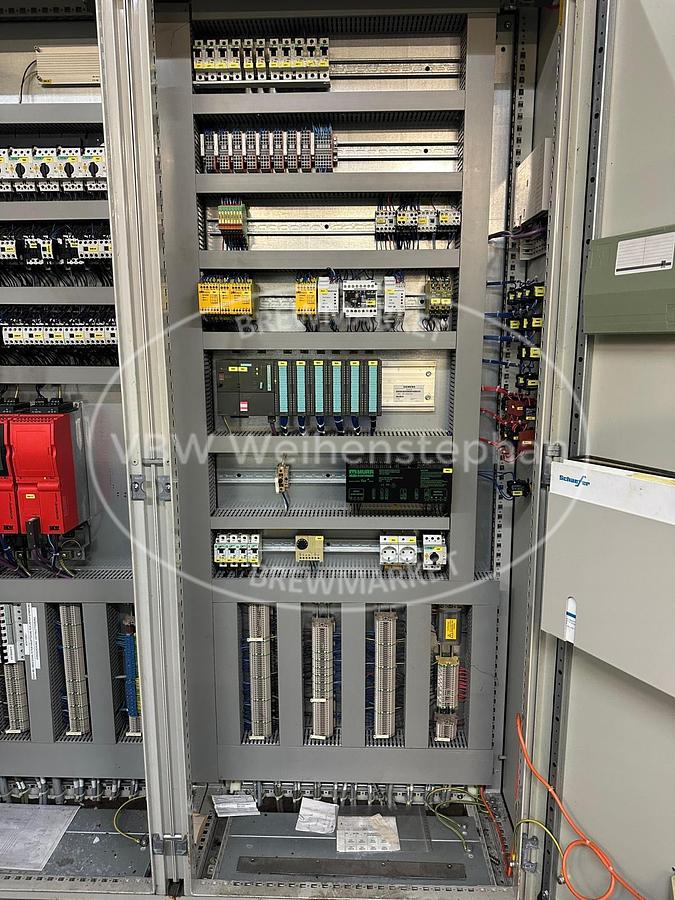

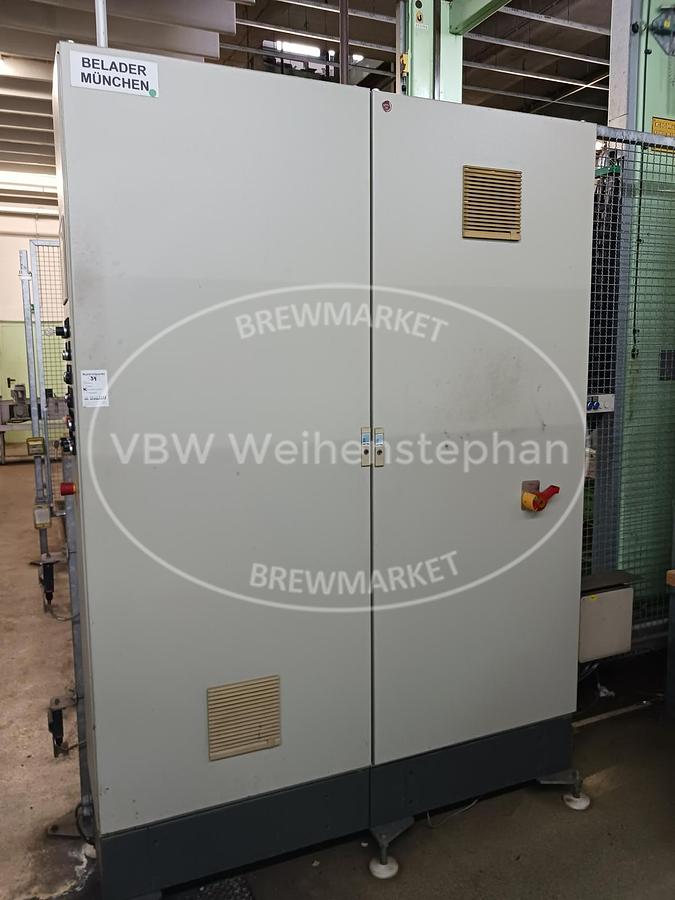

| Operation / Control | at control cabinet, Simatic OP17 / Simatic S7-300 |
| Material | housing/frame constructions in black steel |
| Position | free-standing with floor fixings |

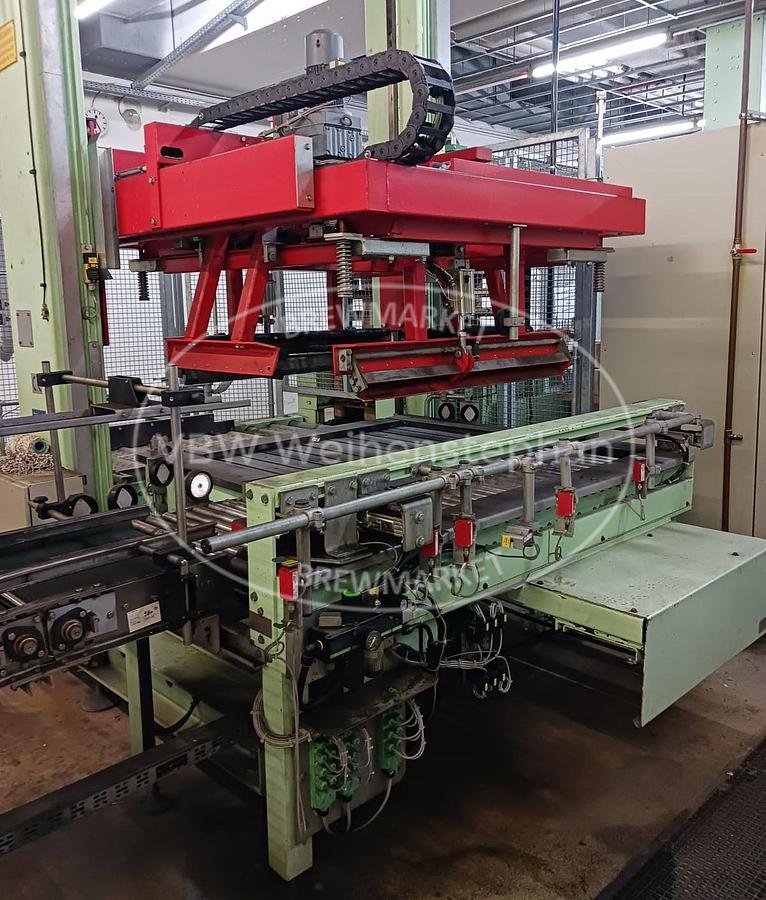

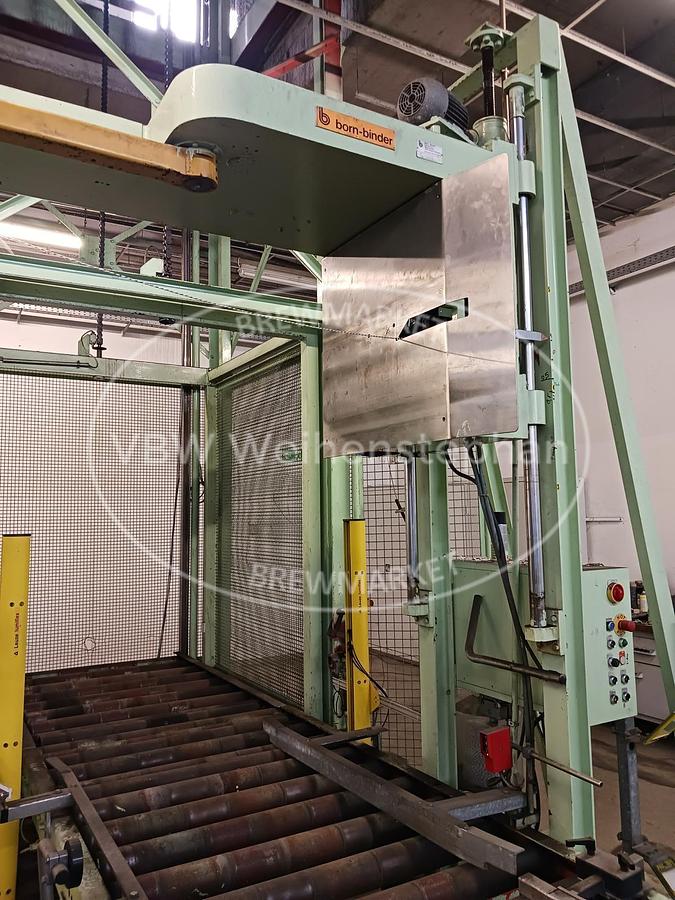

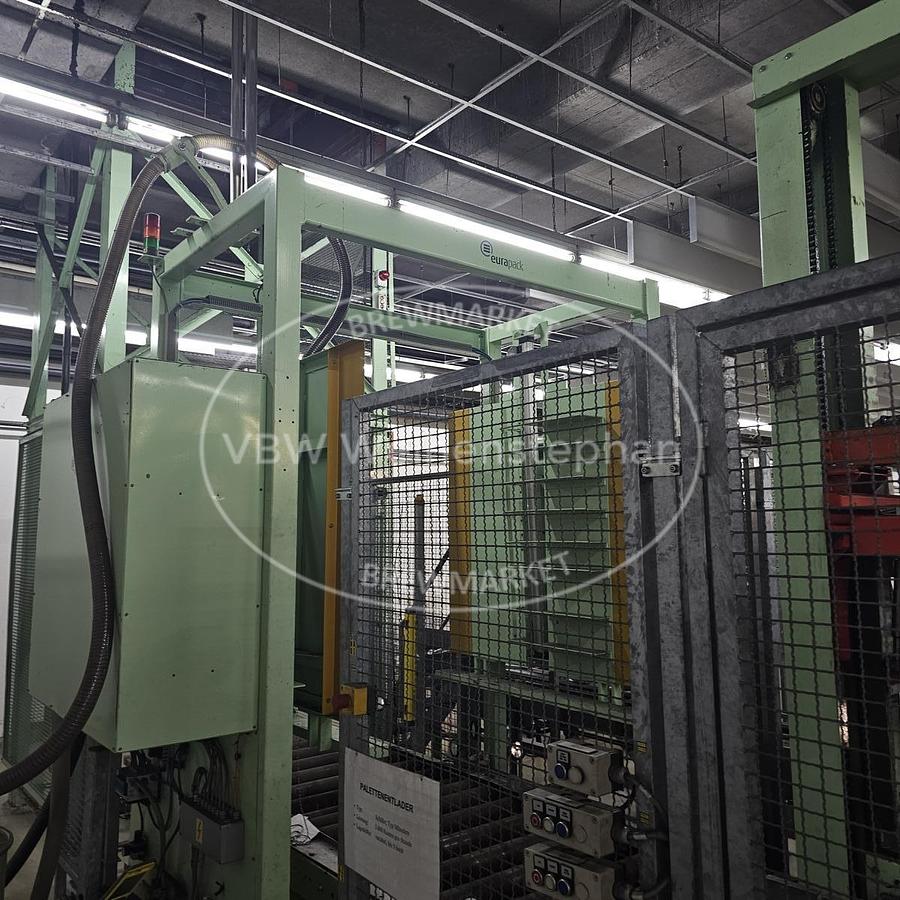

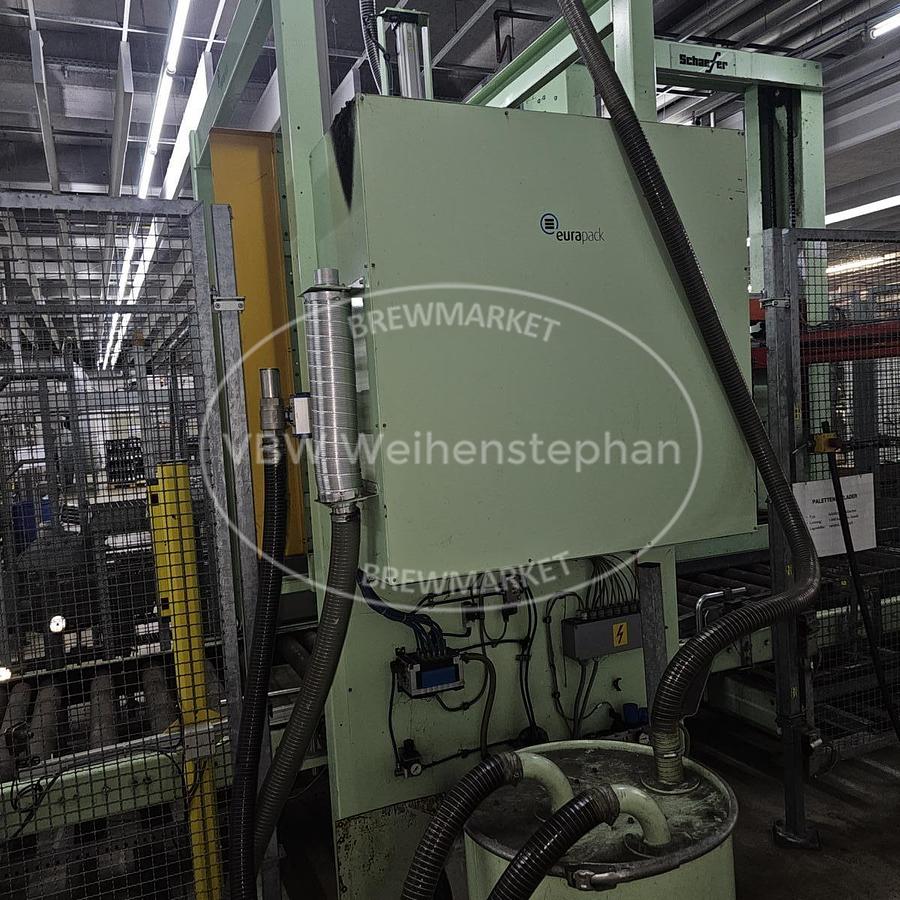

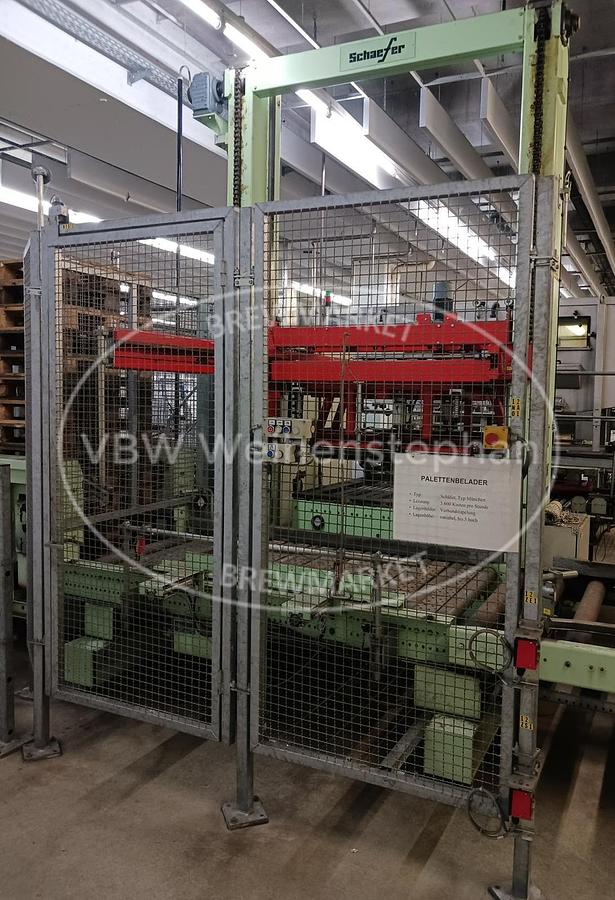

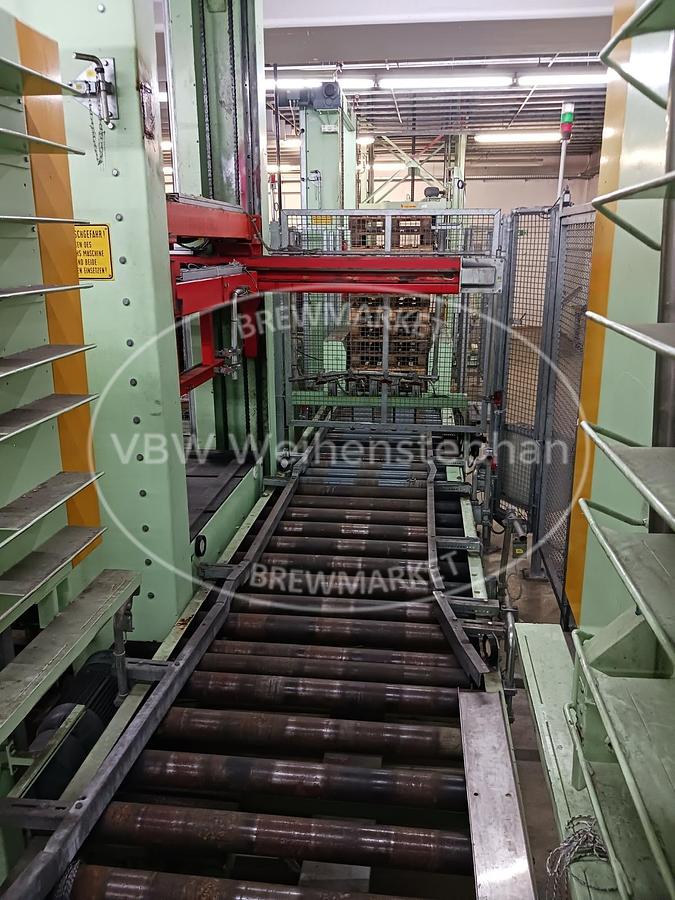

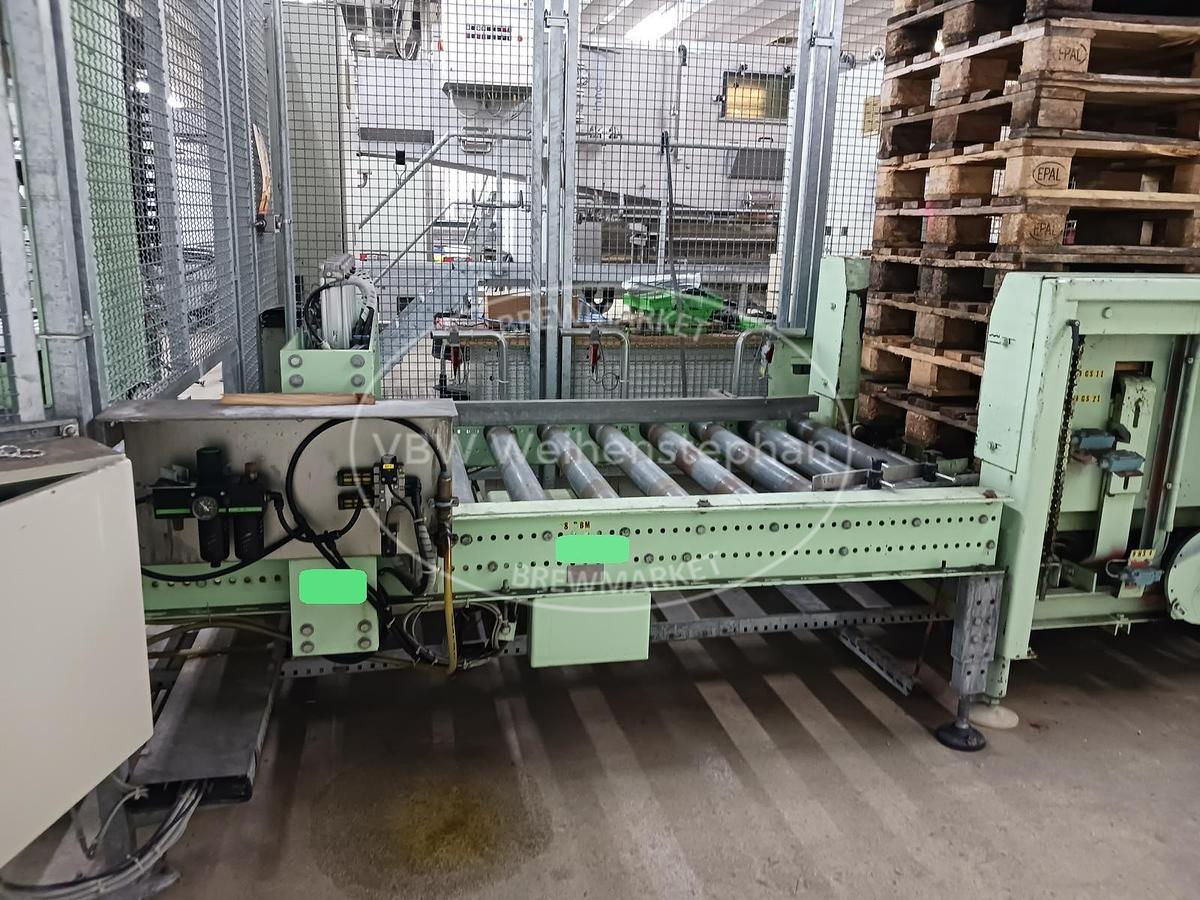

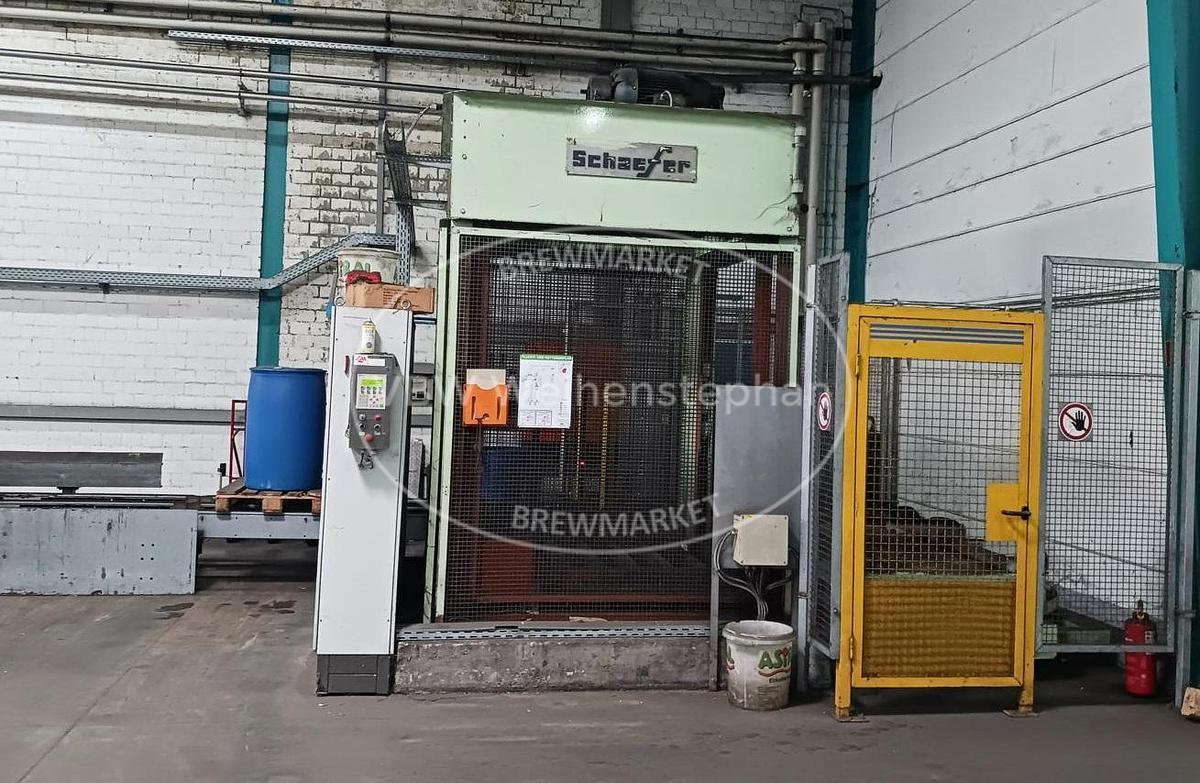

| Features | Pallet loading and unloading, roller conveyors, lifts for 1 x empty and 1 x full pallets, Eurapack pallet securing with cord extractor, unloader, pallet magazine, loader, Bornbinder pallet securing, protective grids, stairs and platforms, switch cabinets |
| Layer patterns | composite stacking up to 5 layers |
