Description

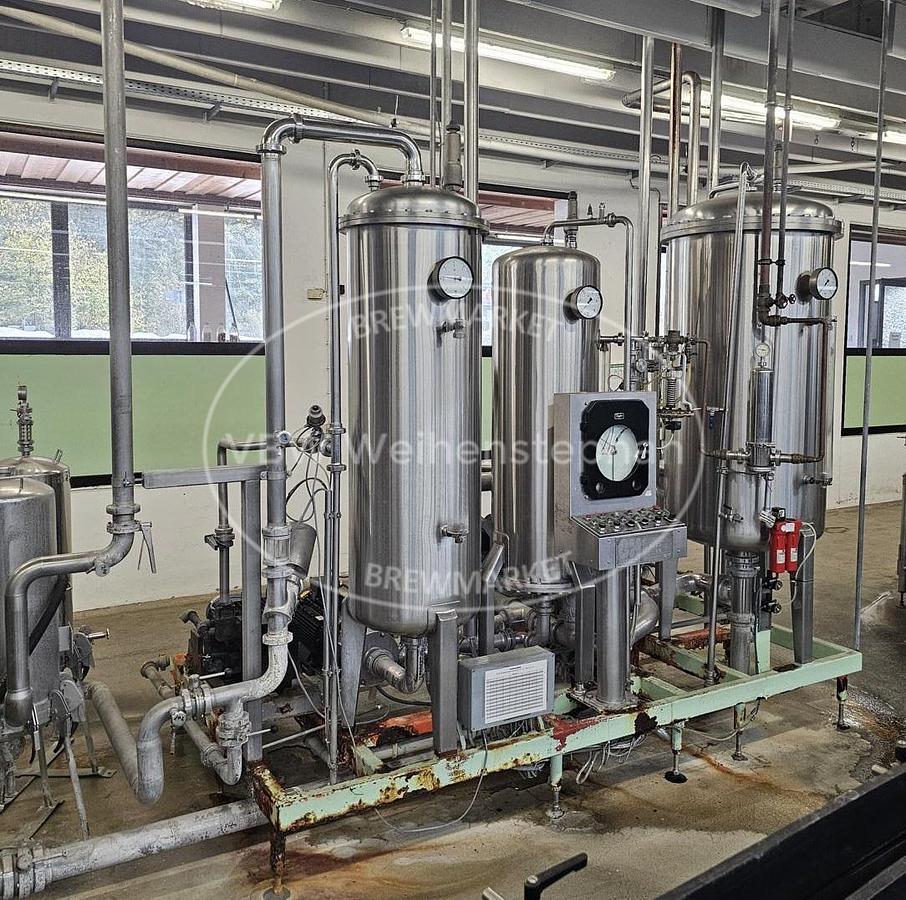

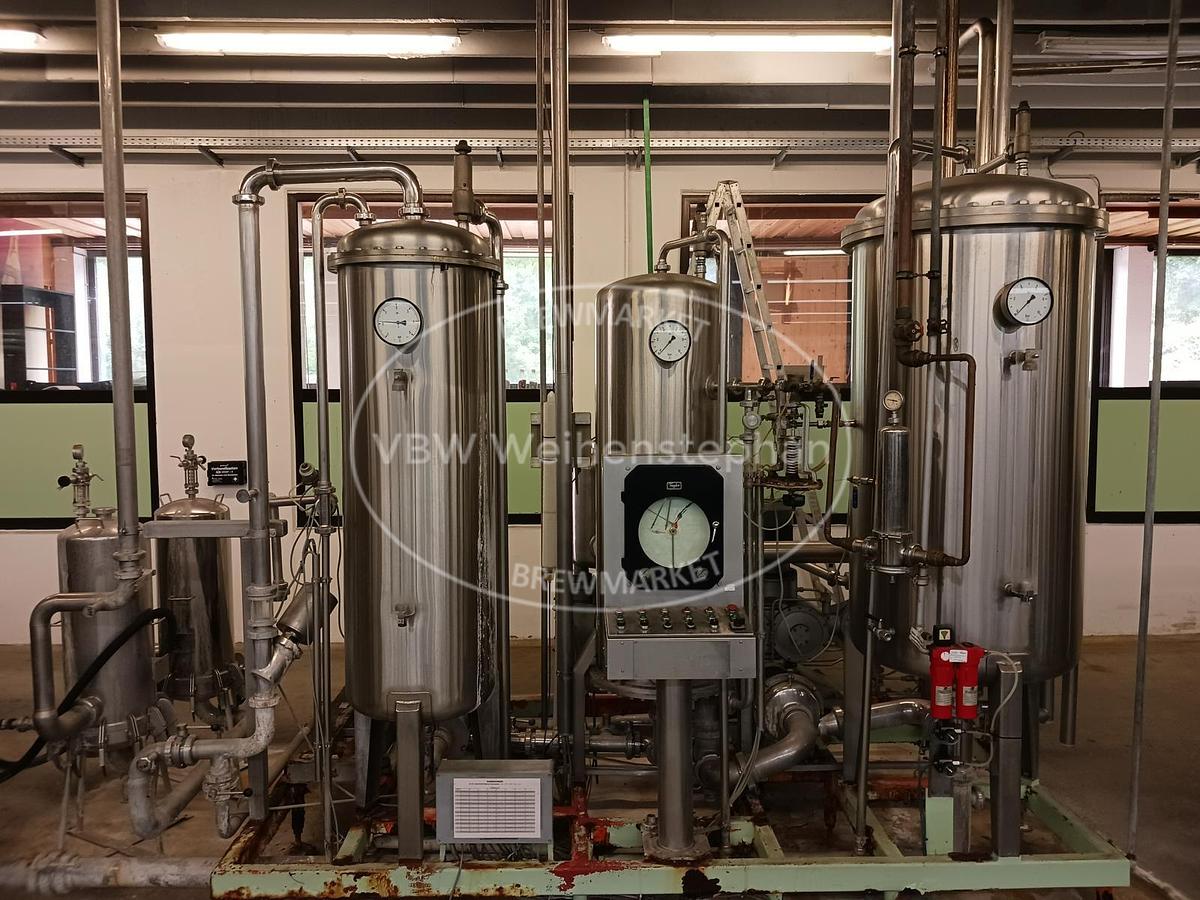

Premix plant for the production of highly and low carbonated beverages.
The technical process steps are: degassing of water, carbonation of water, dosing of fruit juice in a partial stream into the carbonated water.
Mixing takes place in the mixing section to the equalising tank.

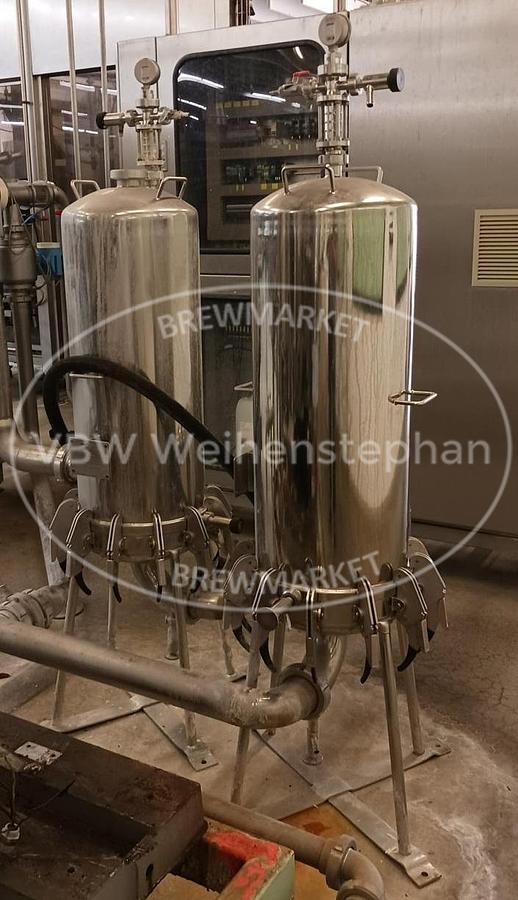

The water used is sterile-filtered in the inlet via two particle filters.
Specifications
| Manufacturer | Ortmann + Herbst |
| Year | 1978 |
| Condition | Used |
| Stock Number | 209857HG |
| Additional title | Intermix system with carbonisation unit |
| Water output | 22575 l/h |
| Fruit juice output | 4907 l/h |

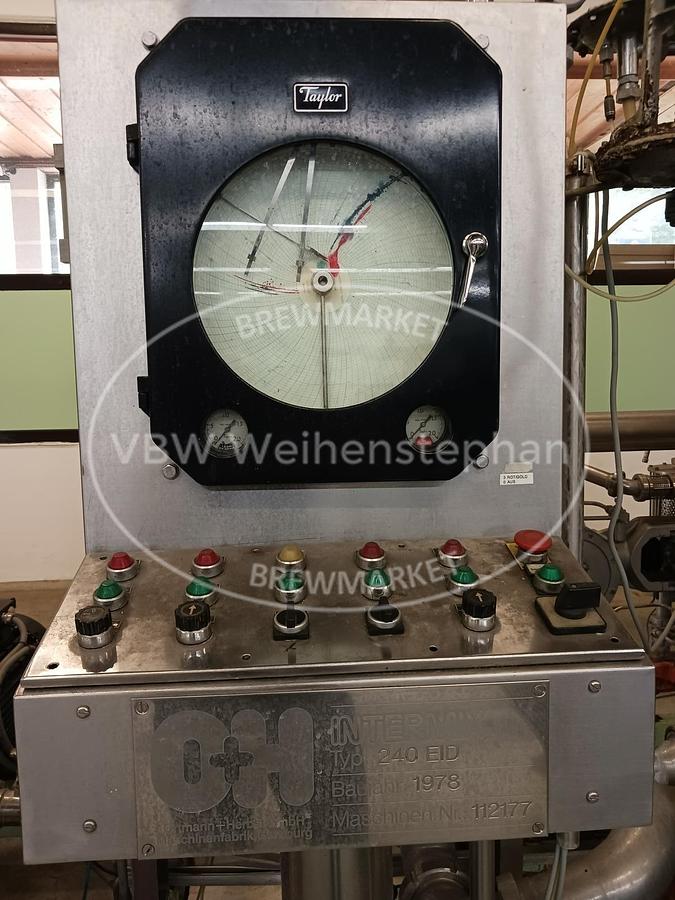

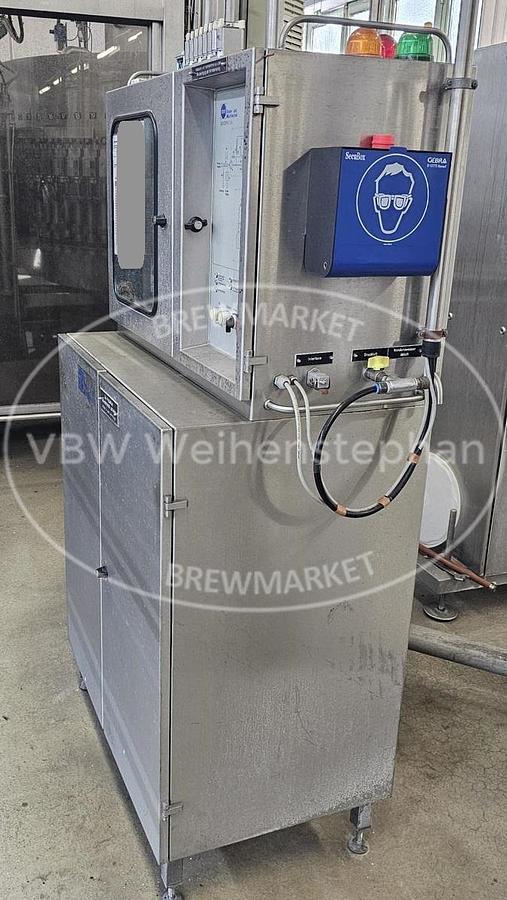

| Operation / Control | Control panel, manual |
| Material | Lacquered mild steel frame, stainless steel product contacts |
| Position | Free standing |
| Base construction | Open frame construction with spherical feet |

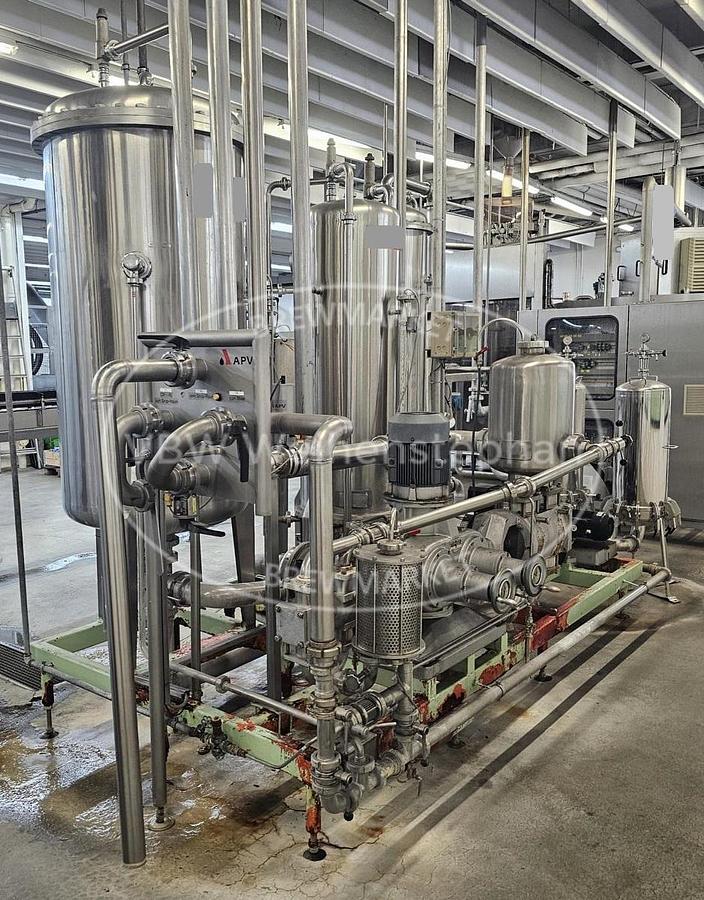

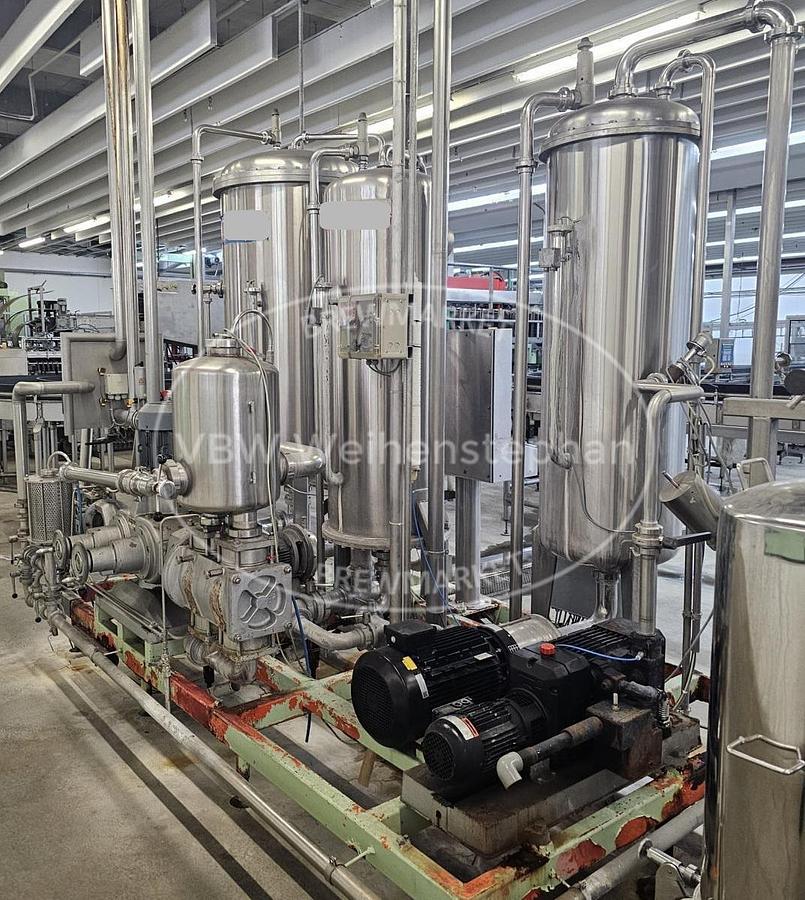

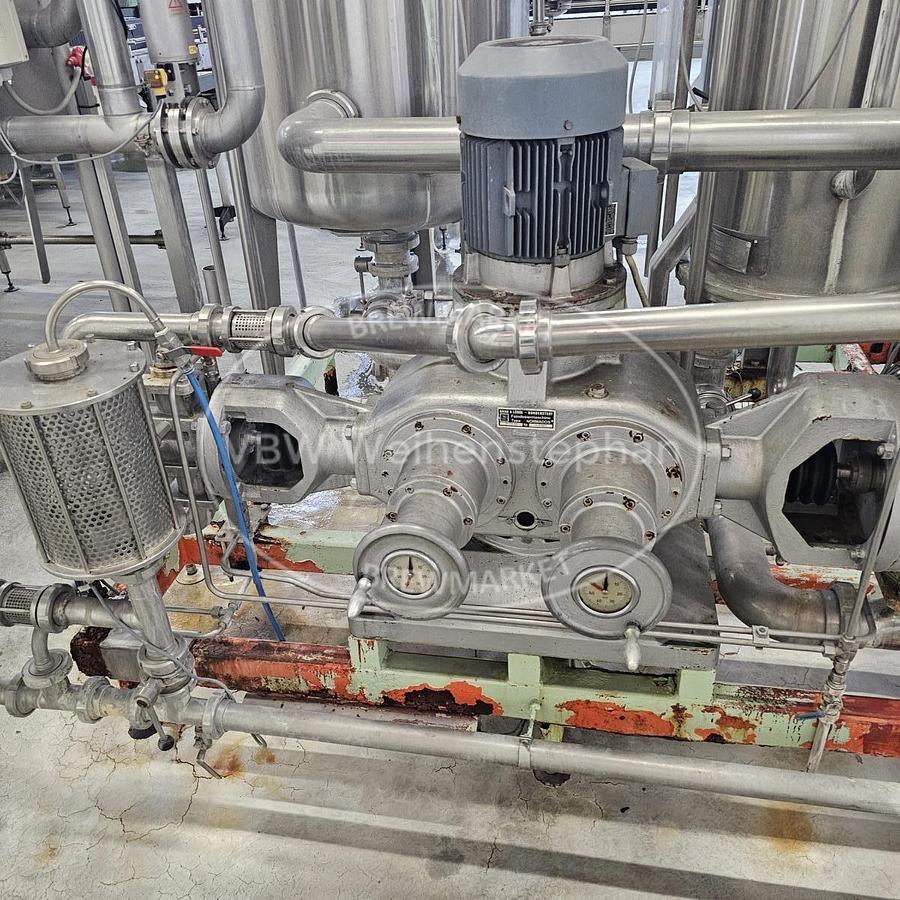

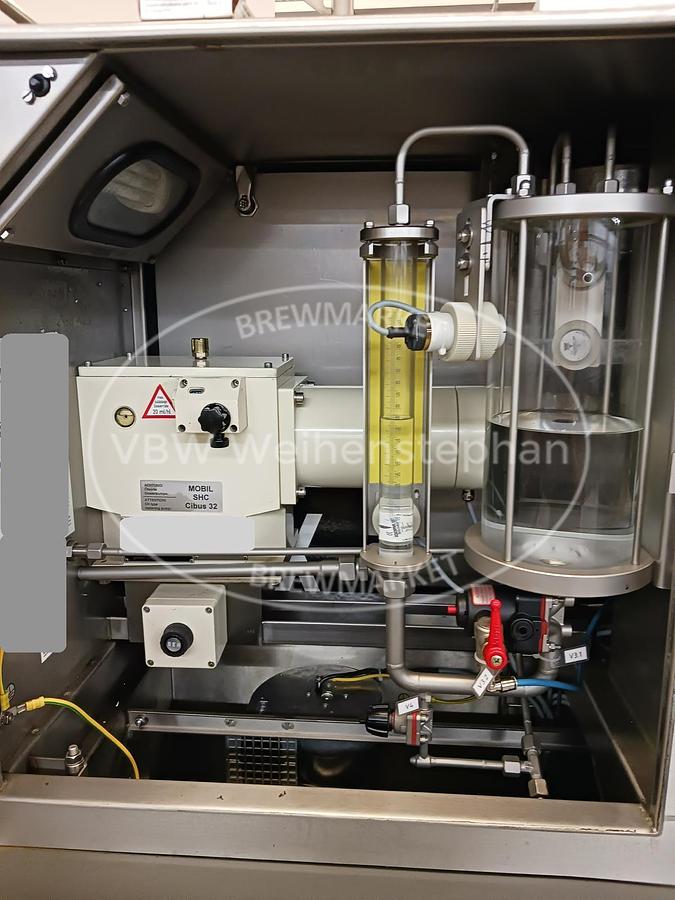

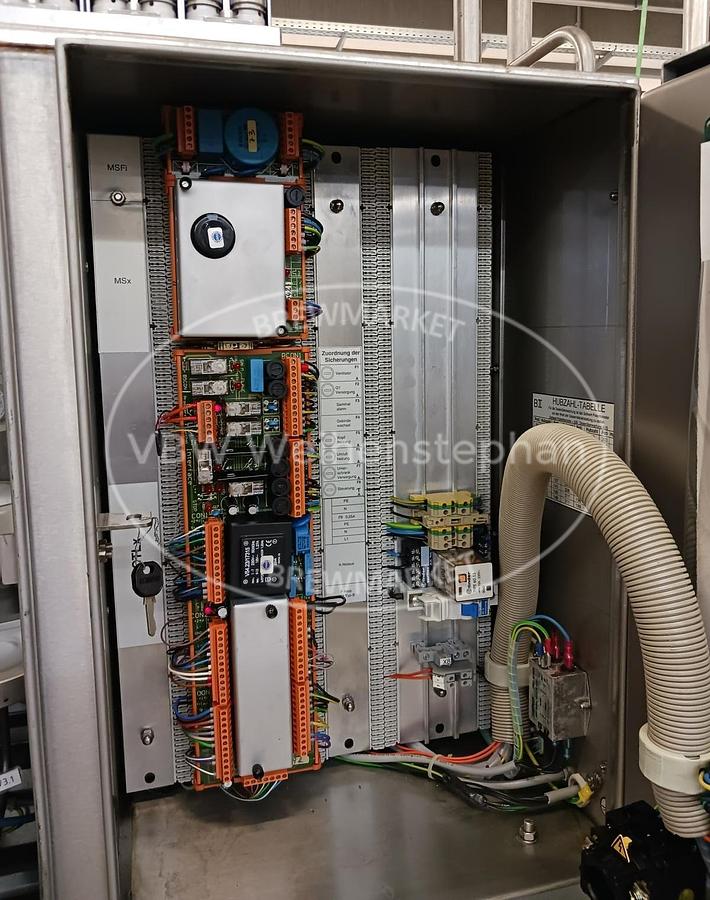

| Features | Deaeration tank, impregnation tank, equalisation tank, CO2 dosage control, internal piping, pumps and fittings, control cabinet 2 trap filters for fine filtration of water in the inlet |
