Filling line disposable bottles
Featured
Filling line disposable bottles
or
Call +49 (0) 8161-48333
Description
Filling line for 0.33 L disposable Euro bottles

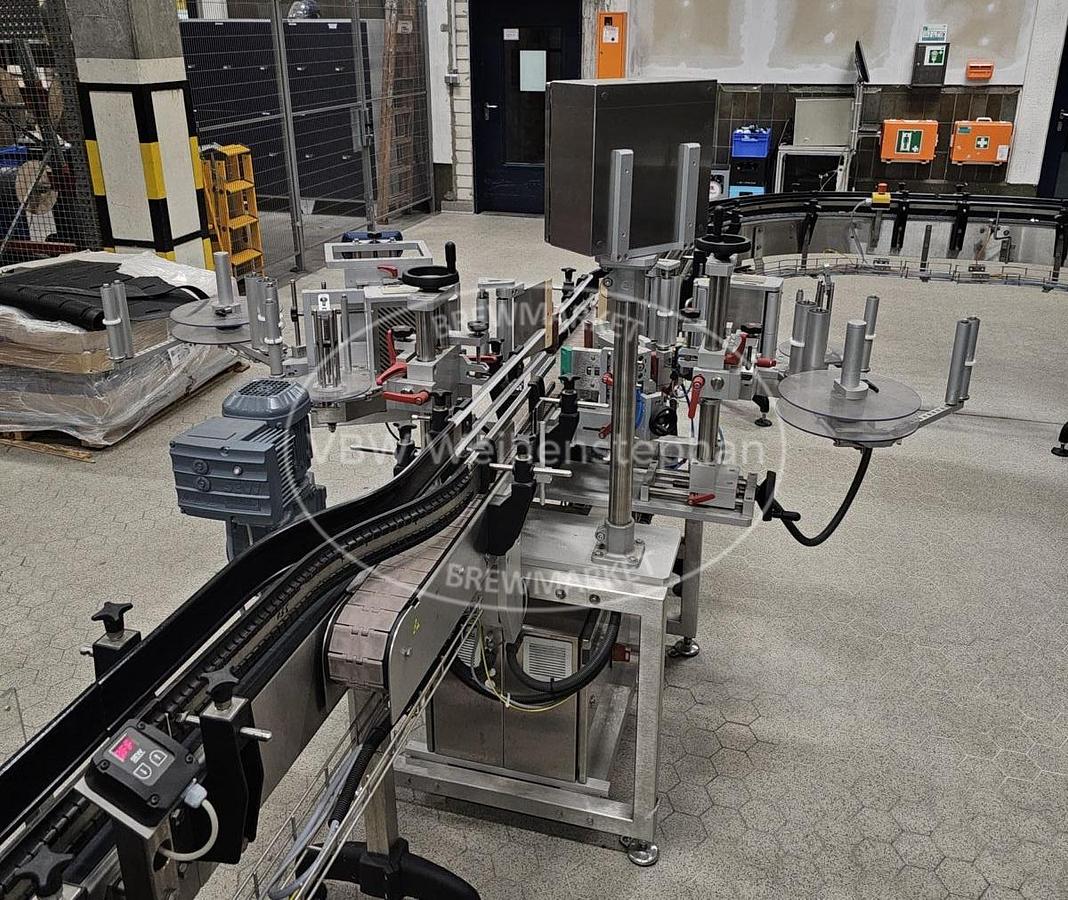

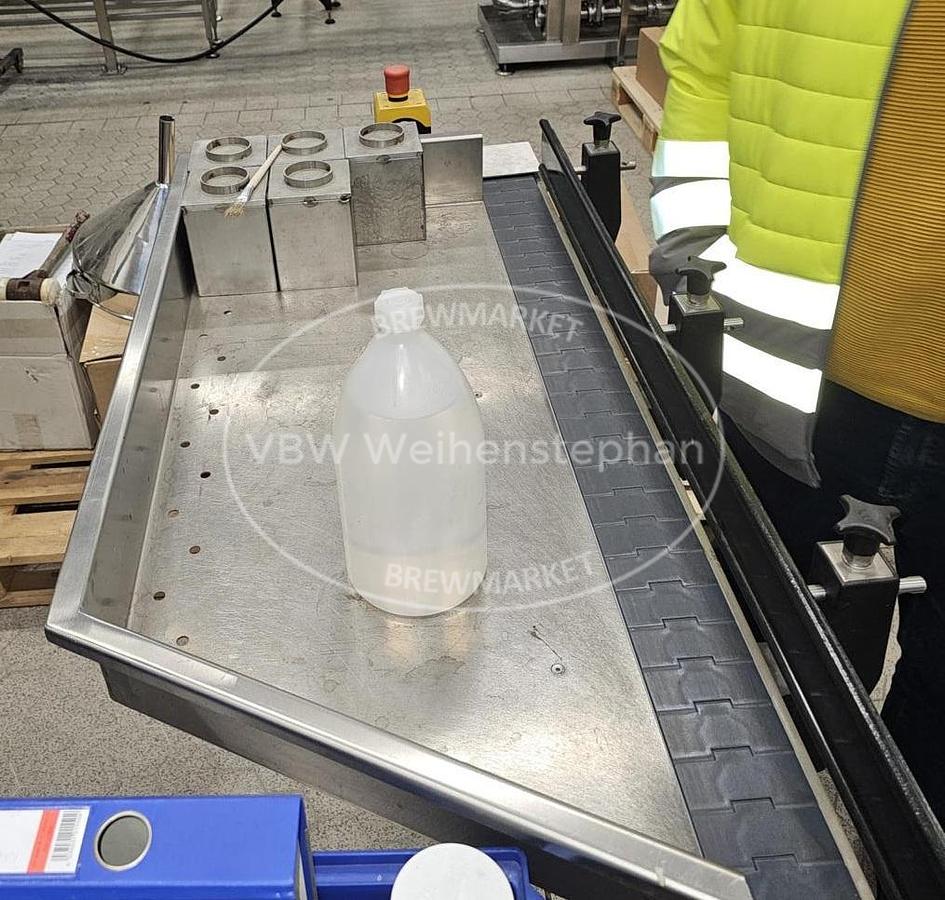

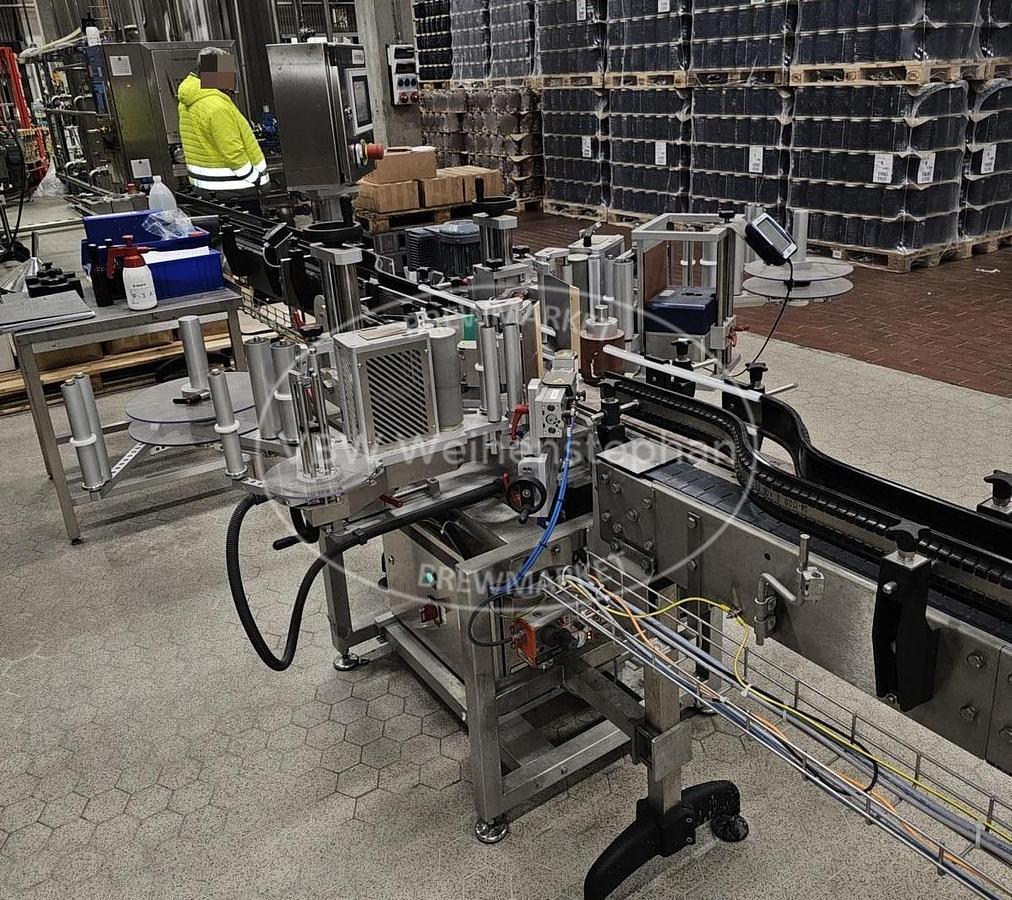

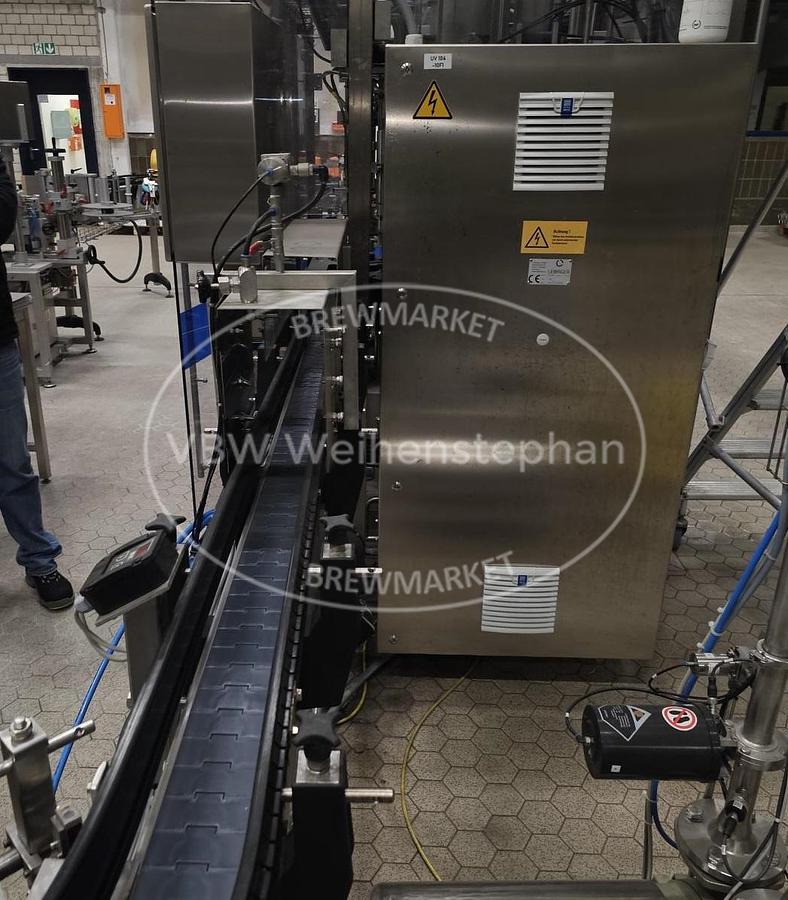

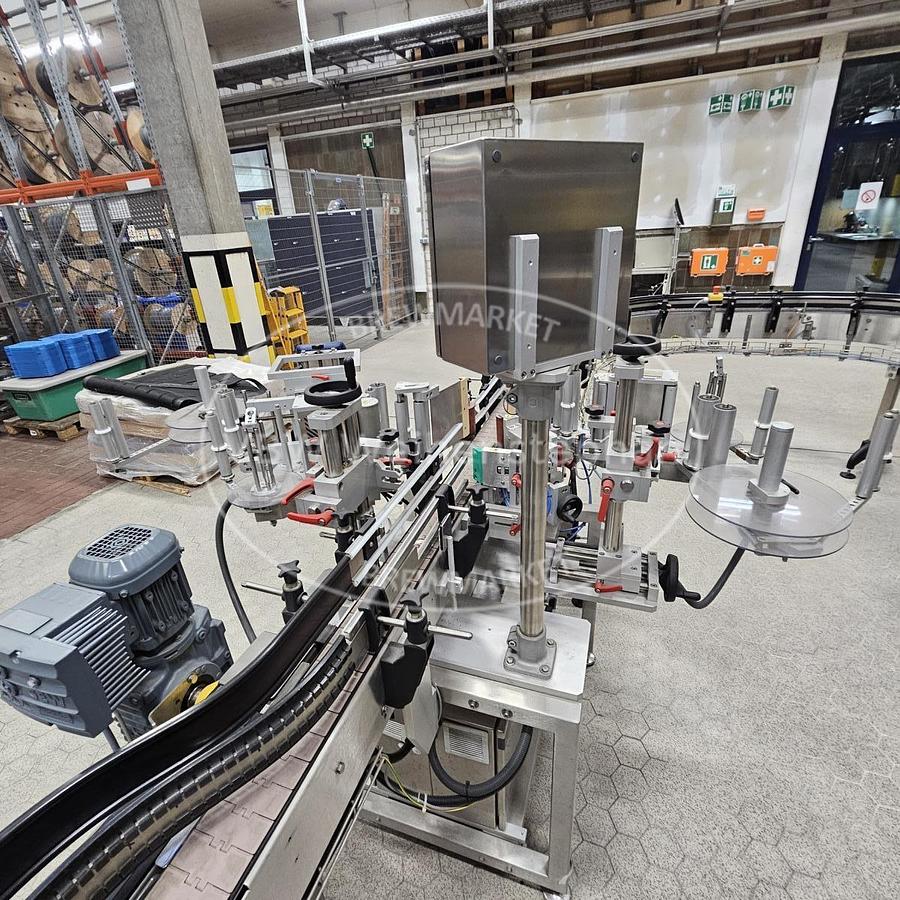

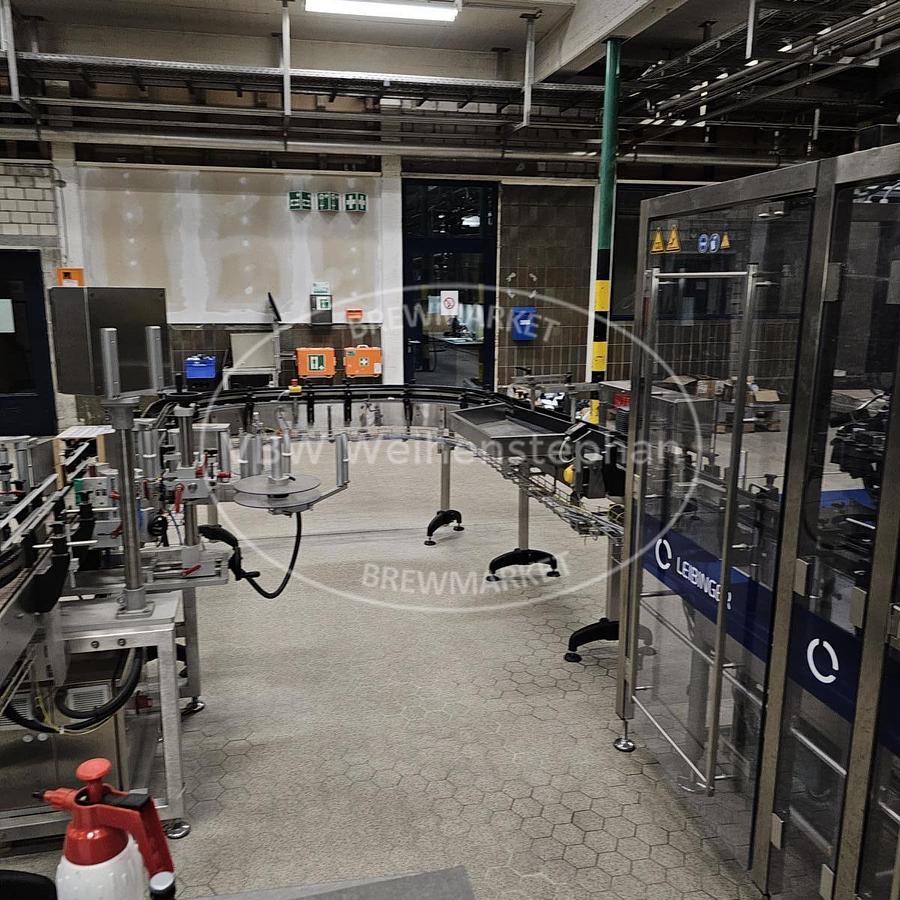

The bottles are placed by hand on a bottle loading table. From there they run on a conveyor belt to the labeling machine,

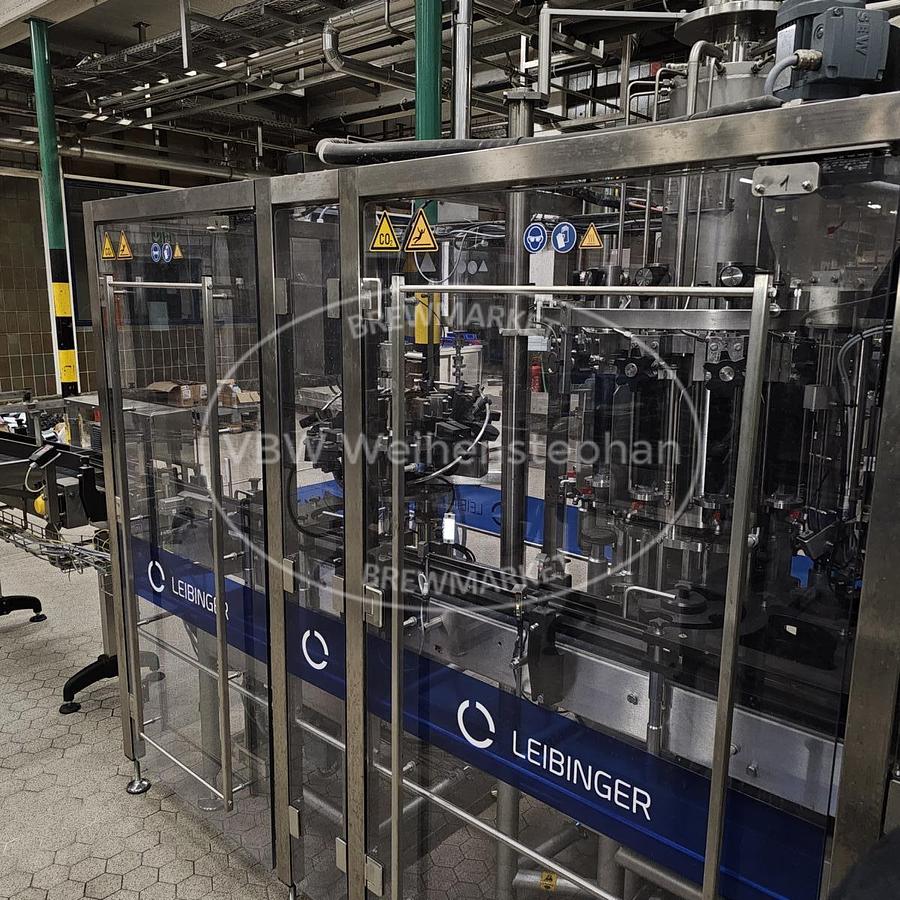

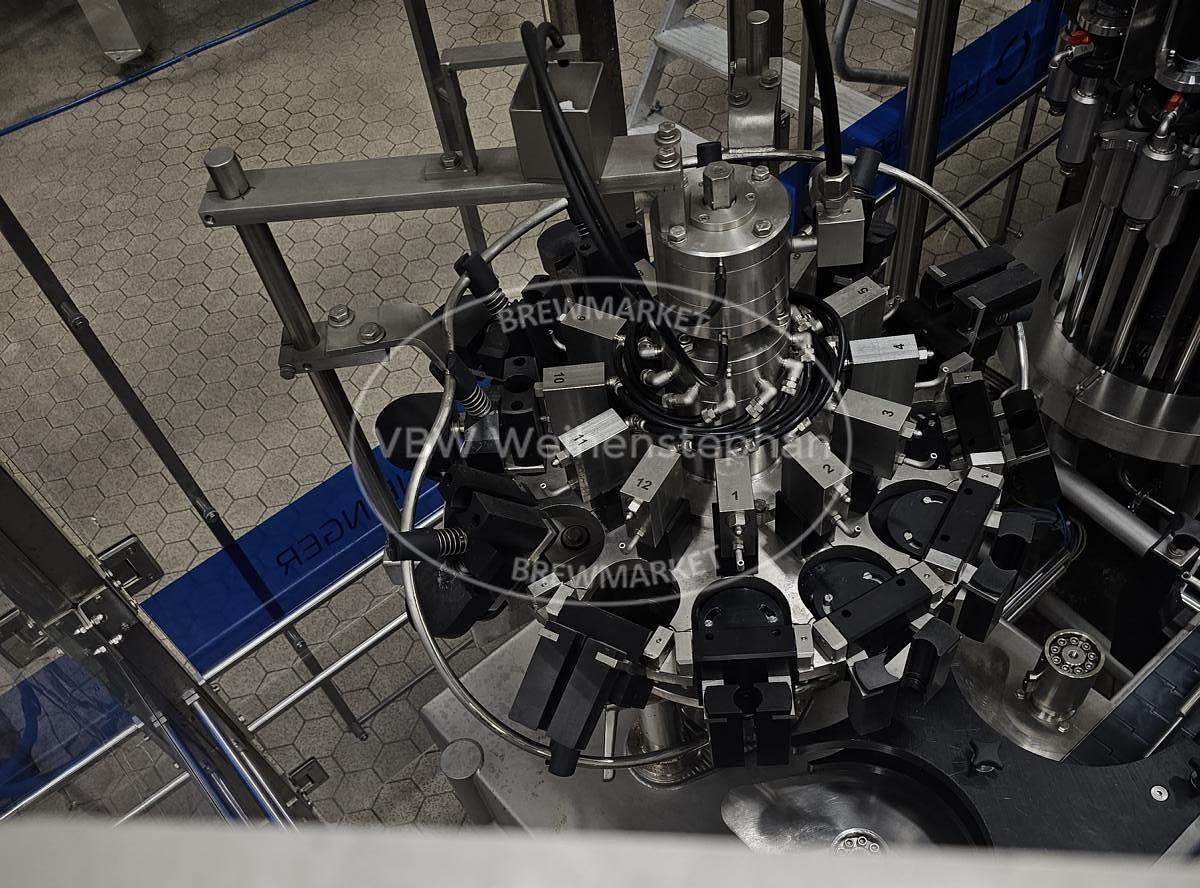

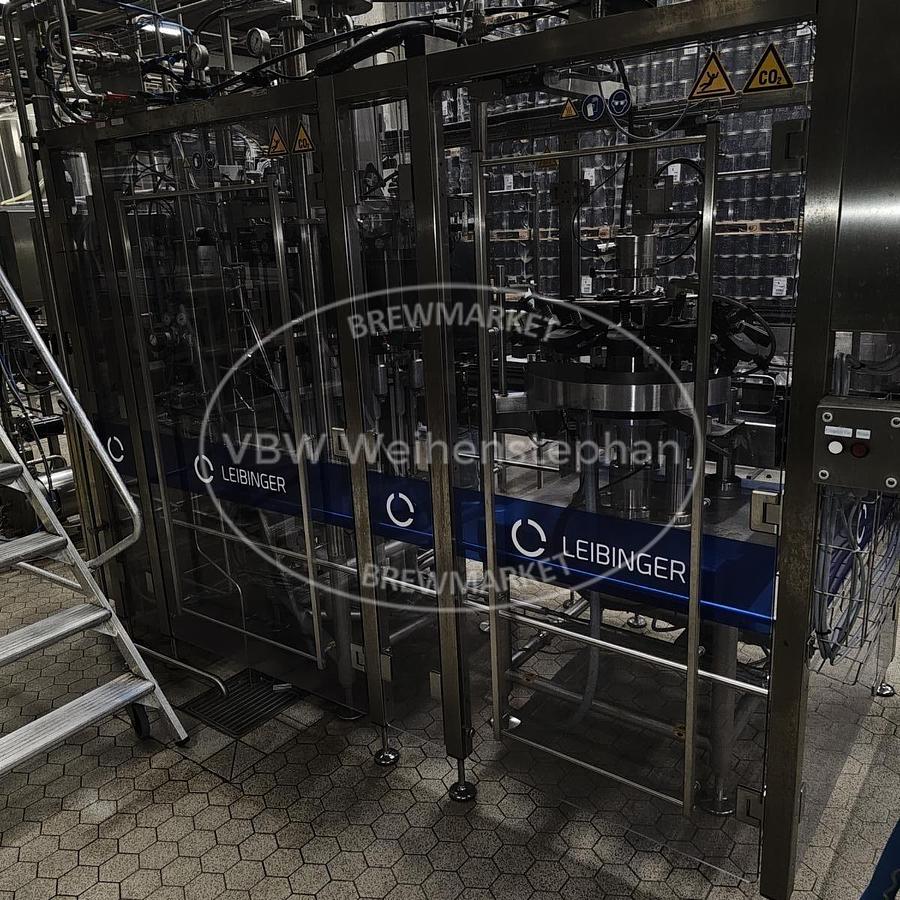

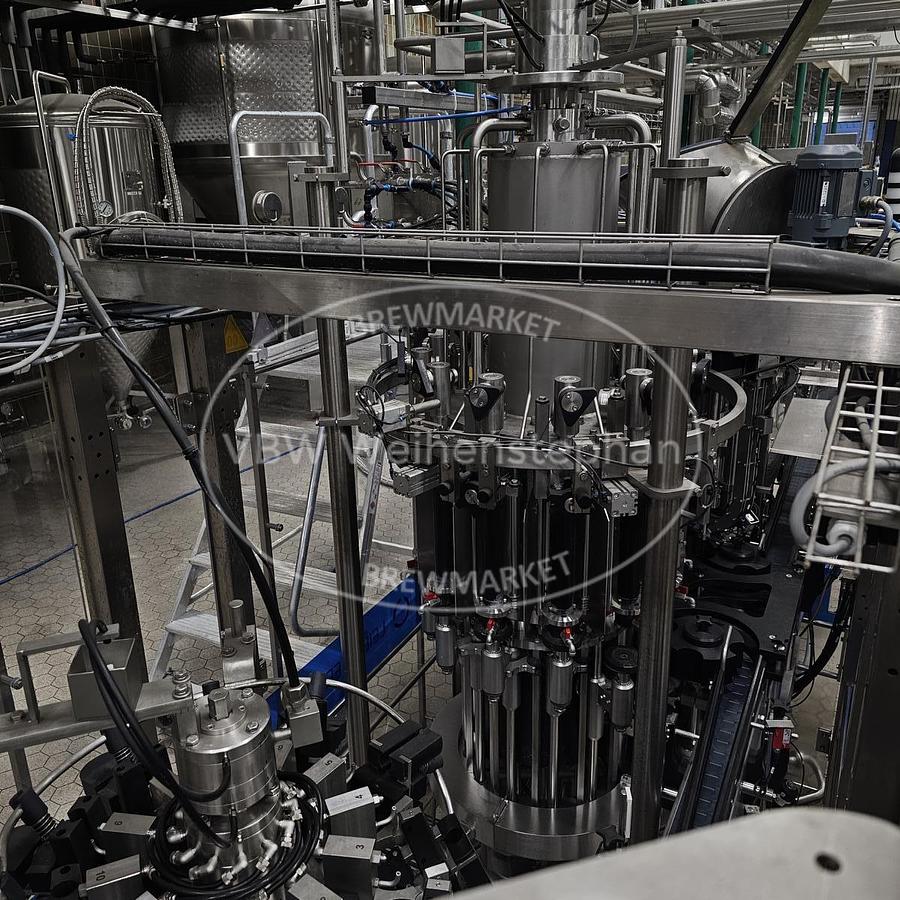

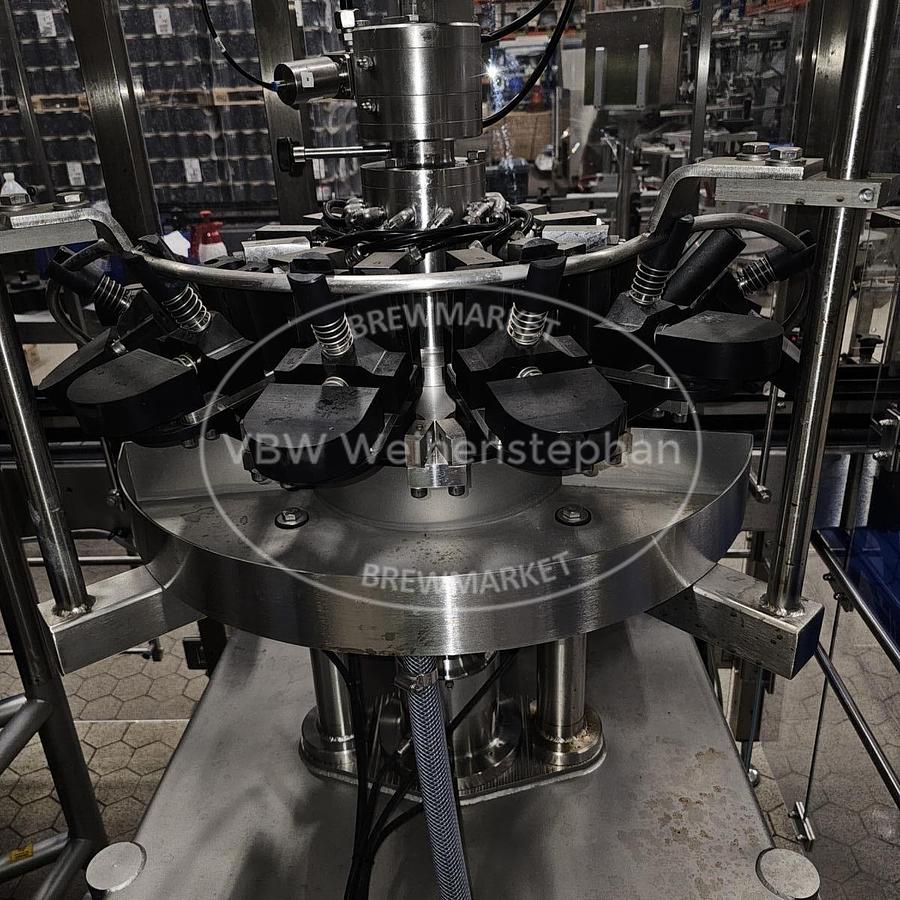

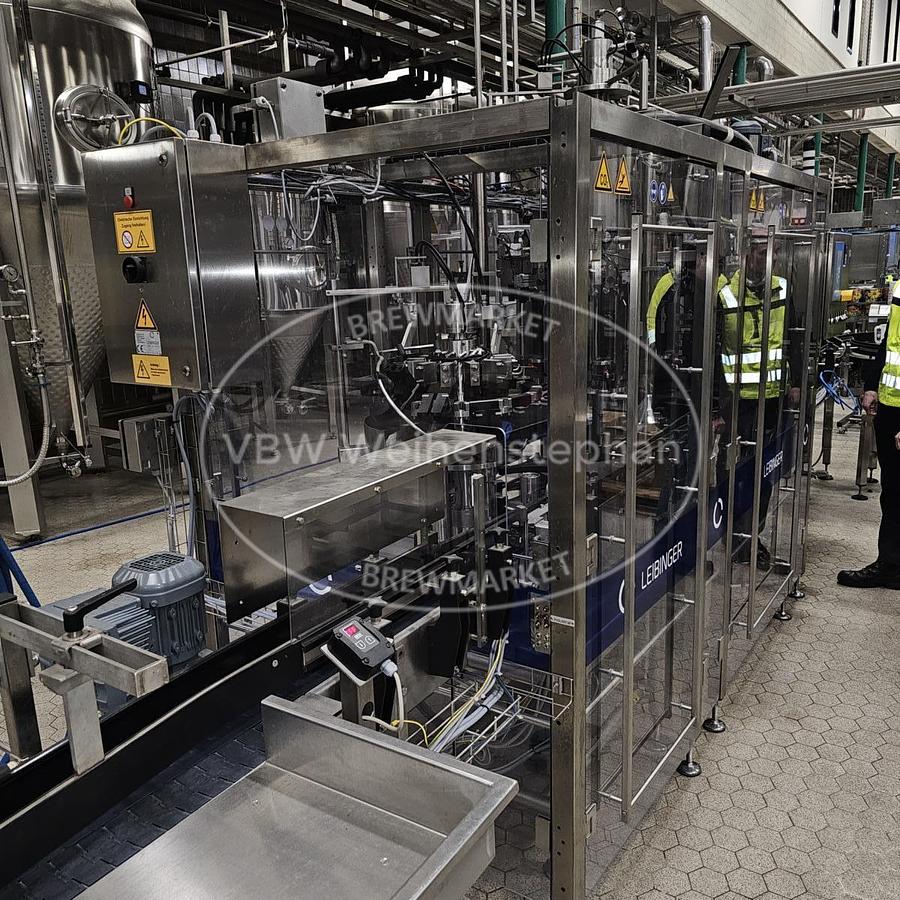

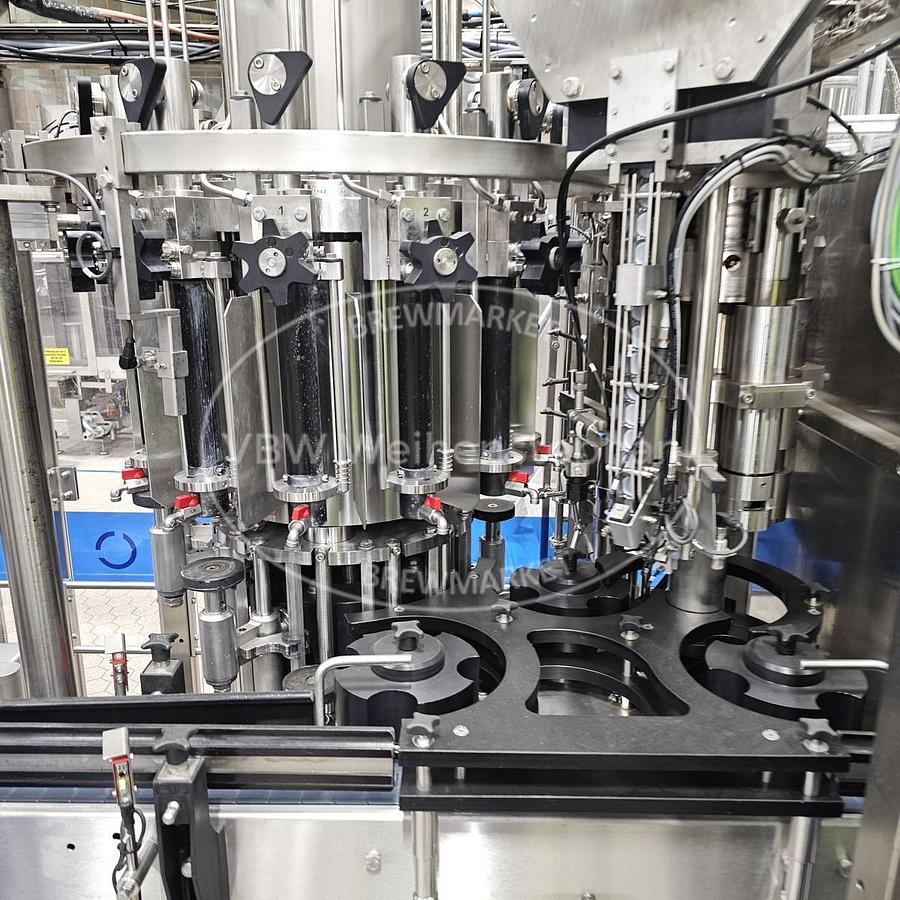

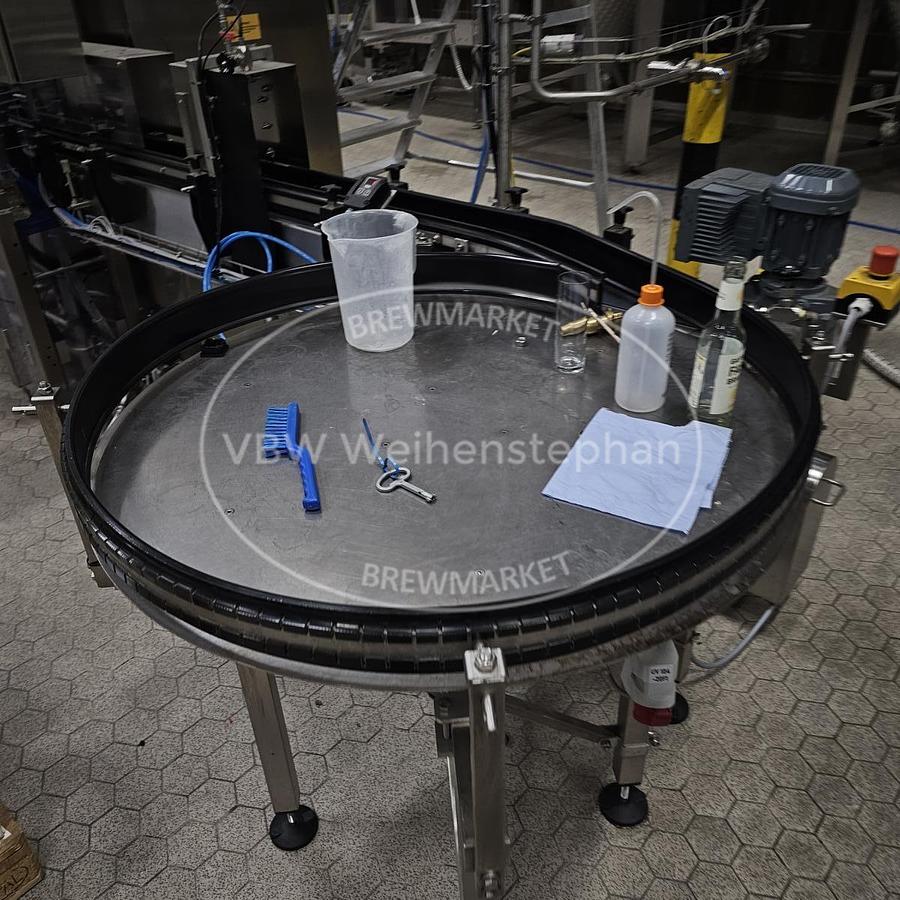

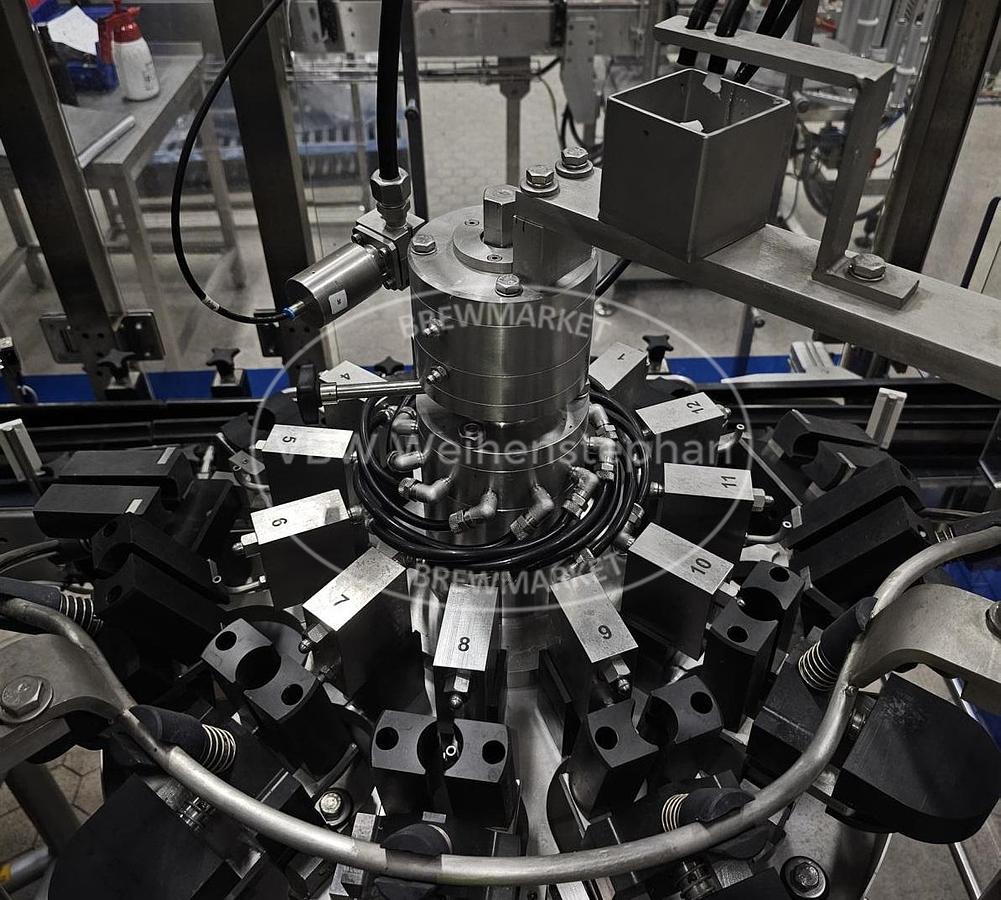

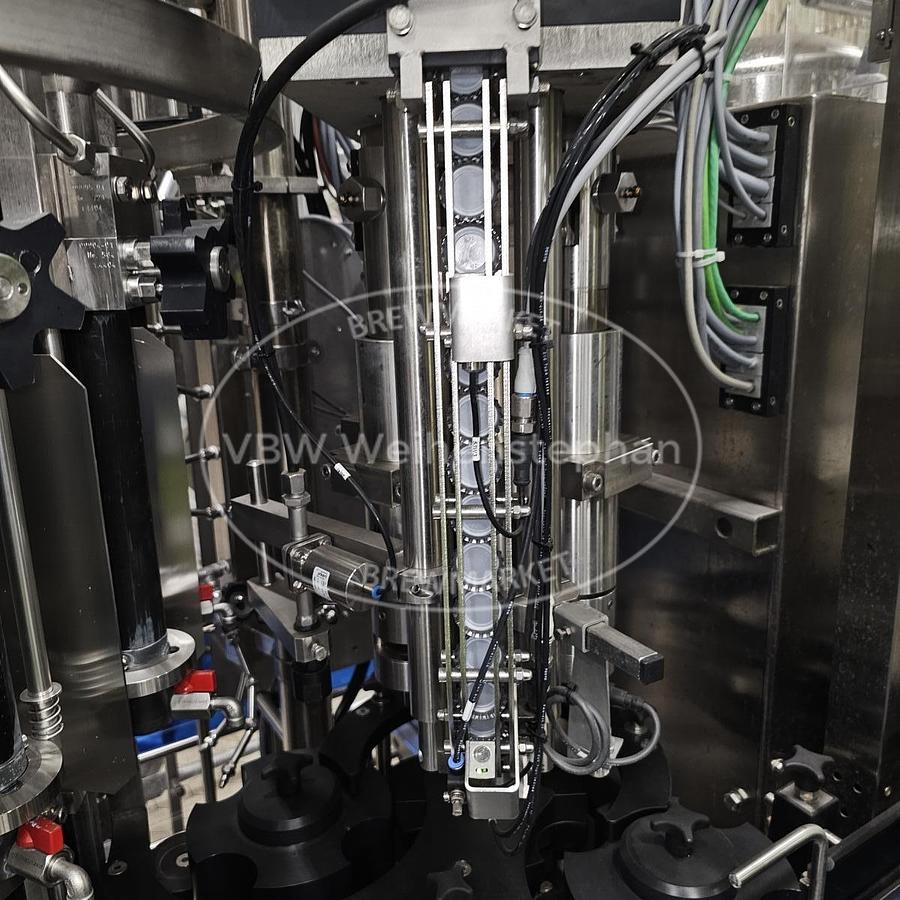

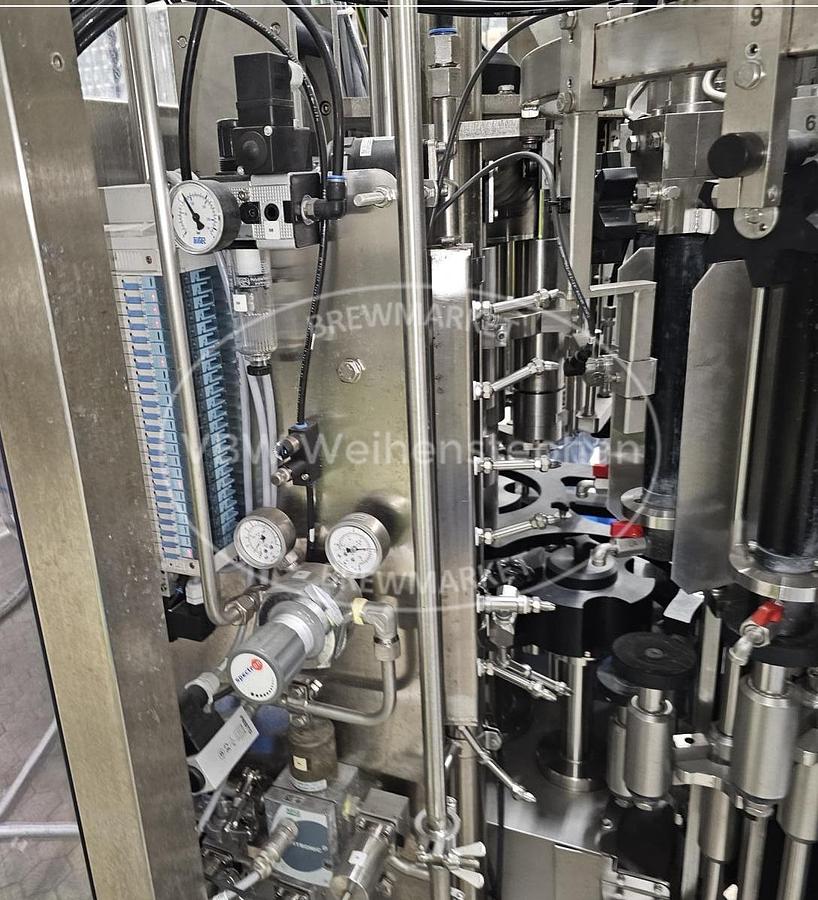

where an all-round adhesive label is applied. Then they go to the combined rinser/filler/sealer, and downstream bottle collection table, from which the bottles are manually packed into crates or other containers.
Specifications
| Manufacturer | Leibinger GmbH |
| Year | 2017 |
| Condition | Used |
| Stock Number | 209977HG |
| Additional title | Glass bottle filling |
| Nominal capacity approx. | 3750 bottles/h |
| Formats | 0.33 L disposable Euro- and Vichy-bottles |
| Running direction | left -> right |

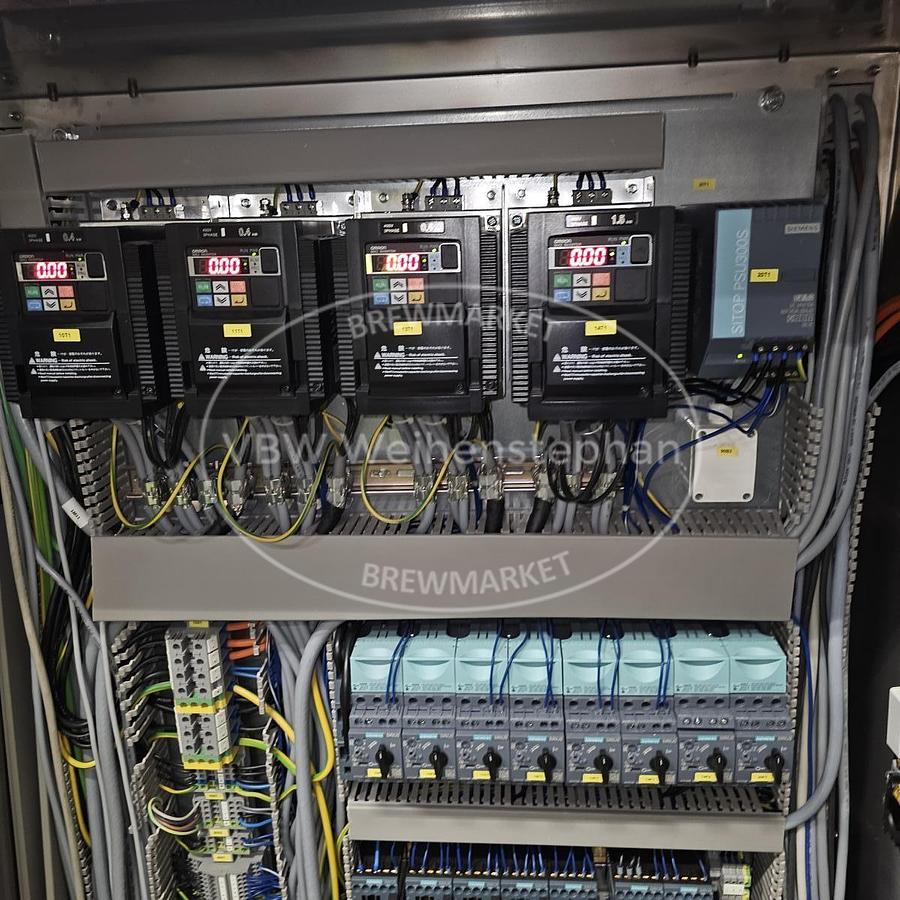

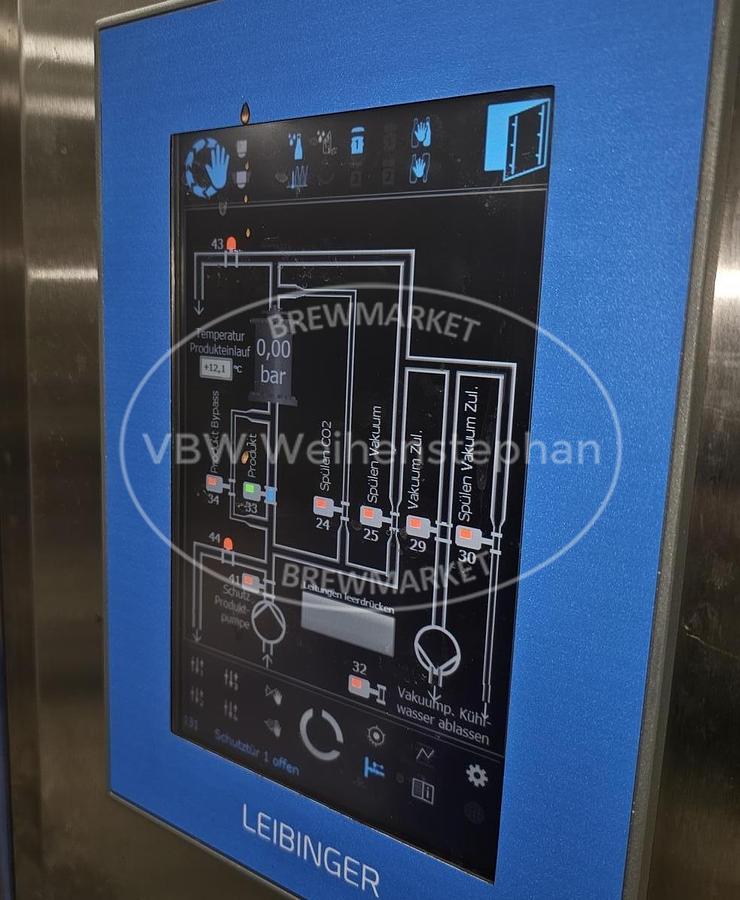

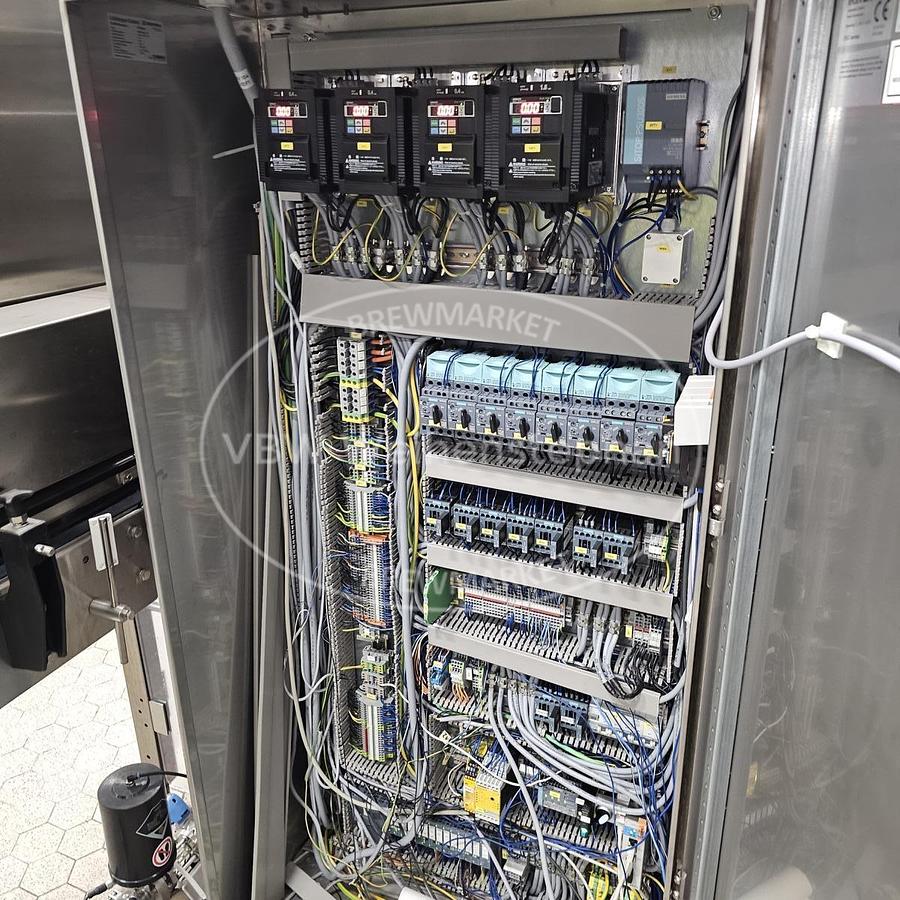

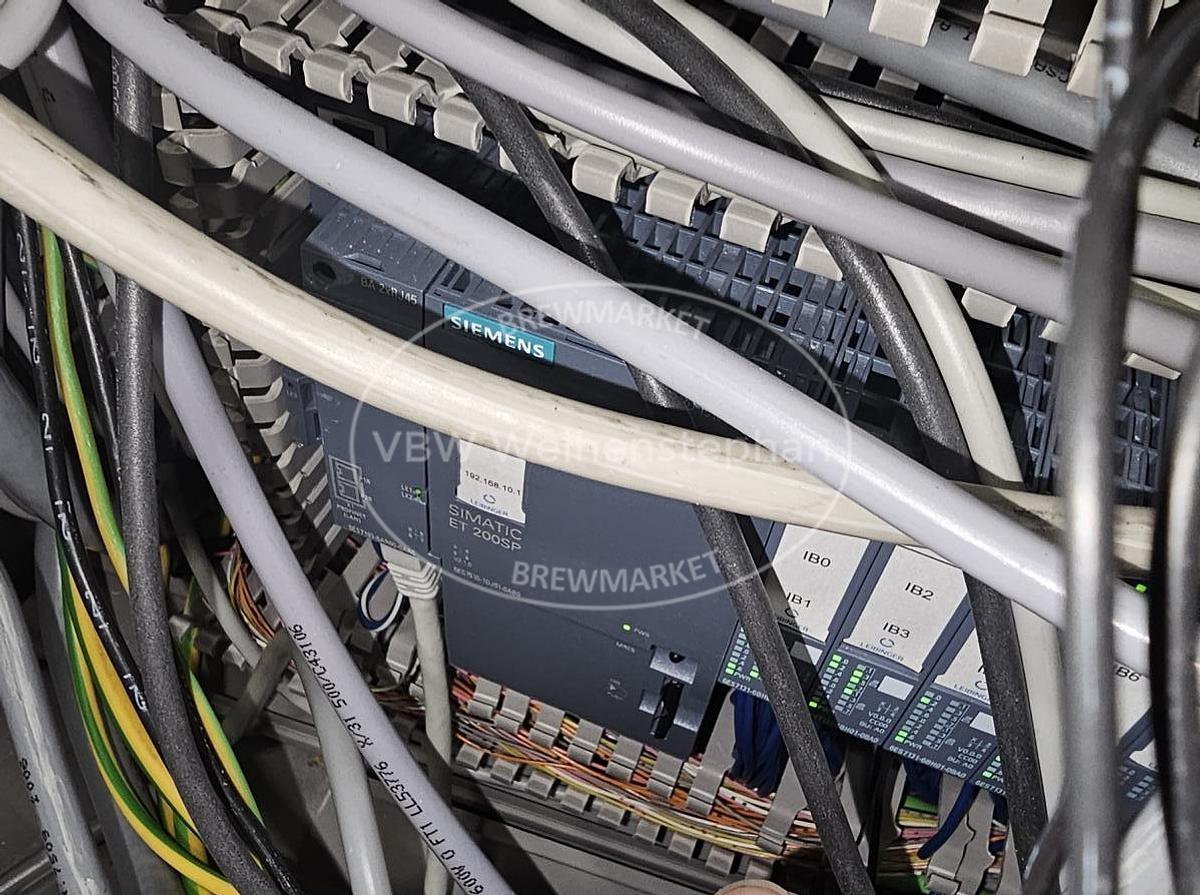

| Operation / Control | Filler: Siemens ET 200 SP, Touch Panel |
| Position | free standing |

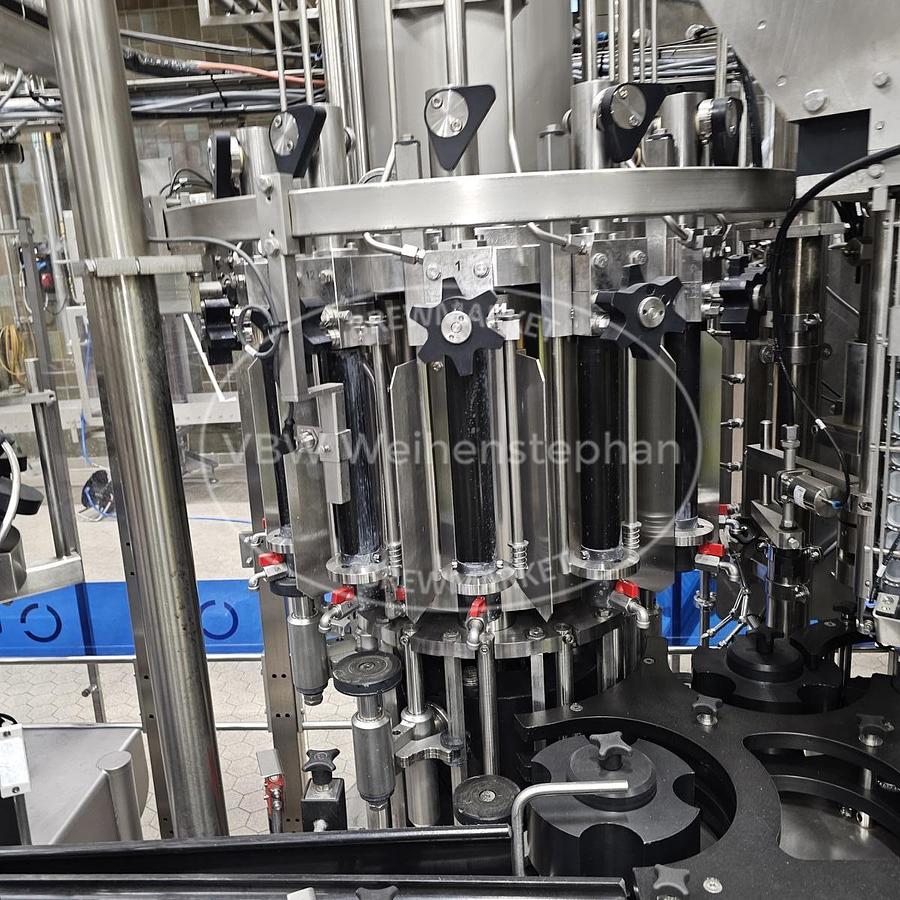

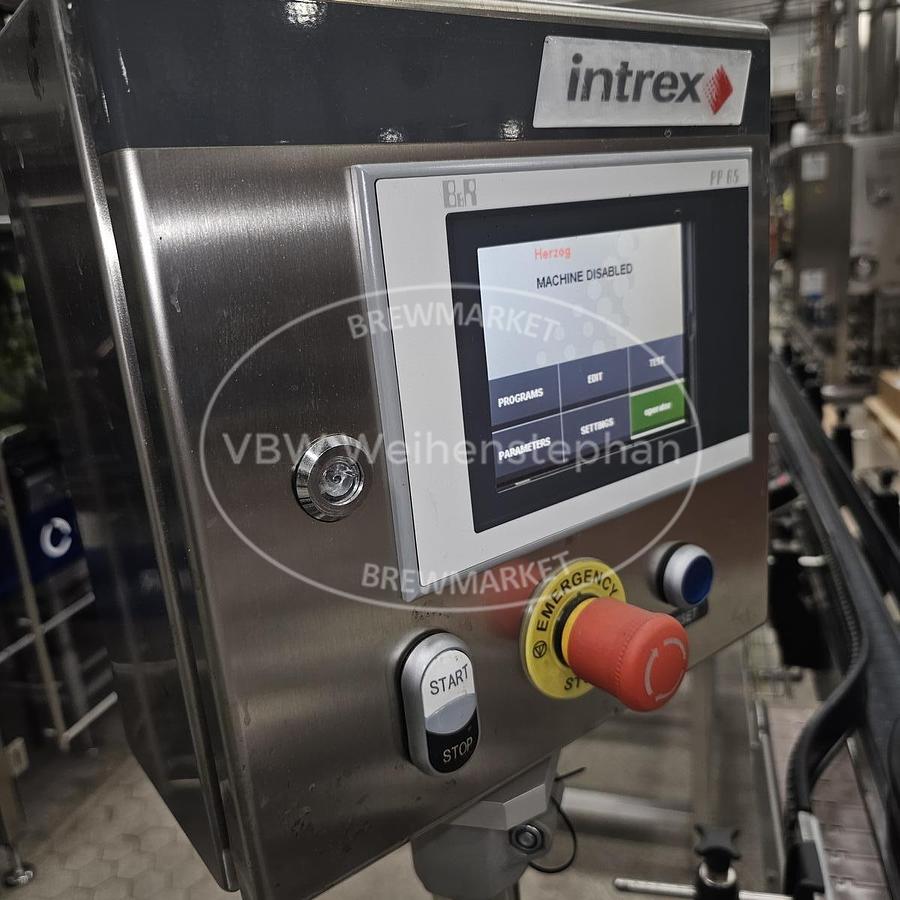

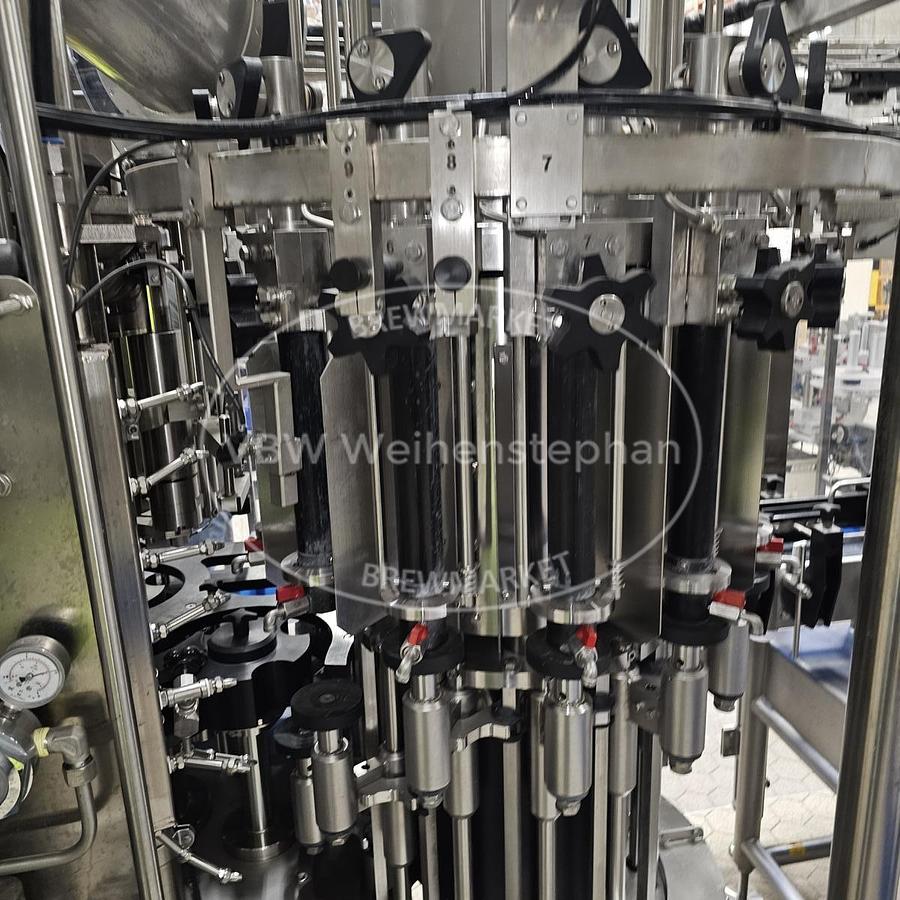

| Features | Bottle loading table, labeling machine from Intrex (model: Intrex Set with all-round adhesive labeling), bottle rinser/filler from Leibinger GmbH (rinser model: 12 BG, filler model: Multima L (= long-tube filler) control: Siemens S7, built in 2019), Bottle collection table, bottle transport |
