Description

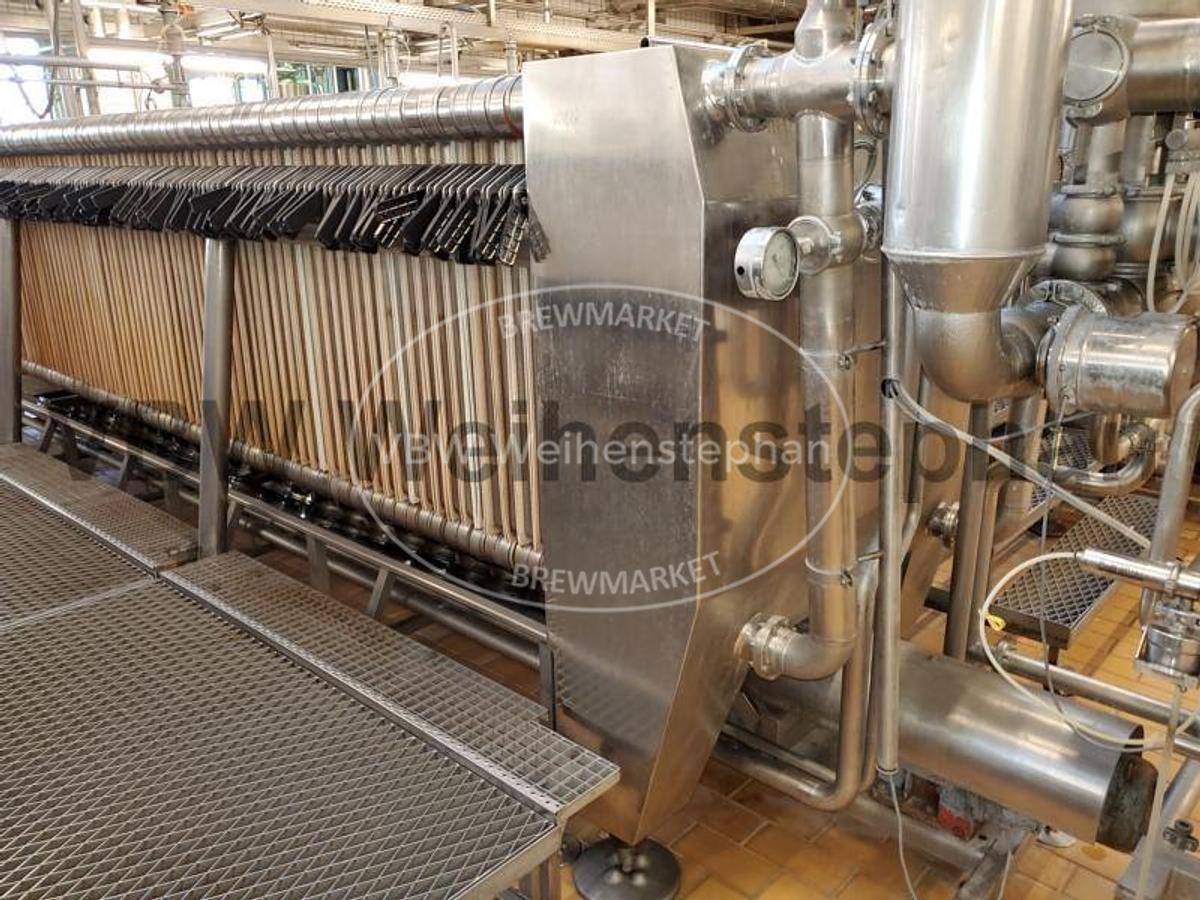

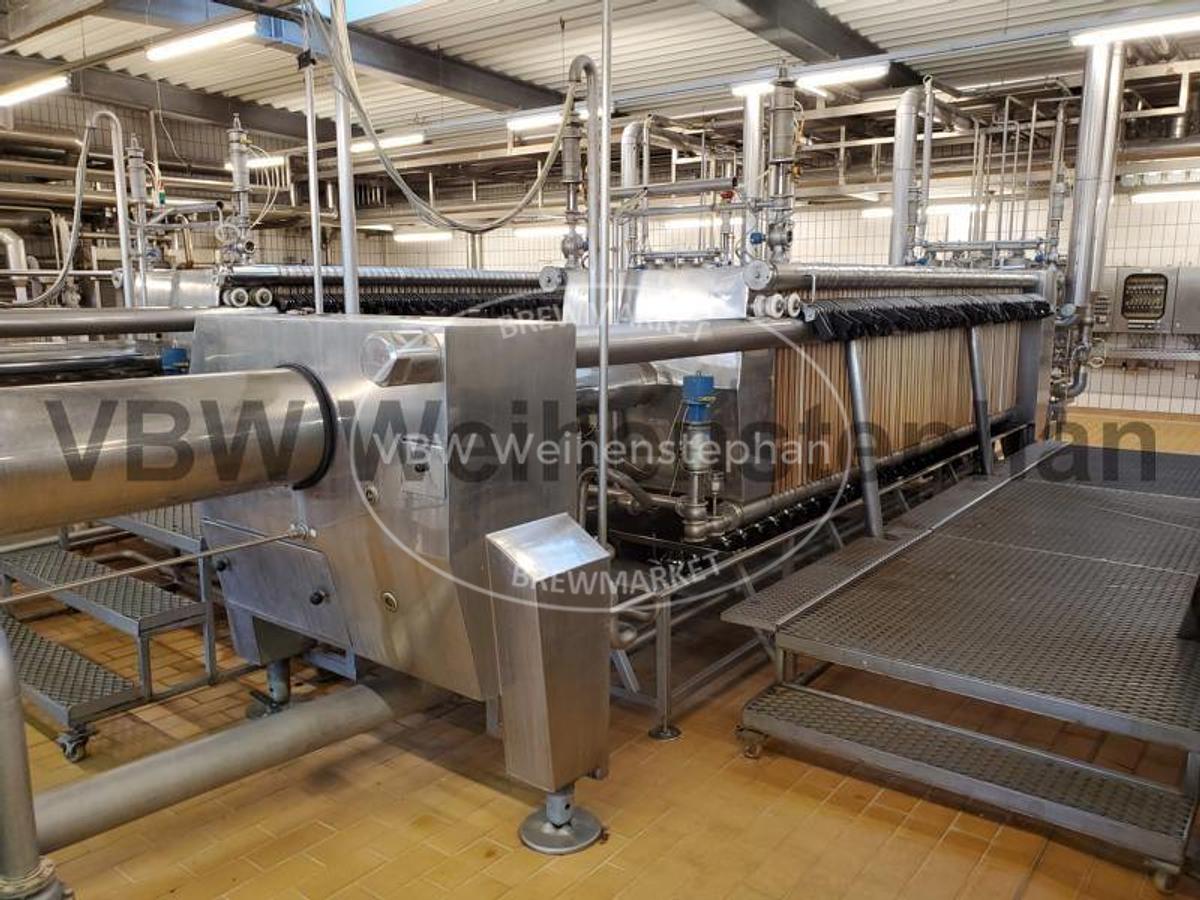

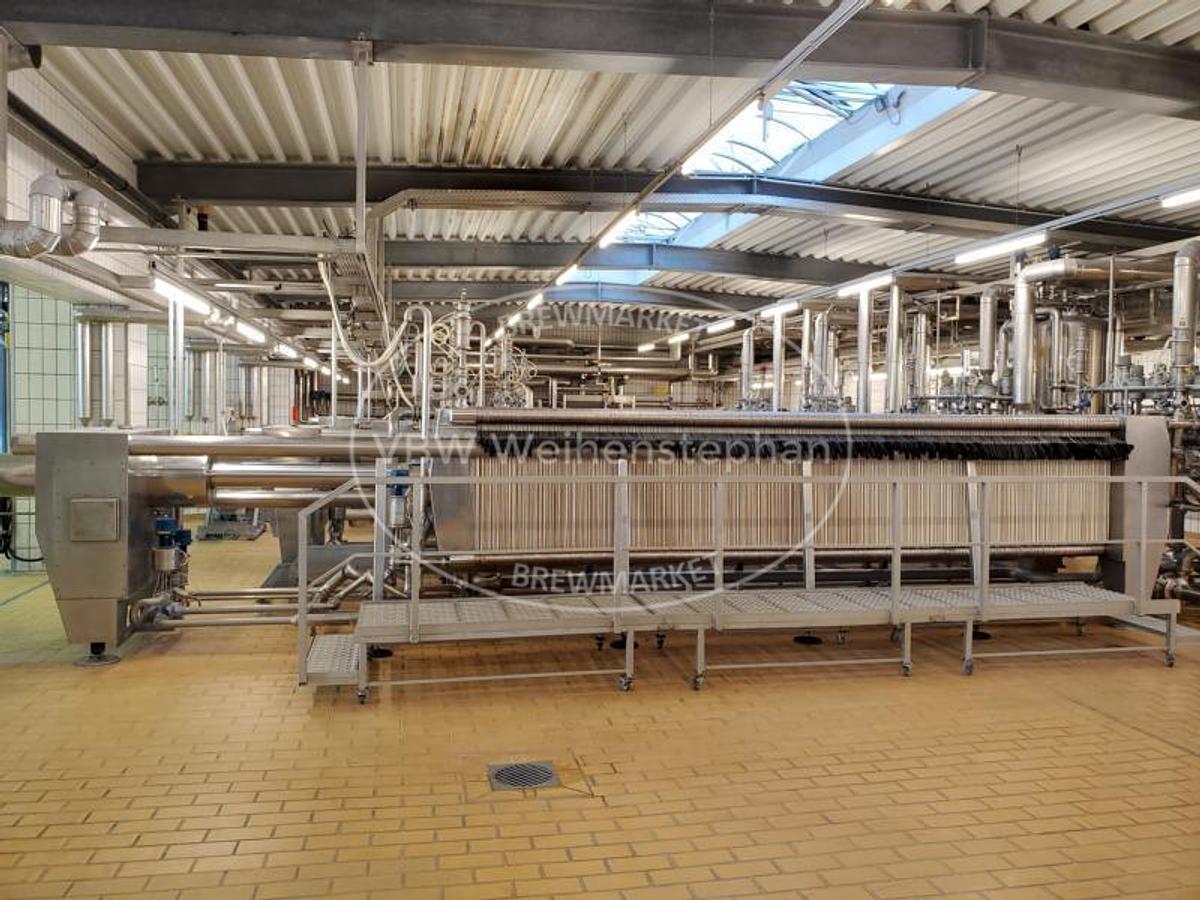

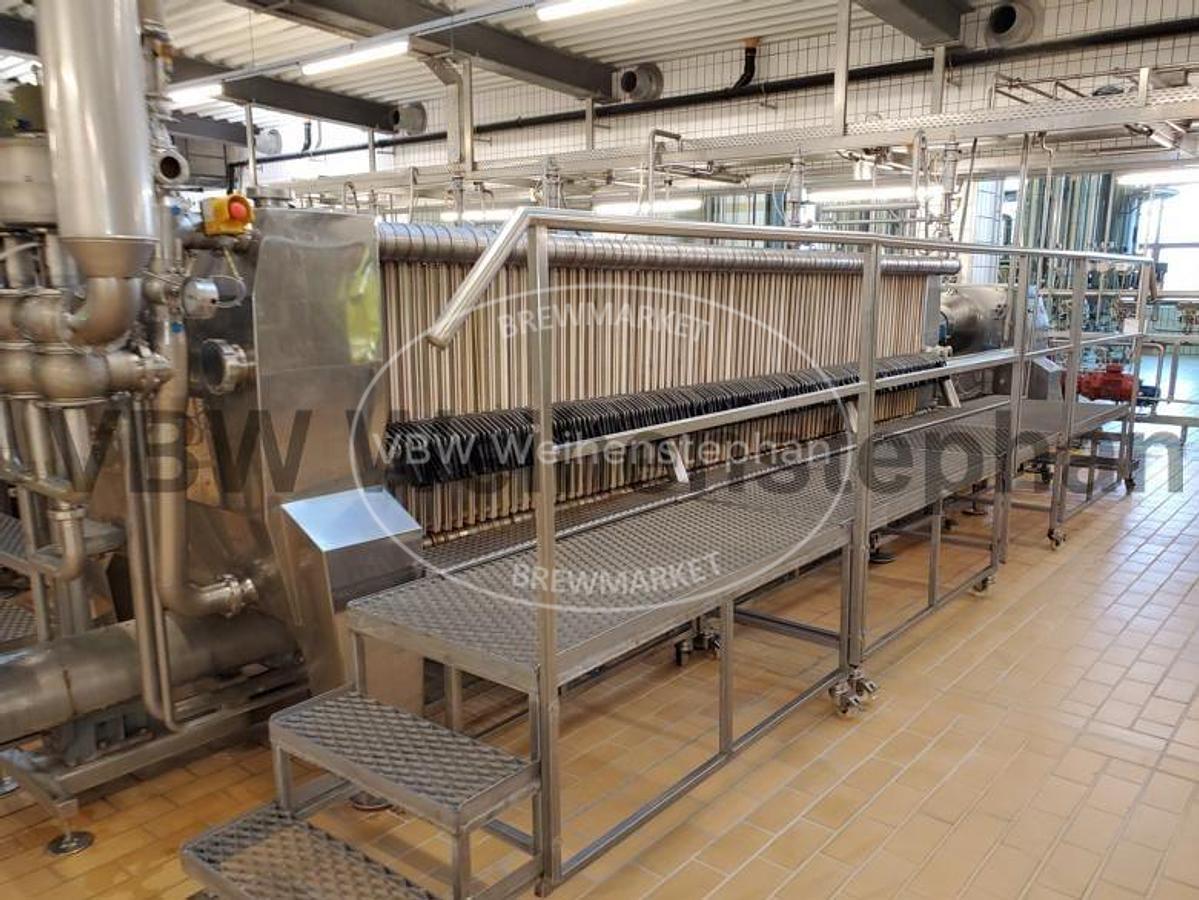

Kieselguhr frame filter.
Sterilizable universal filter for liquid filtration with kieselguhr. Stationary filter with square elements in a vertical row arrangement.
Hydraulic filter sheet pressing with hydraulic control on the built-in electrical control panel.
Specifications
| Manufacturer | Seitz - Werke GmbH |
| Condition | Used |
| Stock Number | 209978MW |
| Additional title | kieselguhr filter, years of manufacture 1979 - 2010 |
| Capacity approx. | 850 hl/h Kieselguhr filter - filtration area approx. 174 - 242 m² |
| Operating pressure | 8 bar |
| Power | 6 kW |
| Voltage | 220/380 V |
| Frequency | 50 Hz |
| Length | 10100 mm |
| Width | 1320 mm |
| Height | 1750 mm |
| Formats | square filter elements |
| Operation / Control | built-in control panel |
| Material | Stainless steel |
| Position | Horizontal |
| Base construction | Frame |

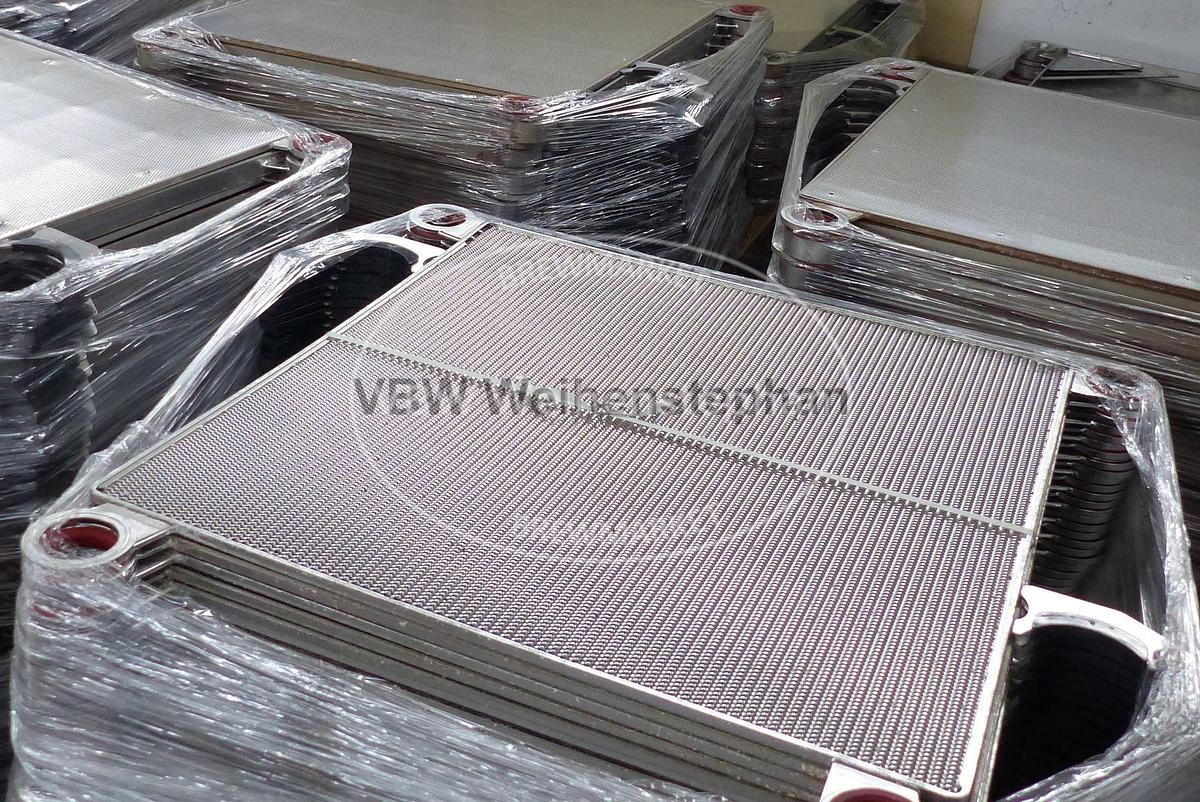

| Features | Filter plates; filter frames; collection tray with removal screw; hydraulik filter plate compression; hose pump |
| Layer patterns | vertical row arrangement |
