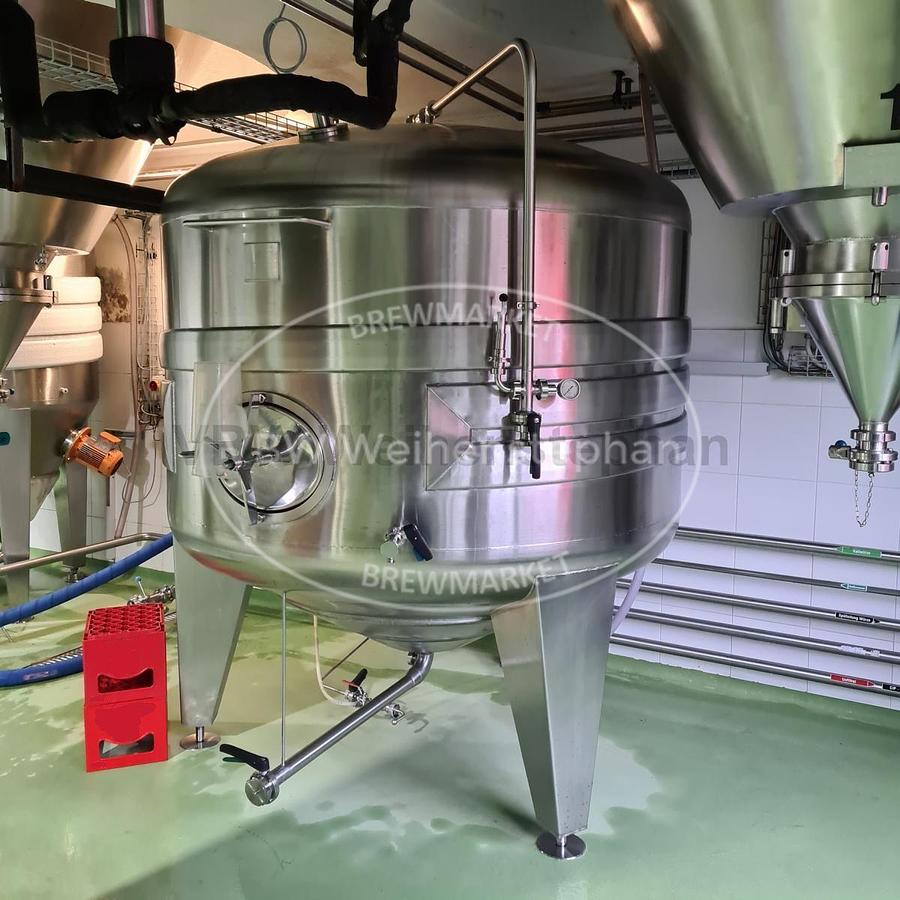

Yeast propagator
Yeast propagator
or
Call +49 (0) 8161-48333
Description
Cylindroconical stainless steel tank with glycol cooling for frame and cone, ventilation nozzle at the outlet and various fittings.
Wall thicknesses:
- Cone 3 mm
- Frame 2 mm
- Clamp bottom 3 mm
Cone angle: 120°
Roughness of cone interior < 0.35 µm
Specifications
| Manufacturer | KASPAR SCHULZ |
| Year | 2002 |
| Condition | Used |
| Stock Number | 205877FO |
| Additional title | Vertical, cylindrical-conical, coolable stainless steel tank |
| Volume | 4681 liter |
| Working pressure | 0 bar tank |
| Working presure | 0 bar double jacket |
| Width | 2.3 m |
| Height | 2.5 m |
| Material | V2A stainless steel 1.4301 (AISI 304) |
| Base construction | cylindroconical, opper bottom dished shell, on 3 cabinet legs one is 50mm shorter for a load cell |
| Features | 3 cooling zones with volumes of 7 and 14 and 34 liters, coolant = glycol solution, connection size inlet (one each) DN 20, connection size outlet (one each) DN 25, sight glas DN100 mit halogen lamp,CIP head, air duct with sterile filter, standpipe, outlet pipe DN 65 with disc valve, manhole with lid, sampling tap, temperature sensor, load cell, Safety fitting consisting of over pressure pipe with valve, manometer and flap valve DN32 |
