PET bottle filling line
PET bottle filling line
Description
Disposable PET filling line for mineral water and soft drinks. The system consists of the following components:

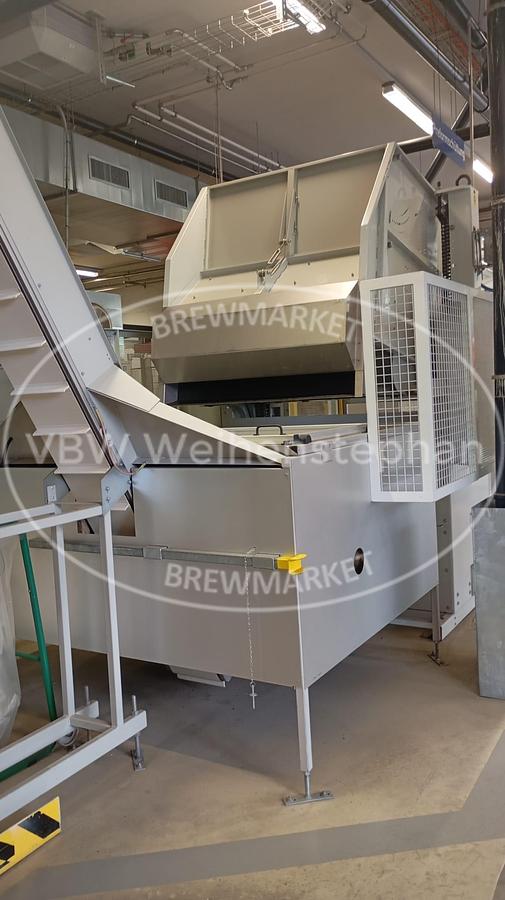

- Preform feeding and transport (Kosme, 2011) lifting box with tilting device and chain conveyor
- Preform air rinser

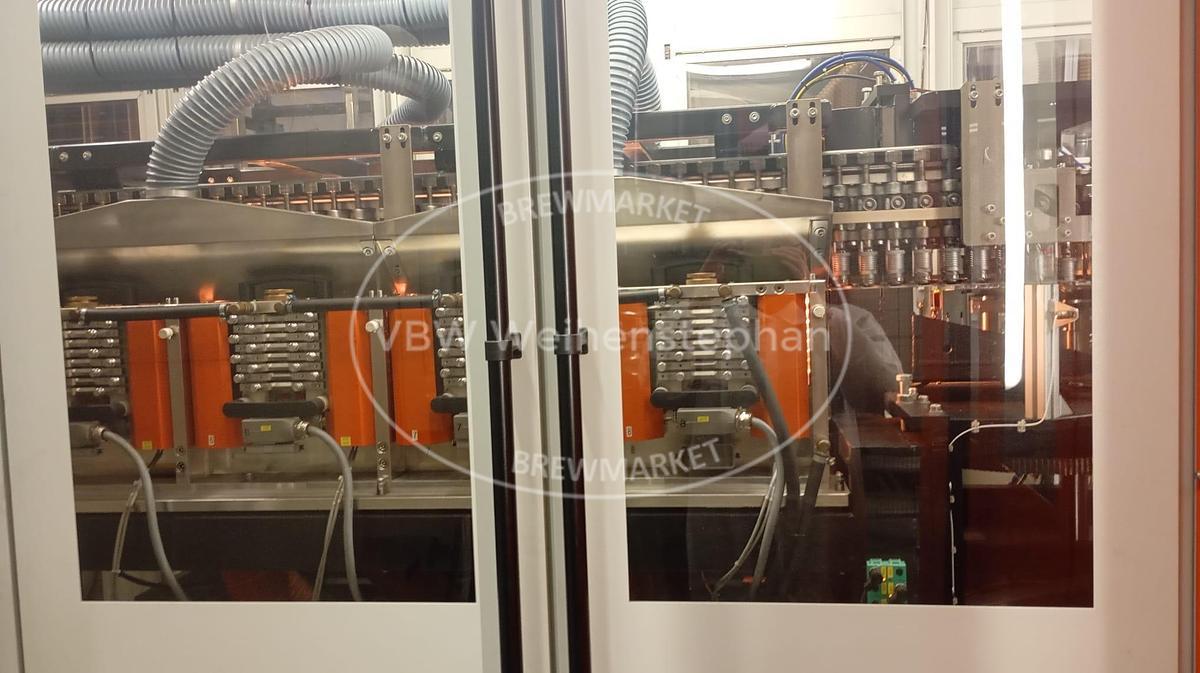

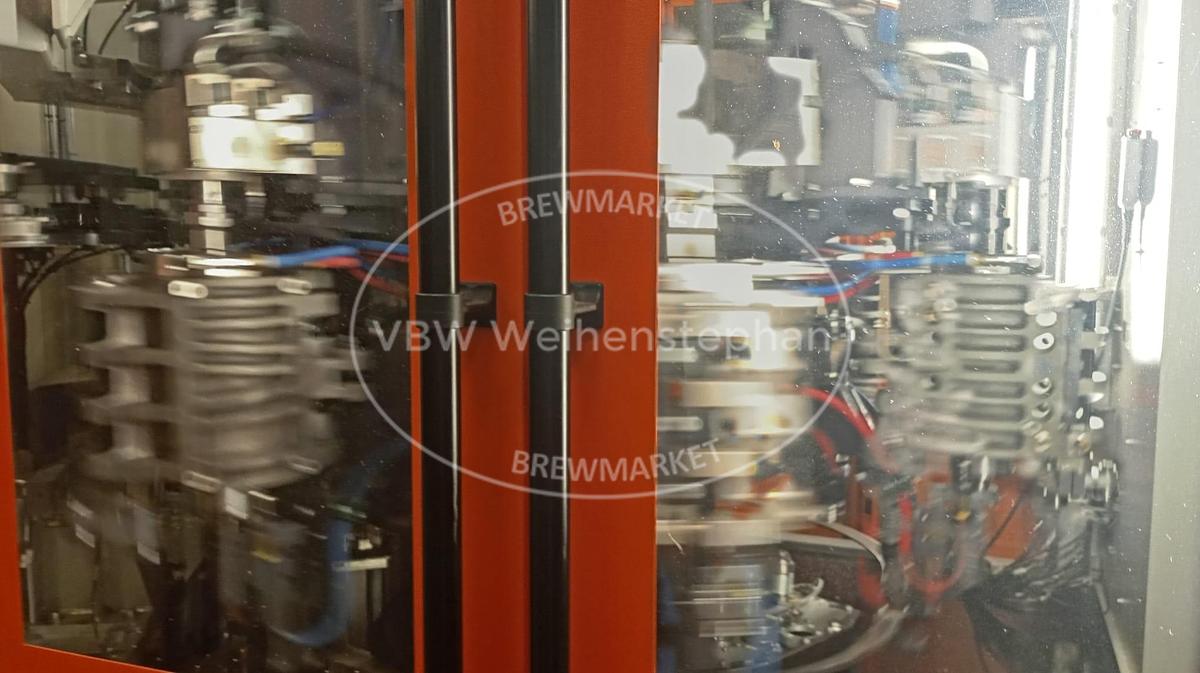

- Stretch blow moulding machine (Kosme KSB 6R, 2012) with preheating

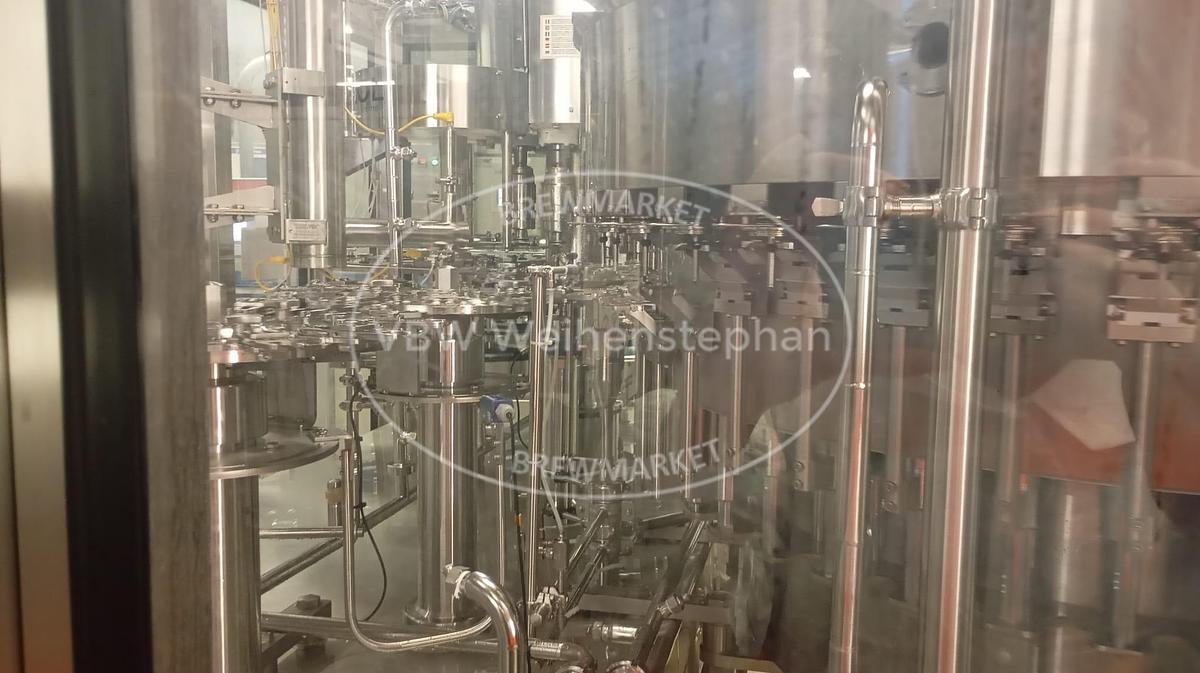

- Filling and capping block with bottom cooling, filler with 40 filling valves (Kosme, 2012) and capper with 8 capping heads (Arol, 2011)

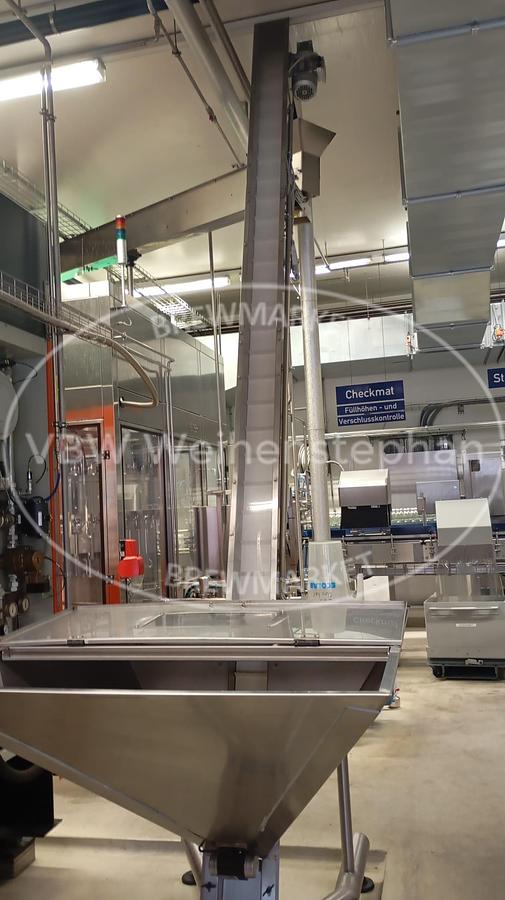

- Cap feeding with chain conveyor and cap feeding
- Fill level and closure inspection (Krones
Checkmat, 2012) with diversion

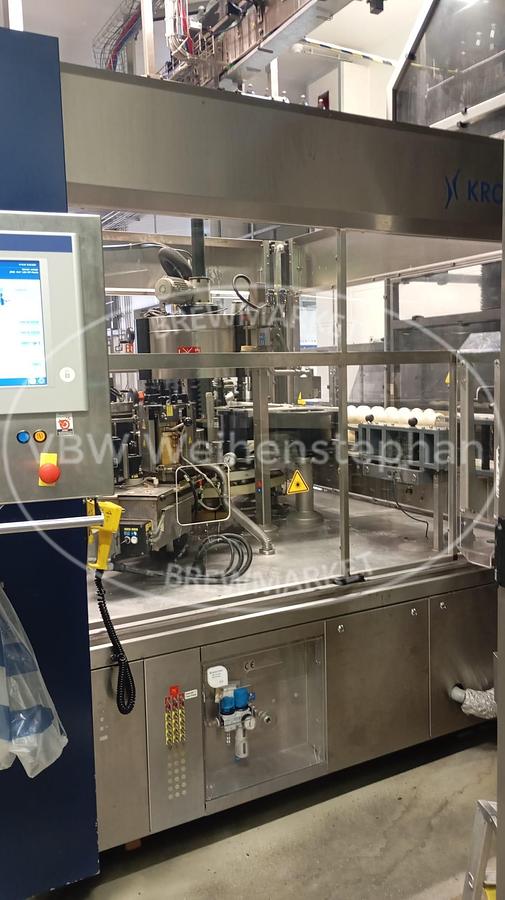

- Labelling machine (Krones Contiroll, 2012) Hot glue labelling of wrap-around labels, with label inspection.

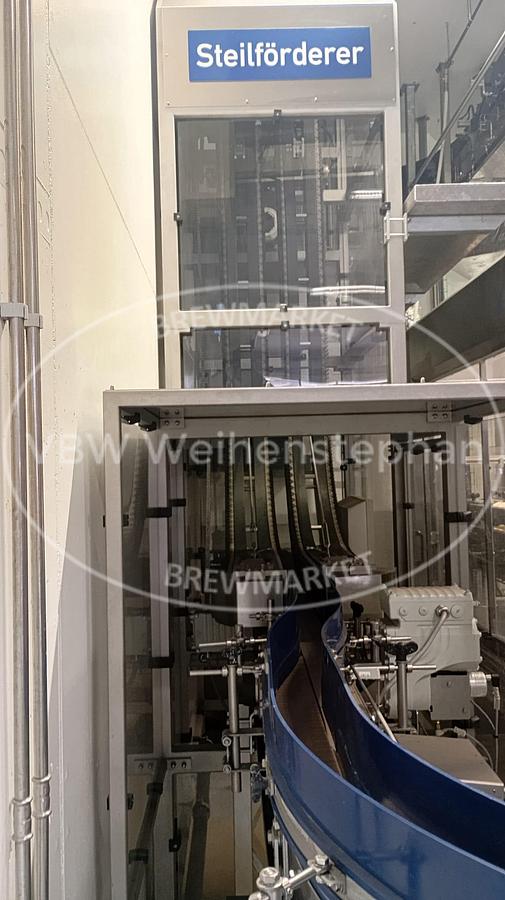

- Vertical conveyor (Gronemeyer, 2011)

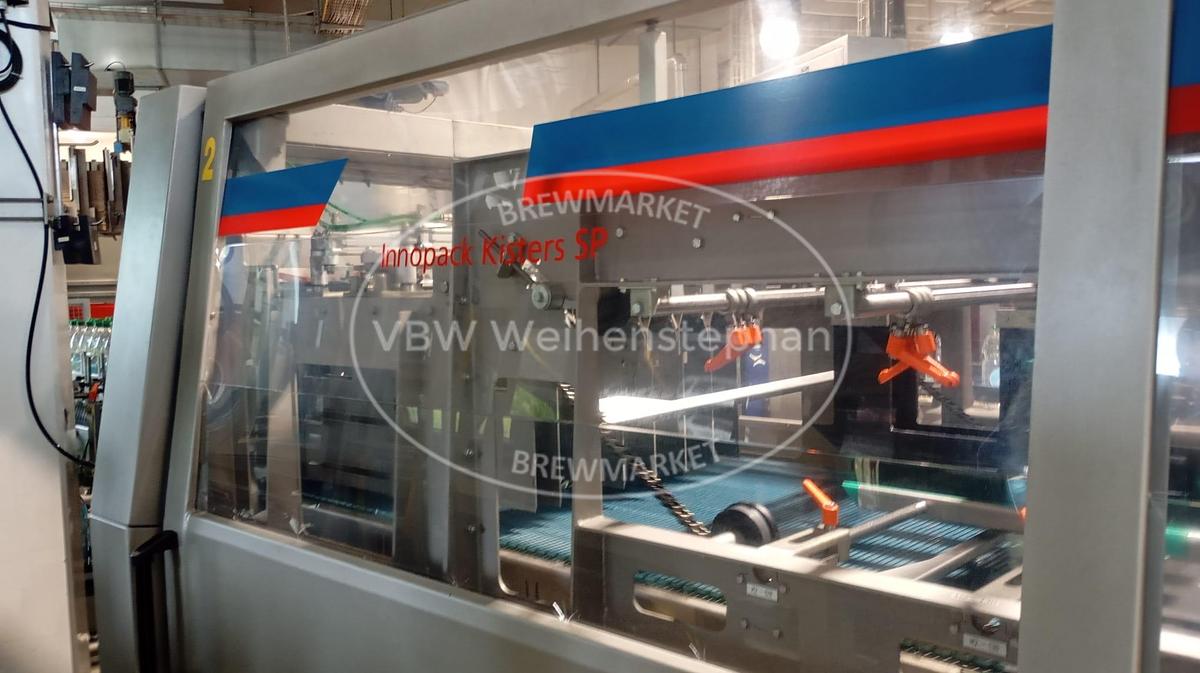

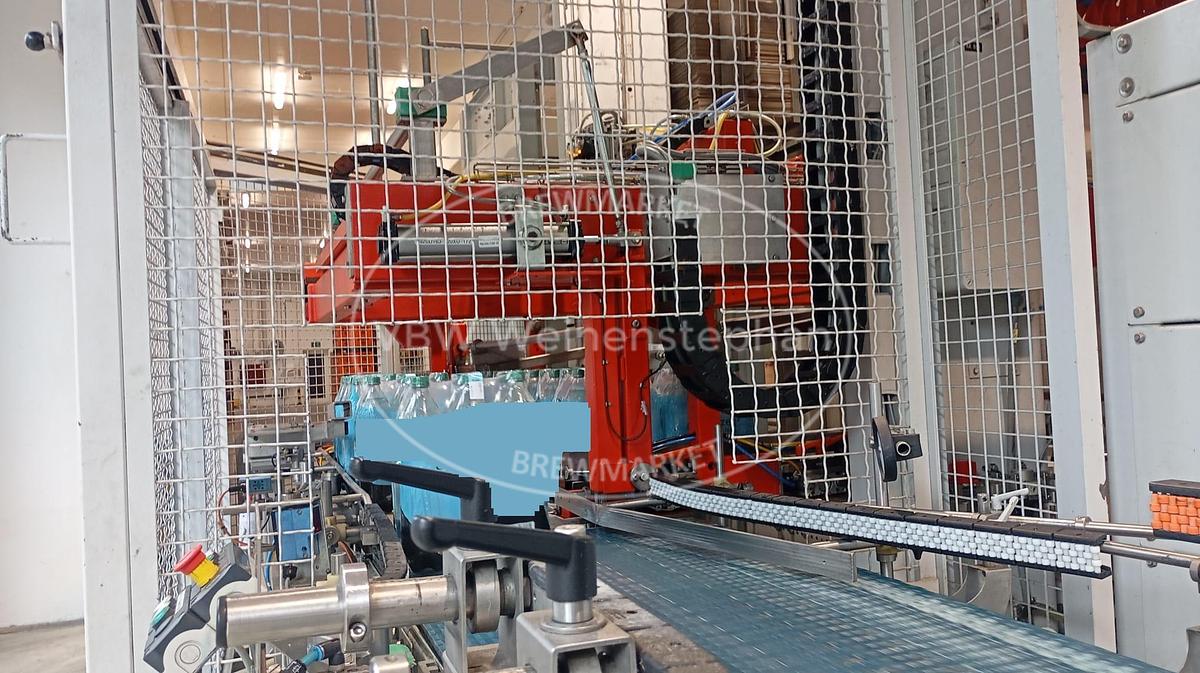

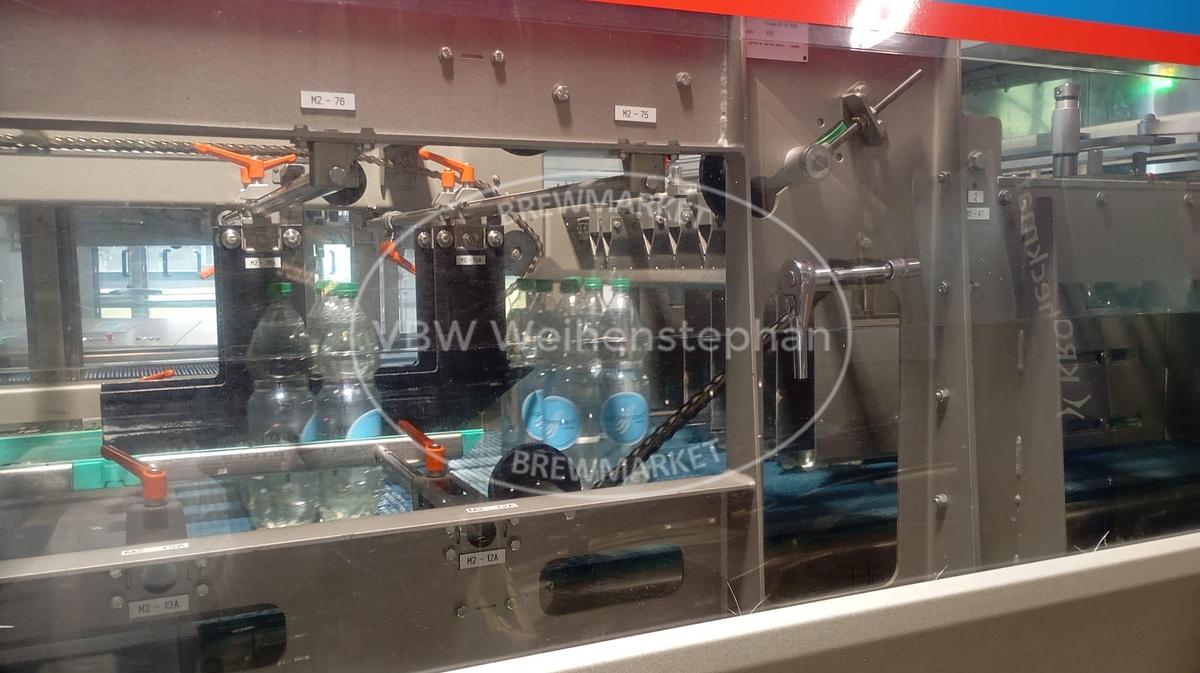

- Shrink film packer (KHS Innopak Kisters SP)

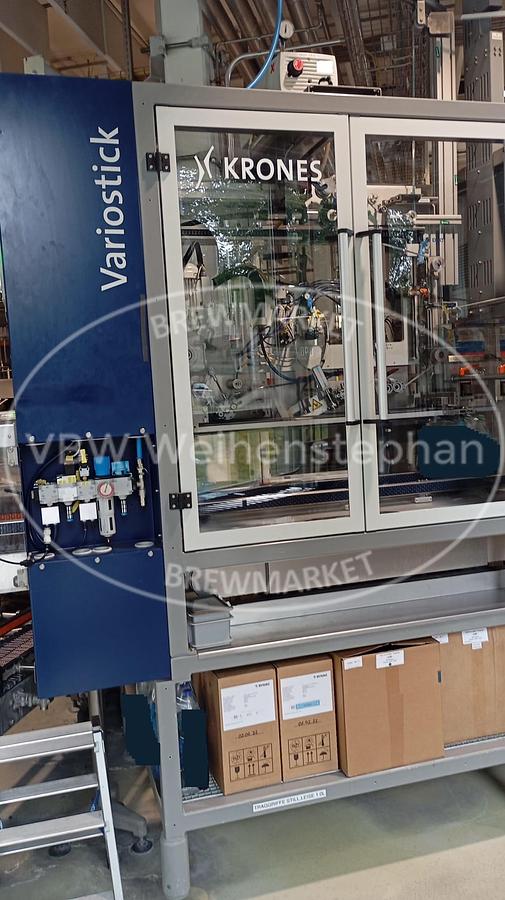

- Carrying handle applicator (Krones Variostick)

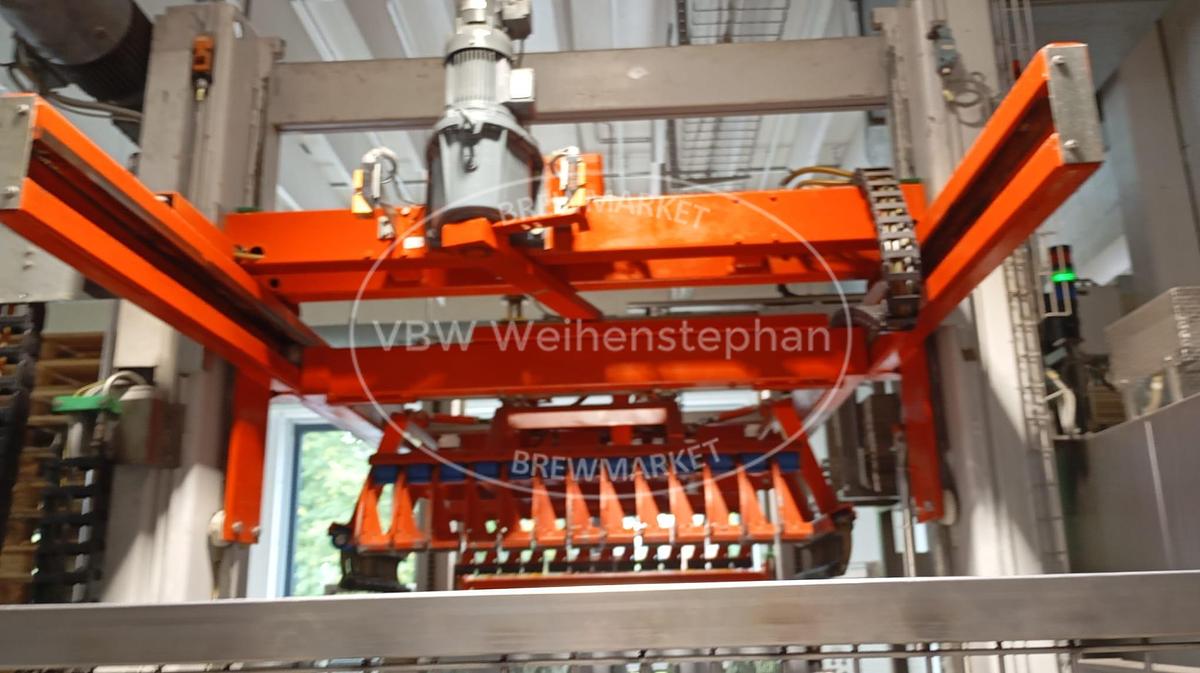

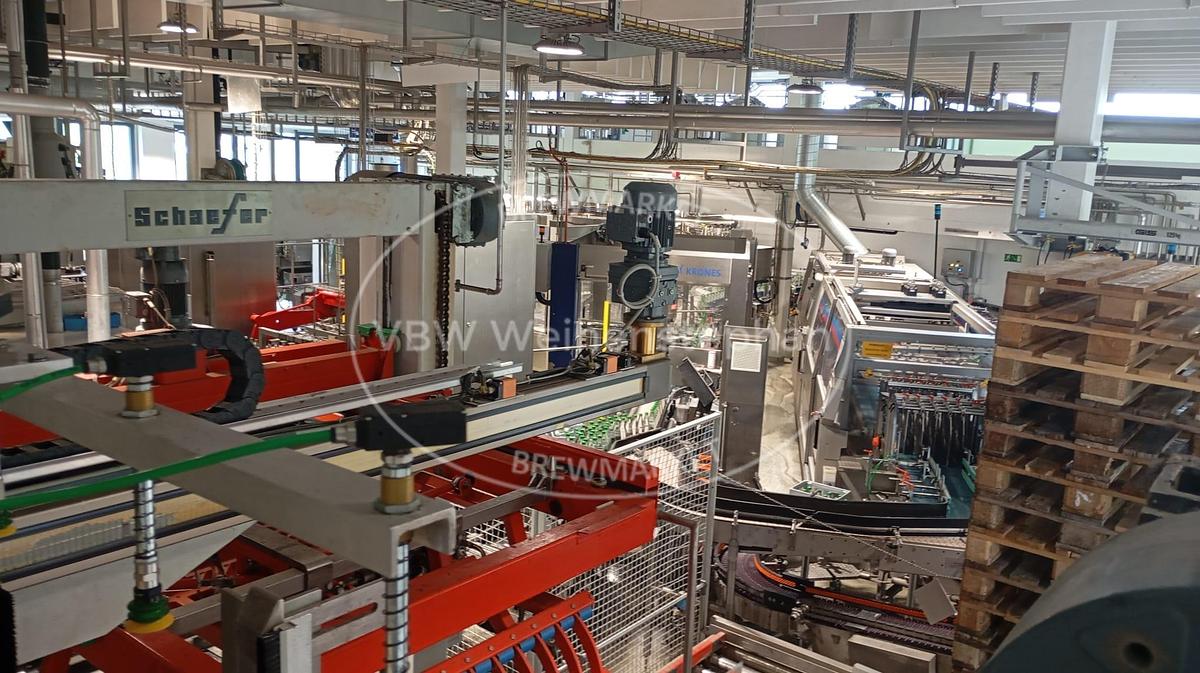

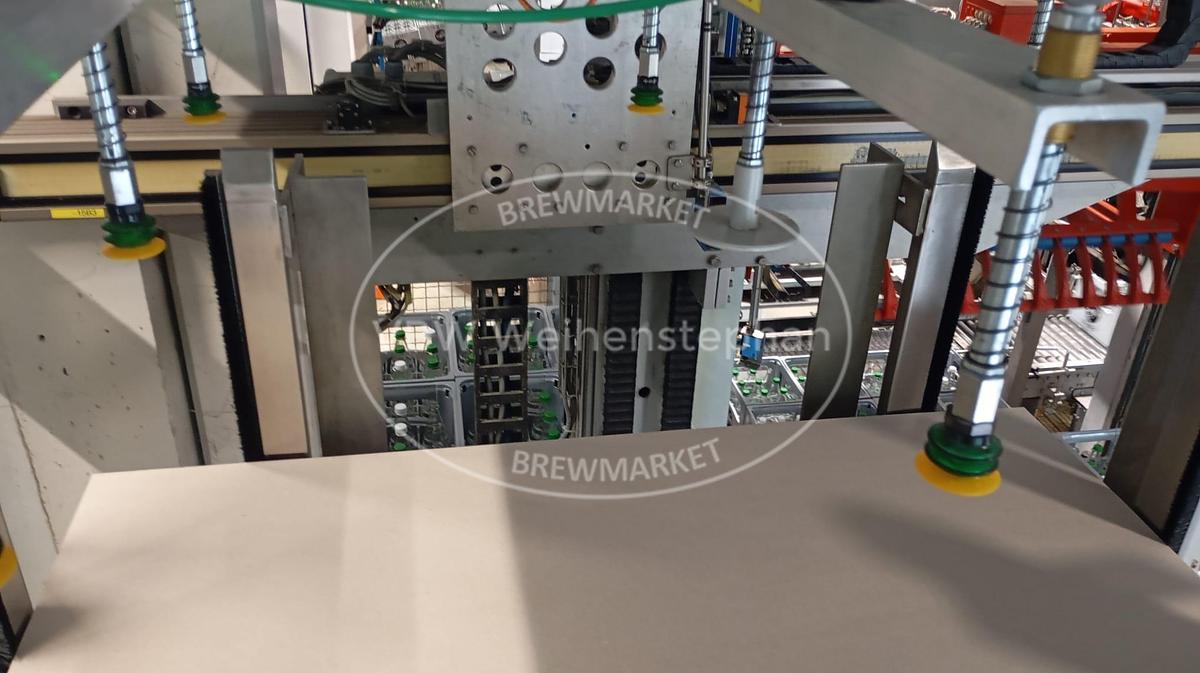

- Palletising with layer pad dispenser

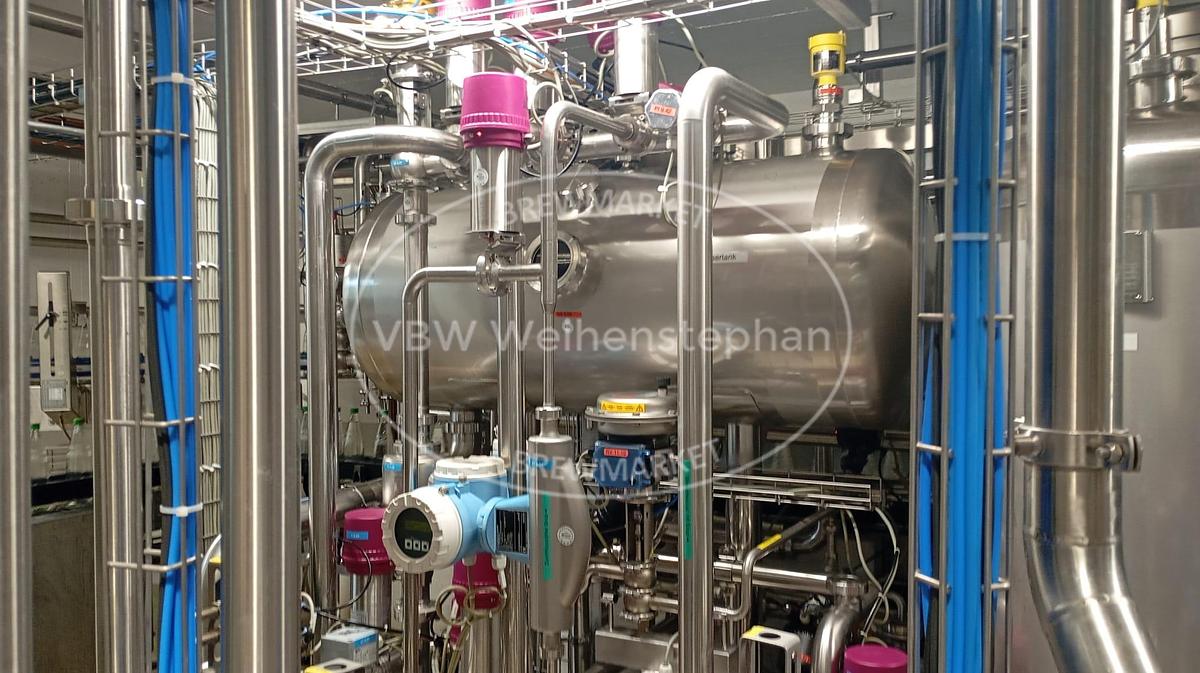

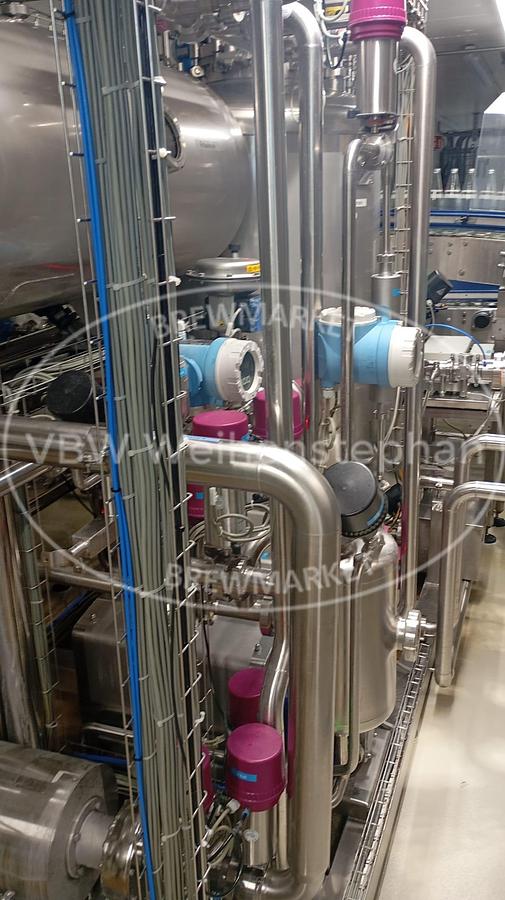

- Premix system with degassing and carbonation

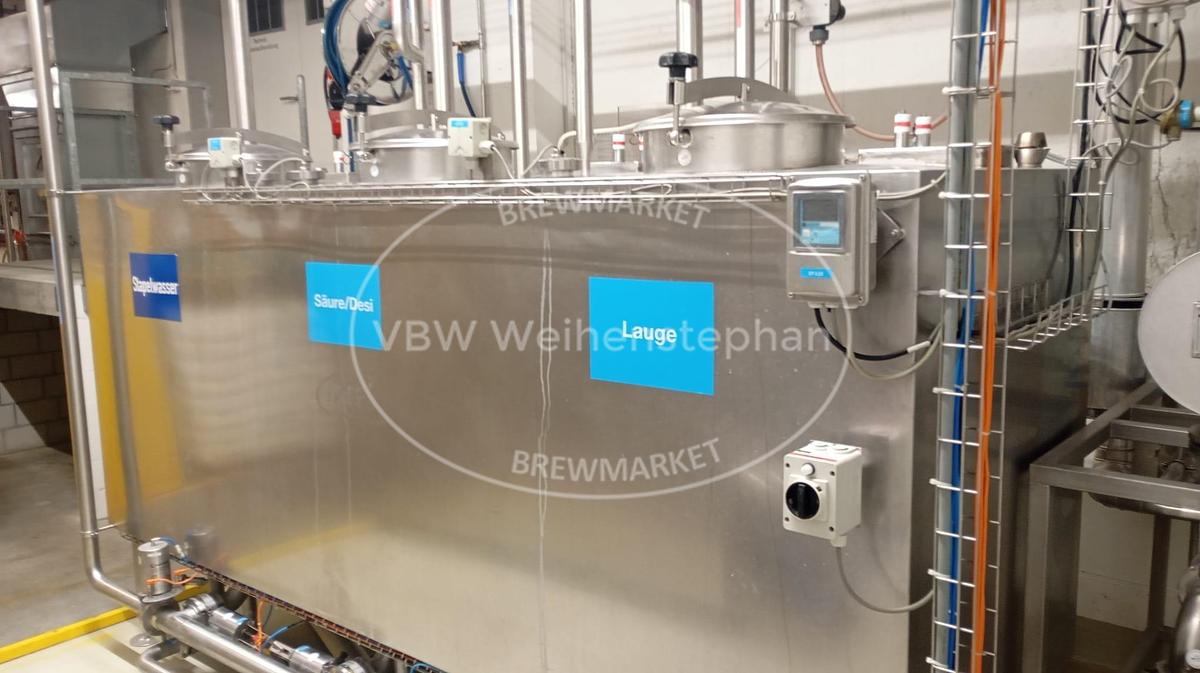

- CIP system with 3 containers, each with a capacity of 1000 litres, one of which is heated

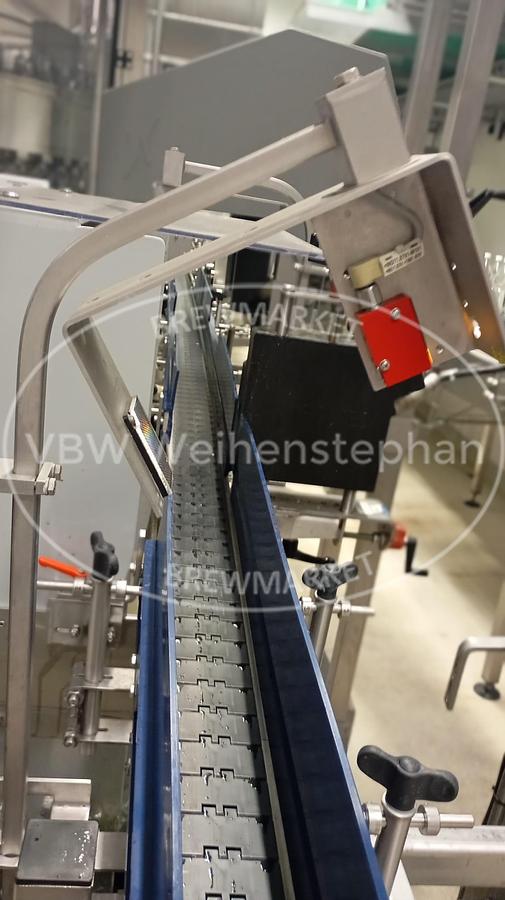

- Free conveyors for bottles and containers.
Specifications
| Manufacturer | Diverse |
| Condition | Used |
| Stock Number | 210412MW |
| Additional title | One-way filling; mainly built in 2012 |
| Capacity | 12000 bo/h based on 0.5 litre and 1.0 litre bottles |
| Formats | 0.5 l; 1.0 l; 1.5 l; screw caps; six-packs for 1.0 and 1.5 l; 24-packs for 0.5 l (loose or in 4 packs of 6 bottles each) |
| Operation / Control | Krones |
| Features | Preform feeding and transport, preform rinser, stretch blow moulding machine with preheating, filling and capping block with base cooling, cap feeding and supply, fill level and cap inspection, hot melt labelling with label inspection. Vertical conveyor, shrink packer, carry handle applicator, palletising with layer pad dispenser, premix, CIP system, bottle and container transport |
| Layer patterns | 4 layers with 21 containers per layer in a 3x7 arrangement (based on six-packs with 1.5 litre bottles) |
