Separator
Separator
Description

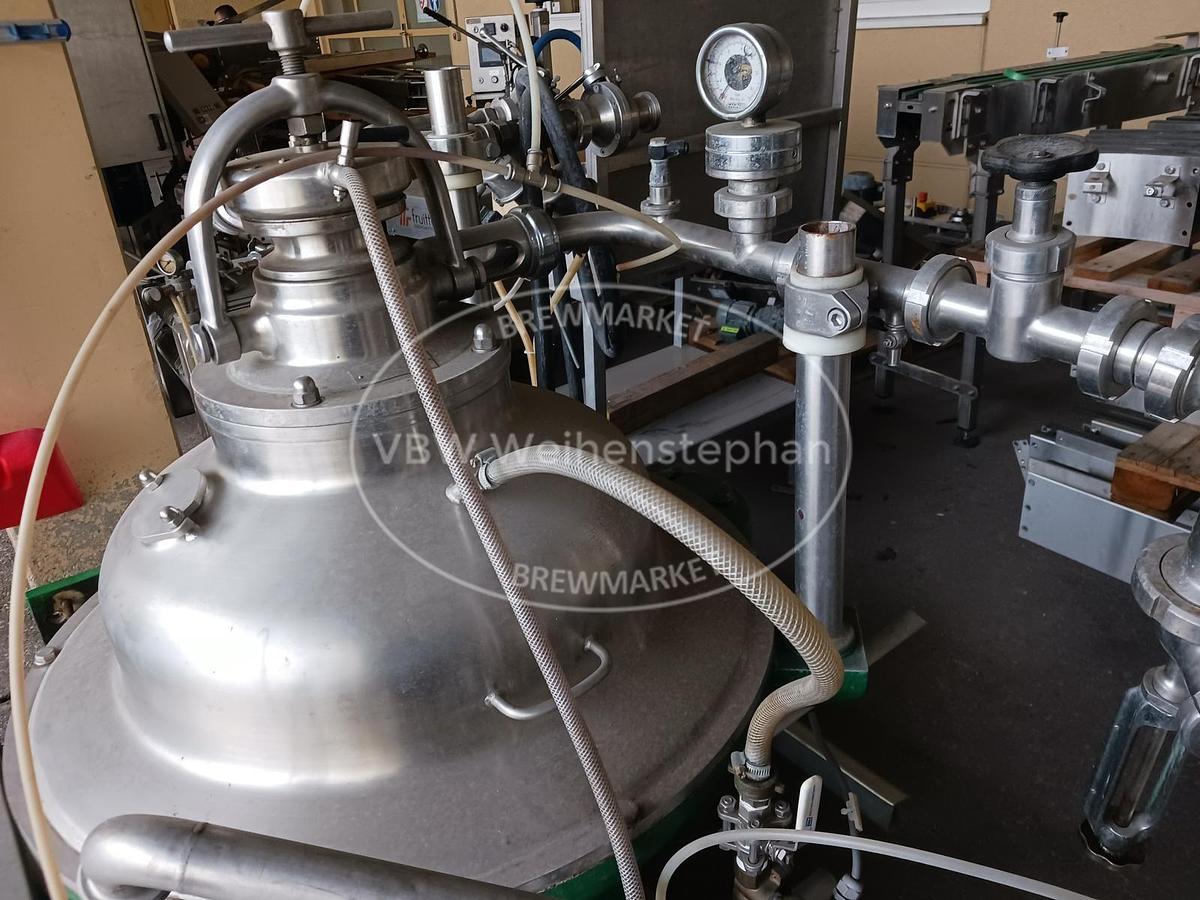

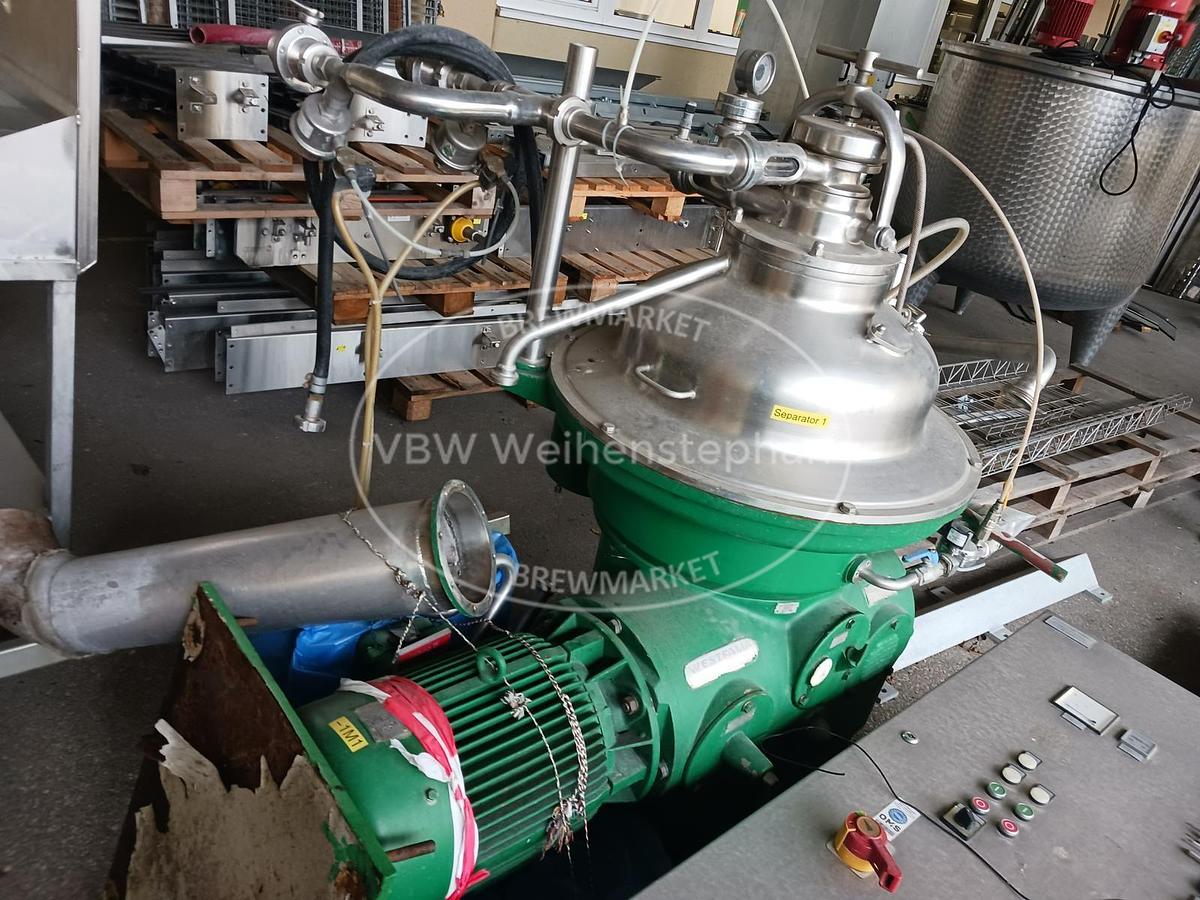

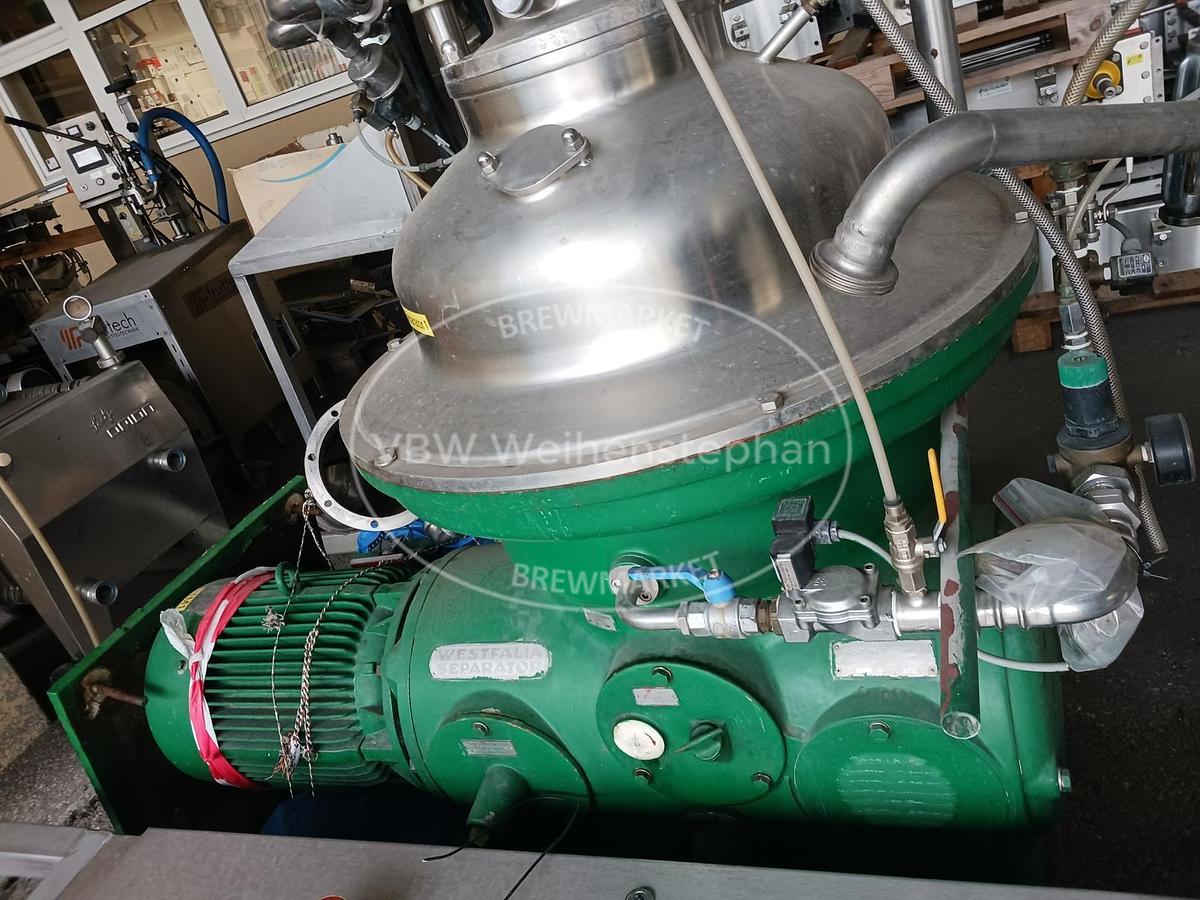

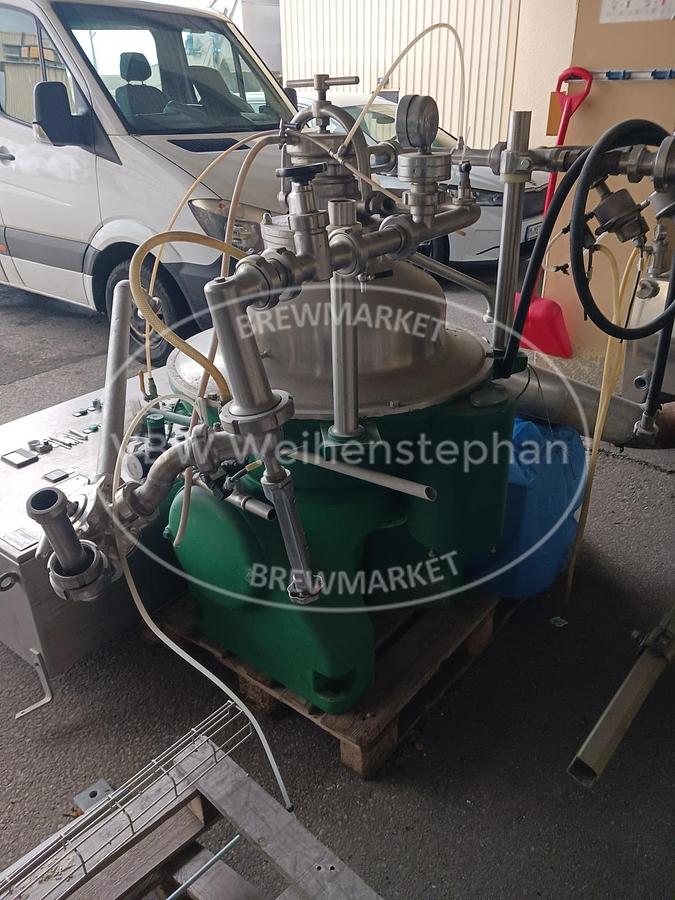

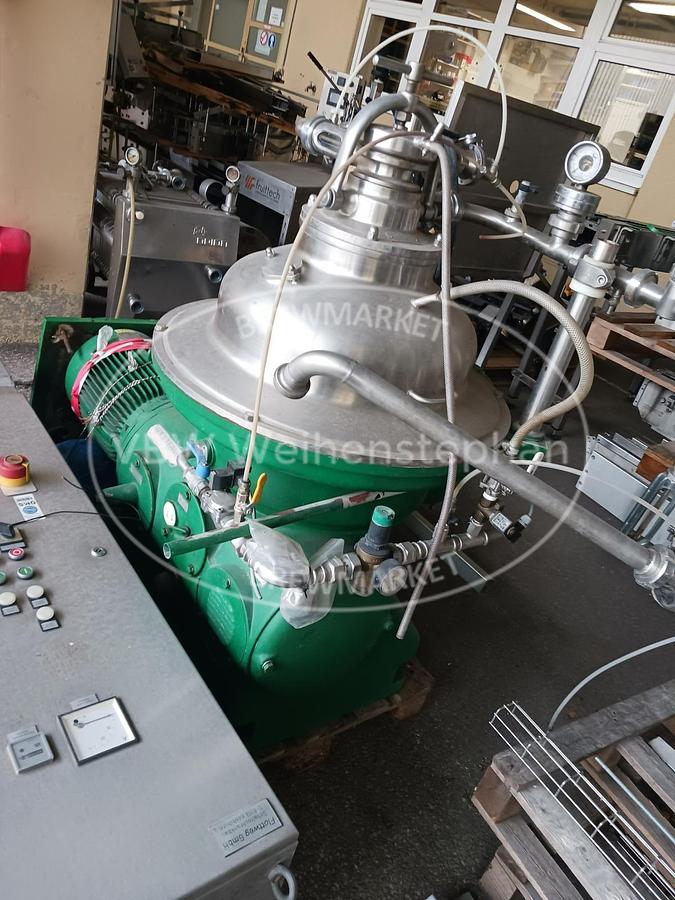

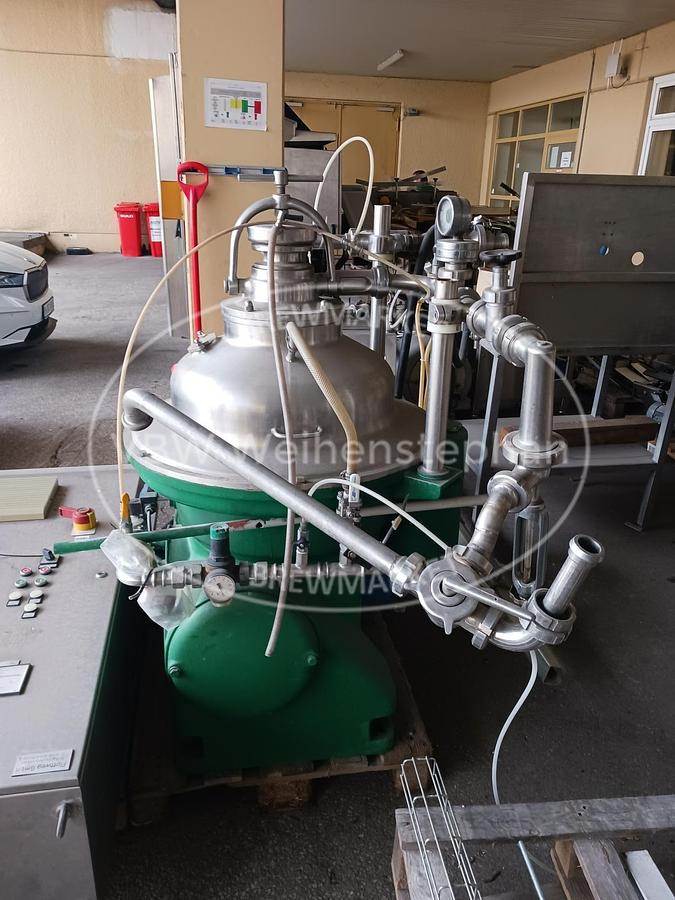

Westfalia Separator, last used in a fruit juice plant. The separator's control system was modernized by GEA.
The product is clarified in the centrifuge bowls and conveyed further under pressure. Solids collect in the solids chamber and are periodically discharged automatically. During CIP cleaning, the cleaning fluid is pumped in a circuit.
Specifications
| Manufacturer | Westfalia |
| Year | 1979 |
| Condition | Used |
| Stock Number | 210216HG |
| Additional title | Disc centrifuge |
| Intake capacity | 22000 l/h flow rate for fruit juice approx. 4,000 l/h |
| Drum velocity | 6500 rpm |
| Density liquid phase | 1 kg/dm3 |
| Density solid phase | 1.4 kg/dm3 |
| Power | 18.5 kW |
| Current | 37 A |
| Voltage | 380 V |
| Frequency | 50 Hz |
| Length | 1485 mm |
| Width | 850 mm |
| Height | 1470 mm |
| Weight | 1200 kg |
| Material | Stainless steel surfaces that come into contact with the product |
| Position | on a 685 x 585 mm foundation |

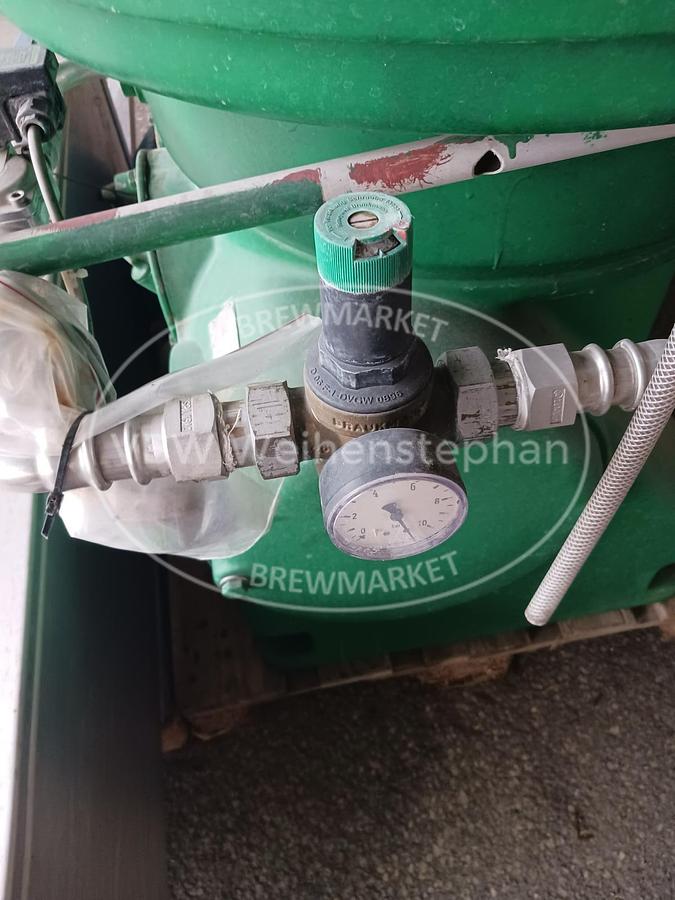

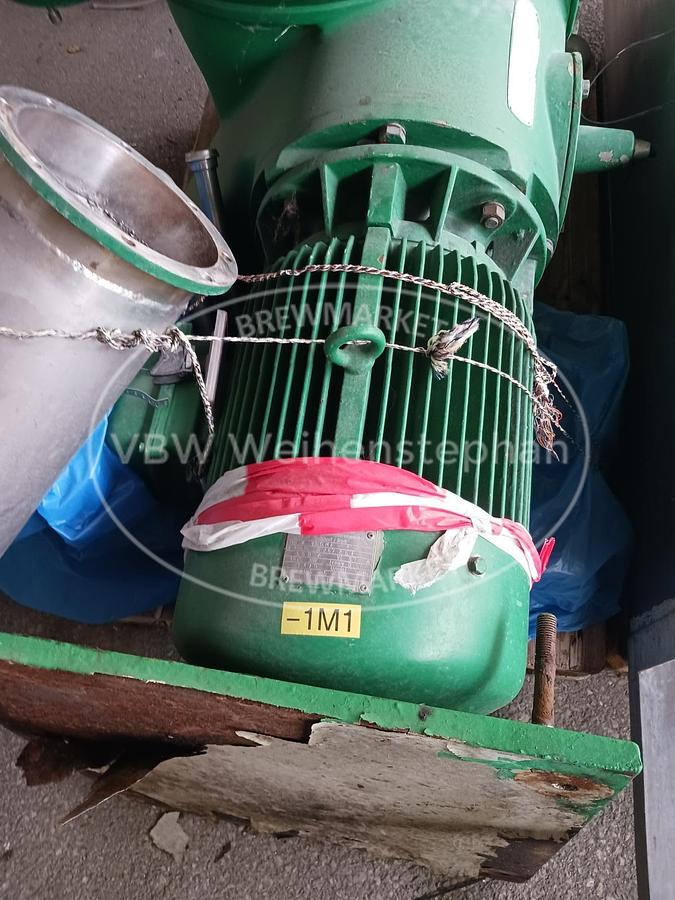

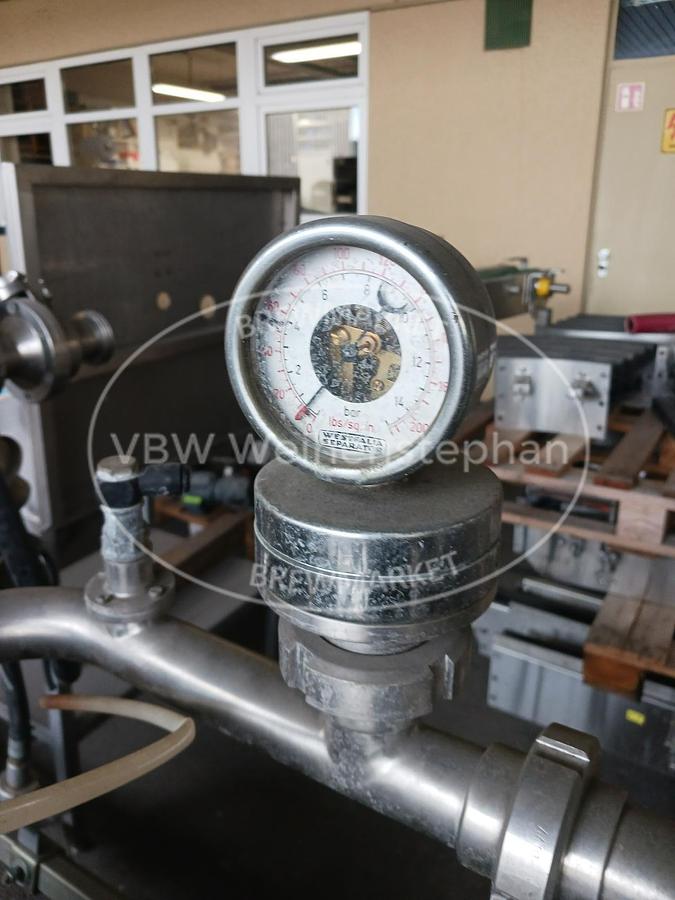

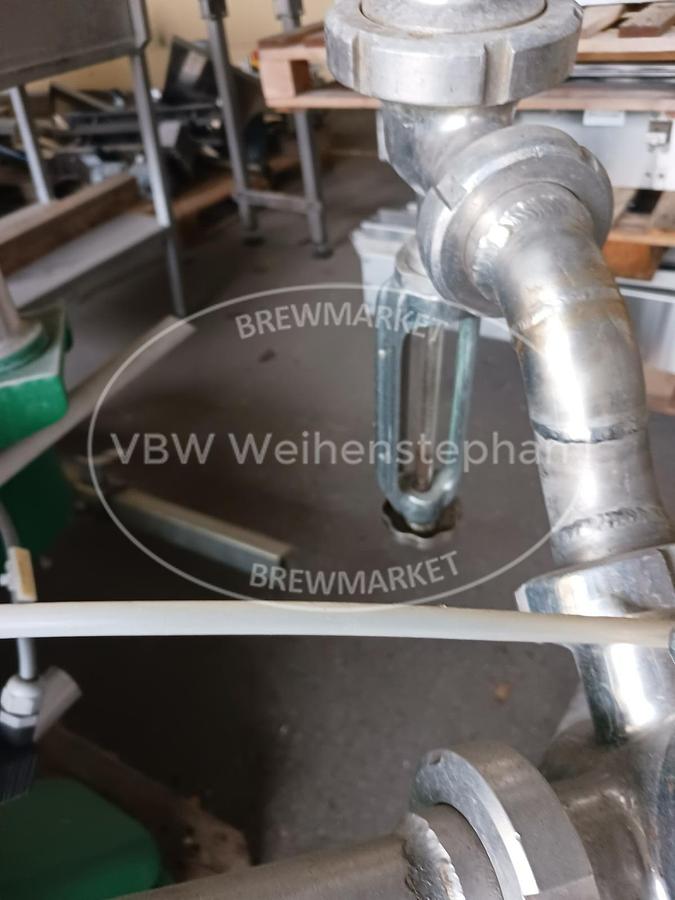

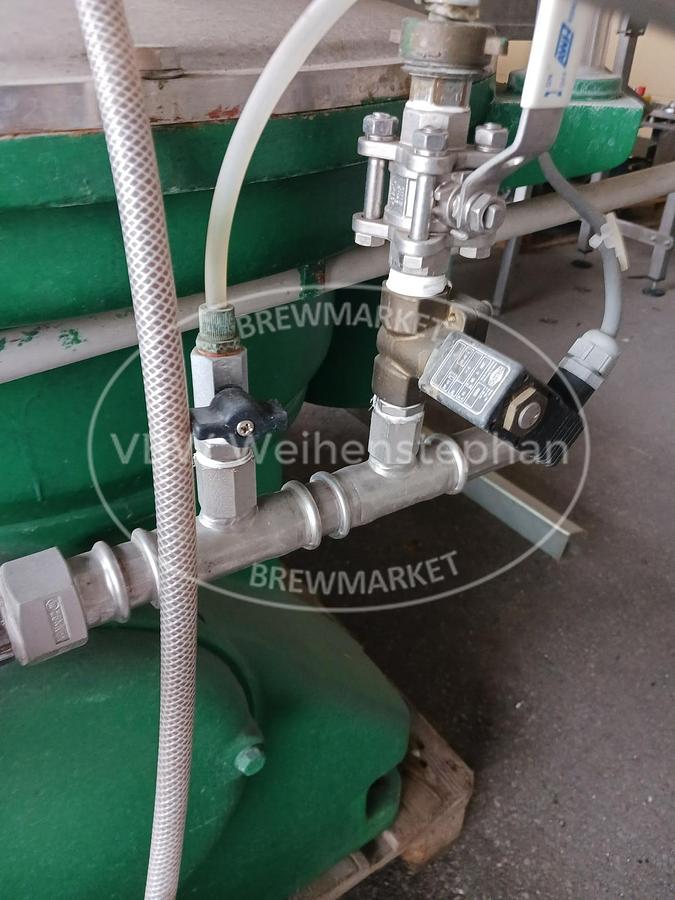

| Features | Drum, drive, inlets for product and displacement fluid, control water inlet with solenoid valve, drain, solids outlet, control water drain, circulation monitor, oil sight glass, brake, control valve, hood flushing, pressure gauge |
