Carbonisation
Carbonisation
or
Call +49 (0) 8161-48333
Description

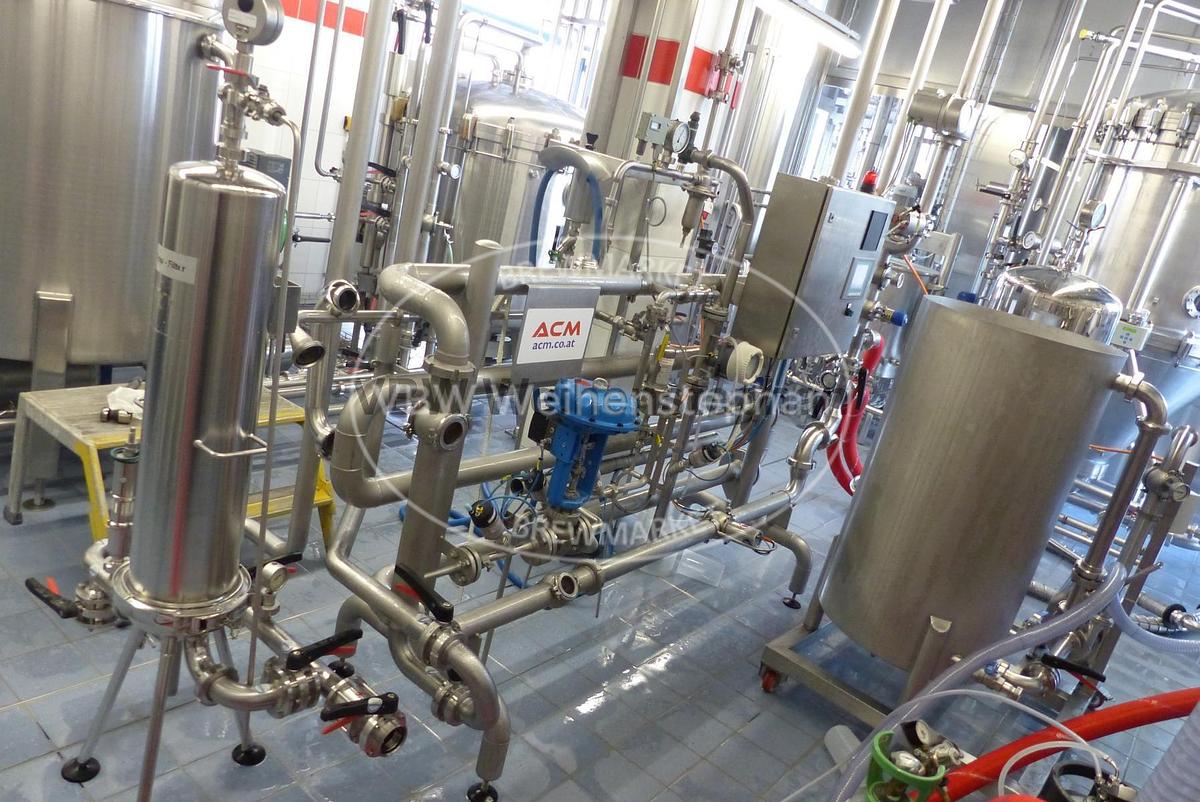

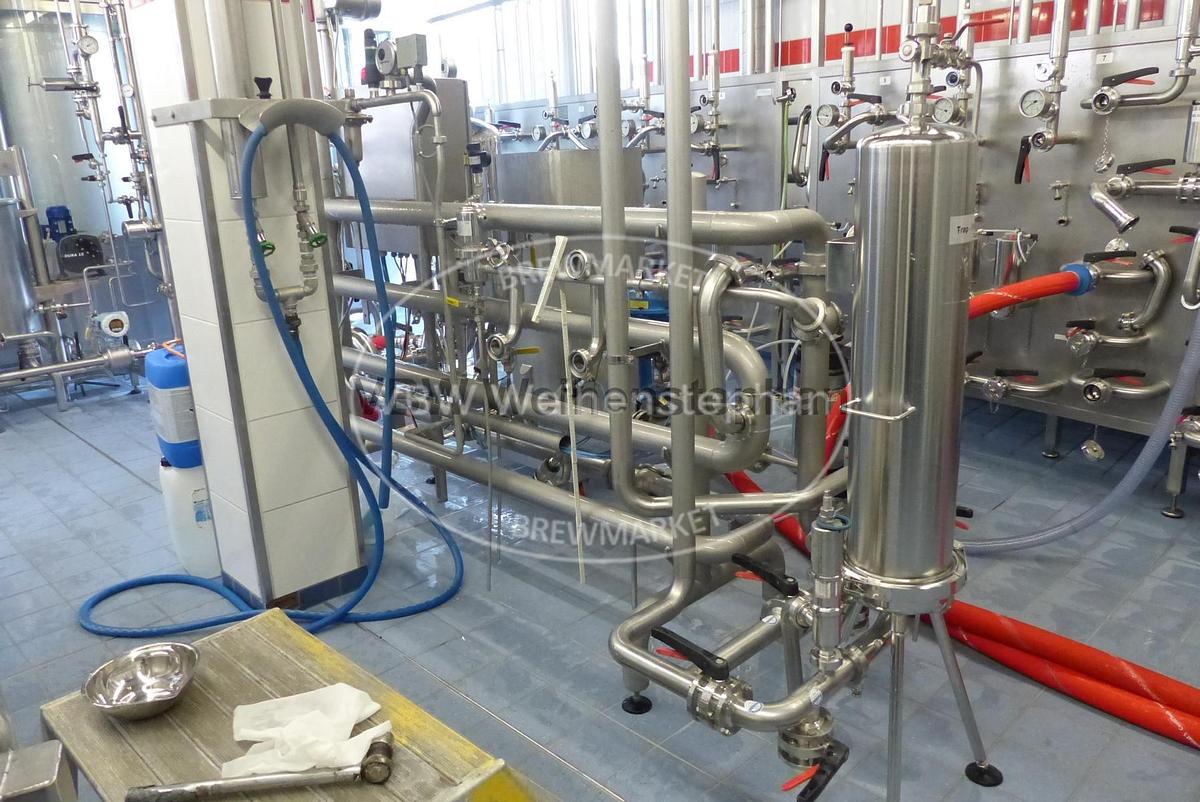

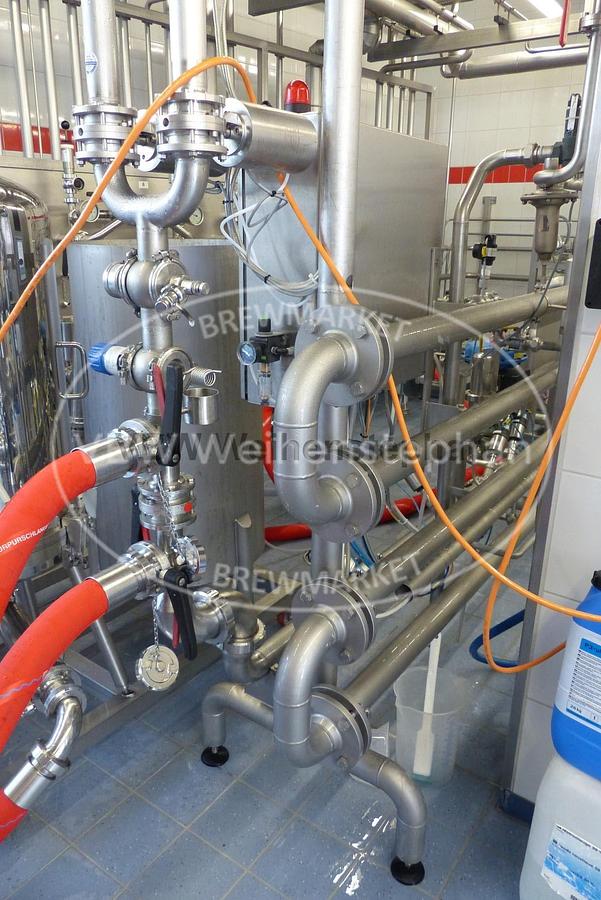

Carbonisation reconditioned by ACM. Automated by Mommert in 2016.
Specifications
| Manufacturer | ACM |
| Condition | Used |
| Stock Number | 206796QK |
| Additional title | Baujahr: 1991 - 2016 |
| Capacity | 10000 l/h |
| CO2 regulating range | 7 g/l |
| Length | 2,6 m |
| Width | 0,75 m |
| Height | 2,0 m |
| Weight | 400 kg |

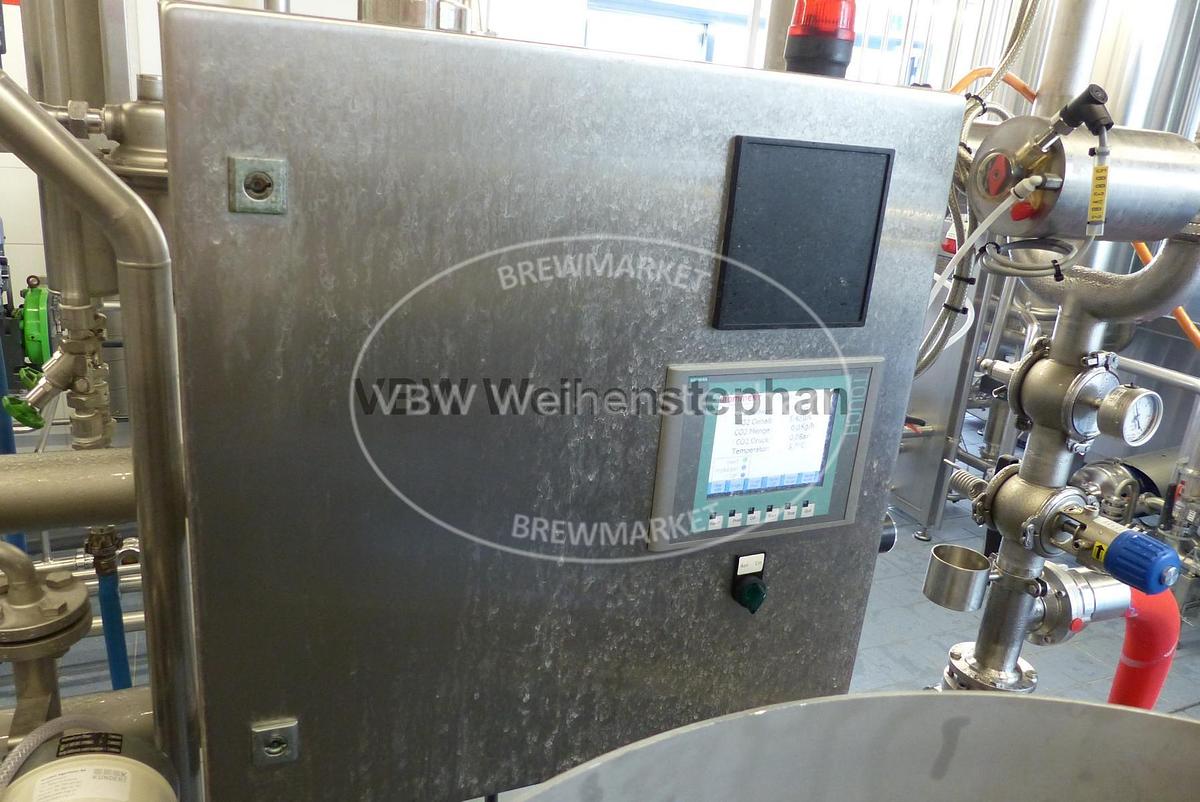

| Operation / Control | Siemens Simatic HMI |
| Features | CO₂ compensation line DN100 (approx. 14.2 m long); control cabinet (with HMI touchscreen, S7-300 control module, switching power supply, 2 universal transmitters); ACM continuous online CO₂ measurement; CO₂ flow meter; pneumatic control valve; Air sterilizing depth filter; 2/2-way pneumatic angle seat valve, PT 100; pressure transmitter; air filter; sampling valve; additional piping, valves, and fittings |
