Description

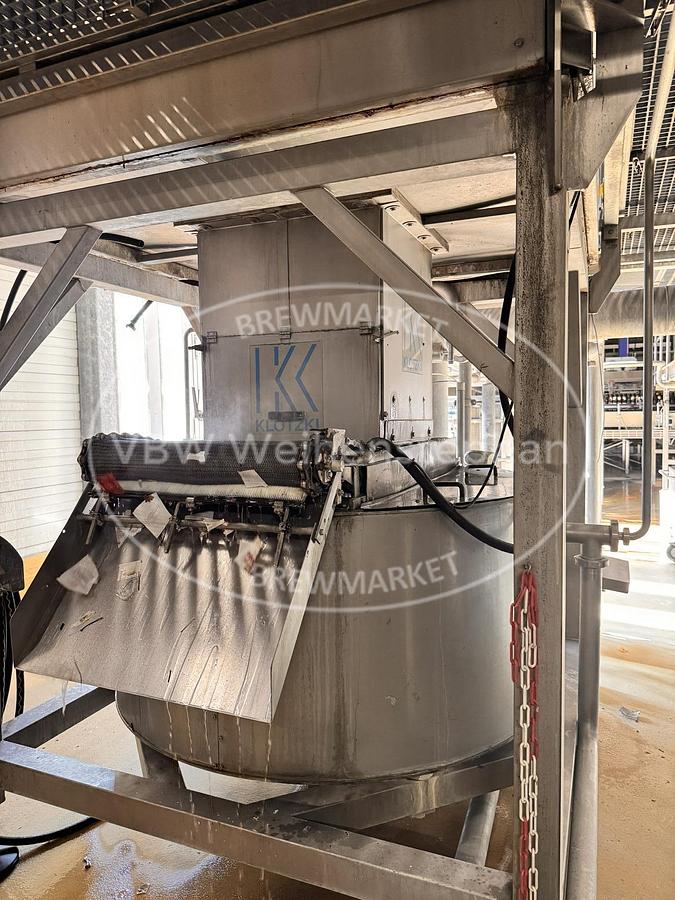

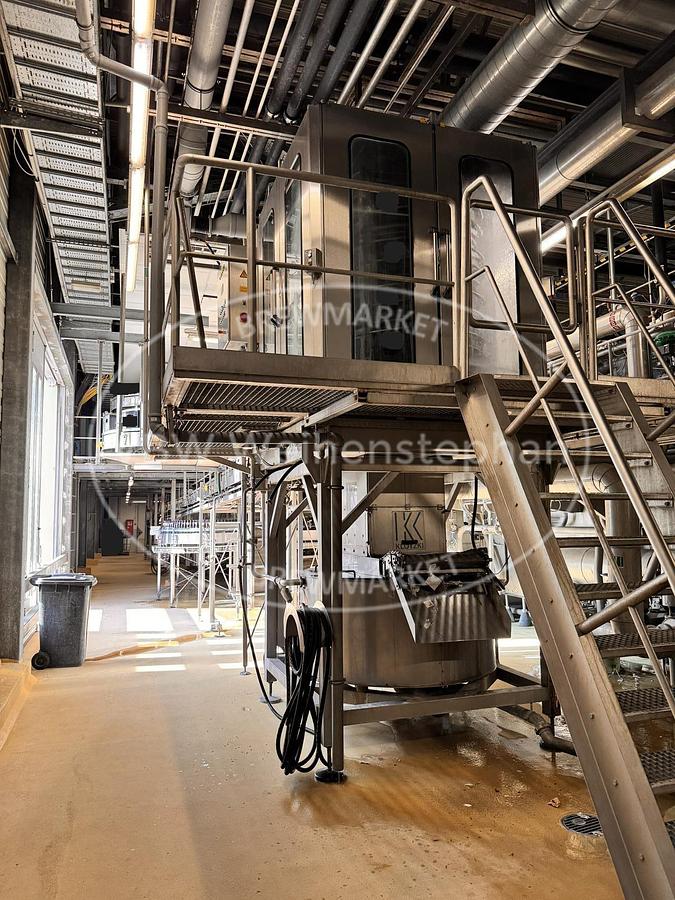

Spiral crate washer for rinsing plastic beverage crates with cleaning solution.

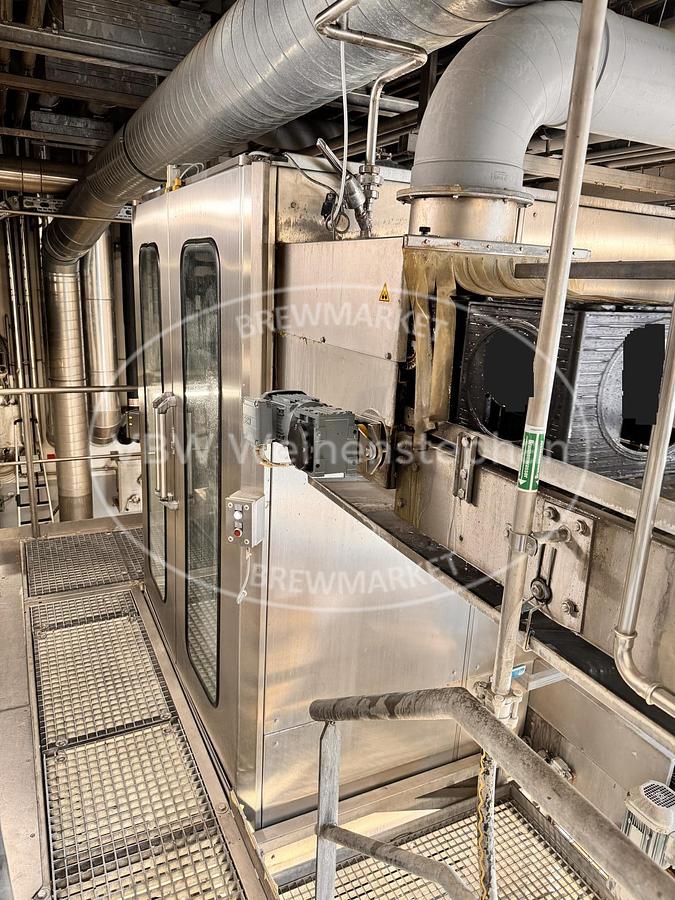

The crates are fed into the crate washer via an inlet conveyor belt, where a crate stop positions them at the required spacing relative to the rotating spray arms. The crates are conveyed upwards via the spiral-shaped crate guides and are simultaneously rinsed clean by numerous rotating nozzles. At the machine outlet, the crates are rinsed with water.
Specifications
| Manufacturer | Klotzki |
| Year | 2011 |
| Condition | Used |
| Stock Number | 210777MW |
| Additional title | Spiral crate washer |
| Capacity | 2500 cr/h adjustable |
| Spraying pressure | 4 bar |

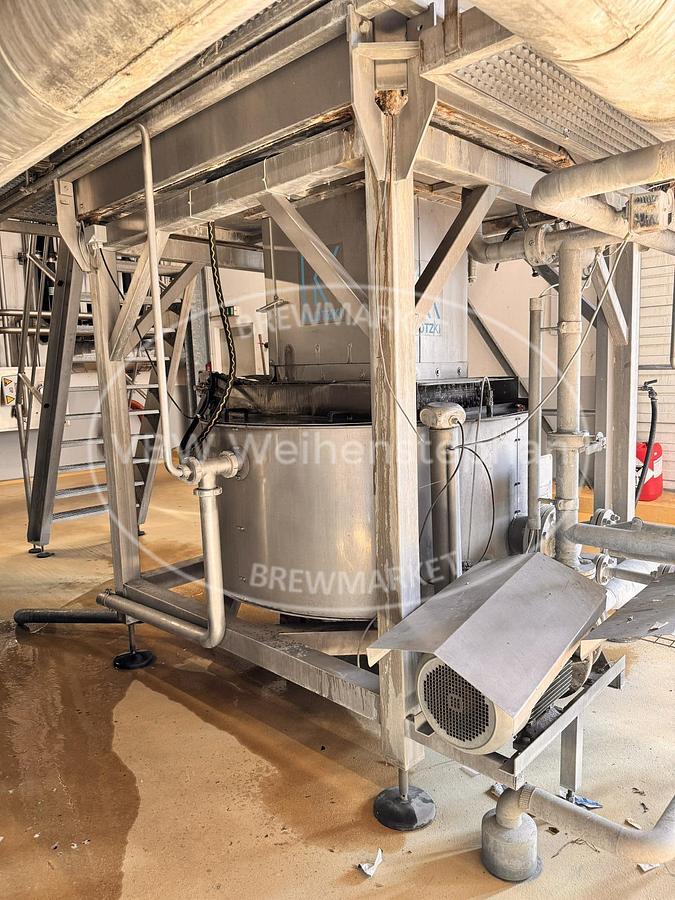

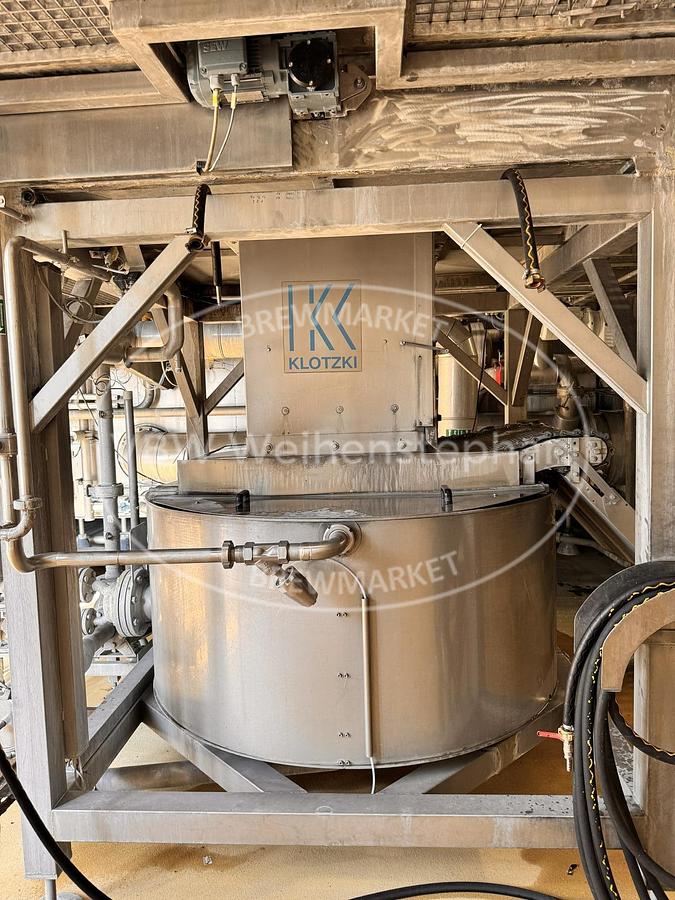

| Volume of the lye tank approx. | 1000 l |
| Treatment time per crate approx. | 91 s depending on the performance setting |
| Length | 3000 mm |
| Width | 2000 mm |
| Height | 5000 mm |
| Running direction | long side first |
| Material | stainless steel |
| Base construction | Spiral crate washer |

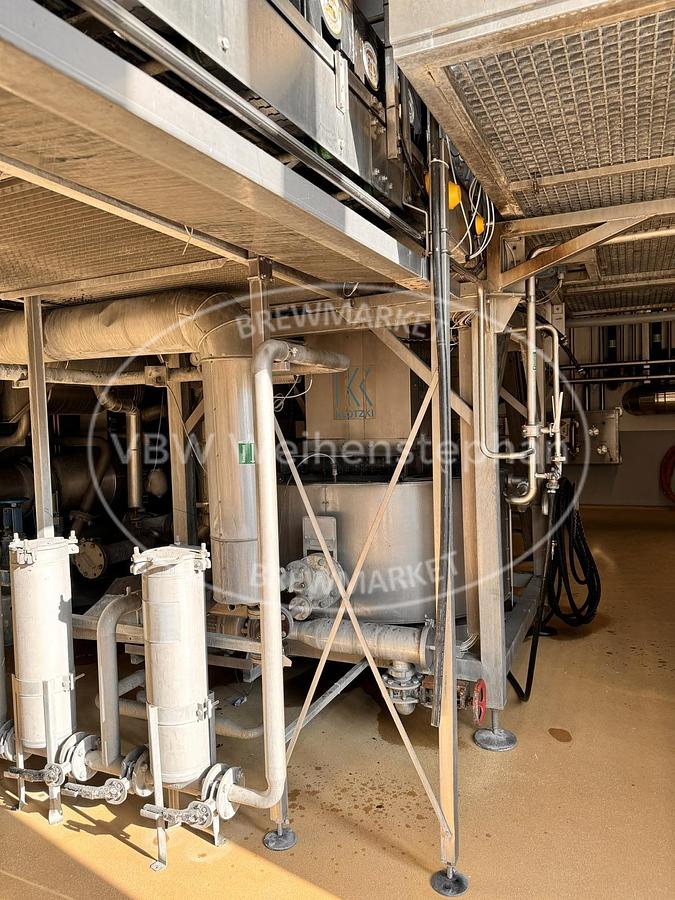

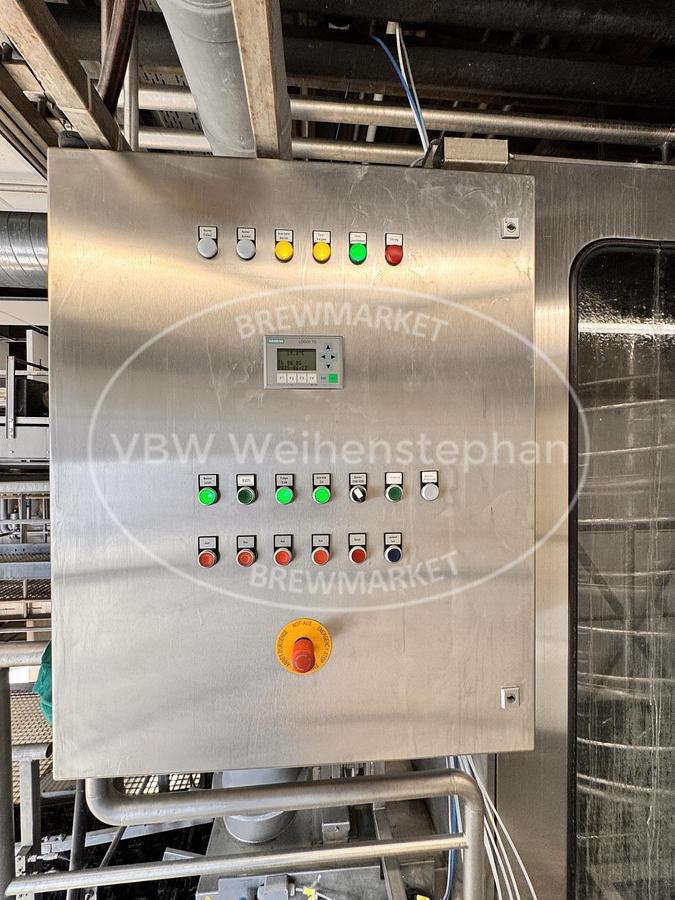

| Features | Lye pump (15 kW, capacity 80 m³/h); suction tank for cleaning solution; conveyor belt with drives; control cabinet; cleaning water connection R 1 1/4"; post-spraying connection R 3/4" |
