Description

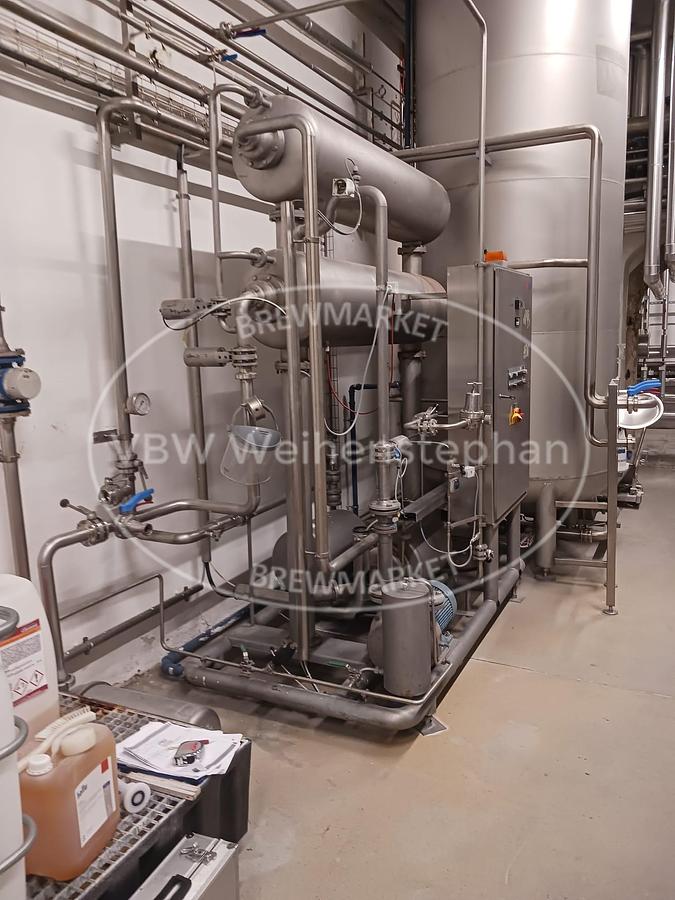

Water degassing (deareation) system for removing oxygen from drinking water, mainly built in 1995. The system operates using a two-stage cold degassing process involving counter-current stripping with CO₂ and consists of the following components:

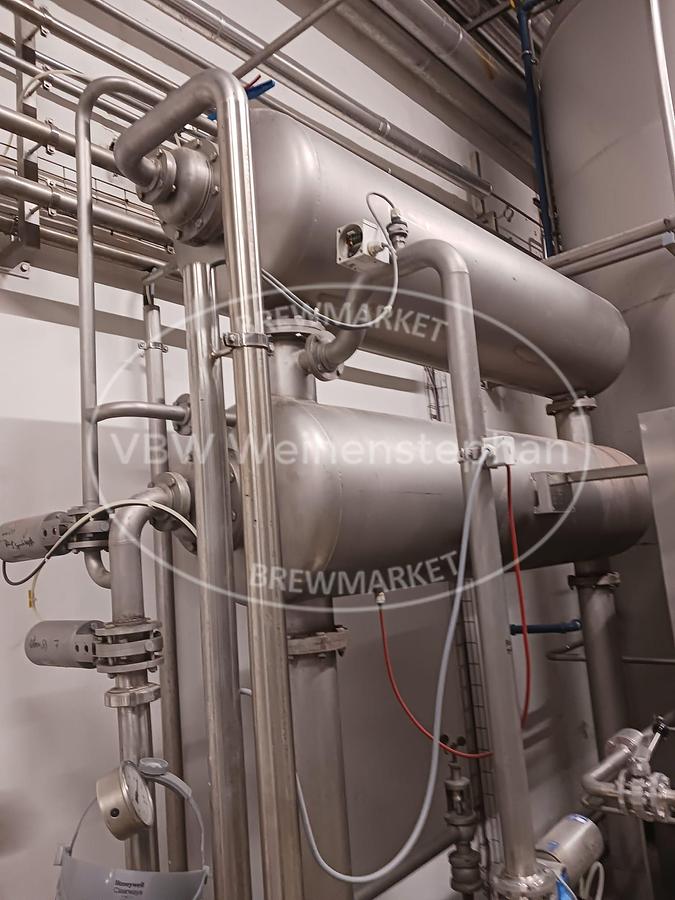

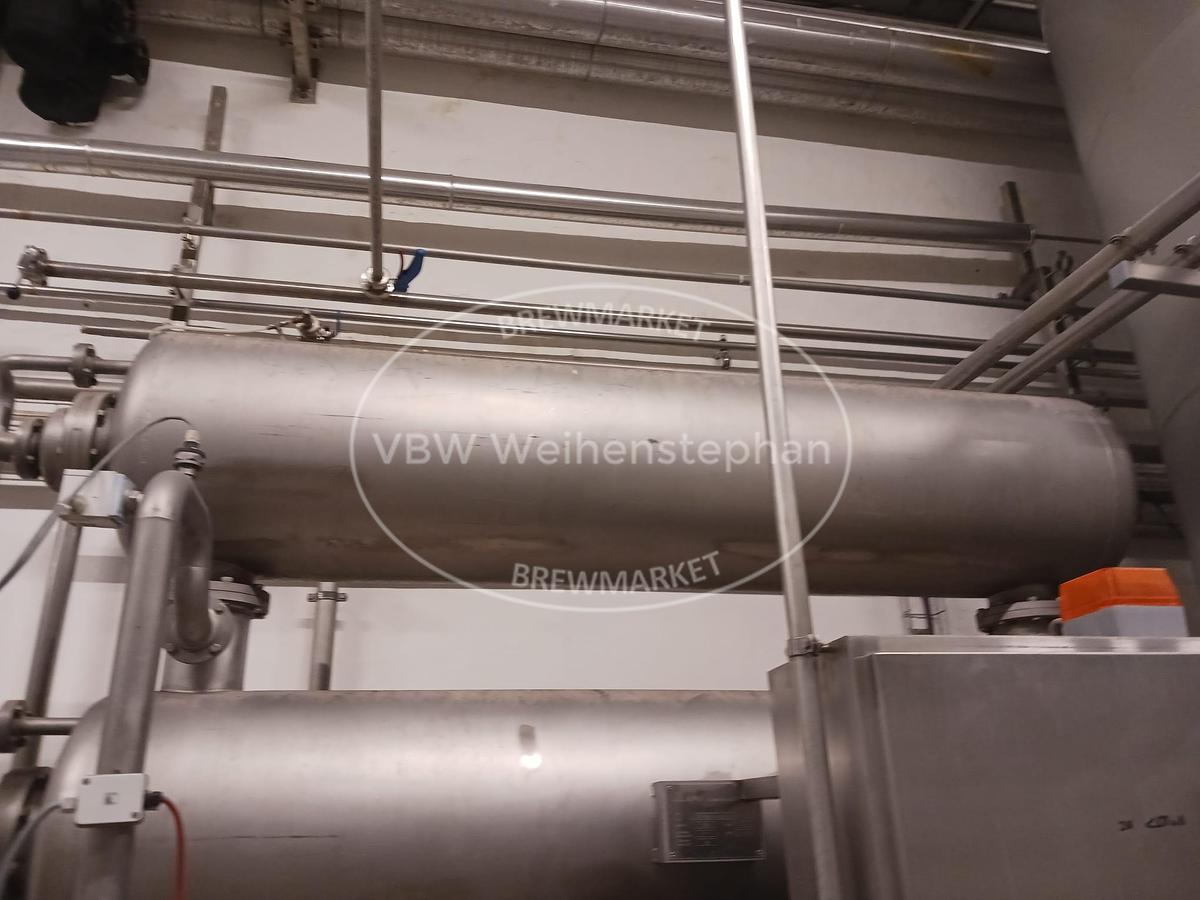

- 2 degassing vessels connected in series

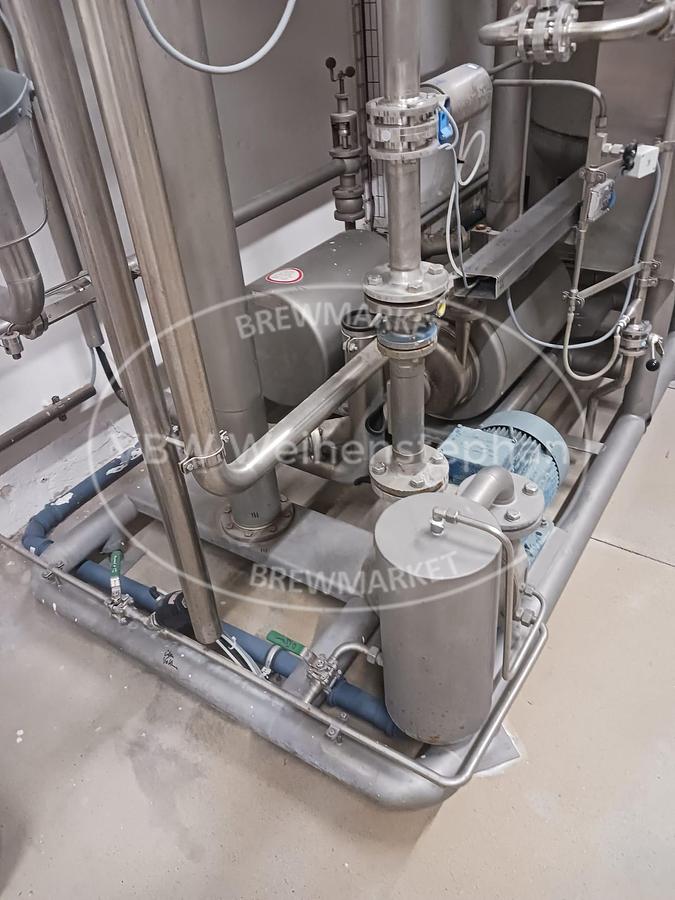

- Vacuum pump with separator

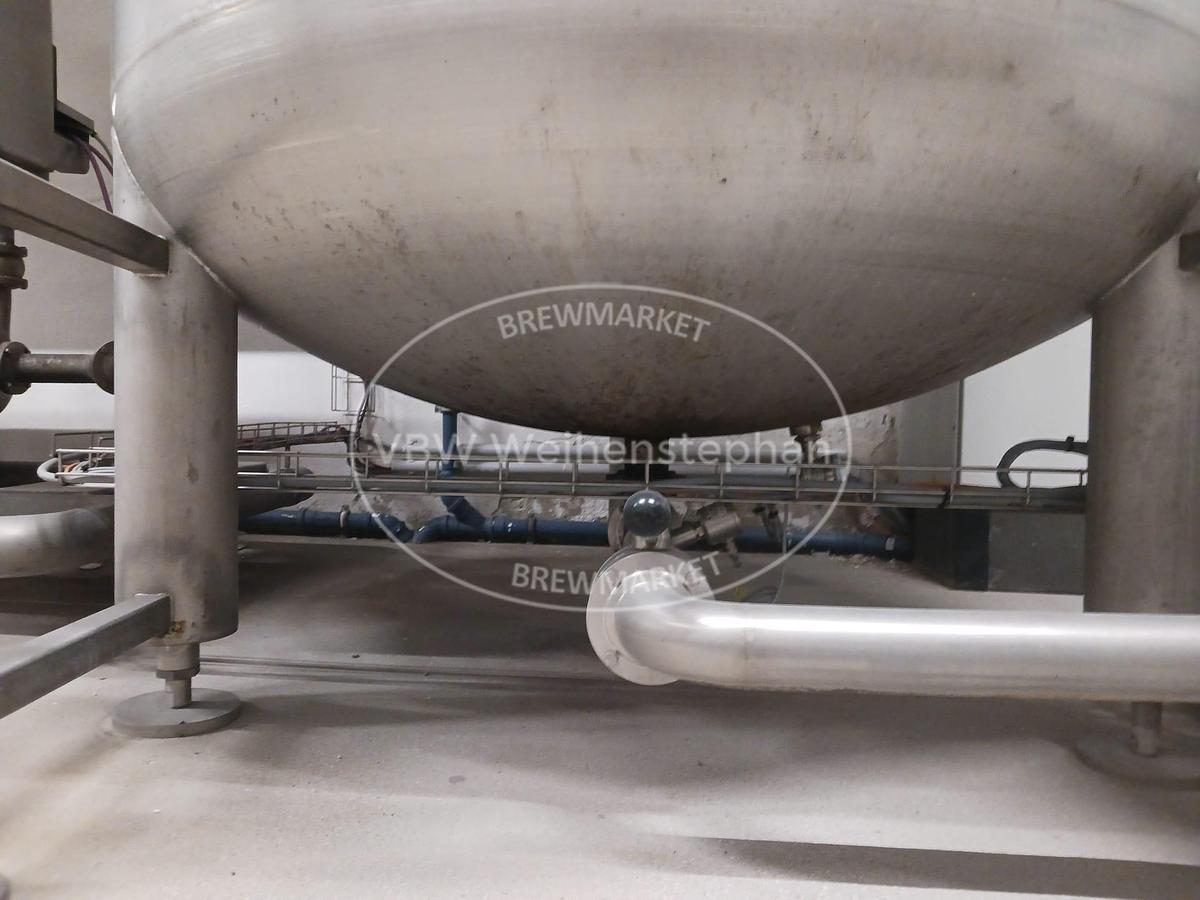

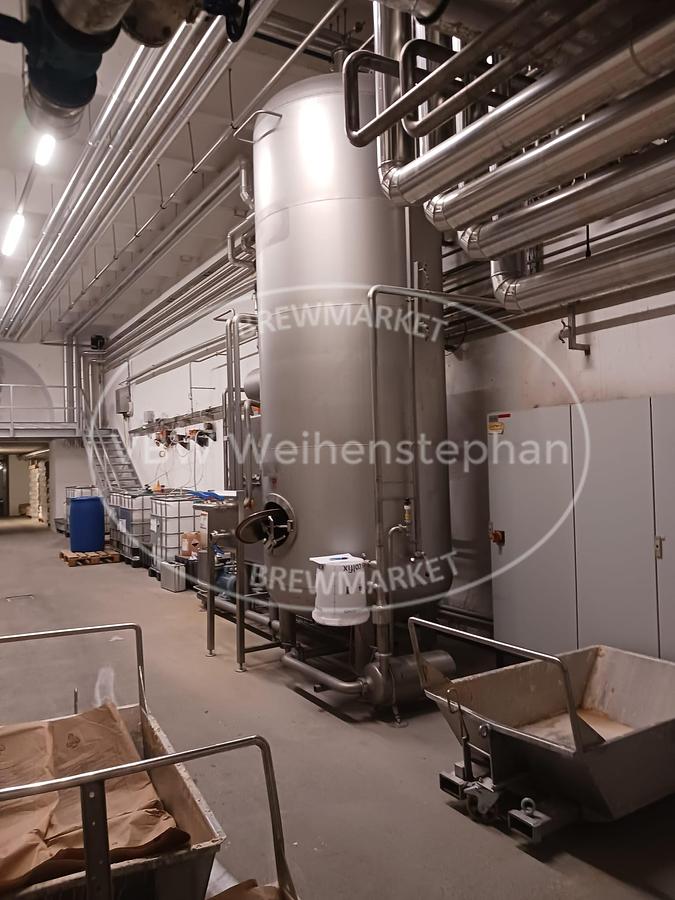

- 70 hl holding tank (Gross, 2018) for storing degassed water at up to 4 bar overpressure.

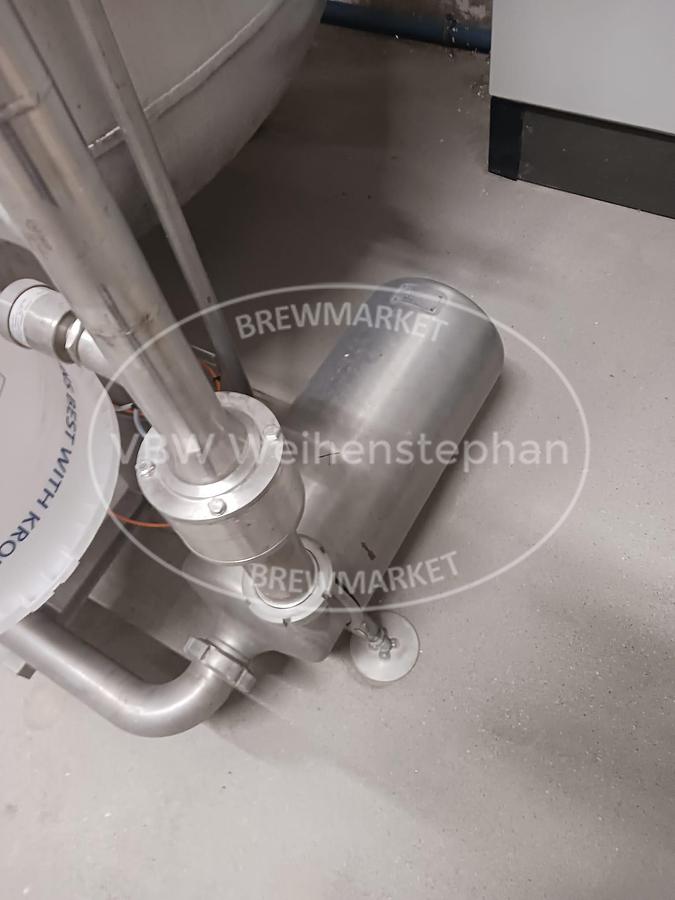

- Centrifugal pumps
- CO2 dosing via needle valve

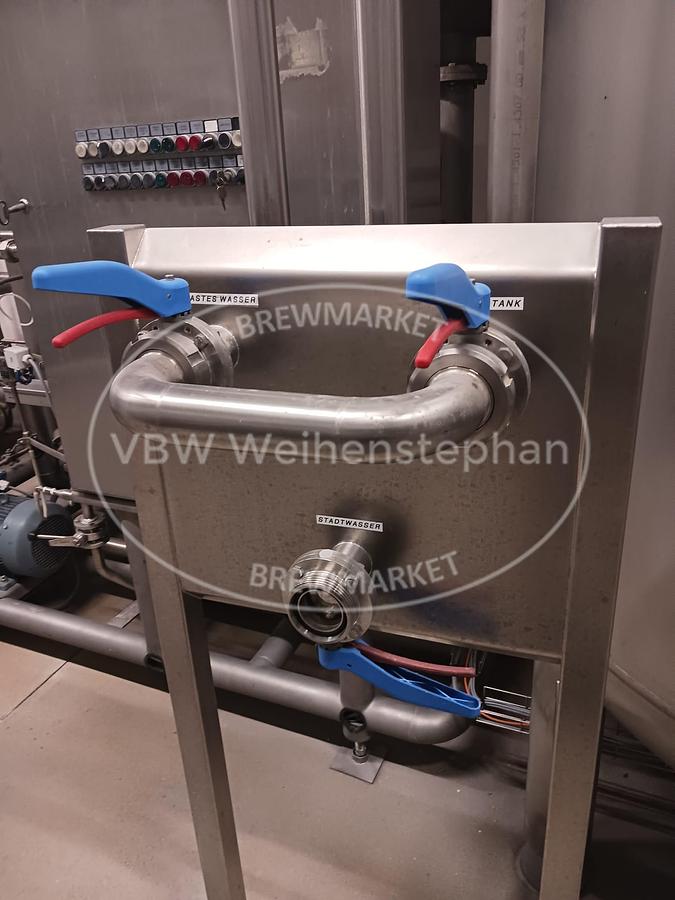

- Pipe panel, various pipework, valves, fittings, measurement and control technology

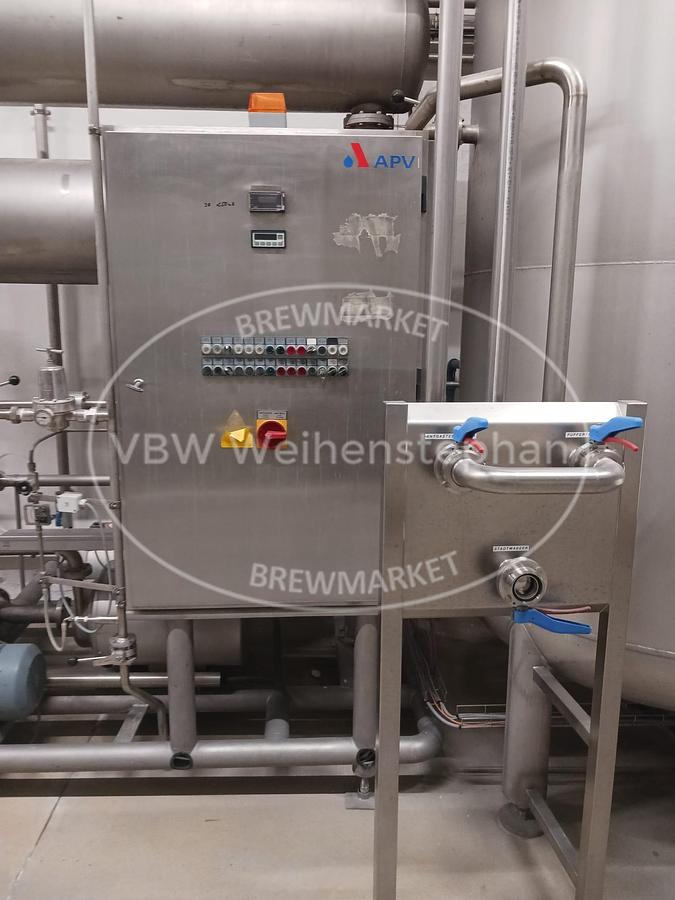

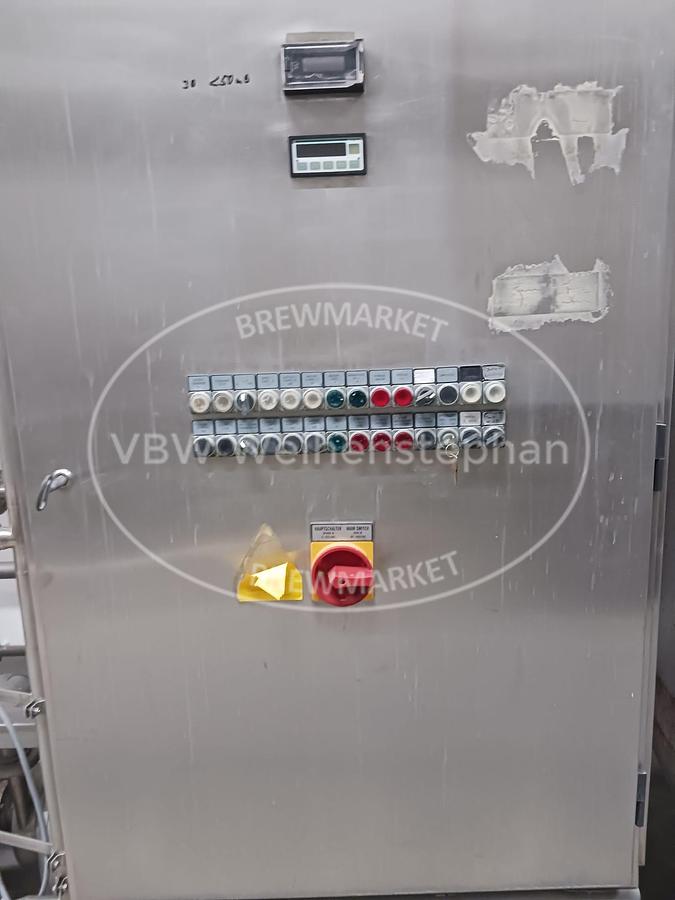

- Control cabinet with Simatic S5 control system
Specifications
| Manufacturer | APV |
| Condition | Used |
| Stock Number | 210796MW |
| Additional title | cold degassing via CO2-Stripping |
| Capacity | 20000 l/h |
| Gross volume deareation vessels each | 285 l ; overpressure up to 1 bar |
| Gross volume buffer tank | 7060 l ; overpressure up to 4 bar |
| Residual oxygen content appr. | 0,010 - 0,015 mg/l |
| Operation / Control | Simatic S5 |
| Material | stainless steel |
| Position | mounted on stainless steel frame with feet |
| Features | 2 x degassing vessels; pressure tank; centrifugal pumps; vacuum pump with separator; CO₂ dosing (via needle valve); flow, pressure and level measurements; switch cabinet; pipe panel; various pipework, valves and fittings |
