CIP plant
CIP plant
or
Call +49 (0) 8161-48333
Description
“Cleaning in Place” (CIP) system, consisting of the following components:

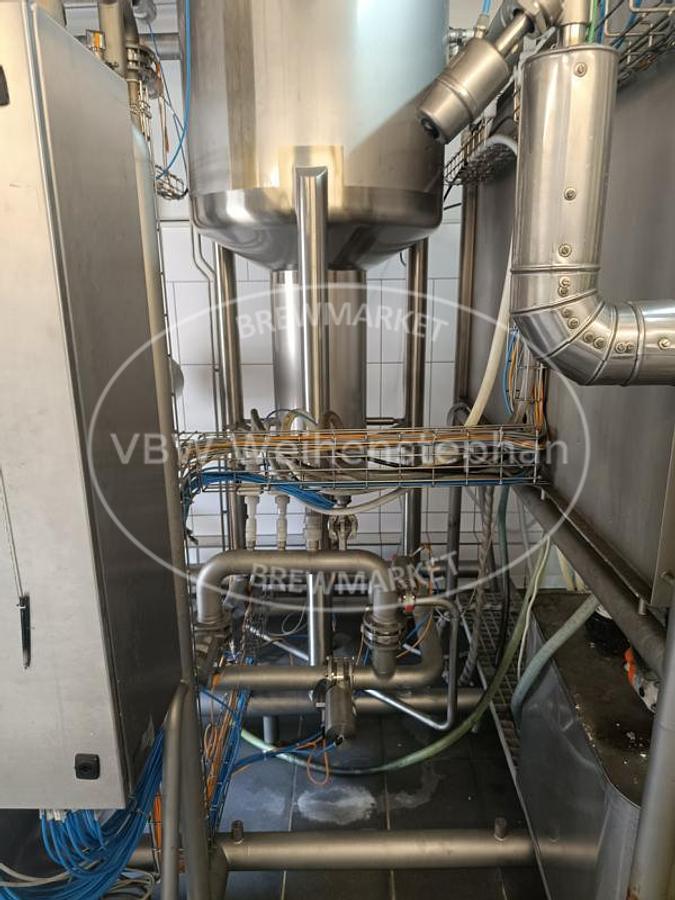

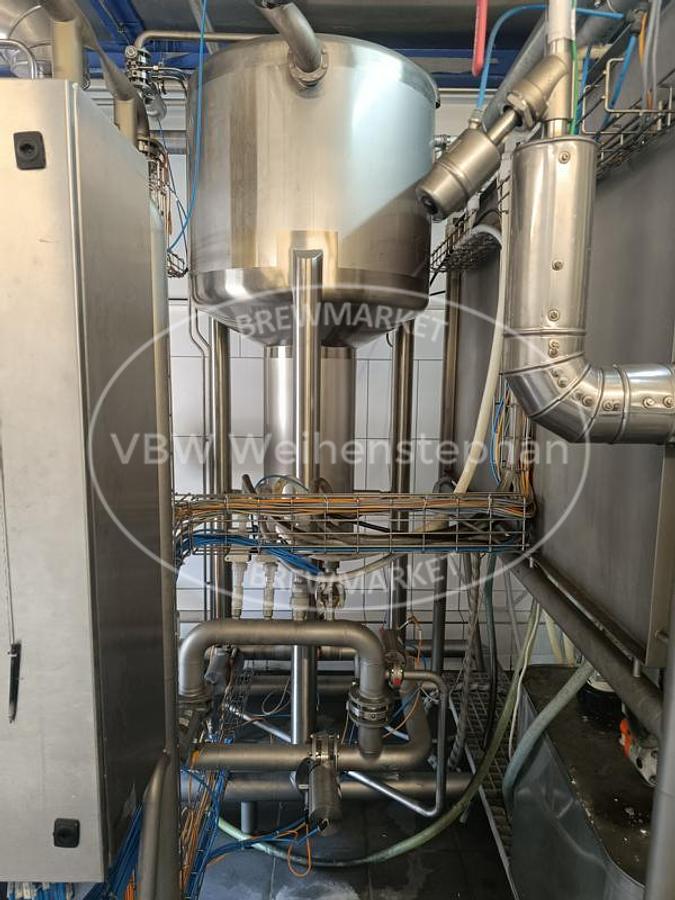

- 400-liter stainless steel tank serving as a hydrostatic circulation tank
- 7.5-kW feed pump (Packo) for pumping 25 m³/h against 4.1 bar
- 4.0 kW return pump (Packo) for pumping 25 m³/h against 2.0 bar

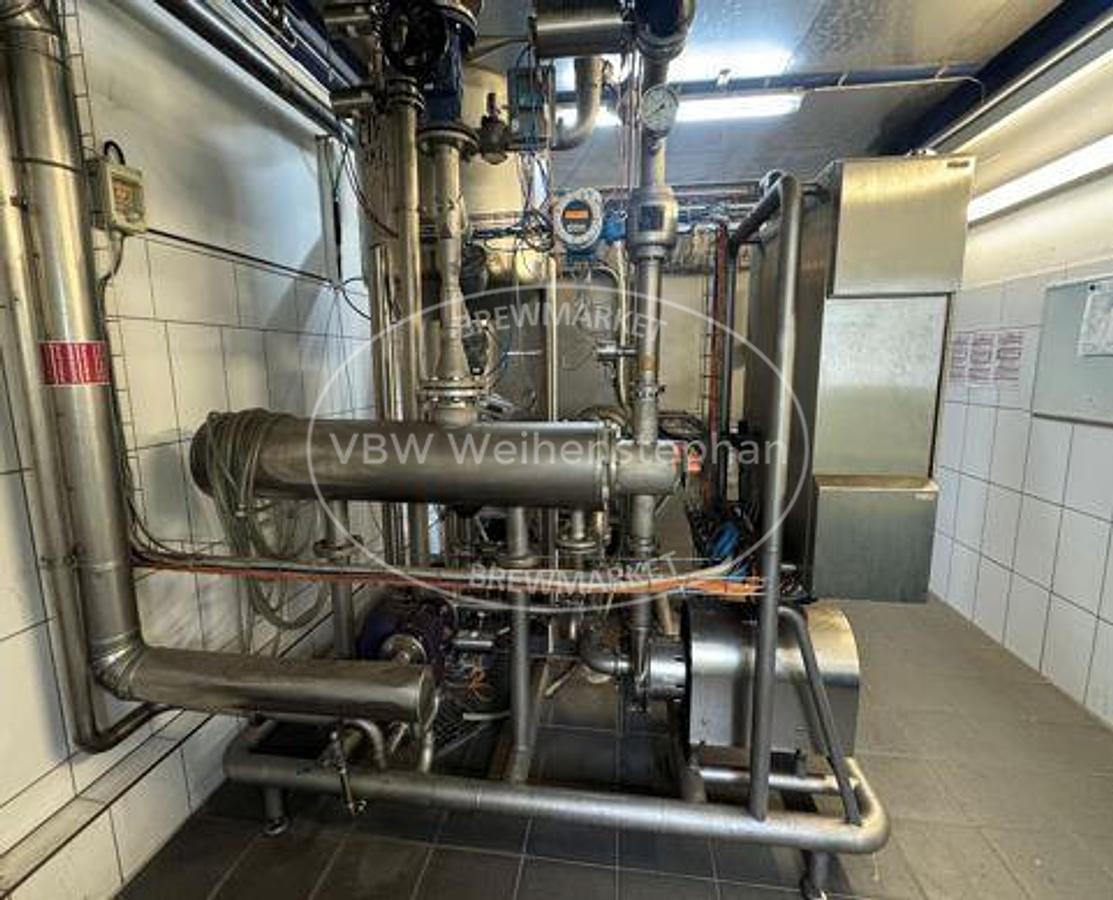

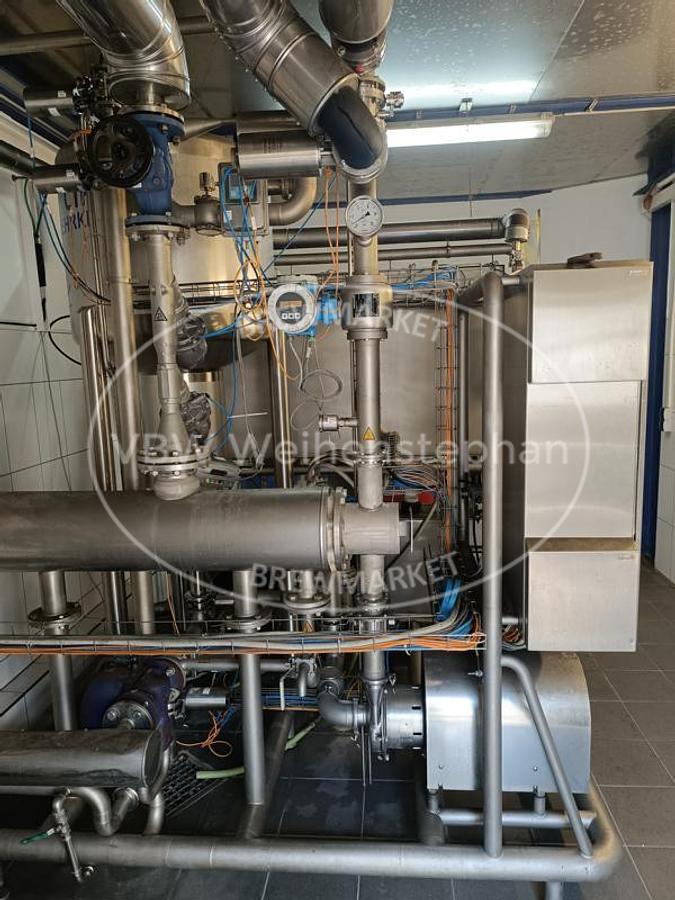

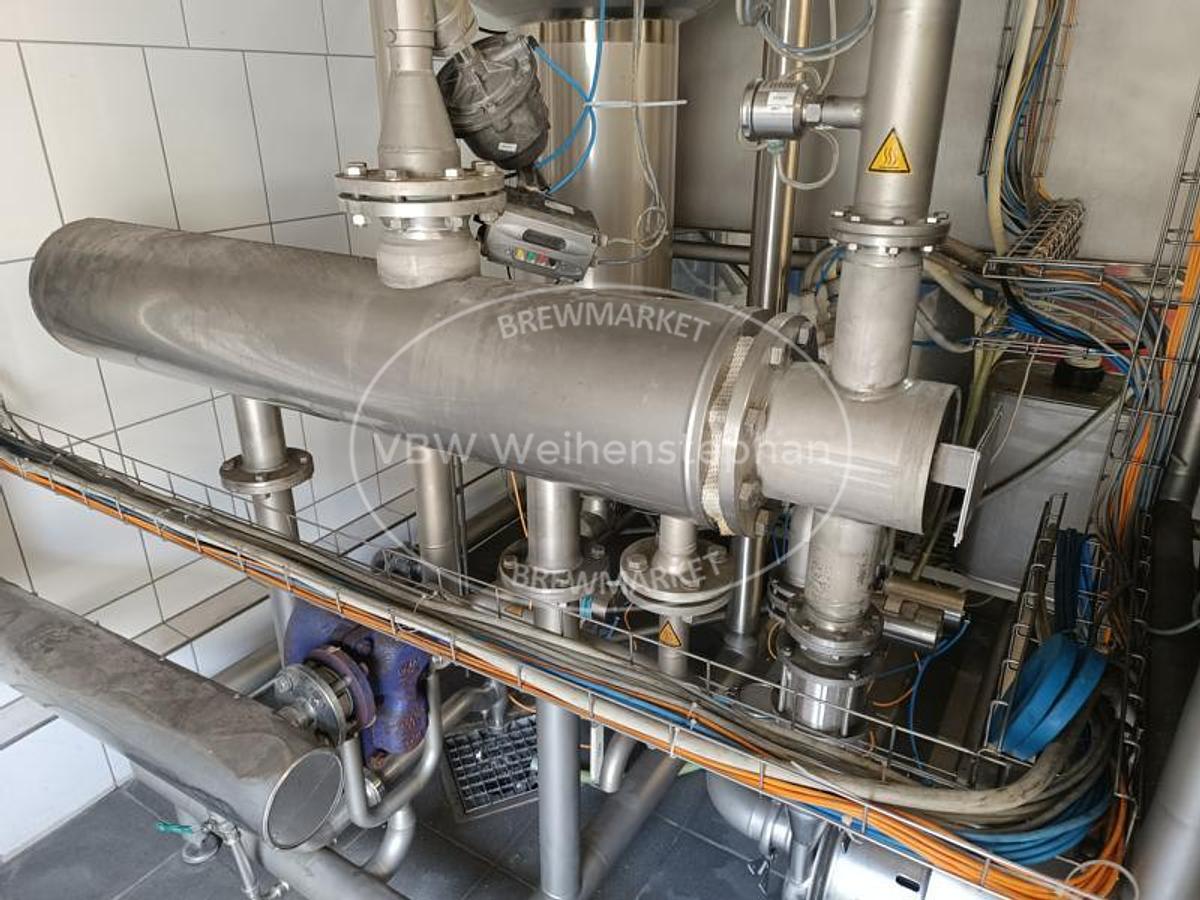

- Shell-and-tube heat exchanger (Weinbrenner) for heating a flow rate of 25 m³/h from 55 °C to 75 °C with 790 kW

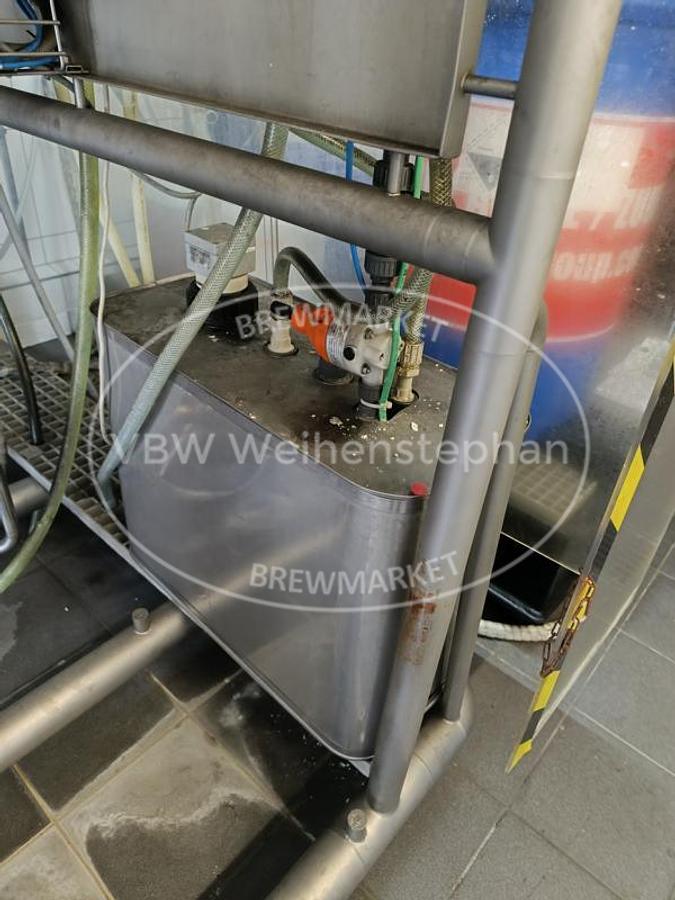

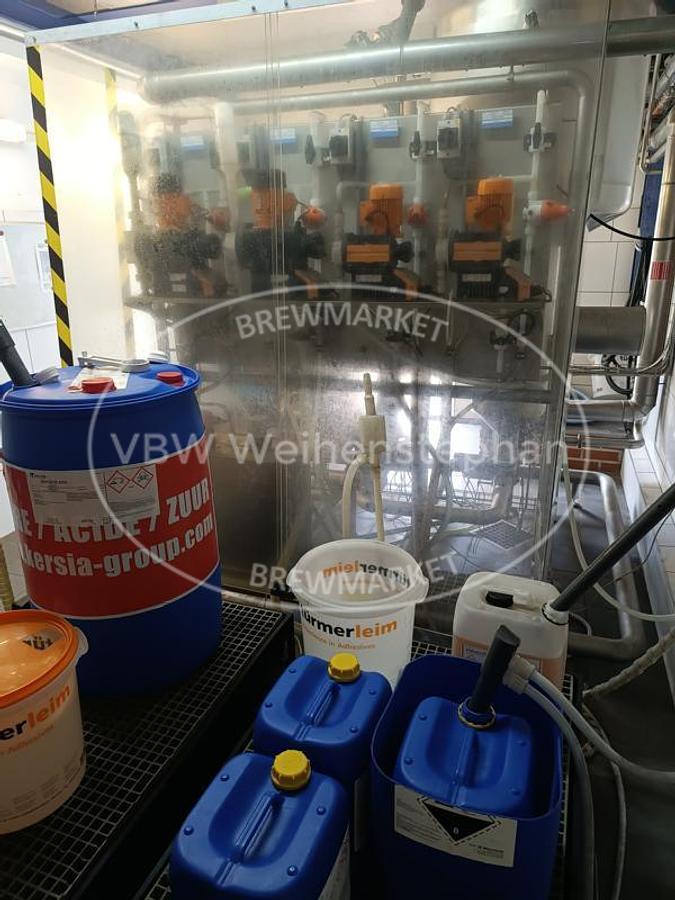

- 4-channel chemical dosing system (ProMinent) for lye, acid, disinfectant, and additive
- Temperature measurement

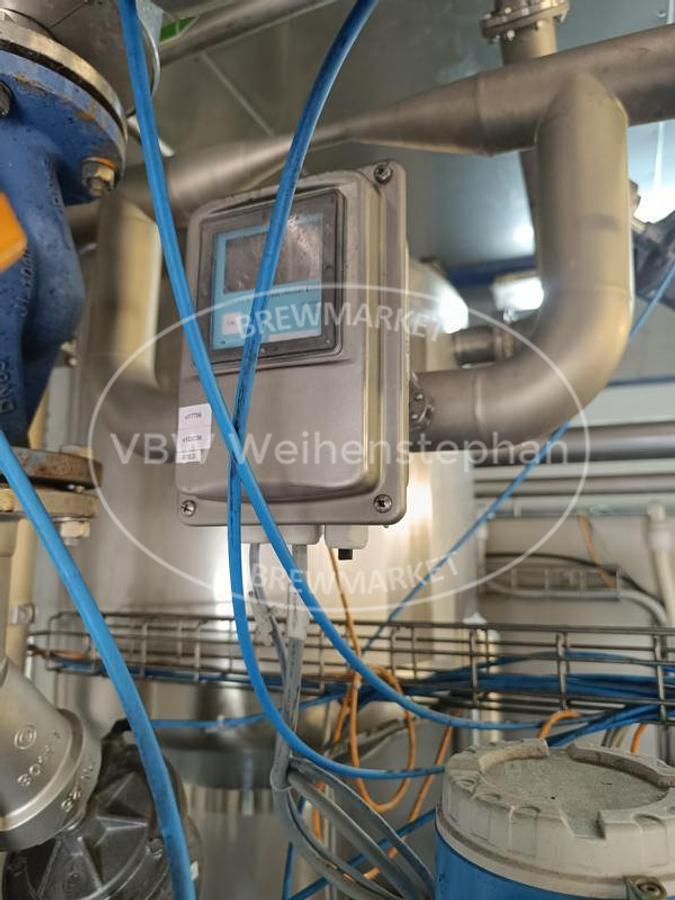

- Conductivity measurement (E+H)
- Inductive flow meter (E+H)

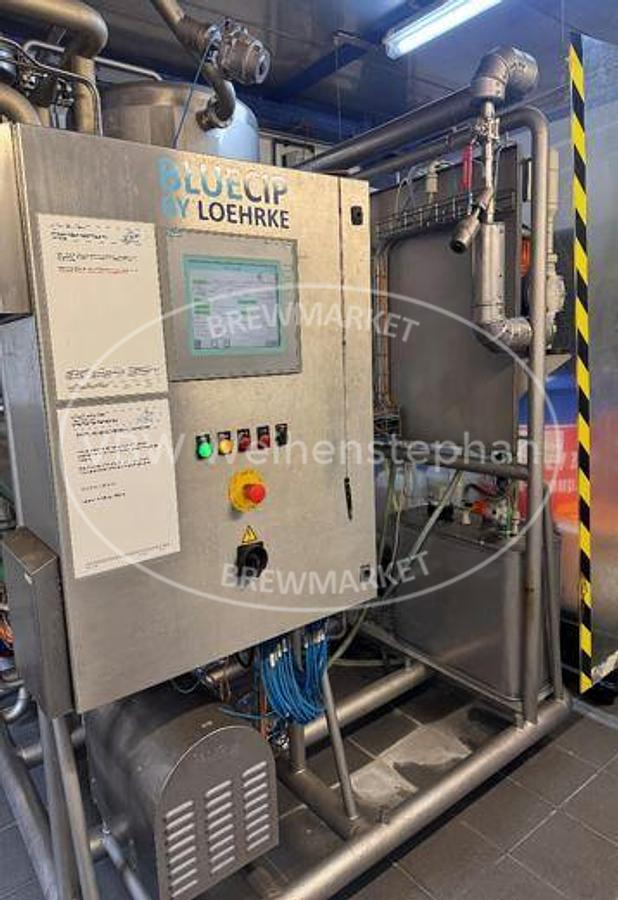

- Control cabinet with touchscreen display

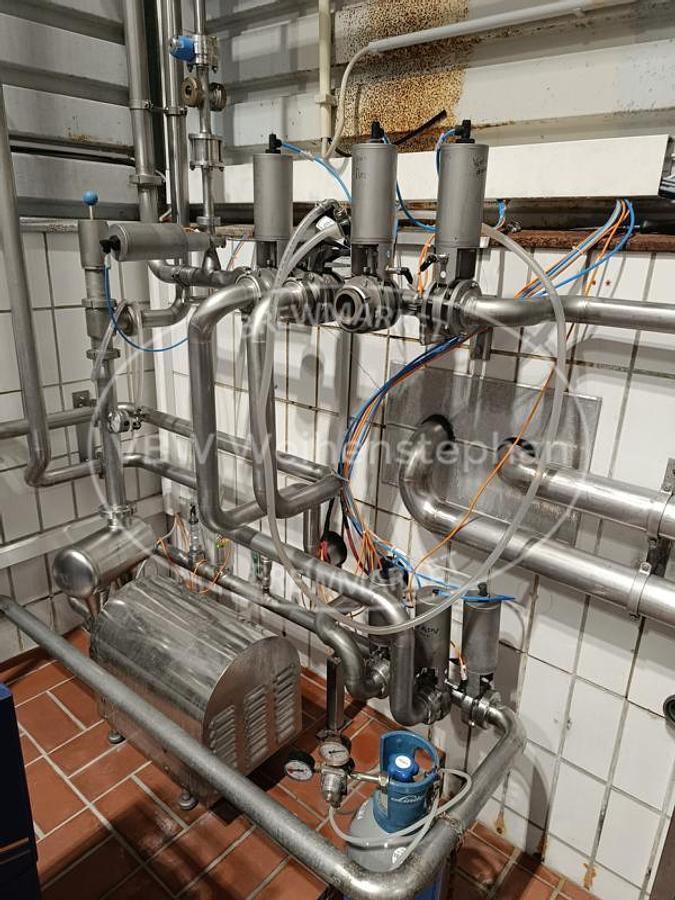

- Various piping and valves
Specifications
| Manufacturer | Löhrke |
| Year | 2010 |
| Condition | Used |
| Stock Number | 210861MW |
| Additional title | Cleaning system for cleaning pressurised tank cellars |
| Volume circulation tank | 400 l |
| Length | 2,5 m |
| Width | 3,0 m |
| Height | 2,9 m |
| Operation / Control | Simatic S7 |
| Material | contact surfaces from stainless steel |
| Position | on stainless steel frame with feet |
| Features | Circulation tank; 2 centrifugal pumps; shell-and-tube heat exchanger; 4-channel chemical dosing system; control cabinet with touch panel; flow measurement; conductivity measurement; temperature measurement; various pipes and valves |
