Description

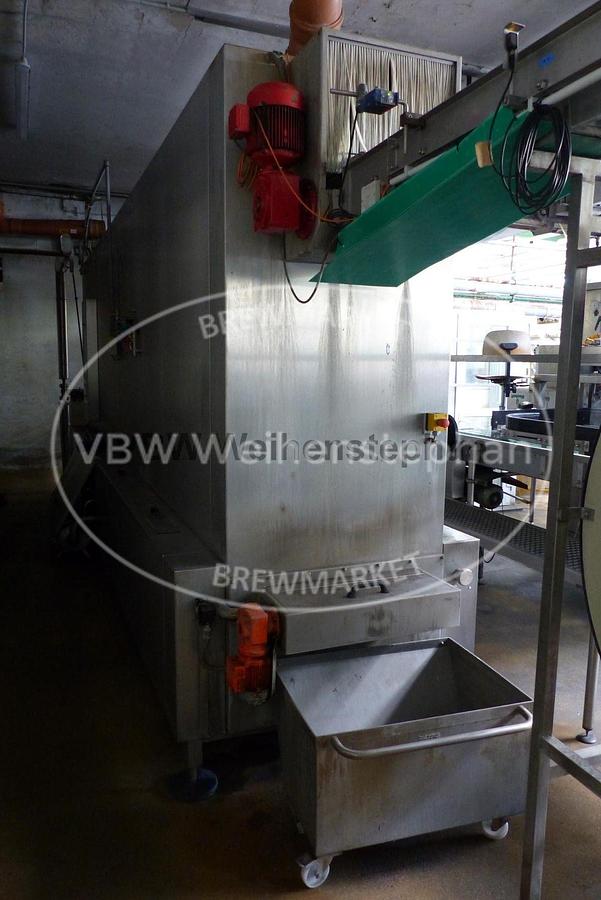

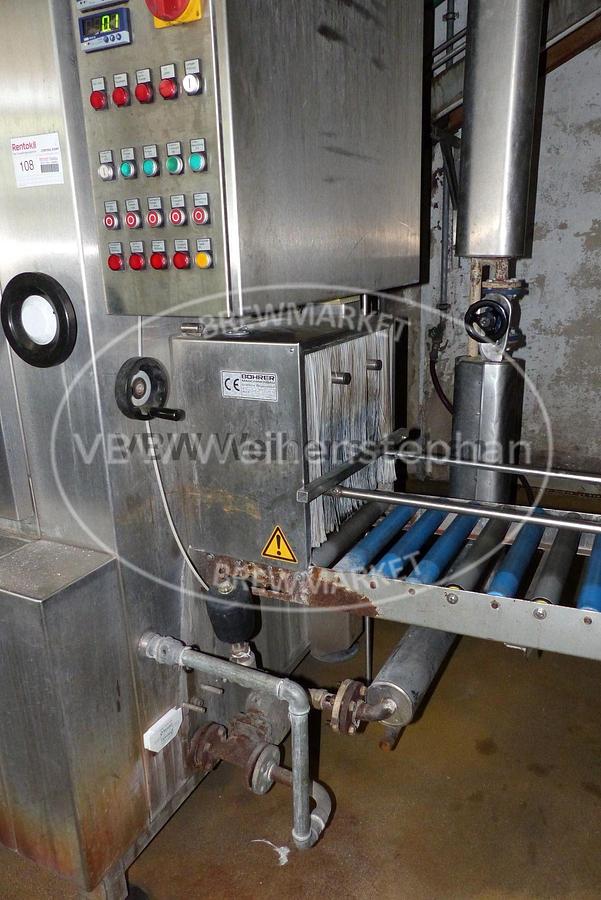

Crate washer for longitudinal plastic crates with 3 cleaning levels on top of each other and dirt discharge with collection vessel.
1st level: Soaking basin with pump suction channels.
2nd level: Main spraying with upward turner and conveyor.
3rd level: Final spraying with upward turner and conveyor with water collection pool.
Specifications
| Manufacturer | Bohrer Maschinenbau |
| Year | 1995 |
| Condition | Used |
| Stock Number | 208171BB |
| Additional title | 2500 crates per hour |
| Capacity | 2500 crates/h |
| Volume of soaking bath | 2 m3 |
| Power | 24,6 kW |
| Voltage | 380 V |
| Frequency | 50 Hz |
| Length | 6,5 m |
| Width | 1,4 m |
| Height | 3,0 m |
| Weight | 4300 kg |
| Formats | NRW crates (400x300x290 mm), NRW handy crates (400x300x300 mm), Pinolen crates (395x300x270 mm) |
| Running direction | crates longitudinal |
| Material | stainless steel cladding |
| Base construction | standing on 4 feet |
| Features | 2 x crate turner, soaking basin, main spray jets, second spray jets, dirt expulsion with collection vessel, caustic dosing system |
