NH3 fluid separator
NH3 fluid separator
or
Call +49 (0) 8161-48333
Description

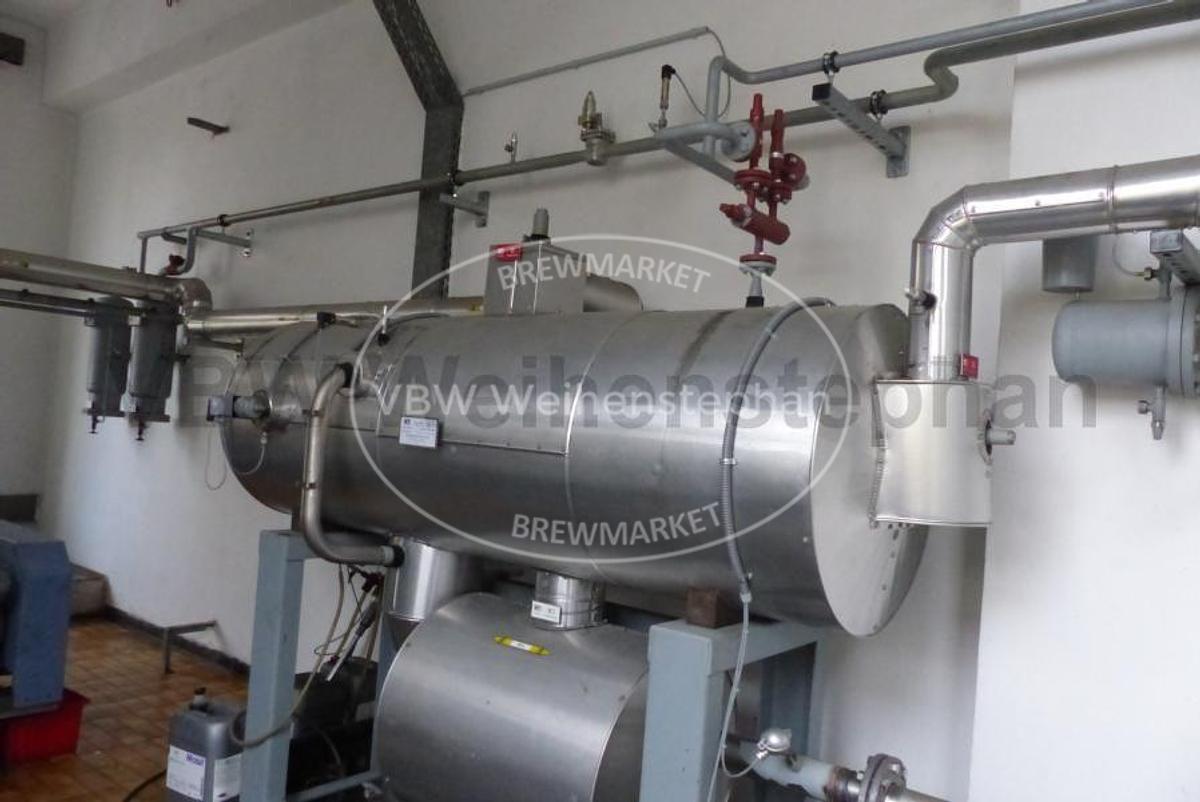

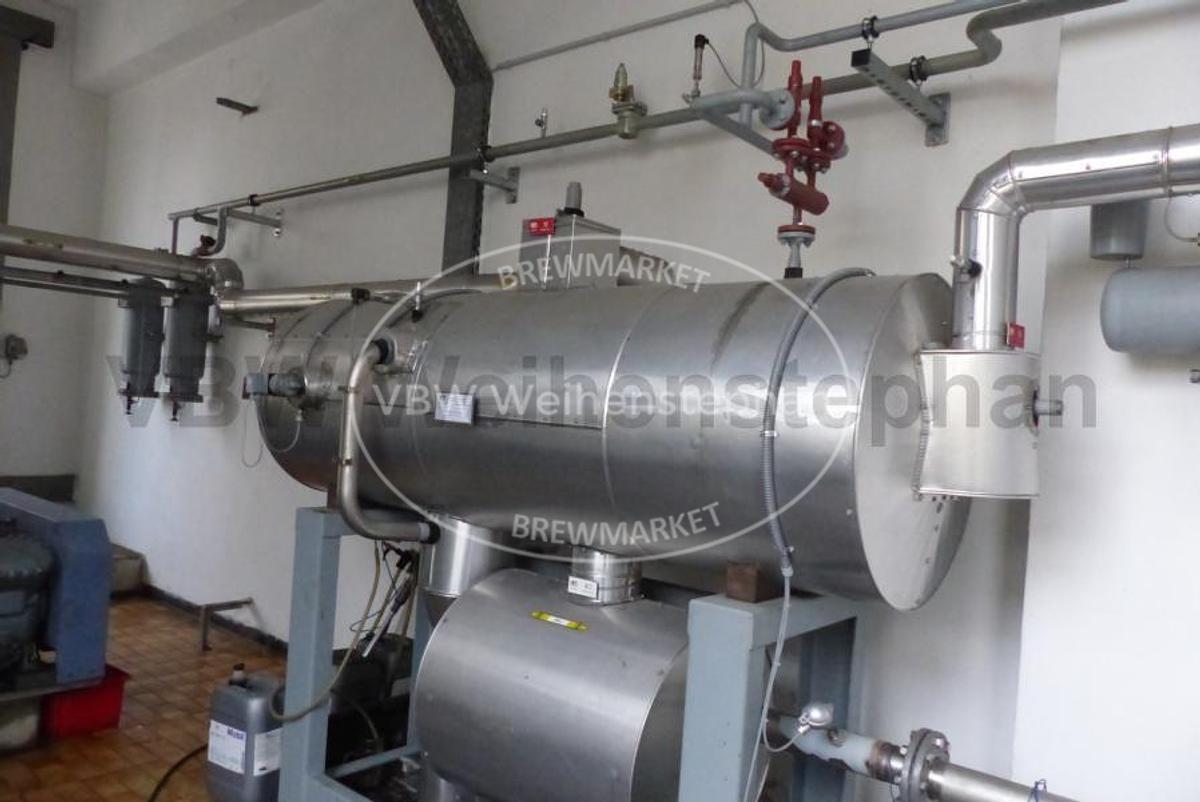

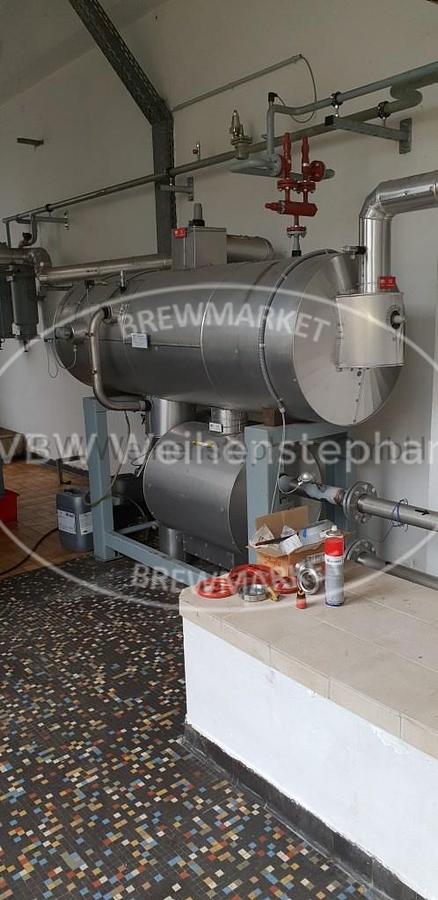

NH₃ separation tank mounted on a steel frame.
Specifications
| Manufacturer | TH. WITT Kältemaschinenfabrik GmbH |
| Condition | Used |
| Stock Number | 204754JF |
| Additional title | for refridgeration plant |
| Cooling capacity | 100 kW at -8/+30 °C |
| Operating pressure | 13 bar within +50/-10°C, resp. 12 bar within -10/-60 °C |
| Complete volume | 523 l refrigerant capacity approx. 289 l |
| Usable volume difference | 252 l |
| Features | Plate evaporator constructed underneath, completely welded type PBS 176/400-1, evaporative capacity 100 kW, evaporative temp.: -8°C, operation overpressure (mantle and plates: -1/16 bar (at +50 to -10 °C)), refrigeranz: propylenglycol 32 vol.%, Refrigerant-inlet- / -outlet temperature: -3 / -6°C, refrigerant flow rate 30 m³/h, refrigerant pressure loss 20 kPa, material of the plates: stainless steel 1.4404 |
| Periphery | Pressure sensor 0-16 bar, 4-20 mA, oil outlet valve with quick-action valve SSV6, maximum level limiter NGX, closable to the compressor safety, shuttle valves with 2 safety valves, PT 100 for glycol inlet temperature |
