Description

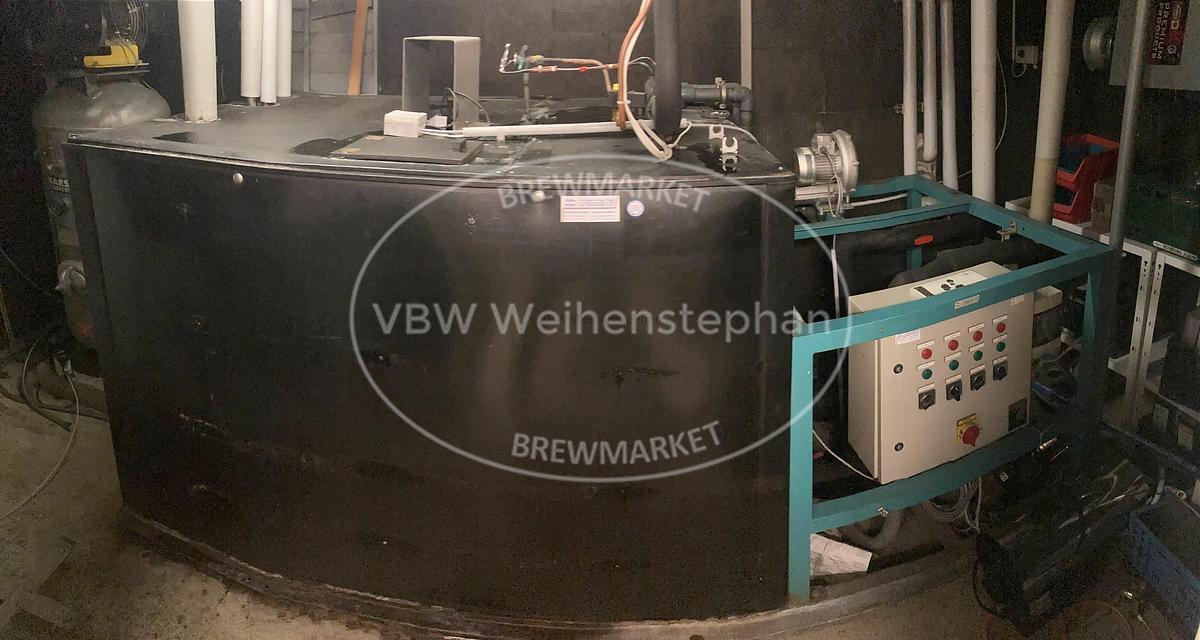

Refrigeration system as an ice storage system with refrigerant R404a and a cooling capacity of 6.5 kW.
Consisting of the following components:
- Stainless steel evaporator system

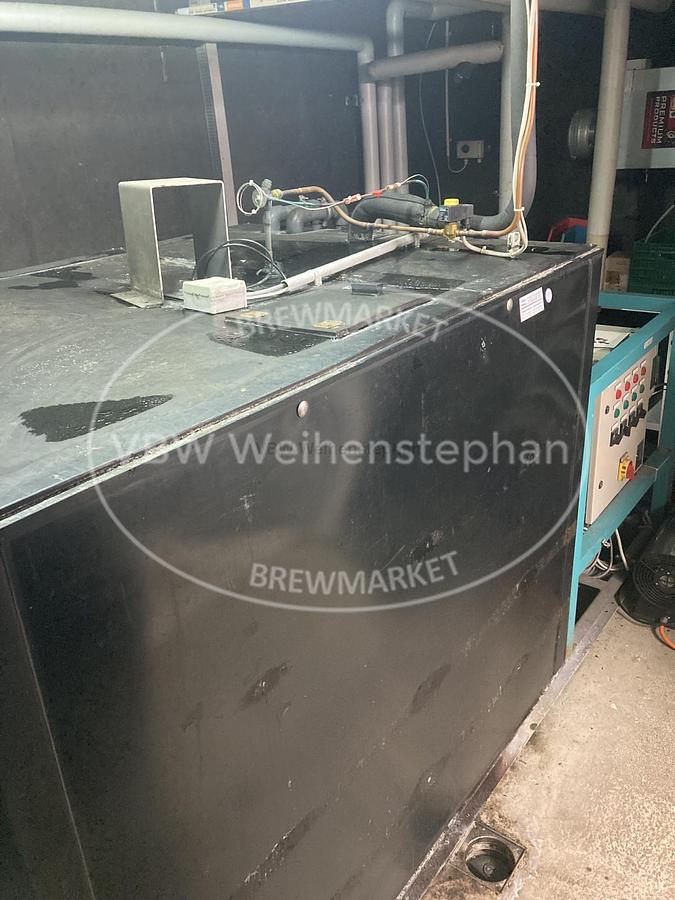

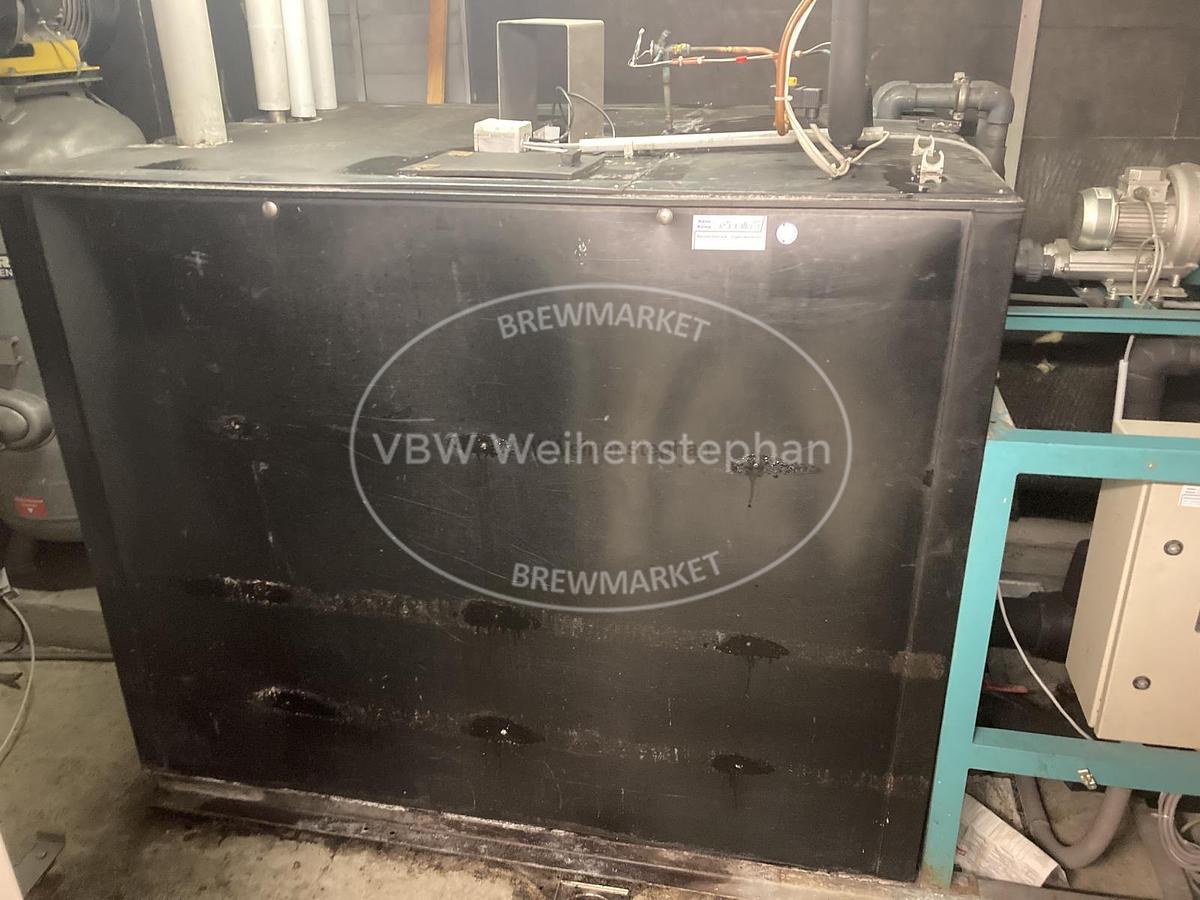

- Plastic tank, double-walled, insulated
- Refrigeration compressor

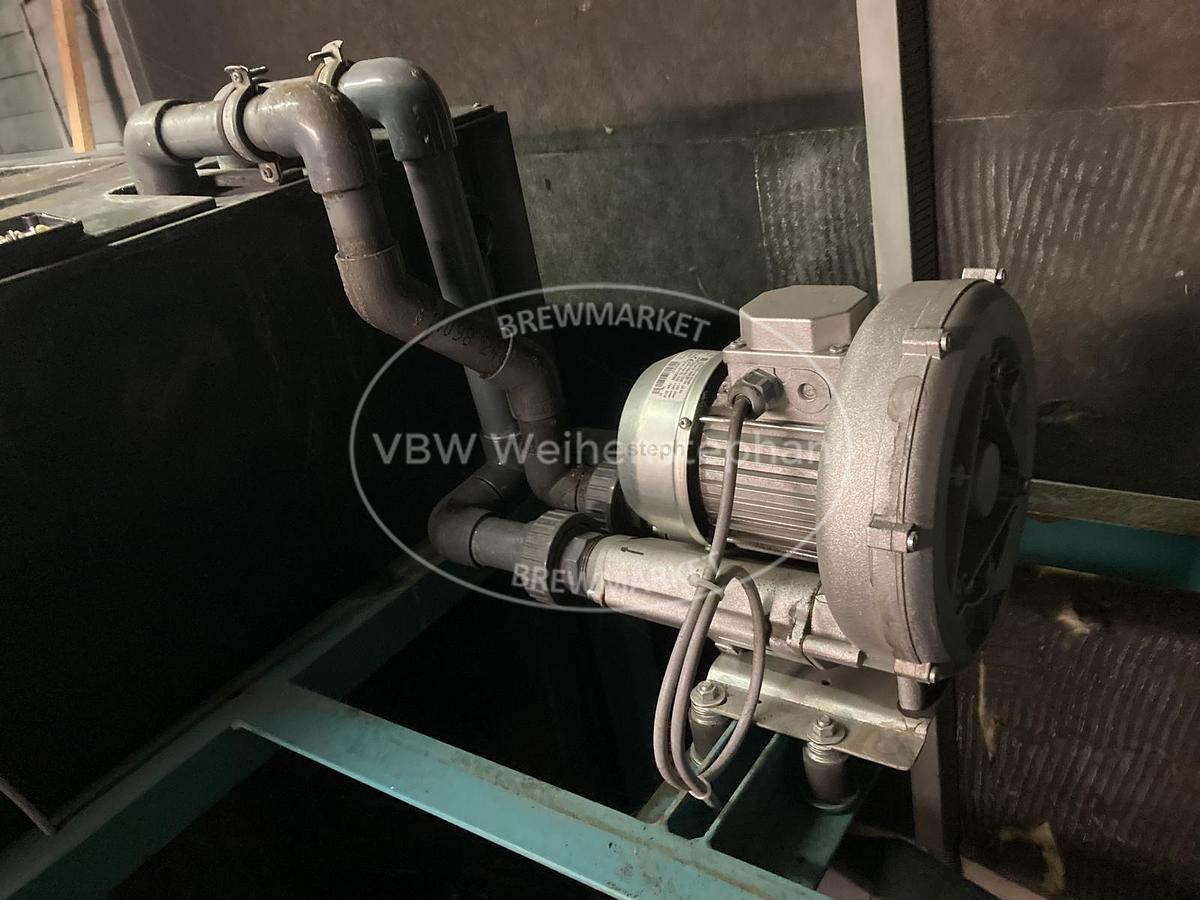

- Blower to increase the melting capacity

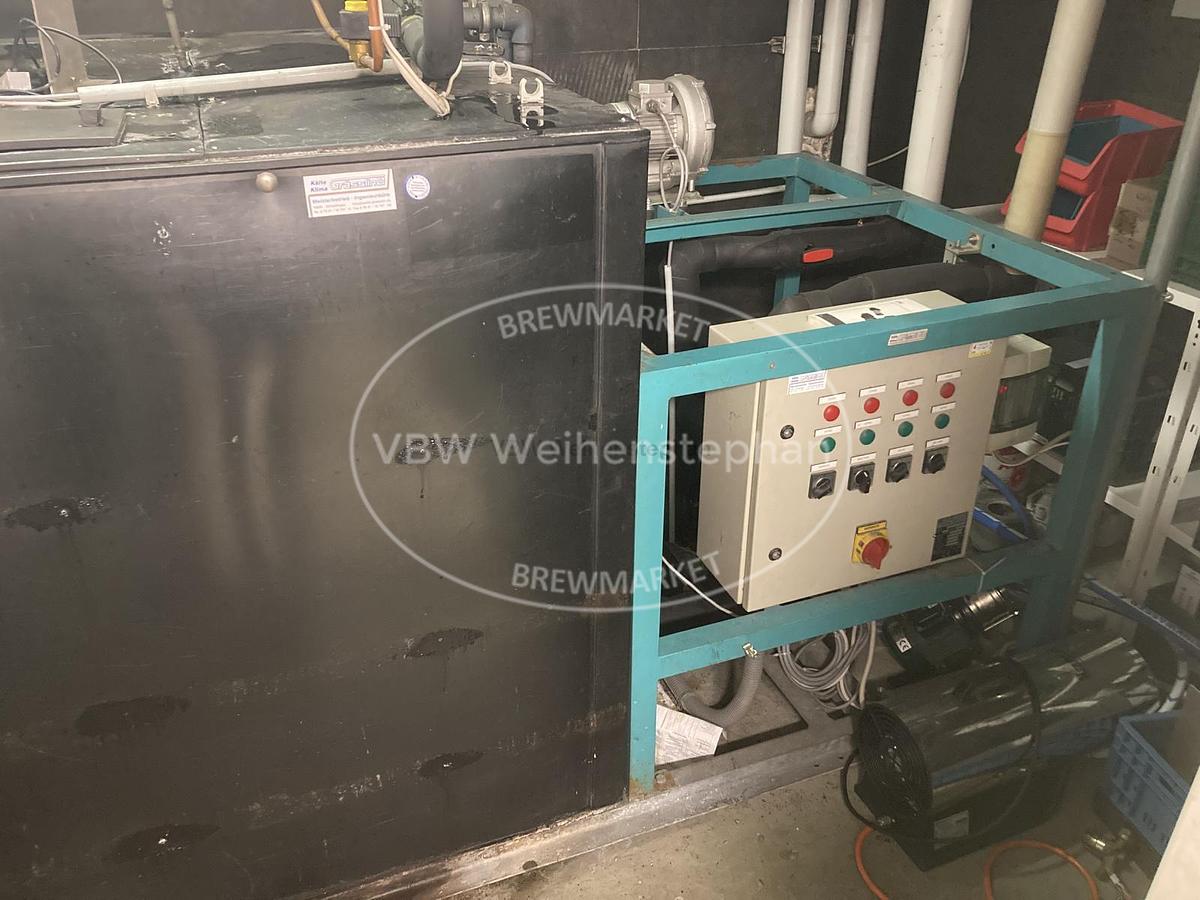

- Refrigeration aggregar with condenser block and ice regulator
- Ice water pumps

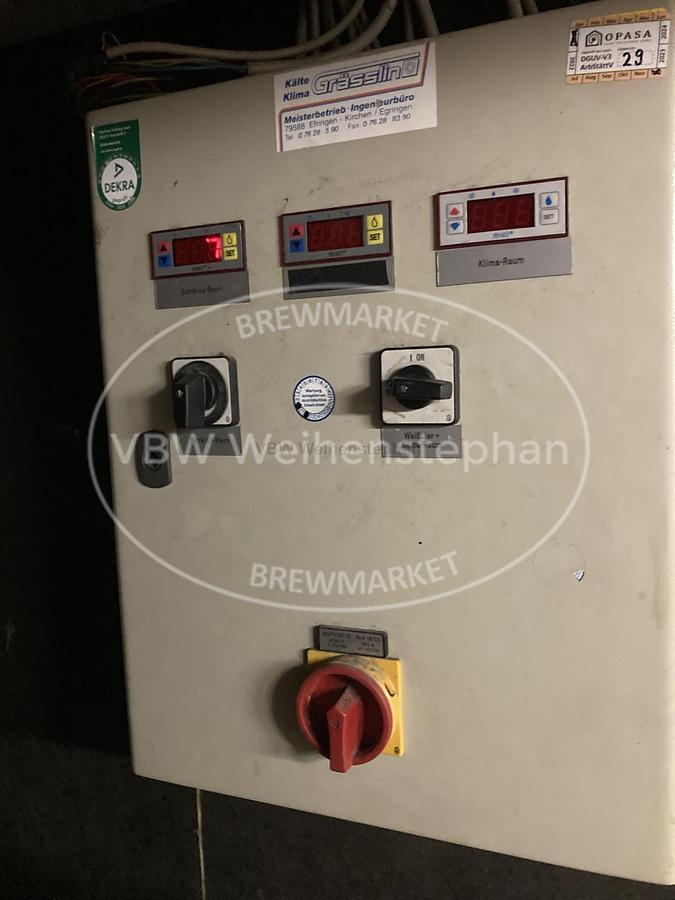

- Switch cabinet
Specifications
| Manufacturer | Hafner-Muschler |
| Year | 2000 |
| Condition | Used |
| Stock Number | 208908HN |
| Additional title | Ice storage plant |
| Cooling capacity | 6 kW |
| Storage capacity | 55 kWh |
| Max melting capacity | 42 kW |
| Max. operating pressure | 25 bar |
| Power | 7,5 kW |
| Current | 18 A |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Length | 2610 mm |
| Width | 1170 mm |
| Height | 1800 mm |
| Weight | 2 t |
| Features | Evaporator system, plastic container (insulated, double-walled), refrigeration compressor, fan, refrigeration unit (with condenser and ice regulator), 2 ice water pumps, control cabinet |
