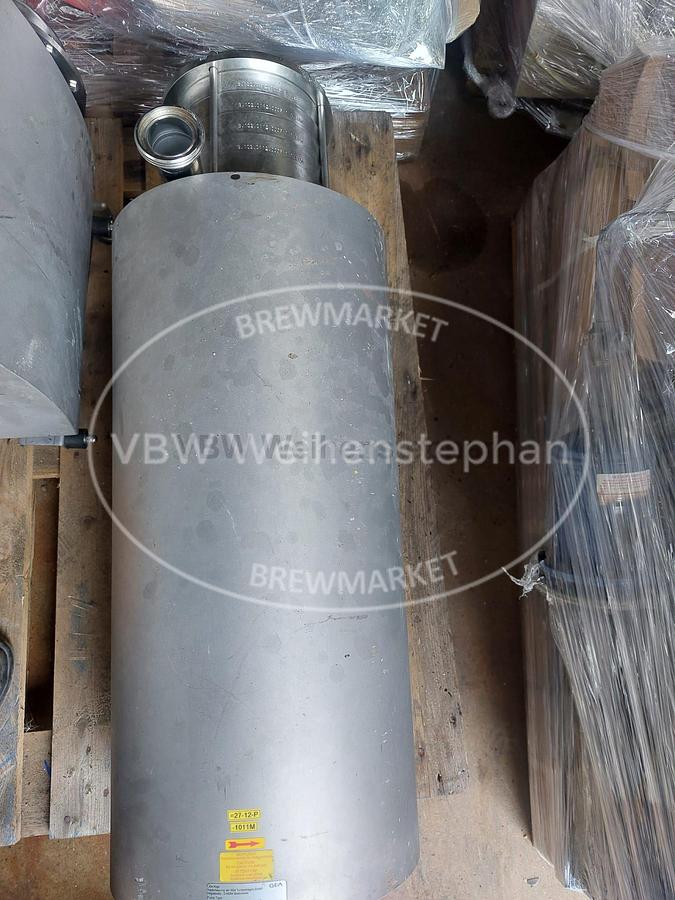

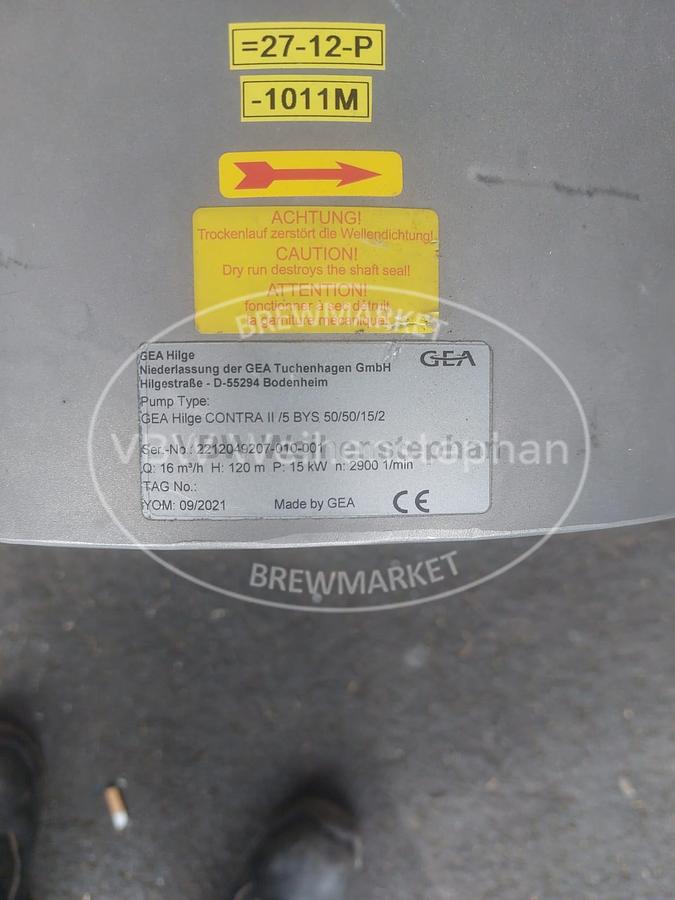

Two-pole, five-stage, normal-priming centrifugal pump. Hygienic design and materials. Surfaces in contact with media with a roughness ≤ 3.2 μm. Suitable for pumping food and beverages as well as pharmaceutical and biotechnological products and as a CIP pump.


Stock Number208987MW
Additional titlewith stainless steel housing
Capacity16 m3/h
Max. pressure head120 m
Drive2900 rpm
Power15 kW
Current16,0 - 24,1 A
VoltageΔ 400-460 V, Y 690 V
Frequency50/60 Hz
Materialpump body from CriNiMo stainless steel 1.4404/1.4435 (AISI 316L)
Base constructionBLOC-SUPER, horionzal, standing on 4 feet

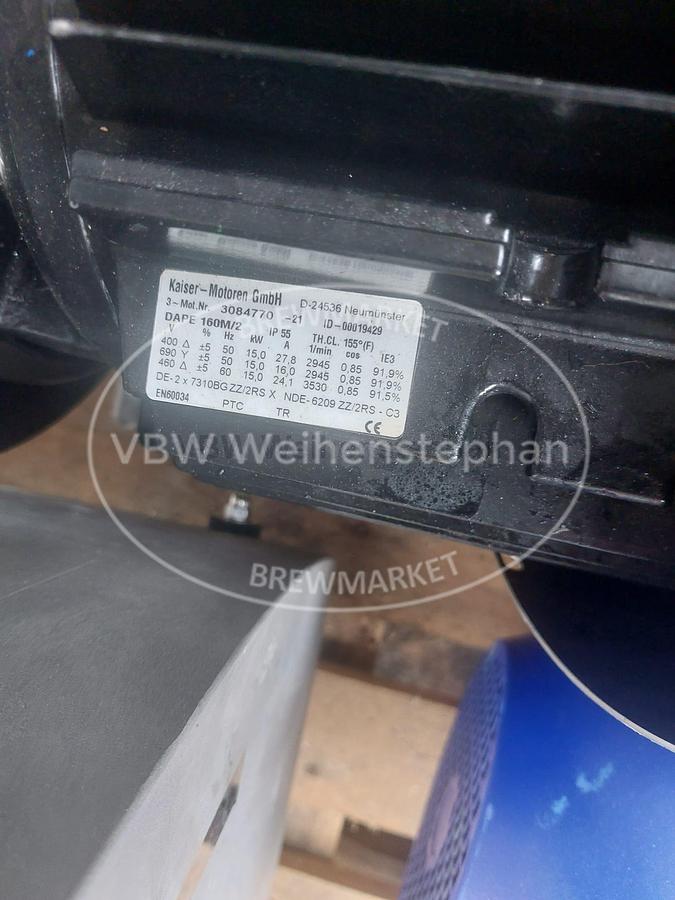

Featuresmotor (Kaiser-Motoren GmbH, power factor 0,85 cosϕ, efficiency IE3 91%-92%, protection class IP55 ), inlet connection DN50, outlet connection DN50
