Glass bottle filler and capper
Glass bottle filler and capper
Description

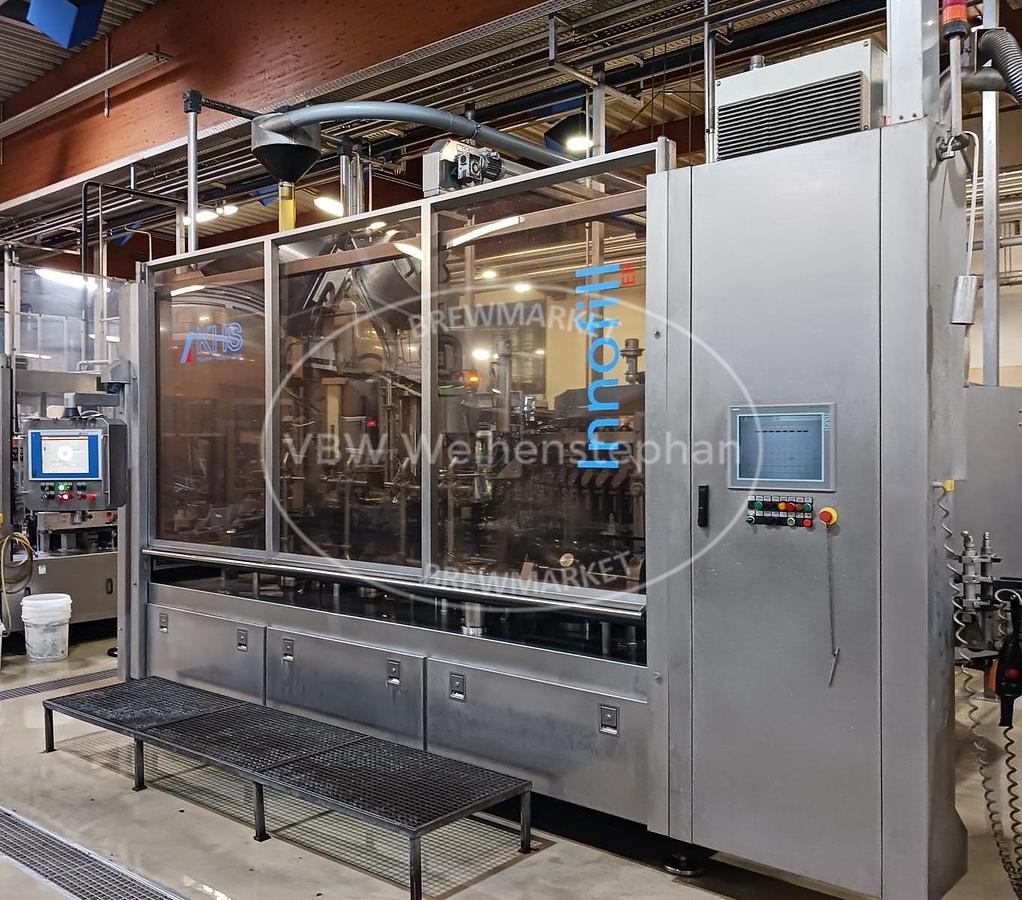

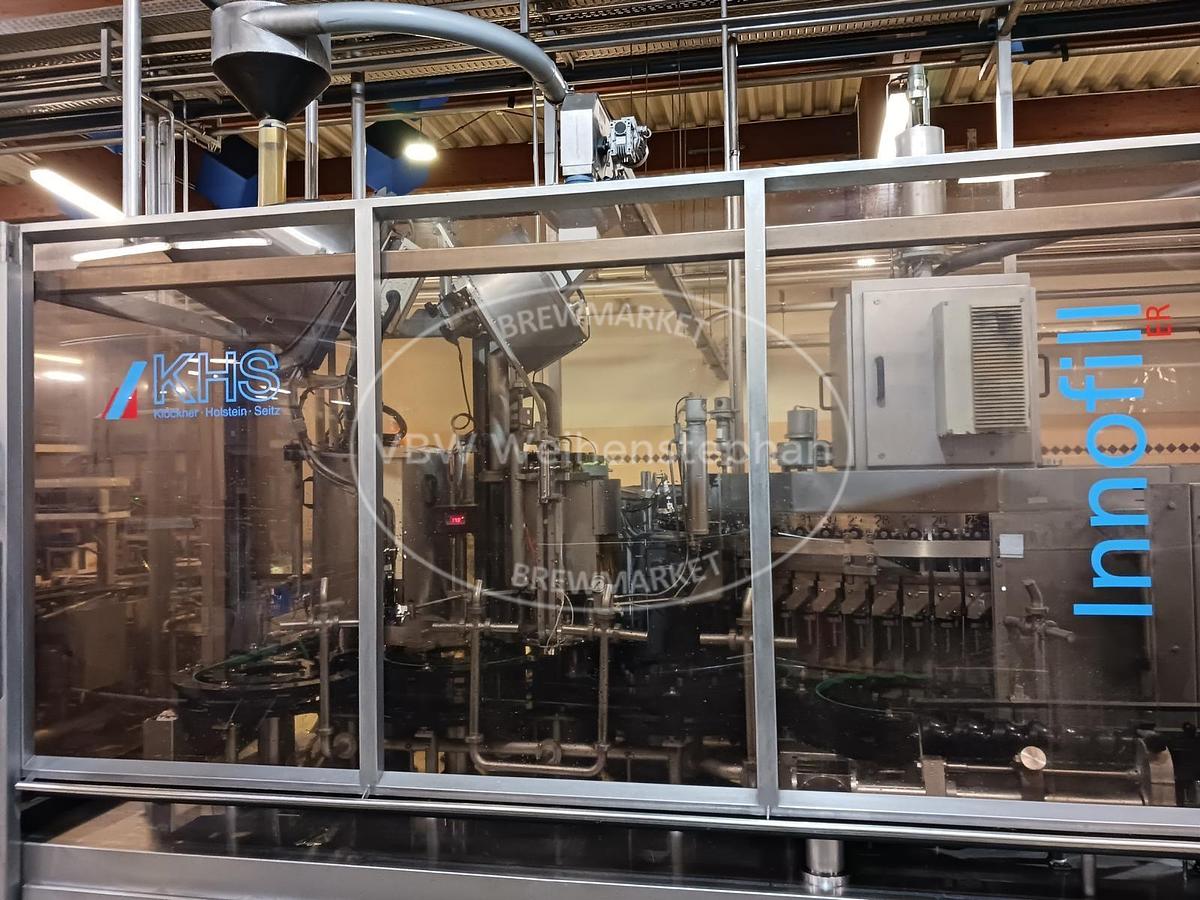

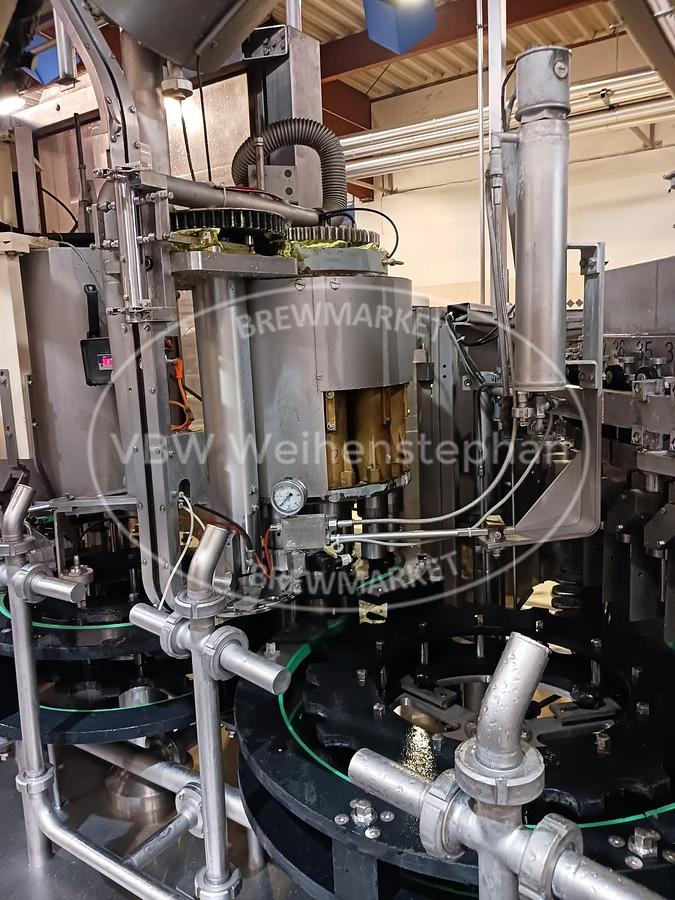

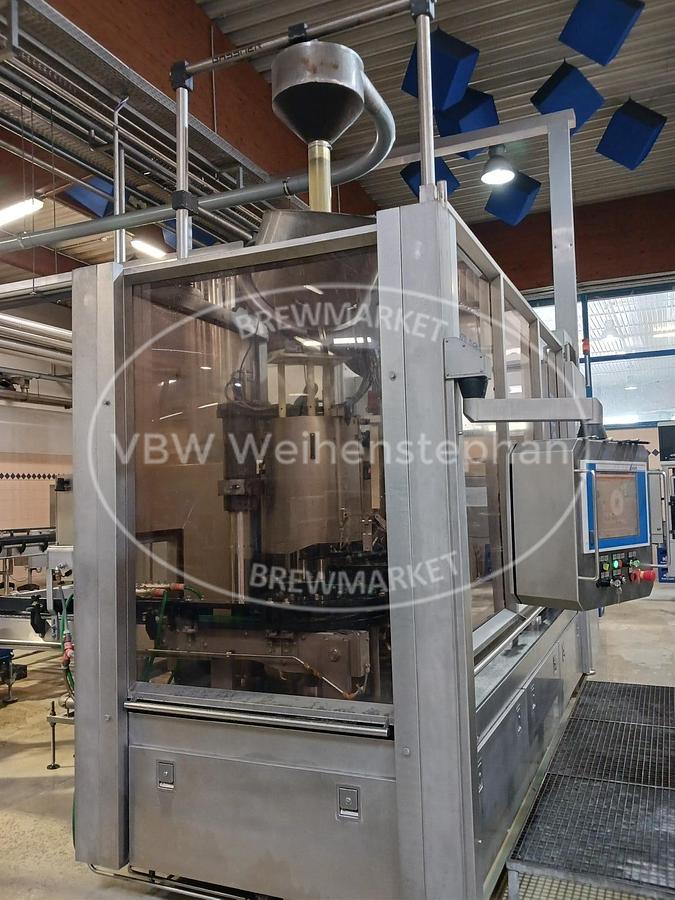

Counter-pressure filler for glass bottles with dual pre-evacuation and a capping machine for crown caps. The control system was renewed in 2013.
Manufacturer: KHS
Model: Innofill - ER SVF 77/10/10
Year of manufacture: 1996

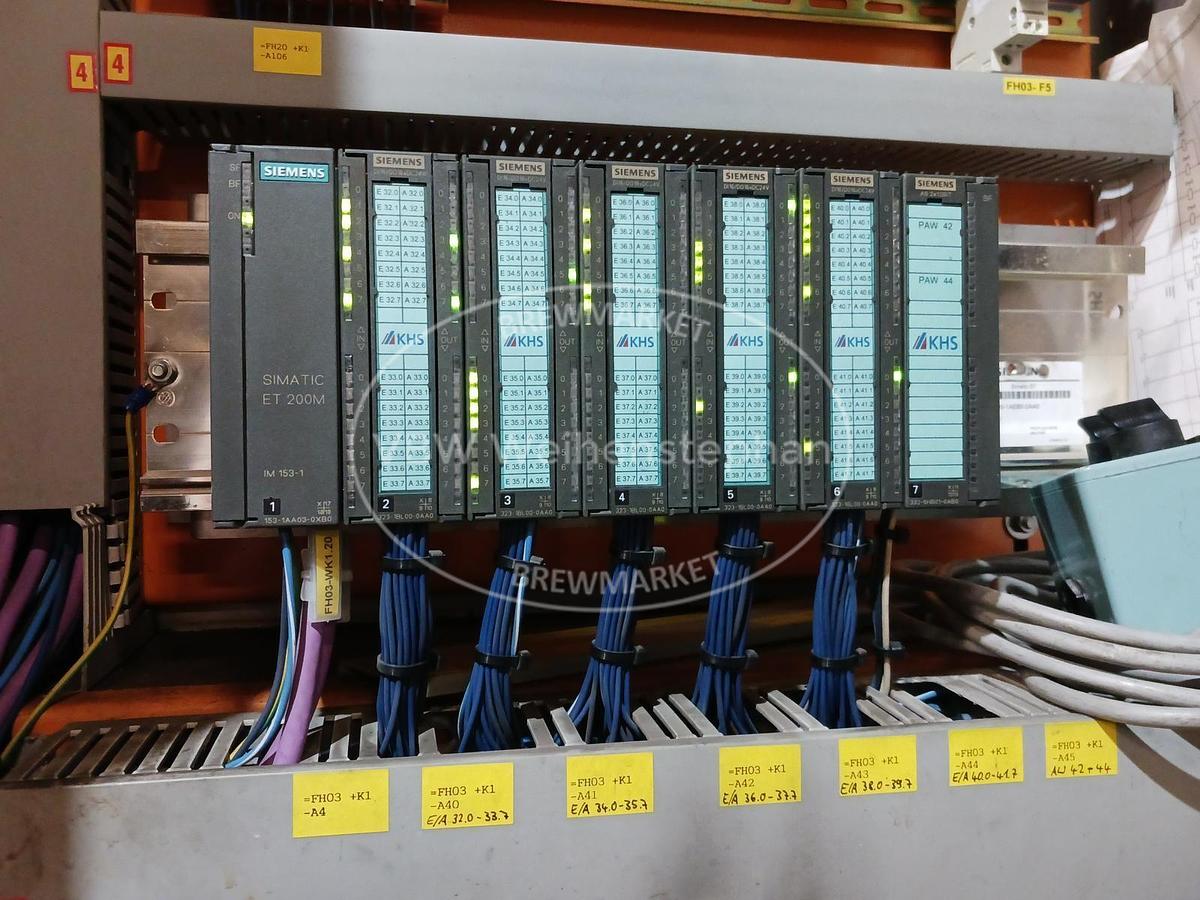

Control system: Simatic S7

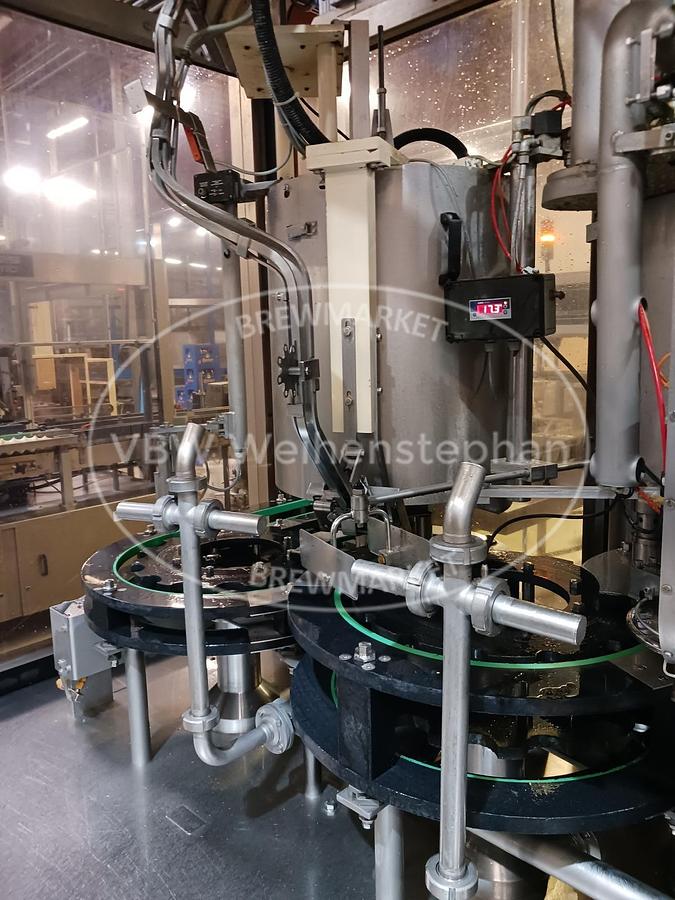

Capping unit 1 operates with twist-off and standard crown caps. Capping unit 2 operates with screw caps.
Specifications
| Manufacturer | KHS |
| Year | 1996 |
| Condition | Used |
| Stock Number | 209892HG |
| Additional title | Filling and capping machine |
| Capacity with 0,33 l | 33000 bottles/h bottom-fermented beer at 6 °C, soft drink at 12 °C |
| Capacity with 0,5 l | 26000 bottles/h wheat beer at 6 °C |
| Performance screw cap | 25000 bottles/h |
| Water | 5 bar |
| Compressed air | 5 bar |
| Width | 3838 mm |
| Height | 3900 mm |
| Weight | 4000 kg |
| Formats | 0.5 l Euro, 0.5 l NRW, 0.33 l Vichy, 0.33l Ale bottles, twist-off crown cap, one-piece screw cap |

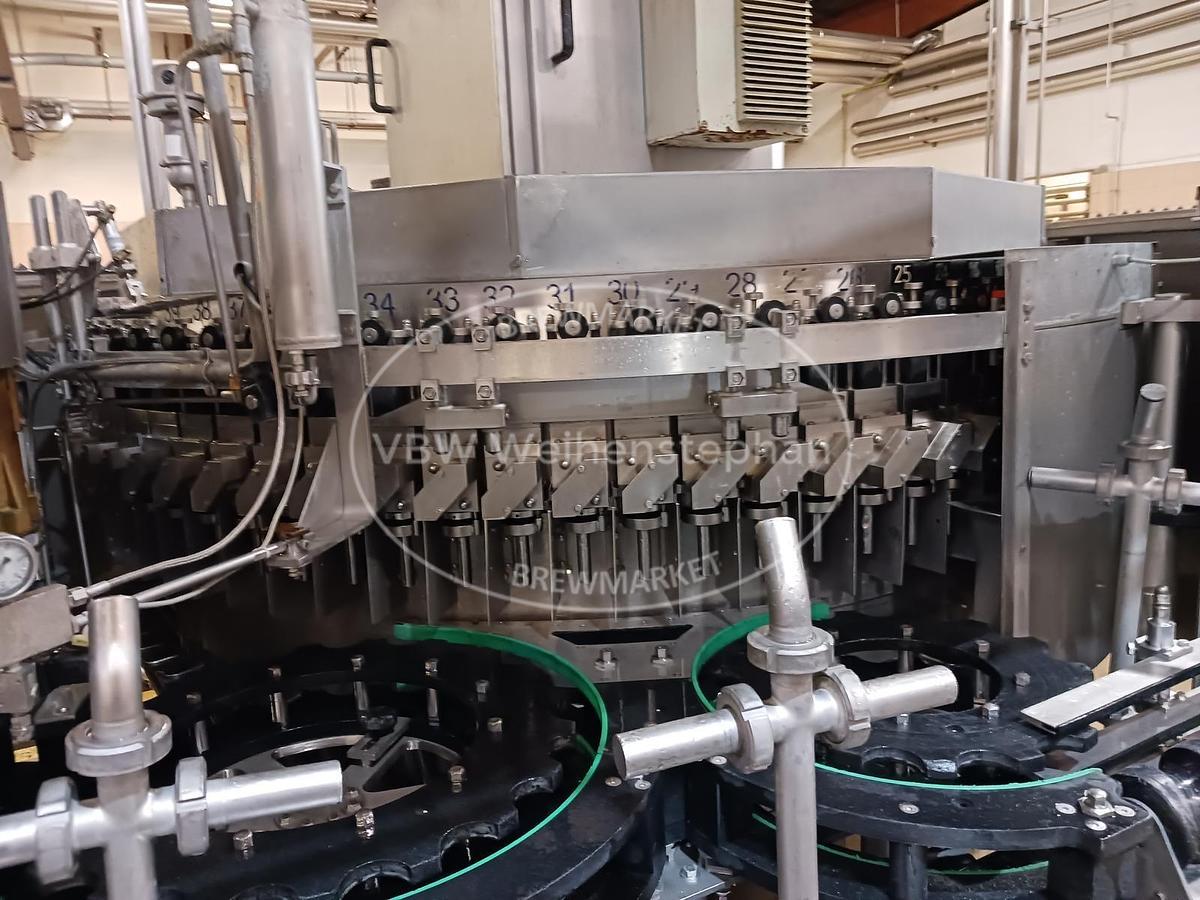

| Machine partitioning | part circle diameter 2520 mm, 77 filling valves, valve pitch 102 mm |
| Running direction | right -> left |

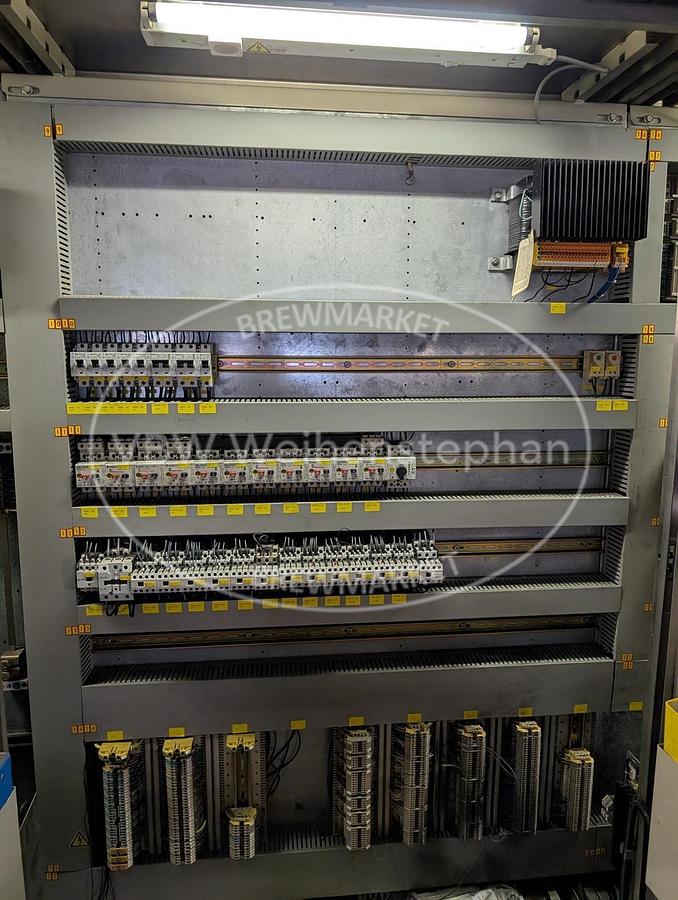

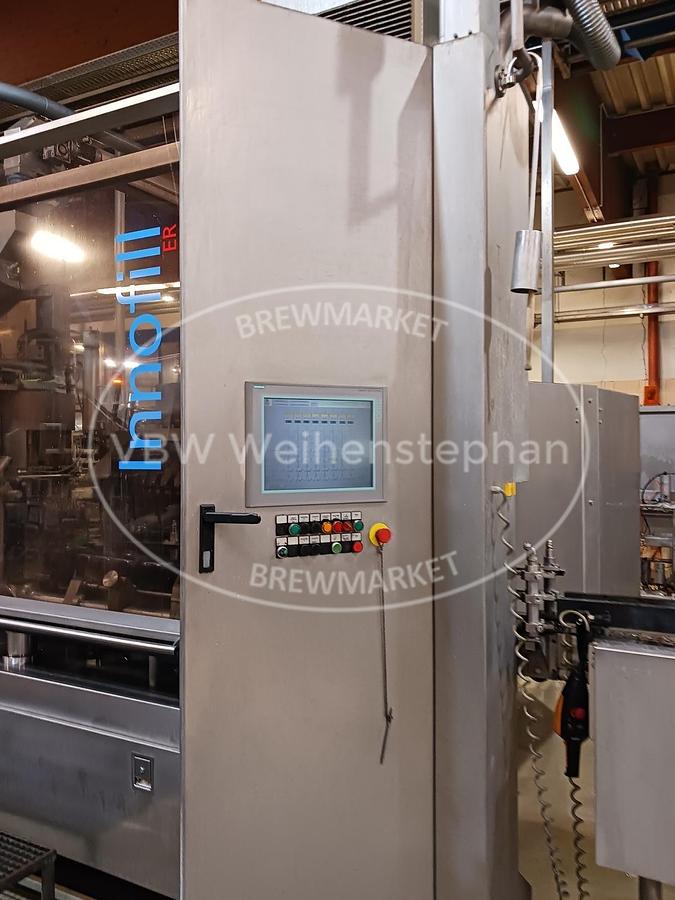

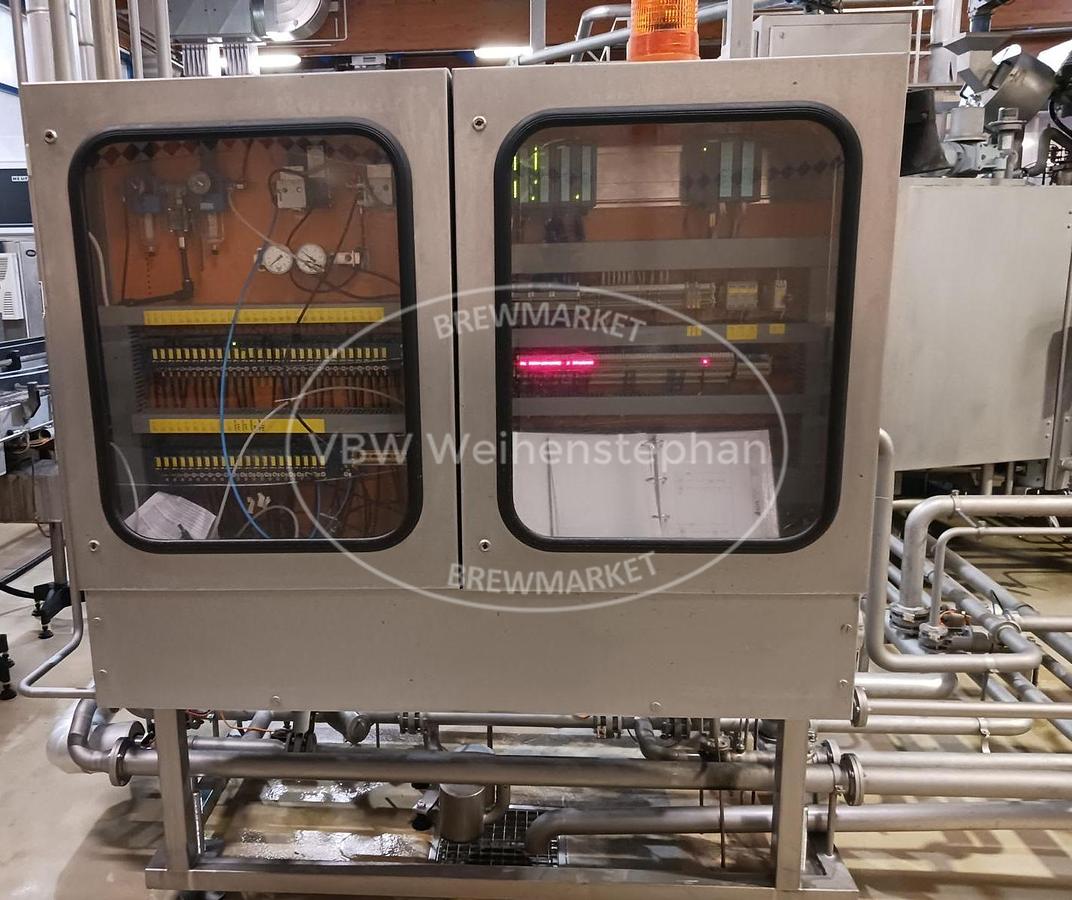

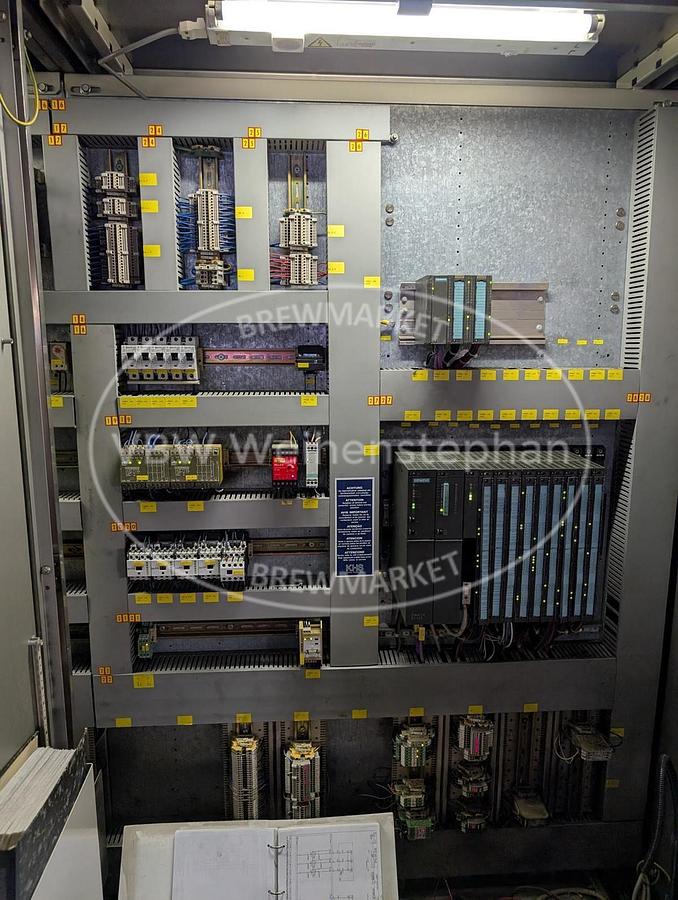

| Operation / Control | on-site control box, Simatic S 7, renewed 2013 |
| Material | mainly stainless steel |
| Position | free-standing |

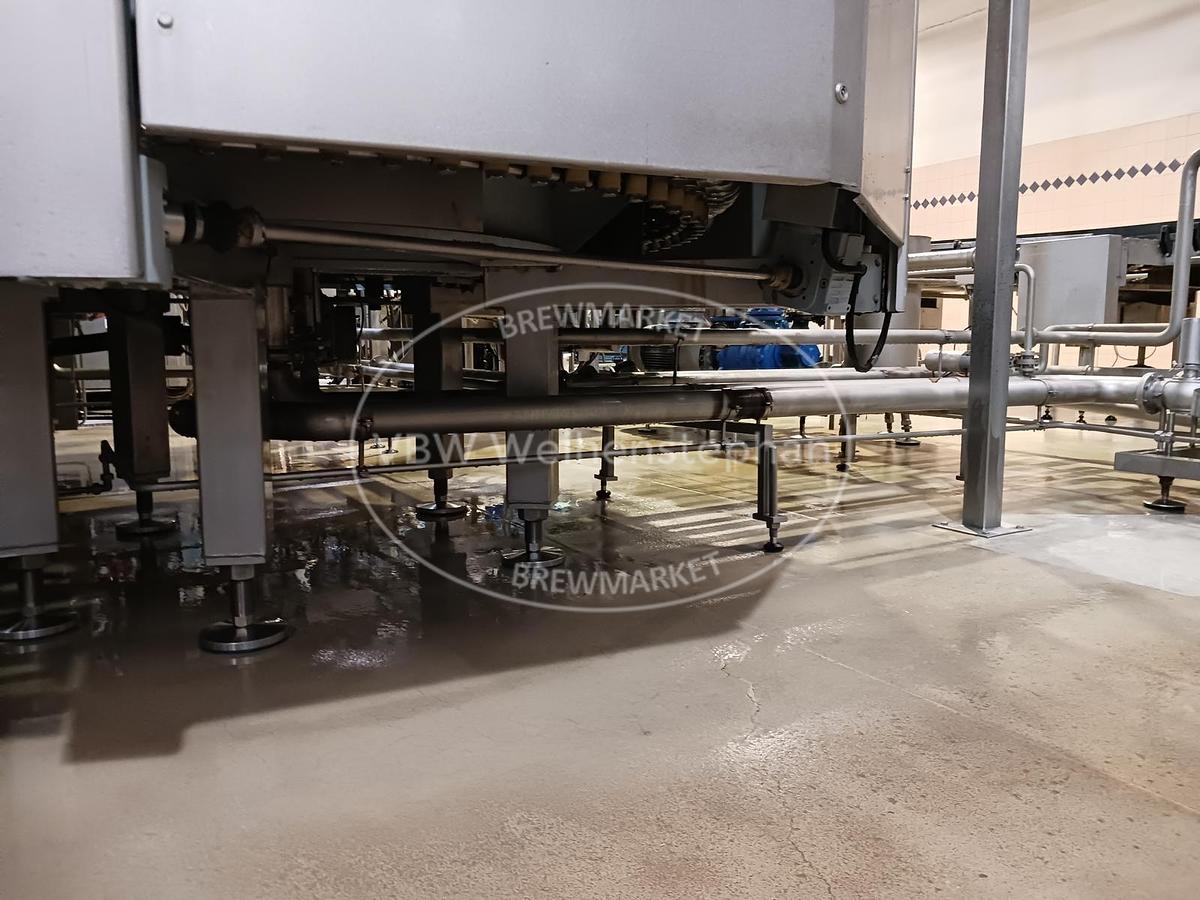

| Base construction | Square frame construction on domes |

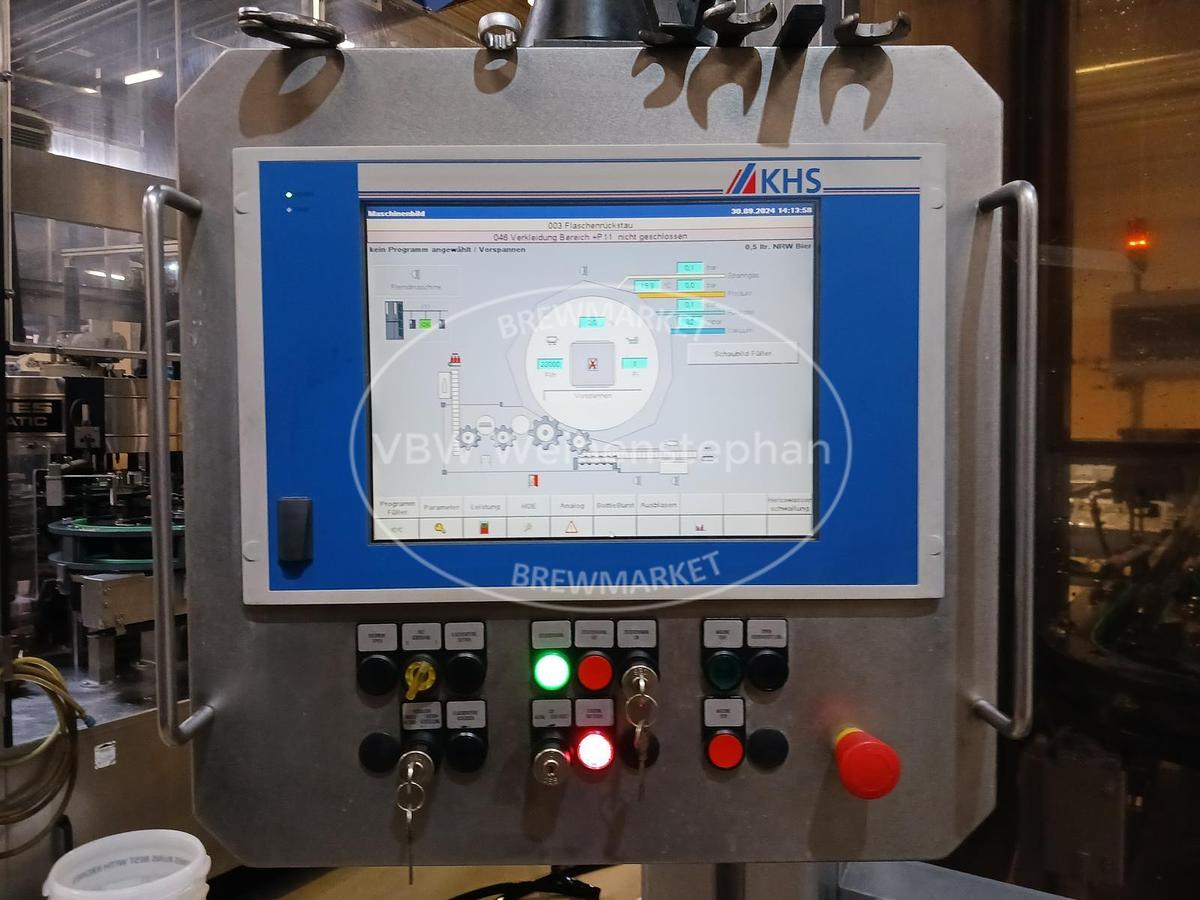

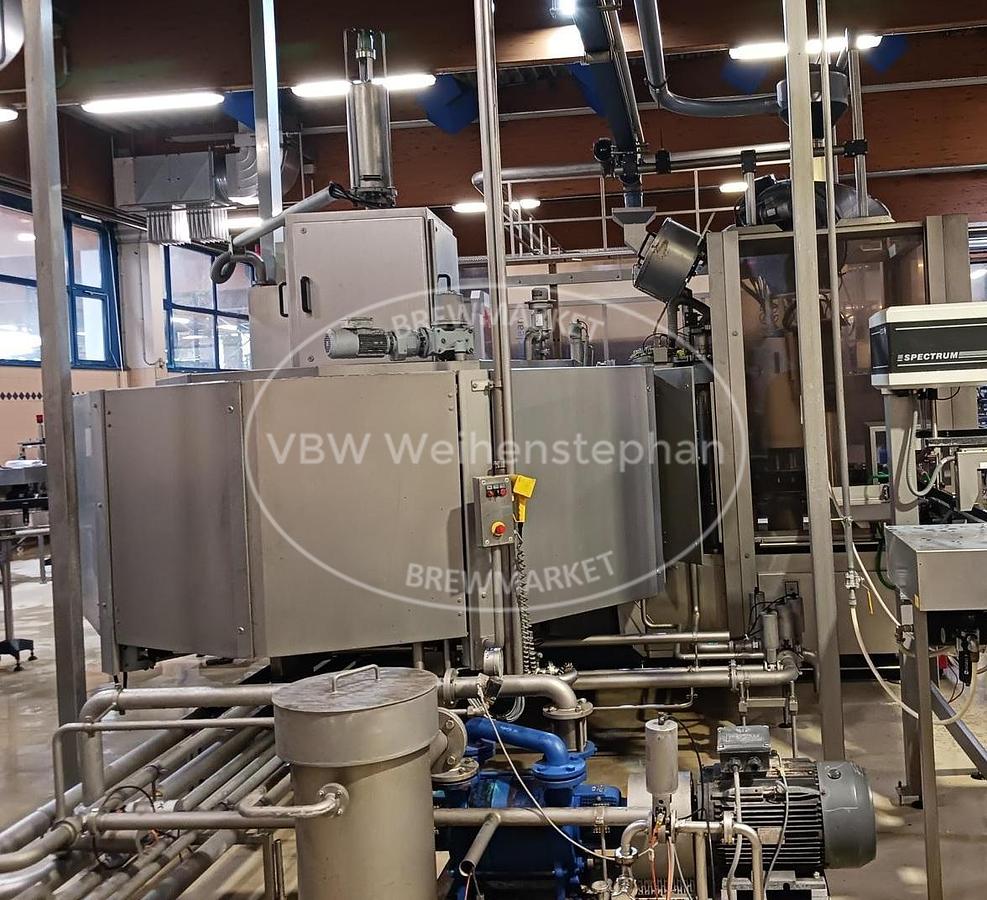

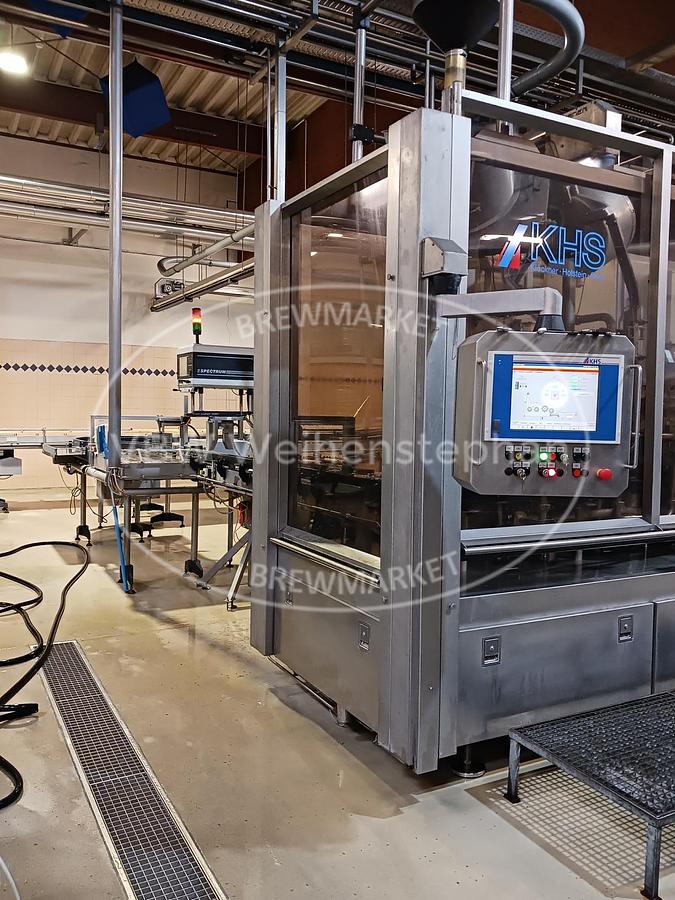

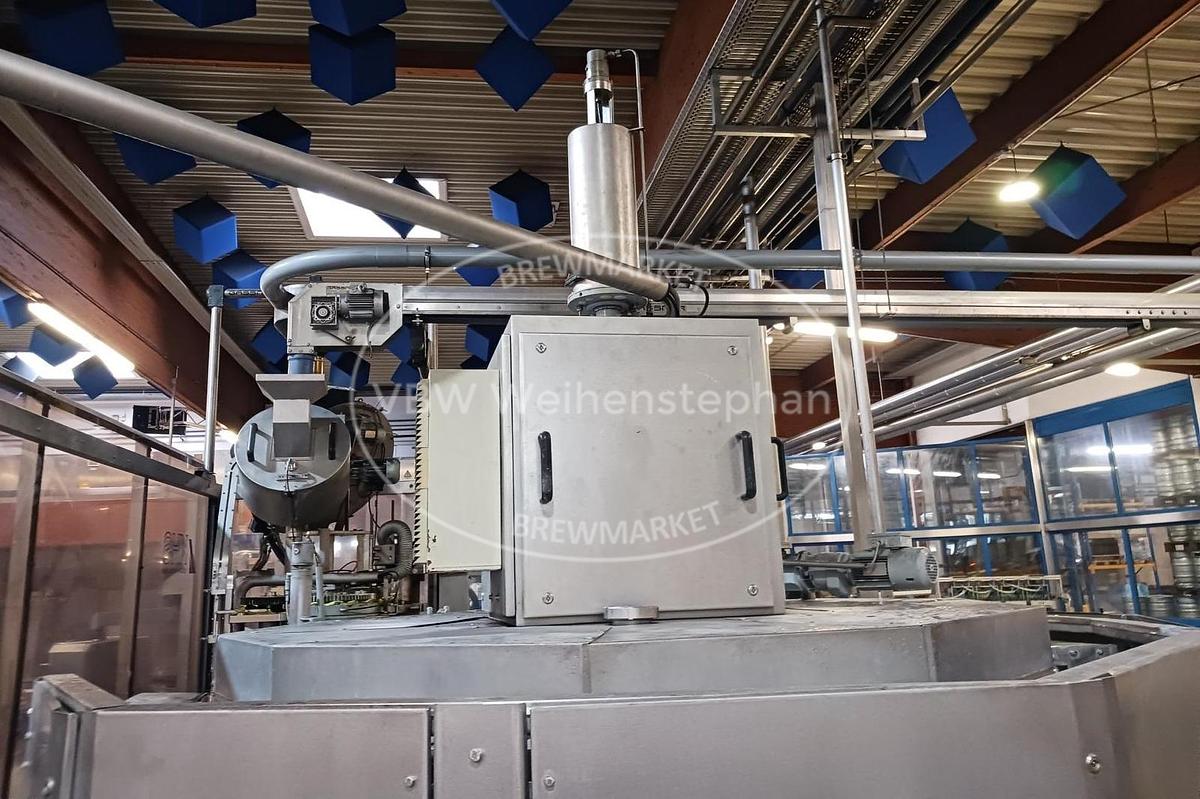

| Features | Crown cork sealer with feed container, screw cap sealer with feed container, filling vessel height adjustment, front panel, hot water overflow, automatic shard spraying, bottle stop device, level control, centering tulips, KHS operating terminal with TFT color monitor, 2 sets of format parts for filler and sealer, bottle shower, inlet and outlet conveyor control, automatic central lubrication, vacuum pump |

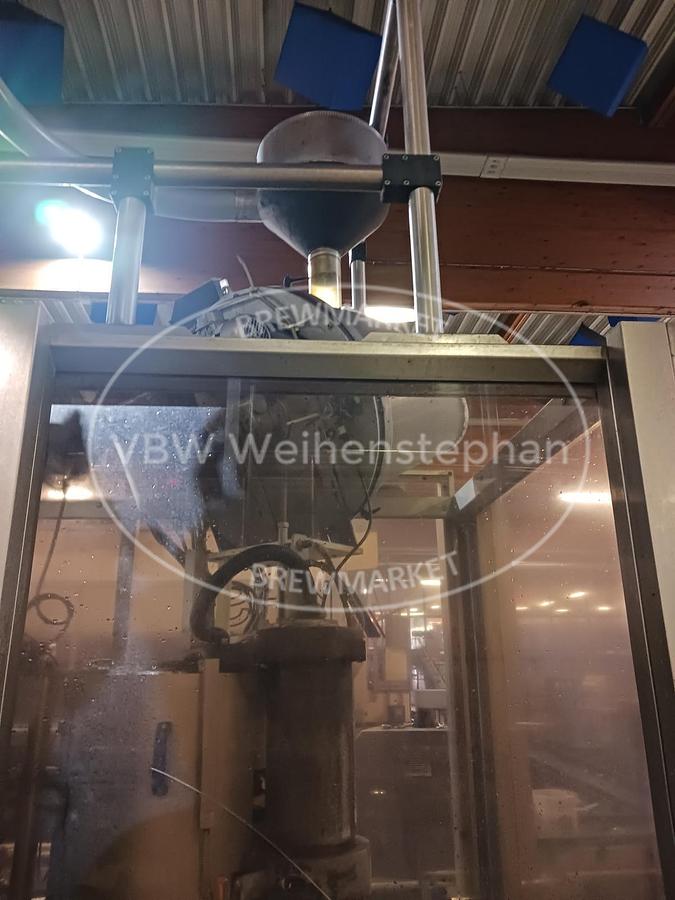

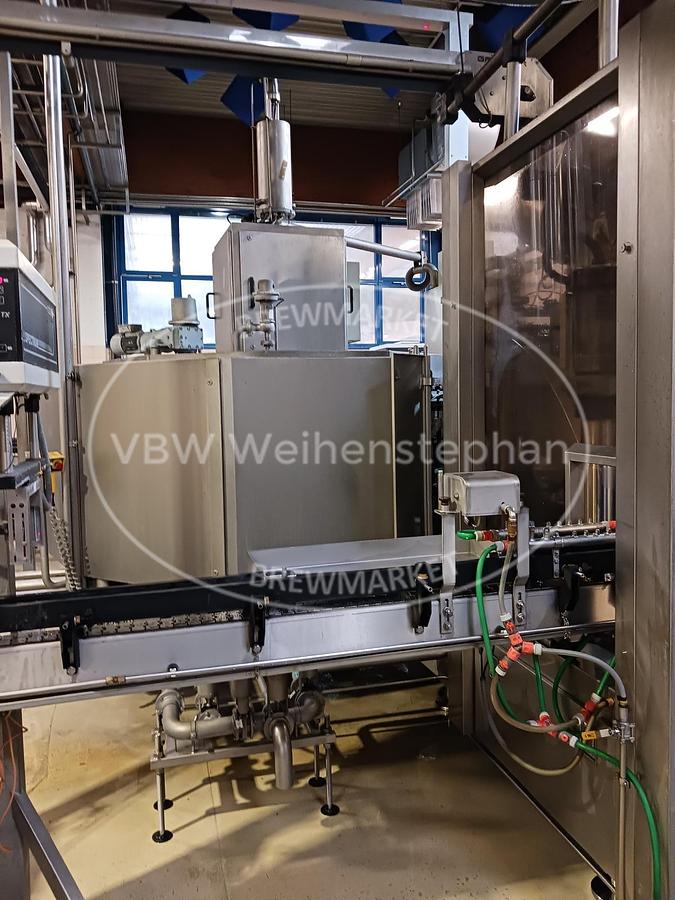

| Periphery | Crown cork feed, screw cap feed |
| Layer patterns | Bottle diameter 45 - 90 mm, bottle height 130 - 350 mm |
