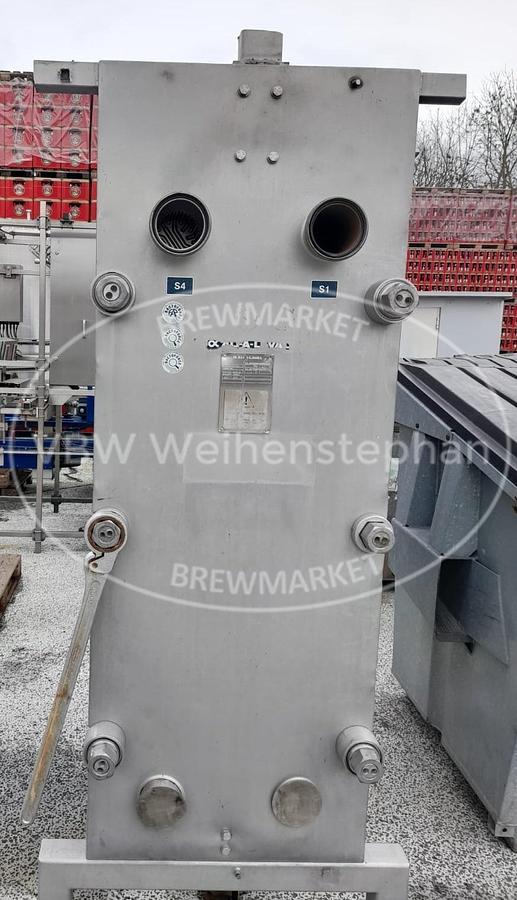

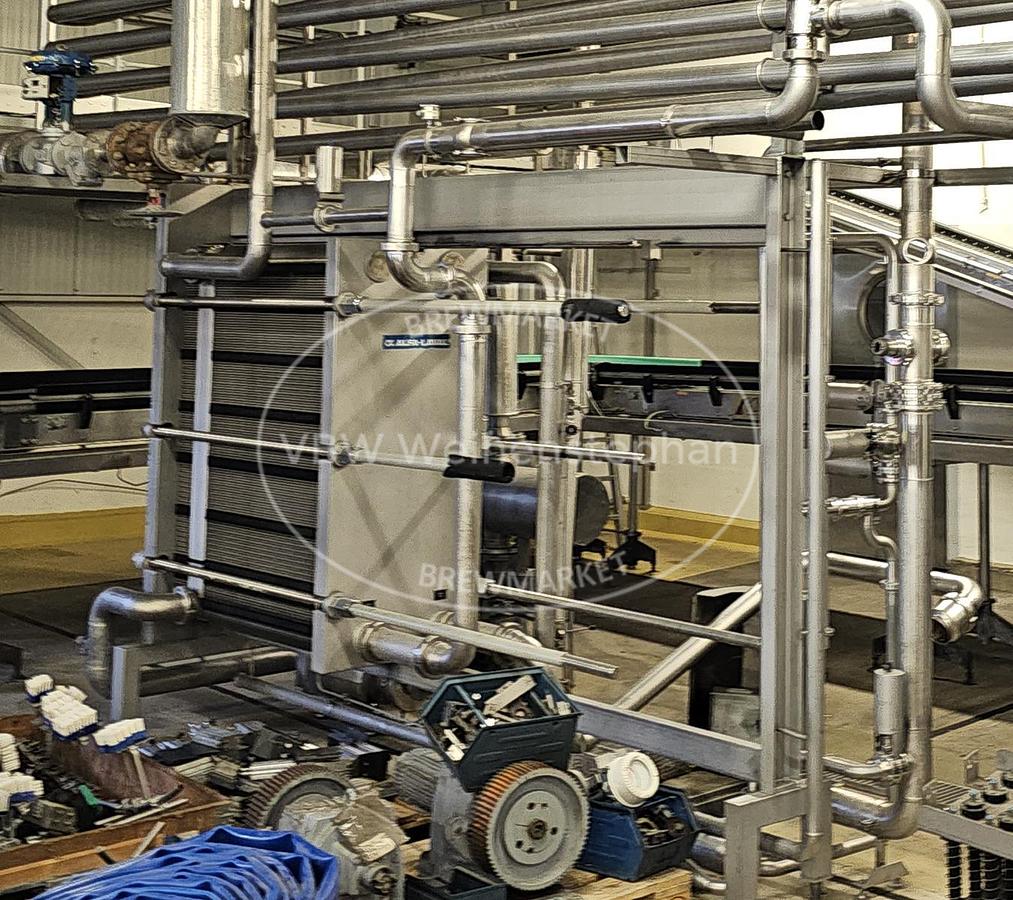

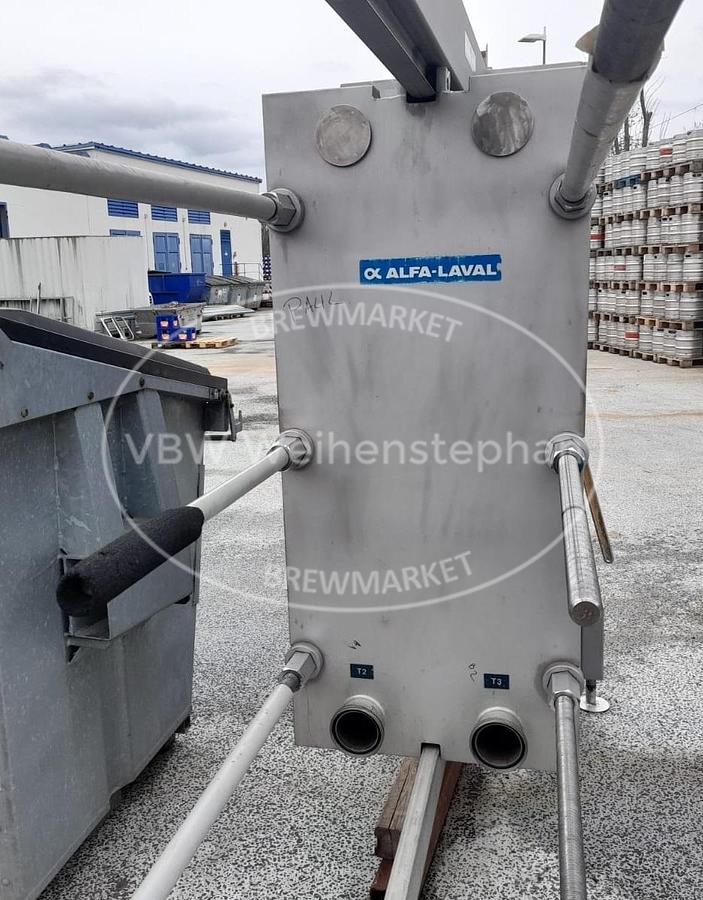

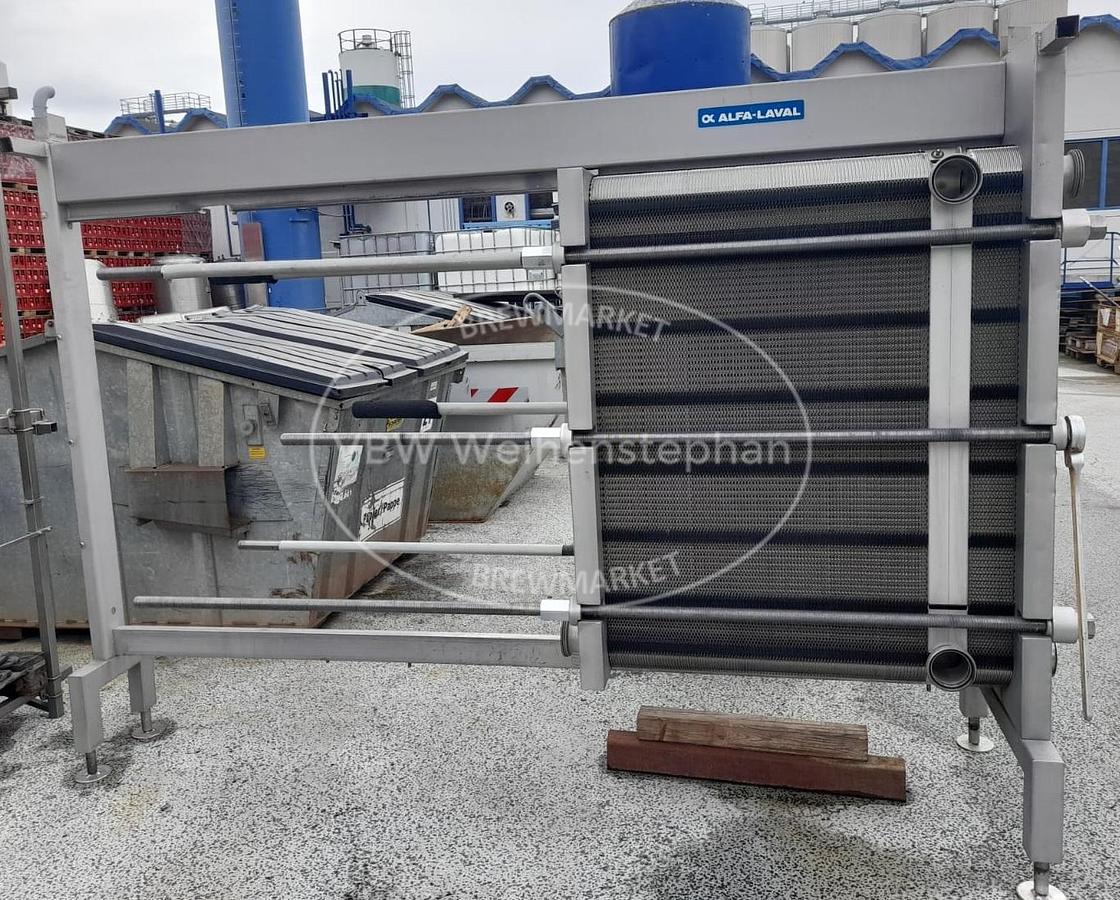

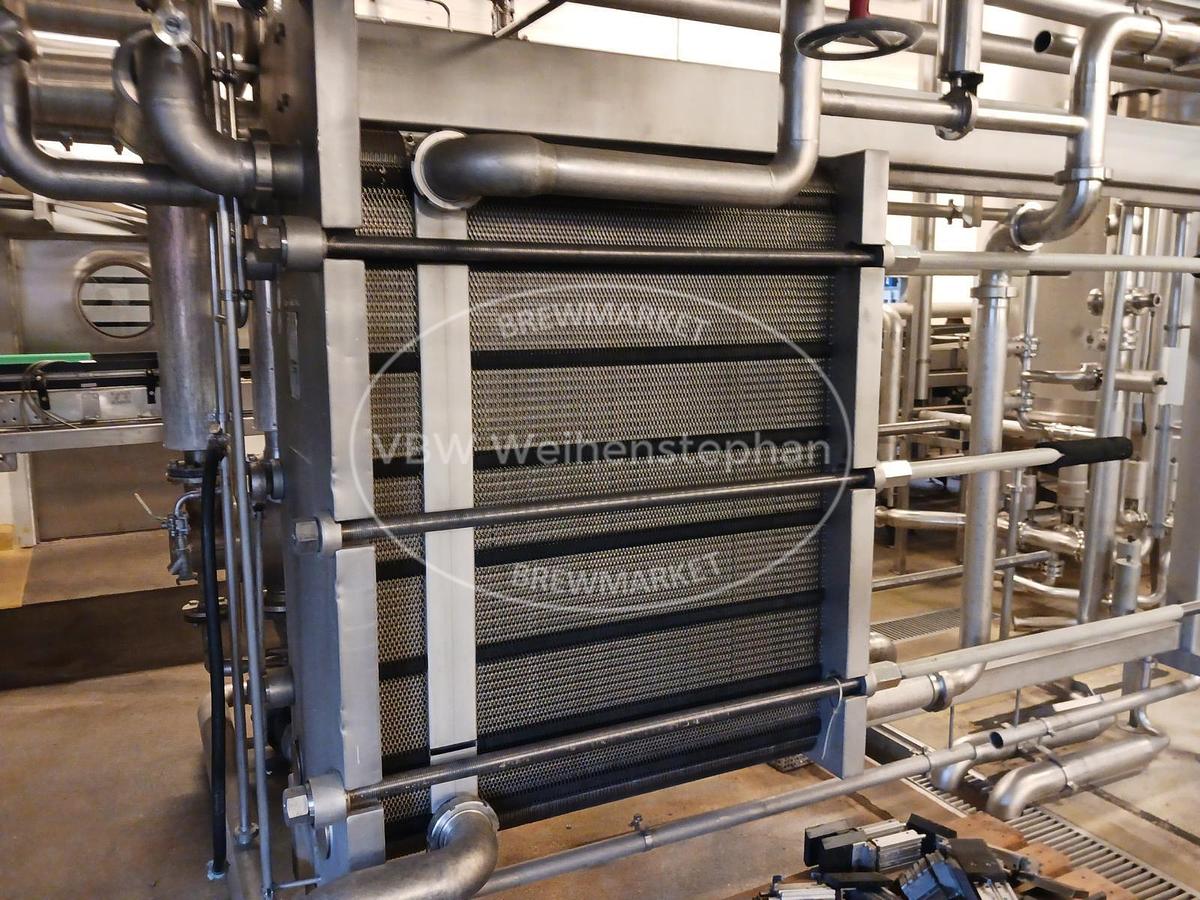

Plate heat exchanger
or
Call +49 (0) 8161-48333
Description
Two-stage counterflow plate heat exchanger:
Section 1: Heating or regeneration:
Product/product
Product inlet 6°C, outlet 66.2°C,
Flow rate 300 hl/h
Product inlet 72°C, product outlet 69.8°C
Flow rate 300 hl/h
Section 2: Heating: Product/hot water
Product inlet 66.2°C, product outlet 70°C, flow rate 300 hl/h
Hot water inlet 72°C, hot water outlet 69.8°C, flow rate 500 hl/h
Specifications
| Manufacturer | Alfa Laval |
| Year | 1992 |
| Condition | Used |
| Stock Number | 209467HG |
| Additional title | two-stage heat exchanger |
| Capacity product | 300 hl/h |
| Capacity hotwater | 500 hl/h |
| Max. pressure | 21 bar |
| Working temp. | 110 °C |
| Systemic volume | 695 Liter |
| Length | 3250 mm |
| Width | 910 mm |
| Height | 2160 mm |
| Weight | 2656 kg |
| Material | plates: AISI 316, thickness 0,6 mm, Clip-on gasket-material: Nitrile |
| Features | Section 1: heat exchanger surface 160,58 m², content 317,2 / 317,2 liter, pressure drop 1,2 / 1,2 bar Section 2: heat exchanger surface 14,88 m², content 29,3 / 31,7 liter, pressure drop 0,2 / 0,5 bar |
