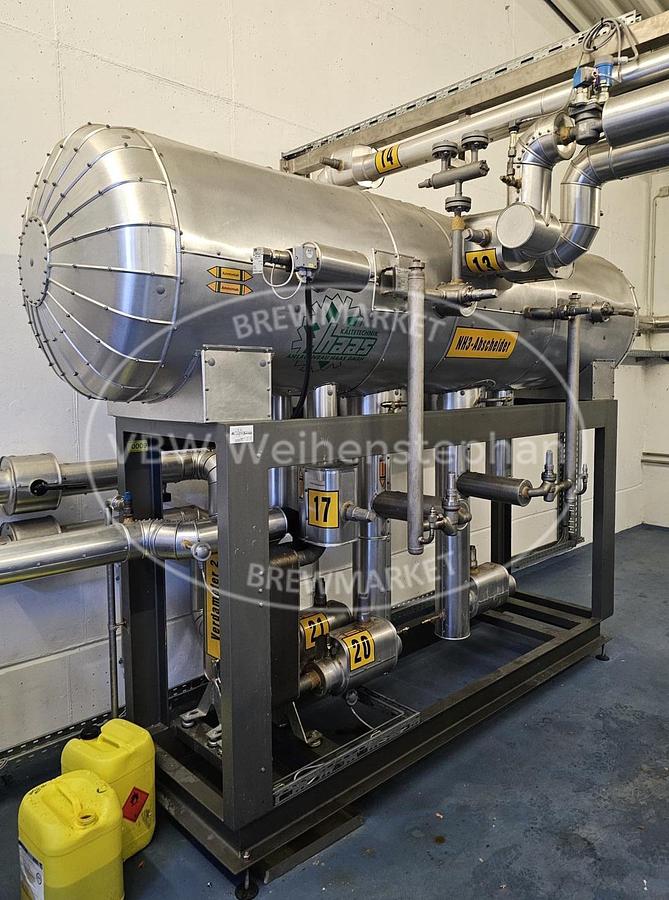

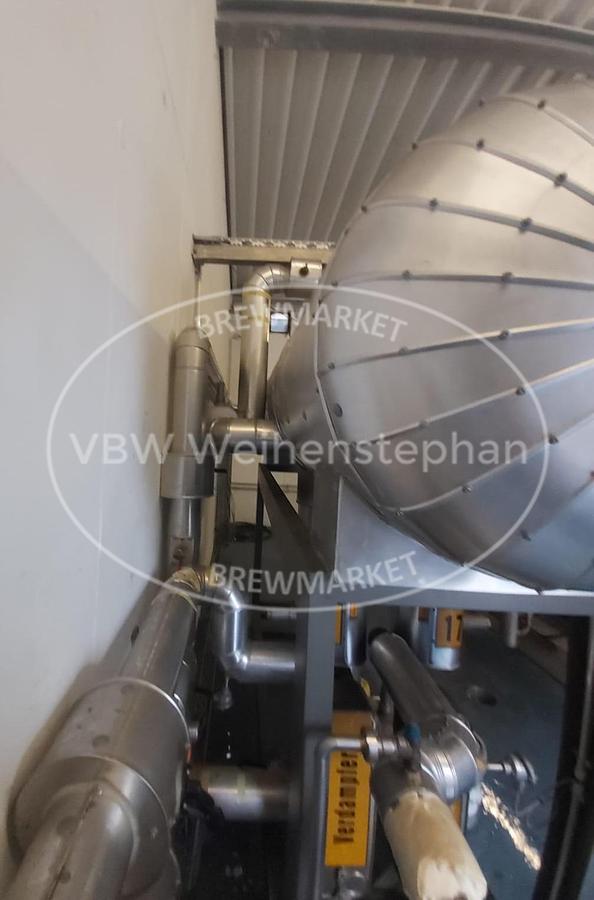

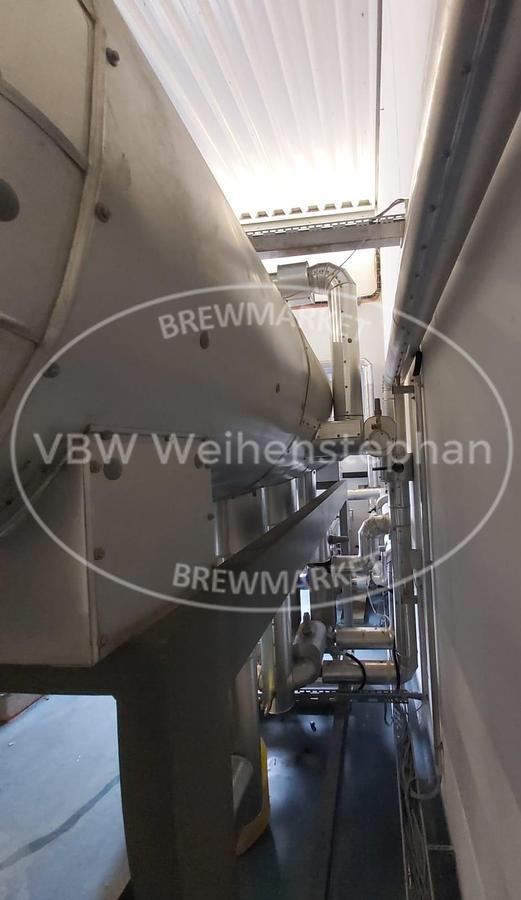

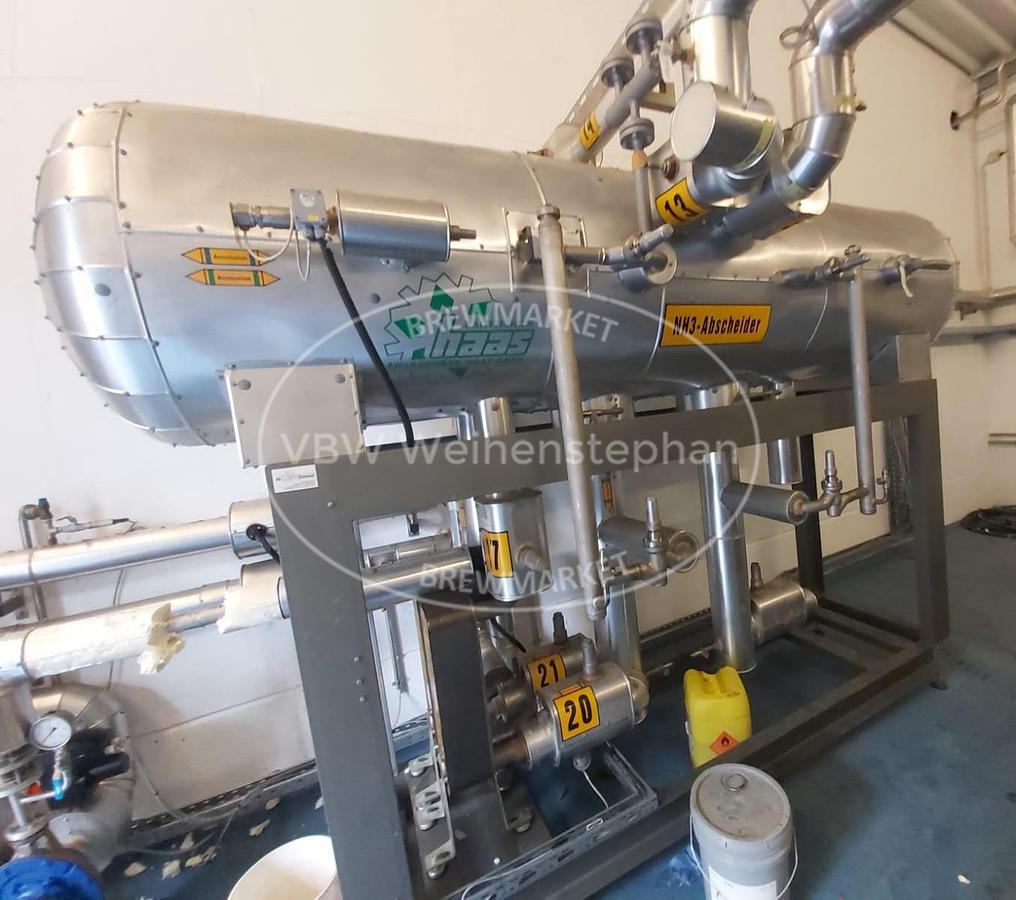

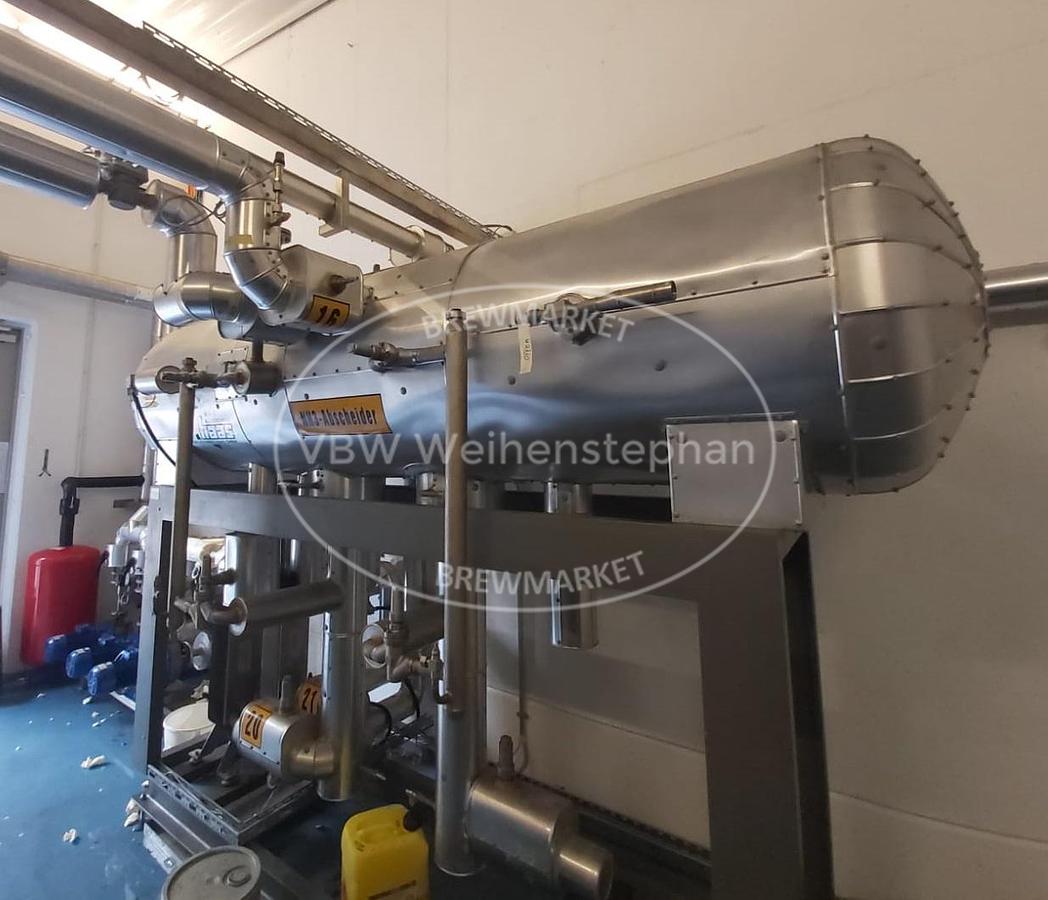

NH3 separator
NH3 separator
or
Call +49 (0) 8161-48333
Description

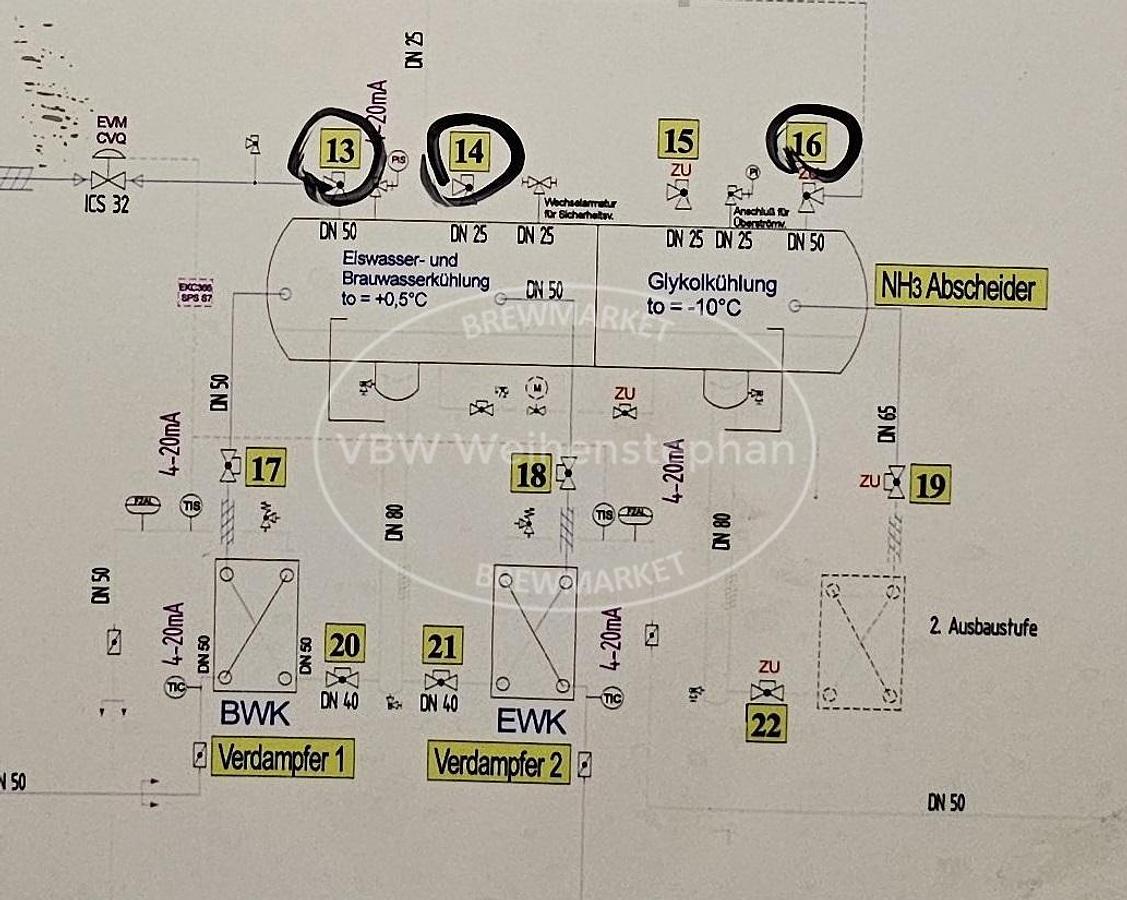

Ammonia separator (from a refrigeration system with max. 180 kW) with 2 chambers
1 x for ice water and brewing water cooling to = +0.5°C
1 x for glycol cooling to = -10°C (=extension)
Brewing water cooler (53 kW):
Flow rate: 35 hl/h, inlet temperature: 15°C, outlet temperature: 2°C
Ice water cooler (38 kW):
Flow rate: 130 hl/h, inlet temperature: 4.5°C, outlet temperature: 2°C
Specifications
| Year | 2013 |
| Condition | Used |
| Stock Number | 210247HG |
| Additional title | with 2 evaporators for water cooling |
| Content | 595 l |
| Pressure range | -1 bis 16 bar |
| Temperature range | 50 °C |
| Weight | 780 kg |
| Position | frei stehend |
| Base construction | Horizontal tank with stainless steel square tube base on dome feet |

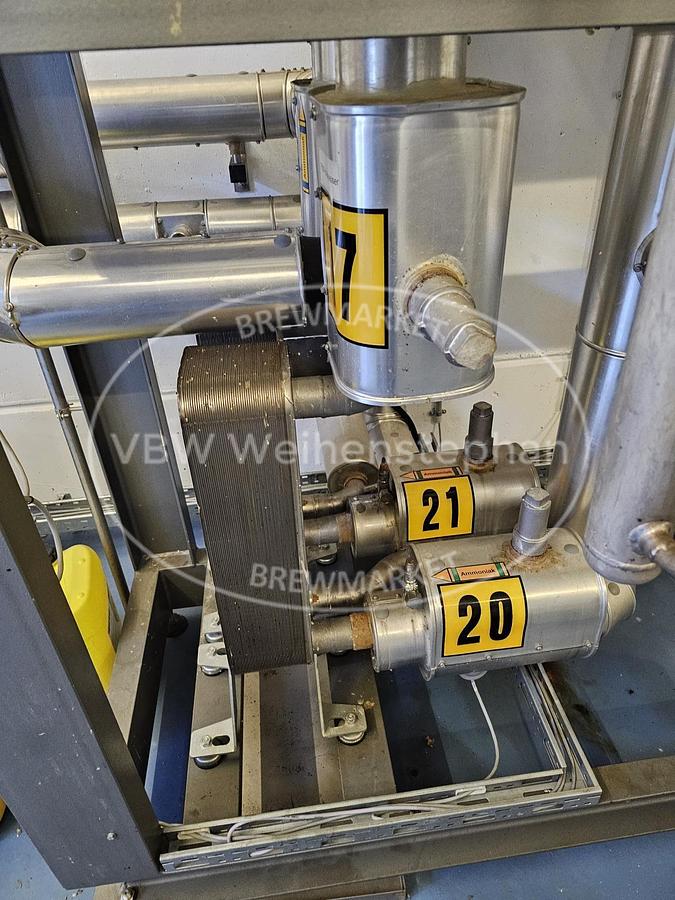

| Features | Insulation with bolted cladding, base frame with fittings and evaporator 1 (= heat exchanger for brewing water cooling) and evaporator 2 (= heat exchanger for ice water cooling) |
