Water treatment plant
Water treatment plant
or
Call +49 (0) 8161-48333
Description

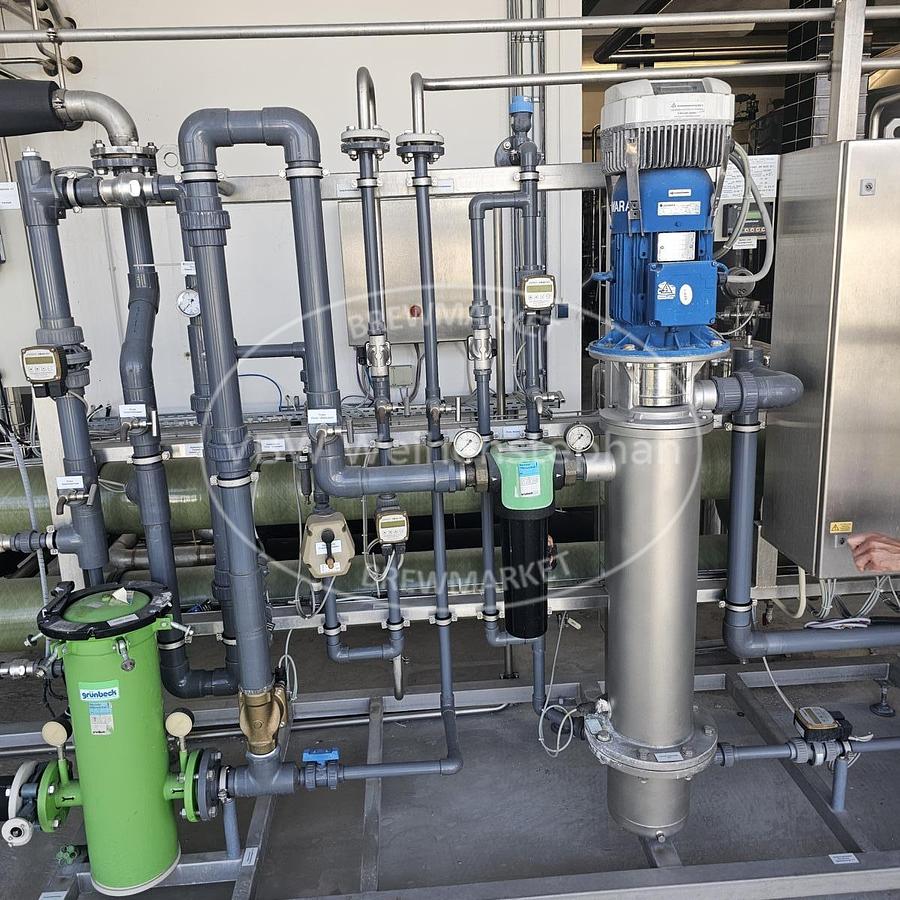

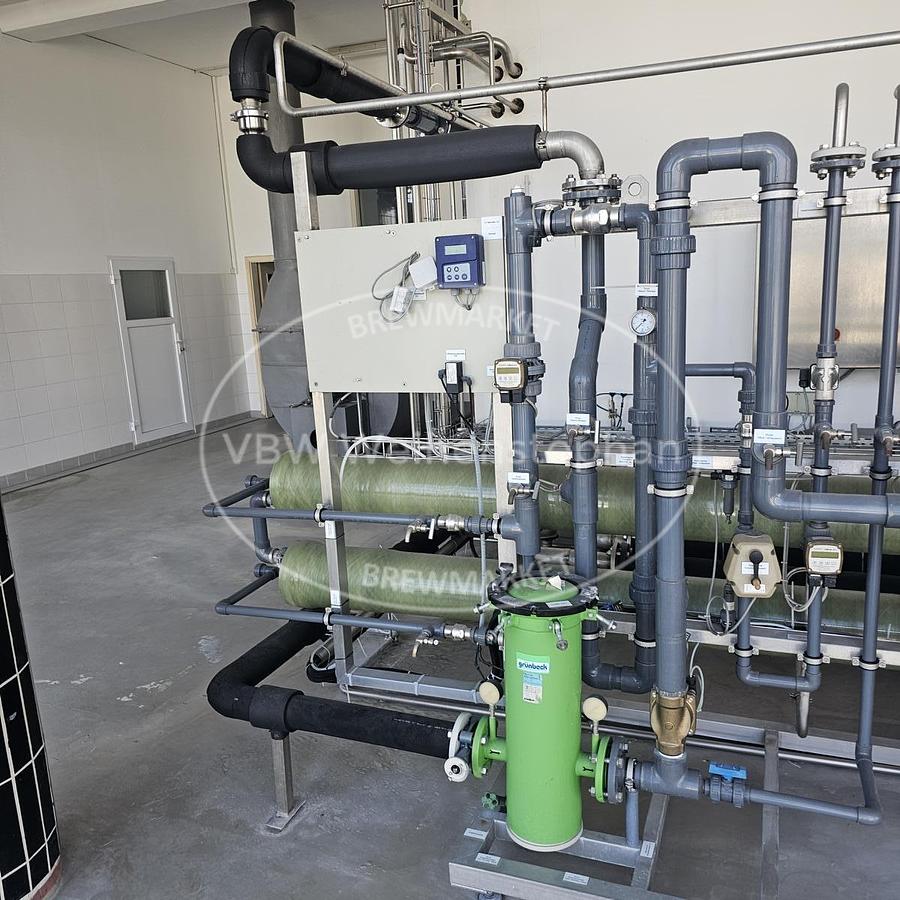

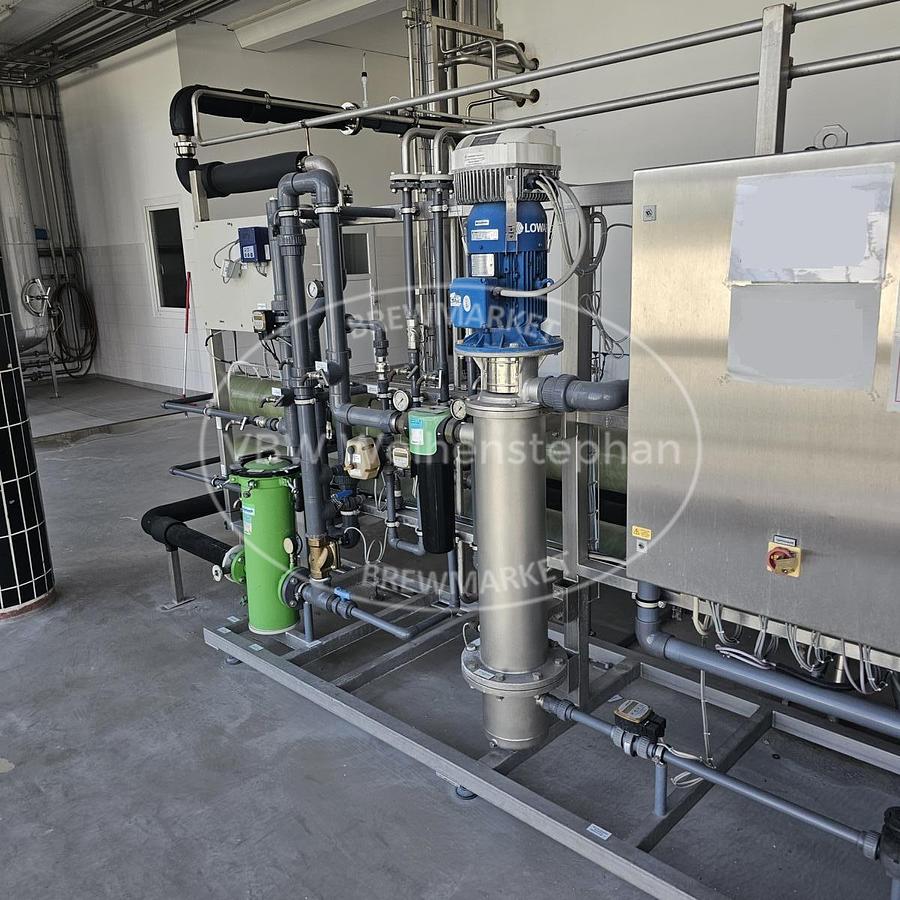

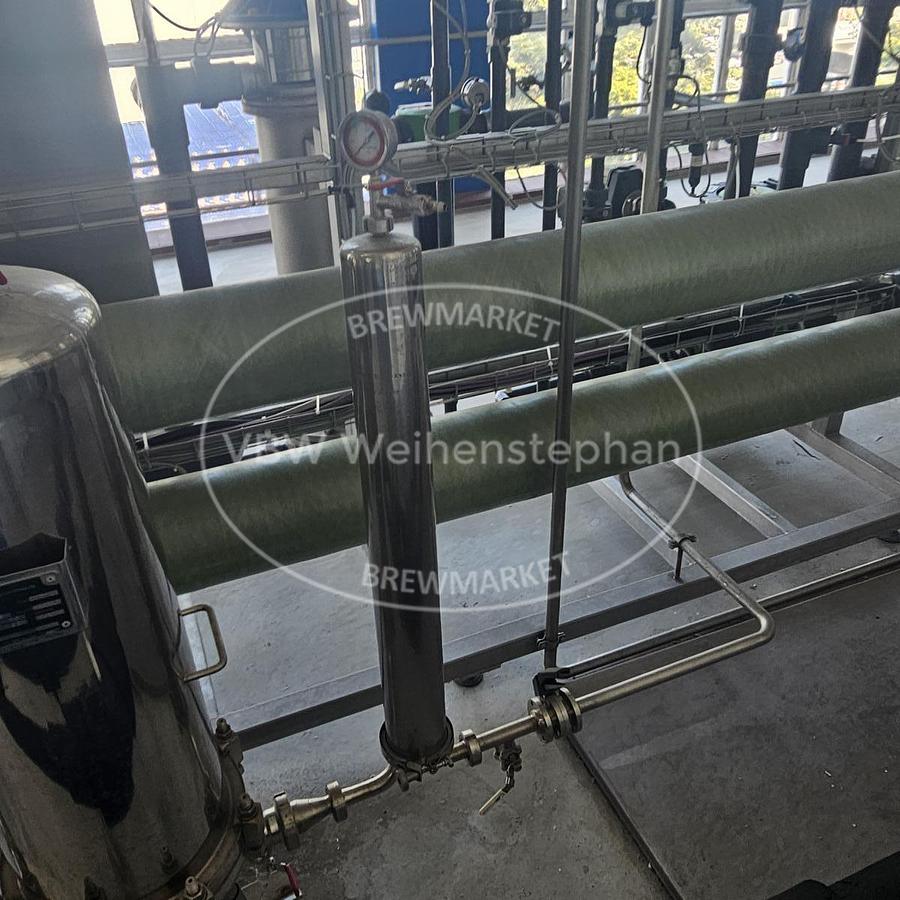

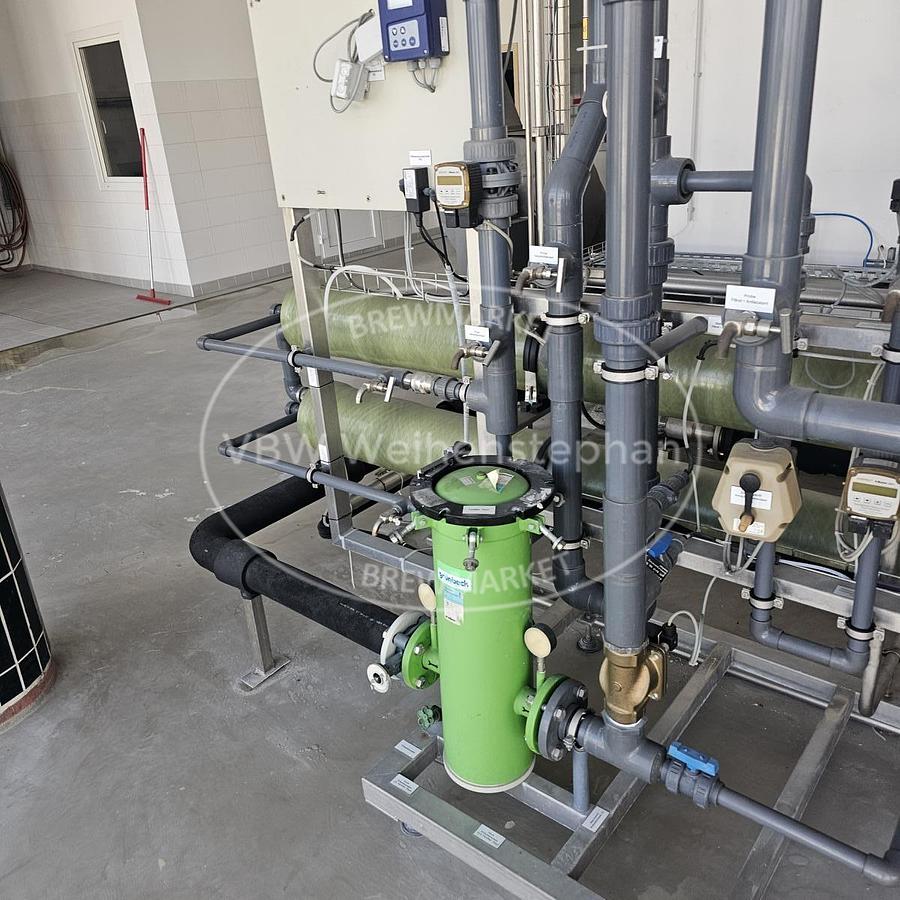

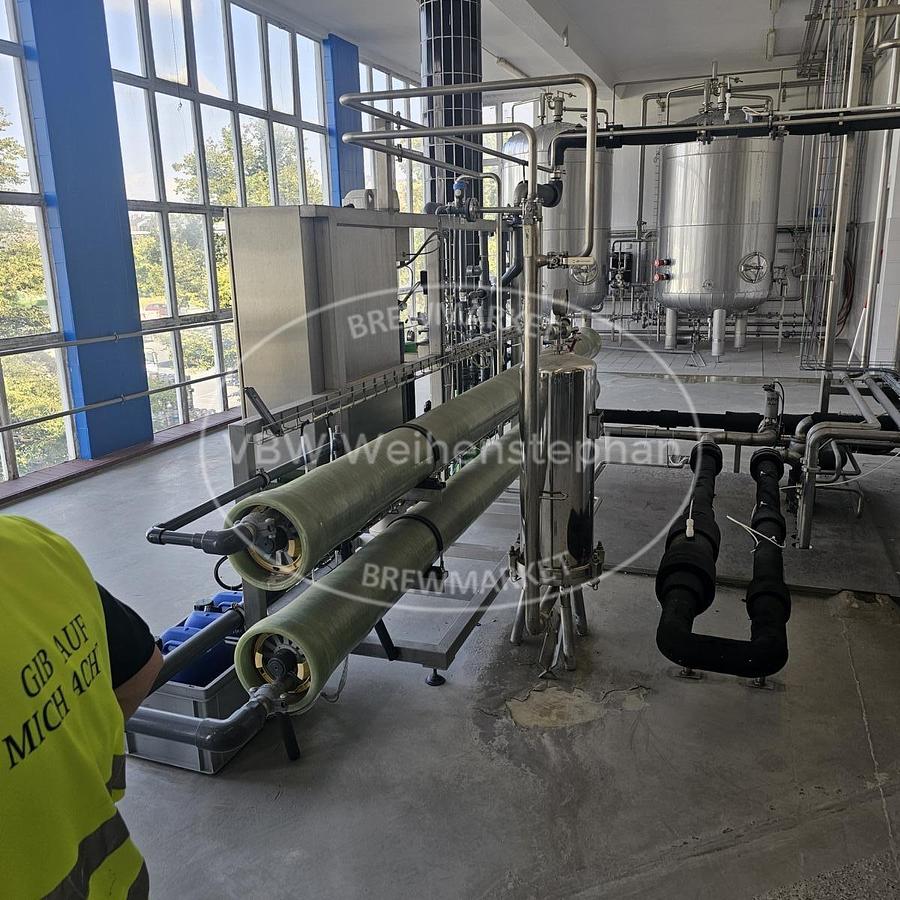

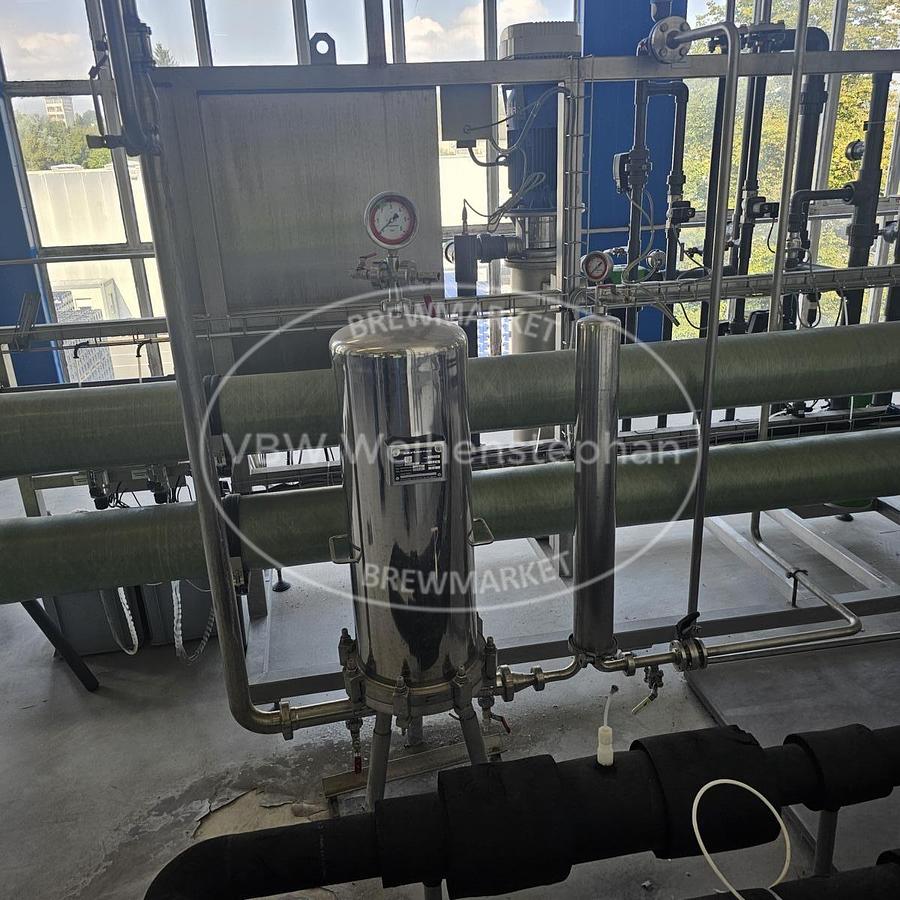

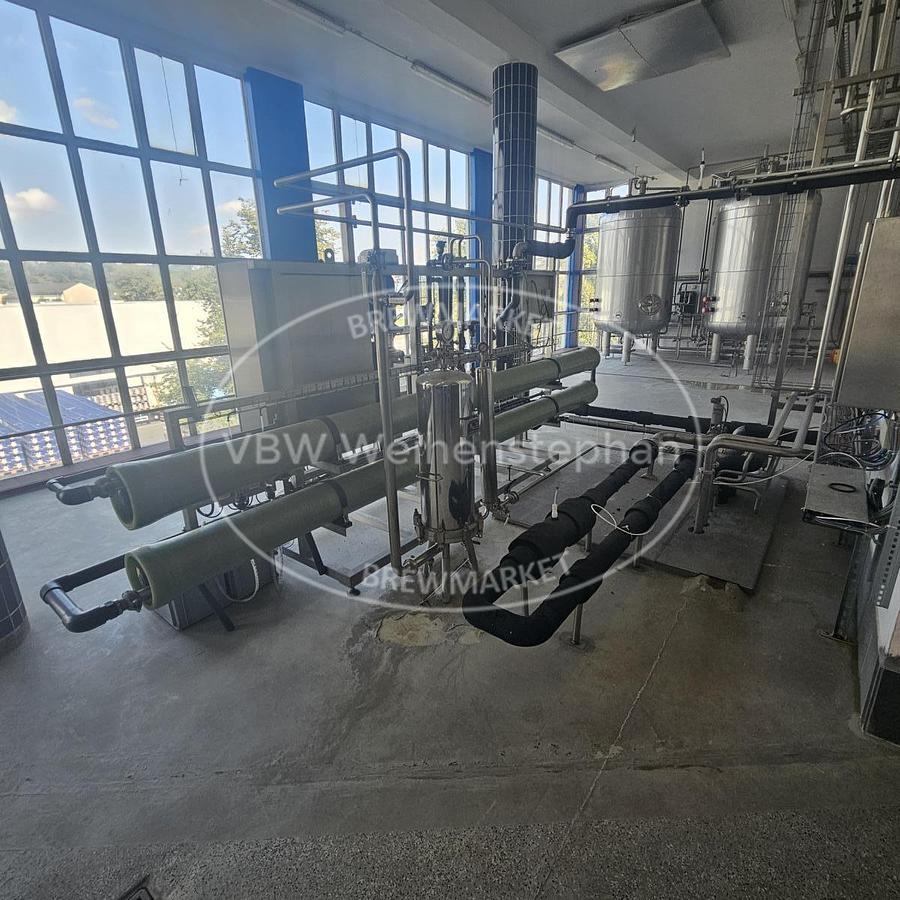

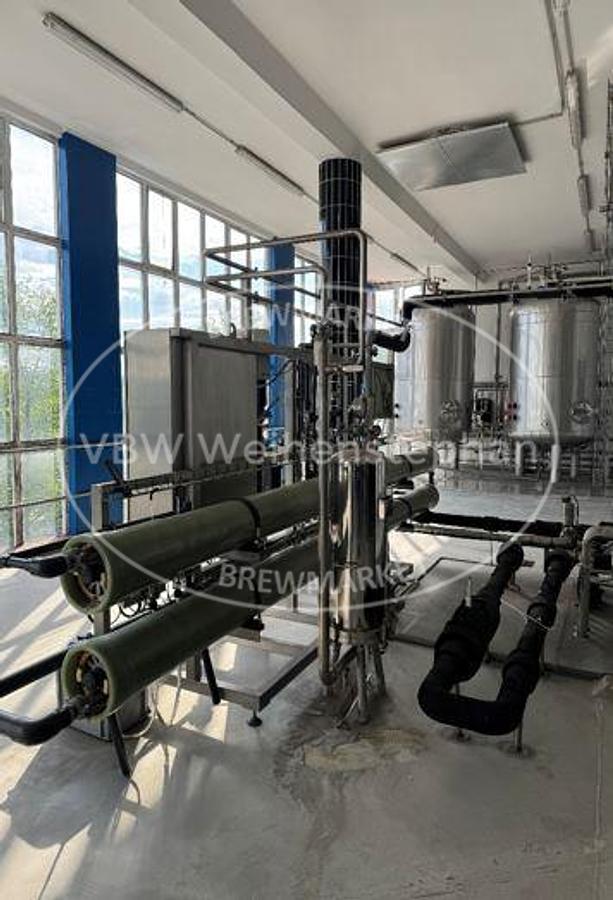

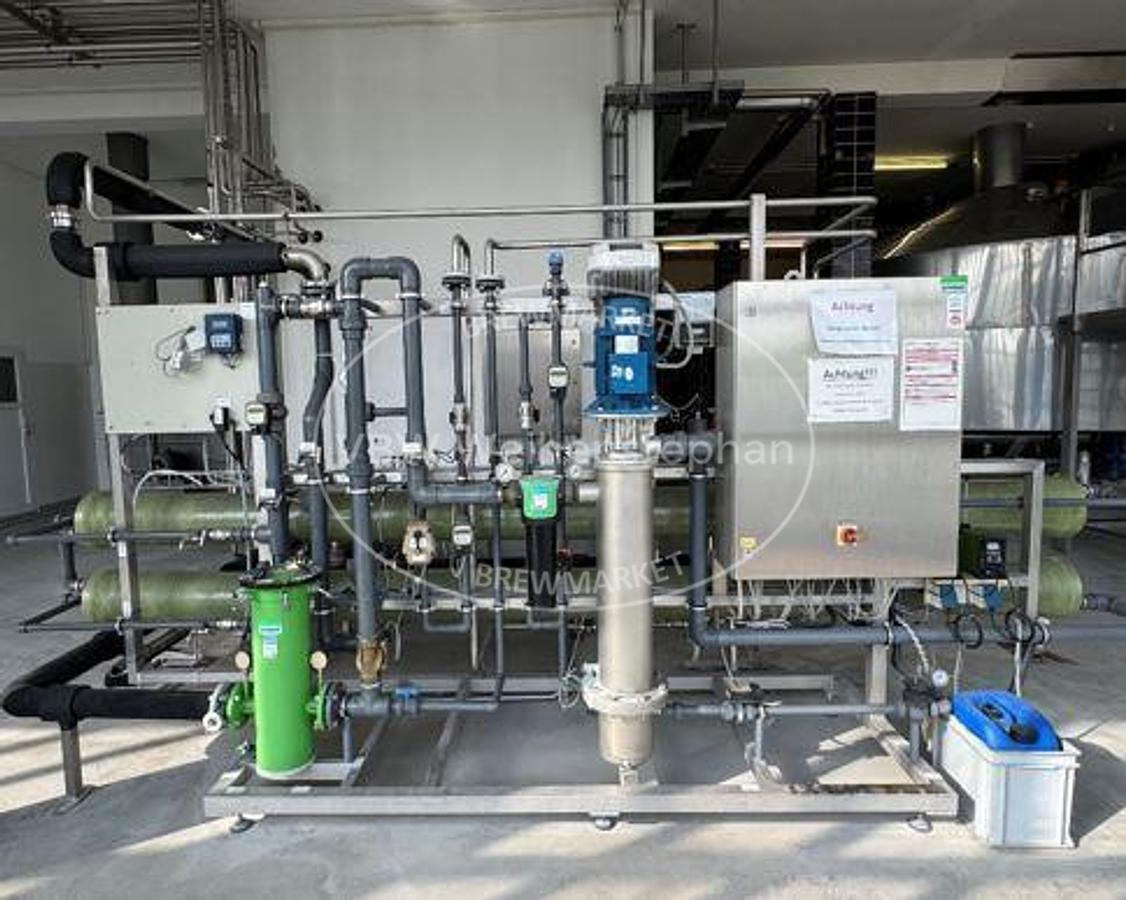

Water treatment plant from Grünbeck for treatment of brewing and process water. Fully mounted on a stainless steel frame and controllable via Simatic S7-300.

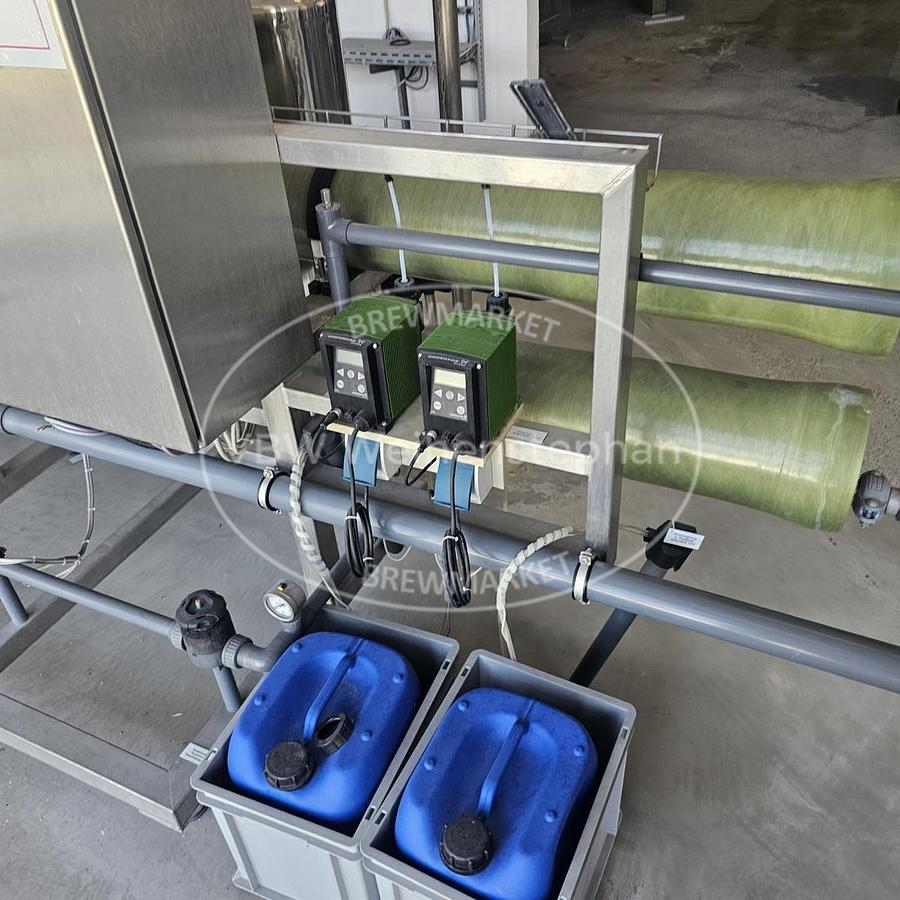

Includes sterilization filtration, membrane modules, chemical dosing, centrifugal pump, piping, valves, measurement technology, and control cabinet with touch panel.
Specifications
| Manufacturer | Grünbeck |
| Condition | Used |
| Stock Number | 210353MW |
| Additional title | reverse osmosis |
| Permeate capacity | 8000 l/h |
| Feed | 10000 l/h |
| Concentrate | 2000 l/h |
| Max. overpressure | 16 bar |
| Power | 6,5 kW |
| Voltage | 3 x 380 - 415 V |
| Frequency | 50 Hz |
| Water | feed 2,5 - 5 bar |
| Length | 5000 mm |
| Width | 1000 mm |
| Height | 2000 mm |
| Operation / Control | Simatic S7-300 |
| Material | membranes from polyamid |
| Base construction | mounted on stainless steel frame |

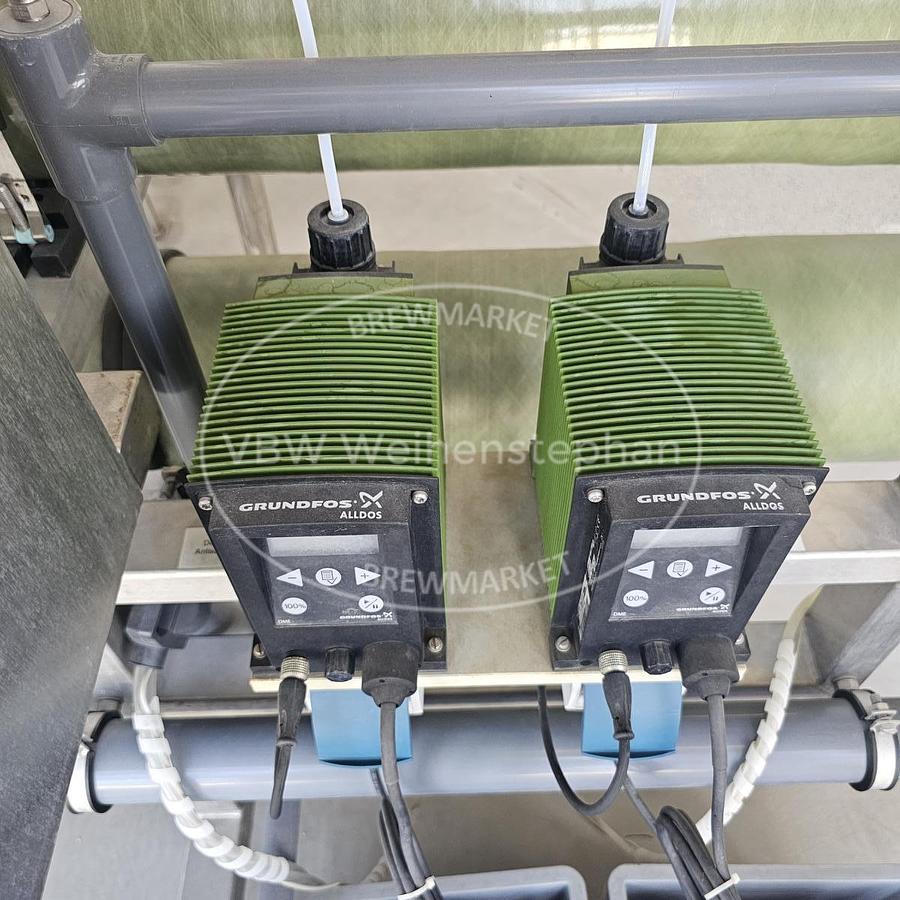

| Features | sterilising filtration; two pipes with membrane modules; chemical dosing with two dosing pumps; centrifugal pump (Lowara); various pipes, valves and measurement technology; switch cabinet with touch panel |
