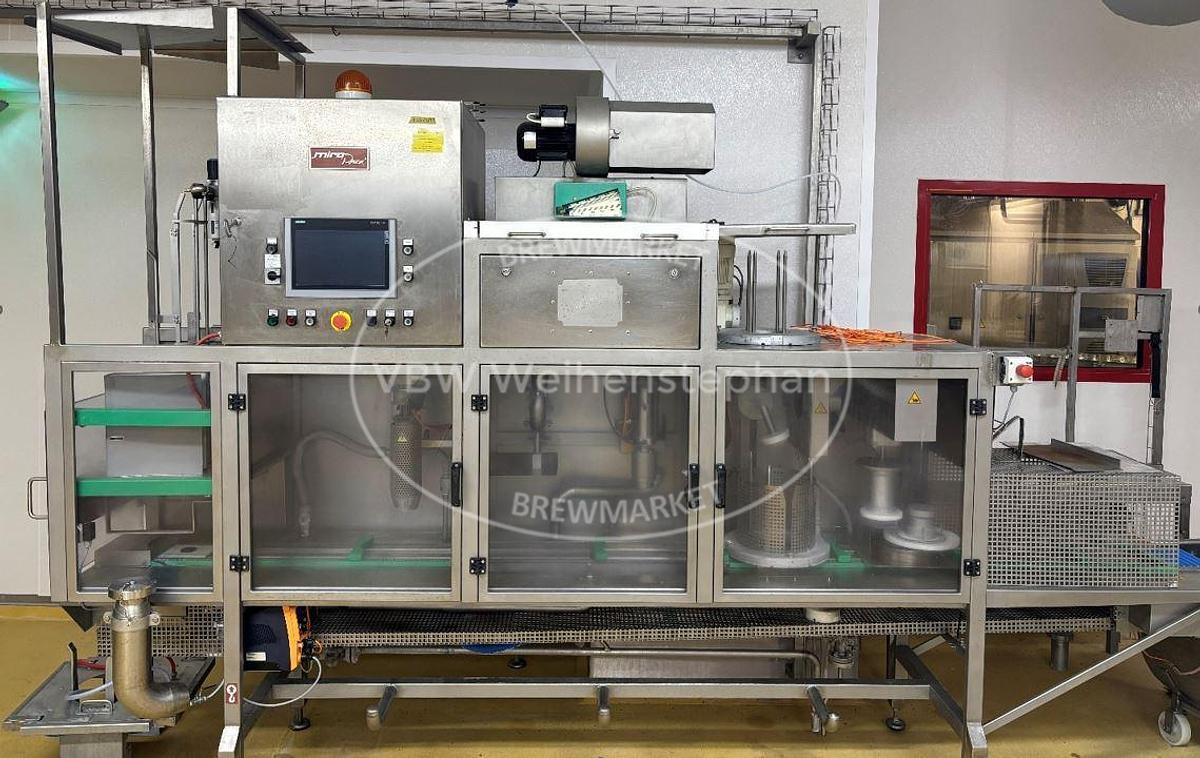

Bucket filler and capper

Bucket filler and capper

Description

Filling and capping machine for filling plastic buckets of various sizes with yoghurt and quark. The plastic buckets are placed onto the conveyor belt from the stack of buckets in the bucket magazine. The buckets are sterilised with hydrogen peroxide and steam using a heating cartridge prior to filling, and the lids are sterilised prior to sealing. The product is filled into the buckets using a calibratable load cell until a specified weight is reached. The sealer places lids from the lid magazine onto the buckets and presses them firmly into place.

Specifications

ManufacturerMiromatic
Year2001
ConditionUsed
Stock Number210635MW
Additional titleweight-based filling
Capacity appr.450 units/h based on a 6.1-litre bucket; depending on container size and product viscosity
Power11 kW
Voltage400 V
Frequency50 Hz
Heating / Coolingsteam 3 bar; 10 kg/h
Compressed air6-8 bar; Qmax = 300 l/min
Running directionleft -> right
Base constructionlinear filler
FeaturesFilling head; Capping head; Bucket magazine; Lid magazine; Heating cartridge; Load cell; Protective housing with doors, control cabinet with control buttons and 12-inch touchscreen; Product connection/CIP inlet DN50; Steam connection 1"; Compressed air connection 3/8"; CIP return DN40
Length3708 mm
Width968 mm
Height2442 mm
Formats1.3-litre bucket (H = 132 mm, Dmax = 132 mm); 6.1-litre bucket (H = 195 mm, Dmax = 226 mm); 10-litre buckets are also possible
