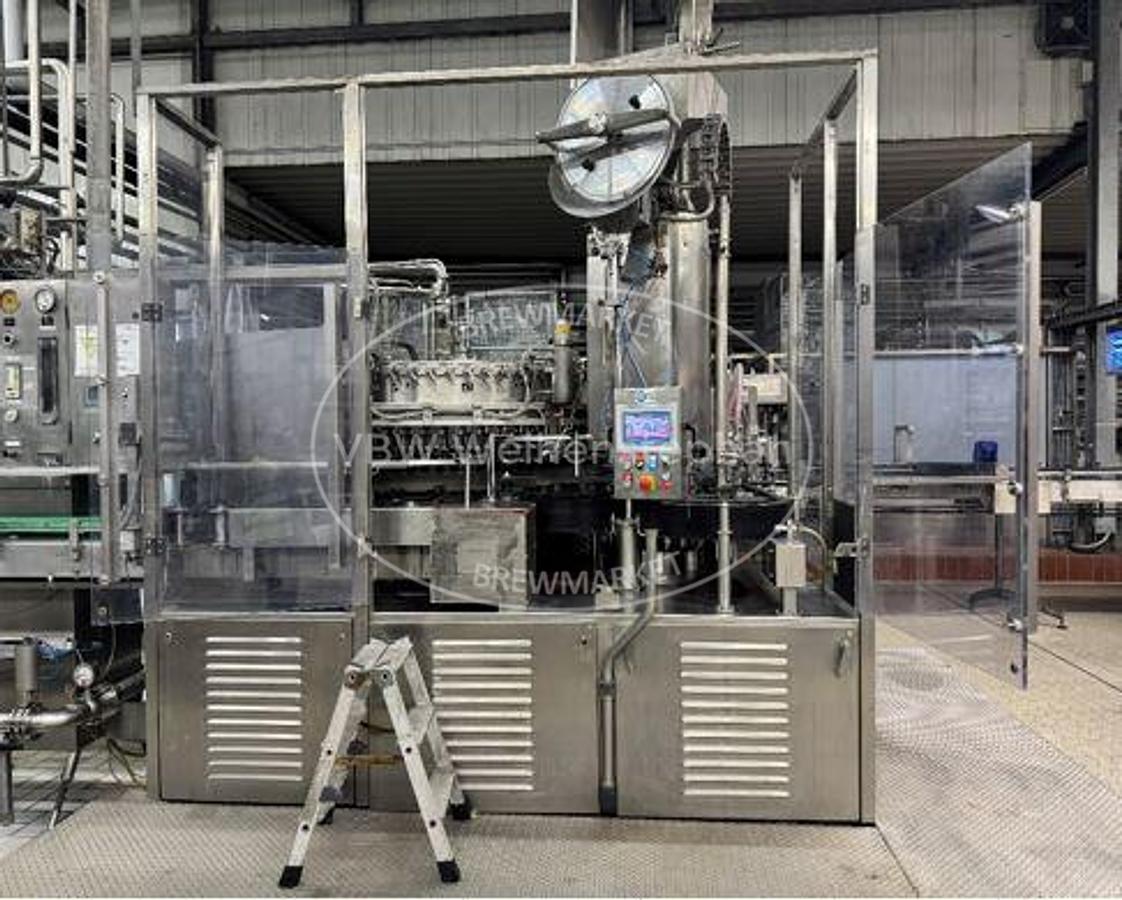

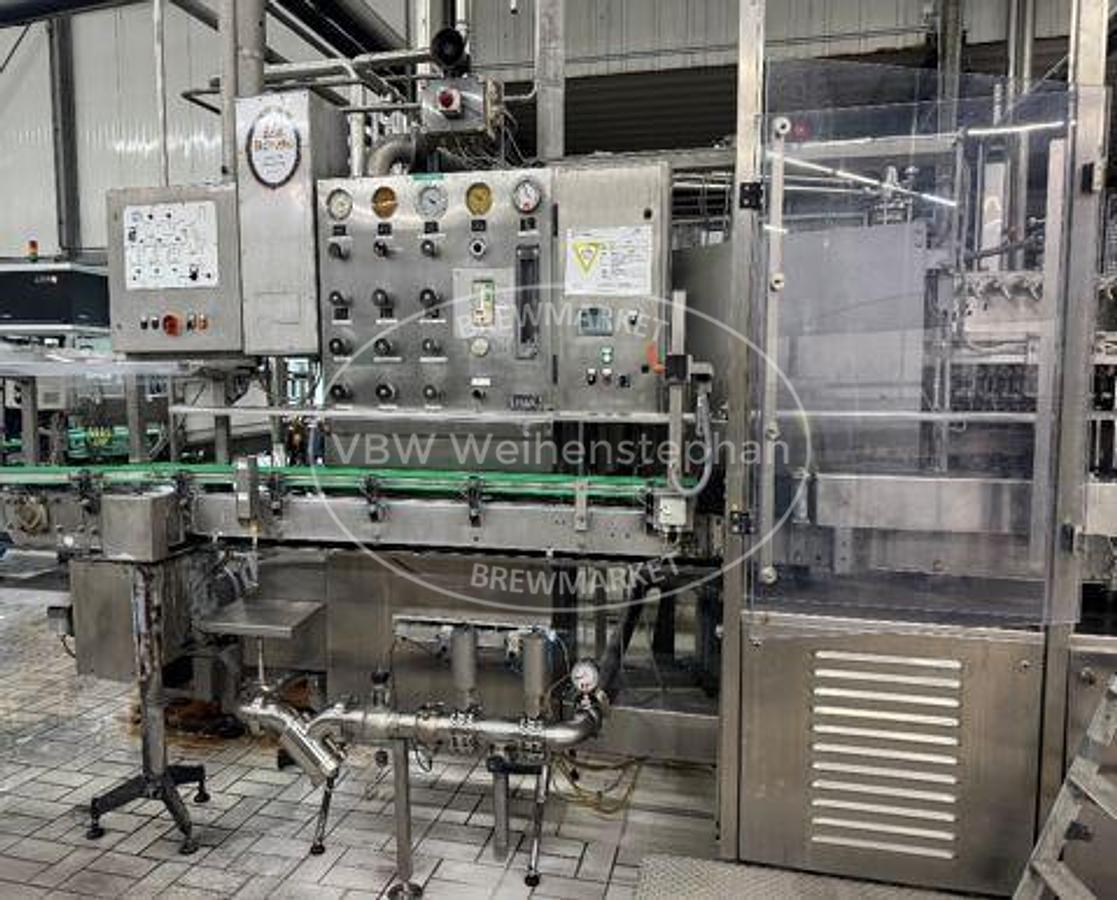

Glass bottle filler and capper
Glass bottle filler and capper
or
Call +49 (0) 8161-48333
Description

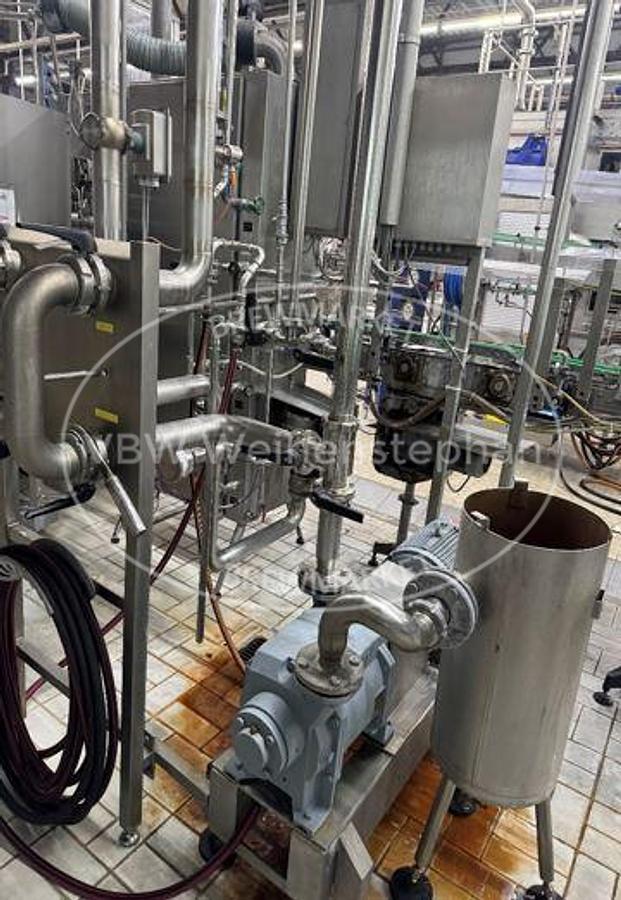

Glass bottle filler and capper with short-tube filling valves for level filling (measured filling) of bottles. The bottles are pre-evacuated (11 kW vacuum pump from GEA Ahlborn).
The pinion control system was replaced in 2025. As part of this, all pinions were also replaced. The air ring for the lifting cylinders of the filling mechanisms was replaced around 2023.
Specifications
| Manufacturer | KHS |
| Year | 1984 |
| Condition | Used |
| Stock Number | 210855MW |
| Additional title | Short-tube filler with pre-evacuation and crown cap sealer |
| Capactity | 44000 bo/h |

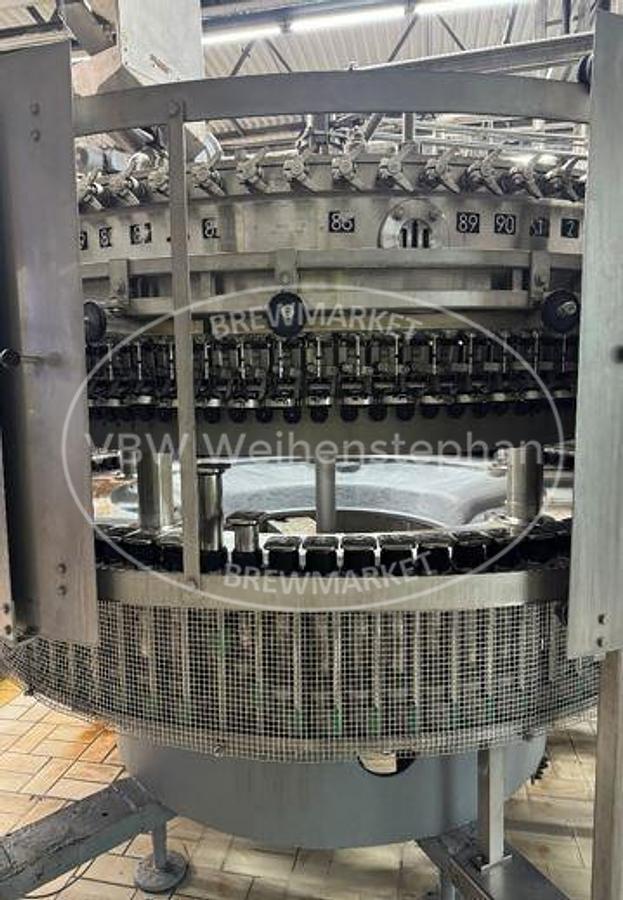

| Number of filling valves | 90 pcs. |
| Number of capping heads | 15 pcs. |
| Formats | 0,5 l NRW bottles; crown caps |
| Material | housing and contact surfaces from stainless steel |
| Base construction | caroussel-type filling and capping block |

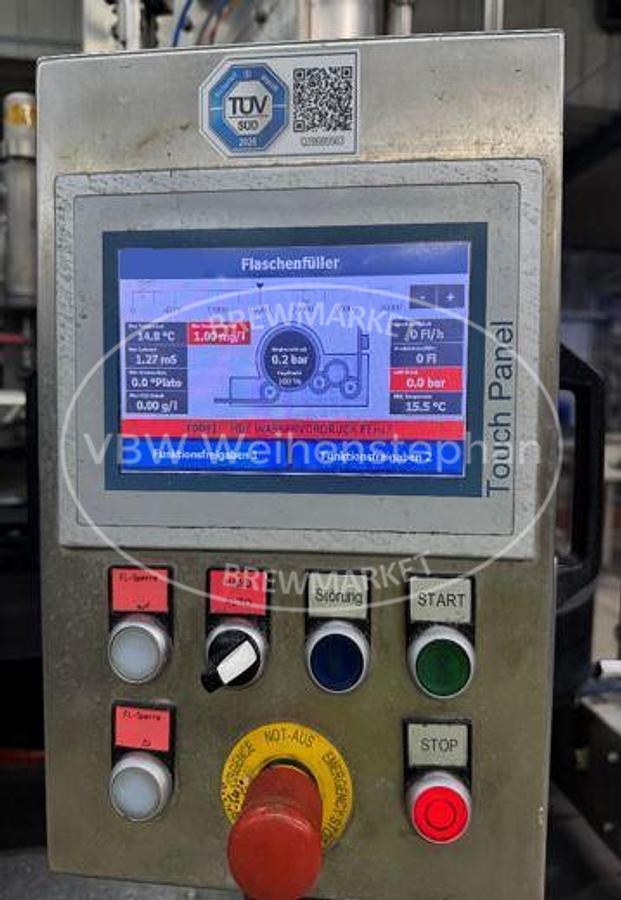

| Features | filling carousel with 90 short-tube filling valves; crown cap sealer with 15 sealing heads; vacuum pump; bottle and cap rinse; bottle conveyor with drives and format components; protective housing with doors; control cabinet with fittings; control panel with touchscreen |
