Description

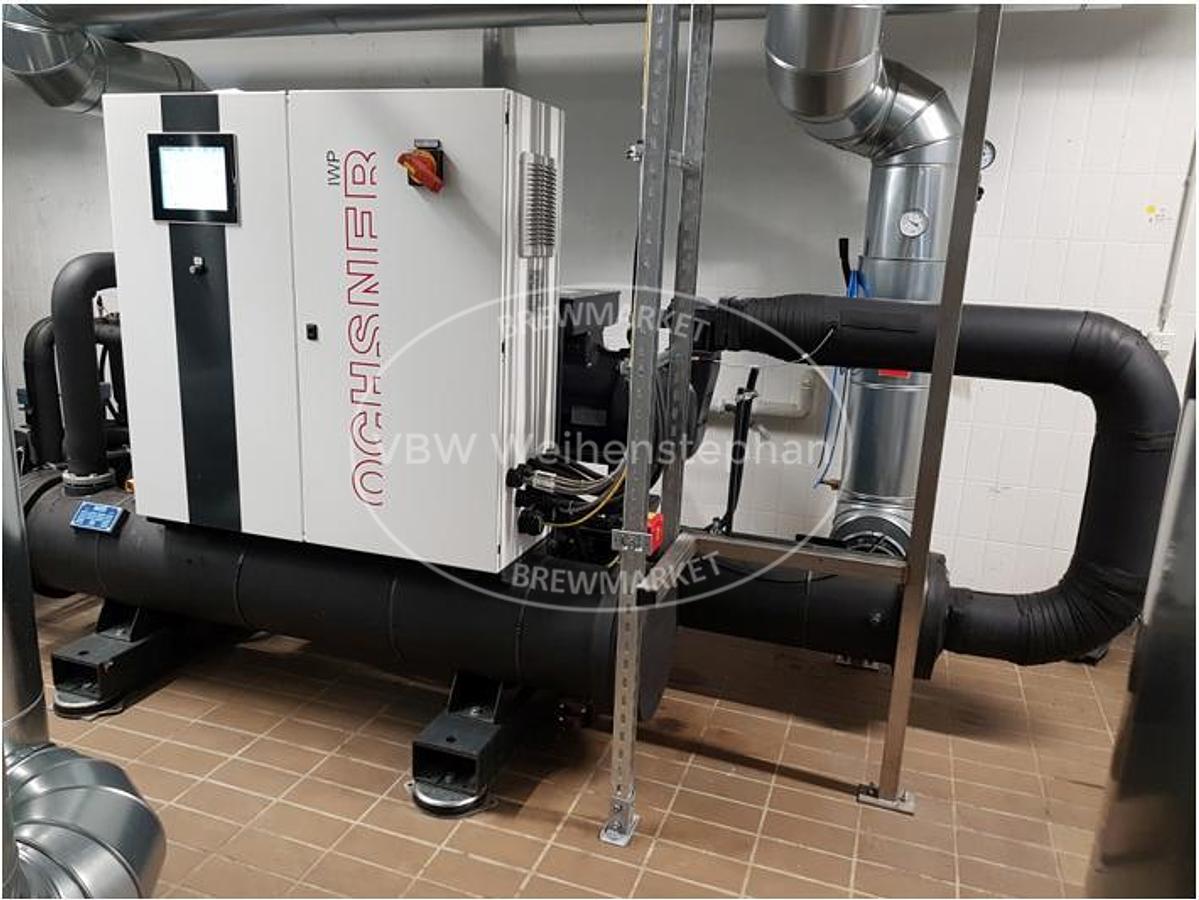

High-temperature heat pump for industrial processes using water as the heat transfer fluid. The system consists of the following main components:
Evaporator:
Heat exchanger for evaporating R245fa refrigerant. The heat required for this is absorbed by water.
Compressor:
A screw compressor that is continuously adjustable between 50% and 100% of maximum capacity.
Condenser:
A heat exchanger for transferring heat from the compressed refrigerant to heating water. The refrigerant is liquefied again during this process.
The liquid refrigerant is expanded via an expansion valve and returned to the evaporator.
Specifications
| Manufacturer | Ochsner |
| Condition | Used |
| Stock Number | 210874MW |
| Additional title | high-temperature water-to-water industrial heat pump |
| Heating capacity | 408 kW |
| Cooling capacity | 319 kW |
| Coefficient of Performance | 4,6 |
| Power | 89 kW |
| Current | 159 A |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Length | 4380 mm |
| Width | 1390 mm |
| Height | 1800 mm |
| Weight | 2600 kg |
| Features | Compressor; 2 x heat exchanger; control cabinet with touchscreen; insulated piping; valves; sensors |
