Description

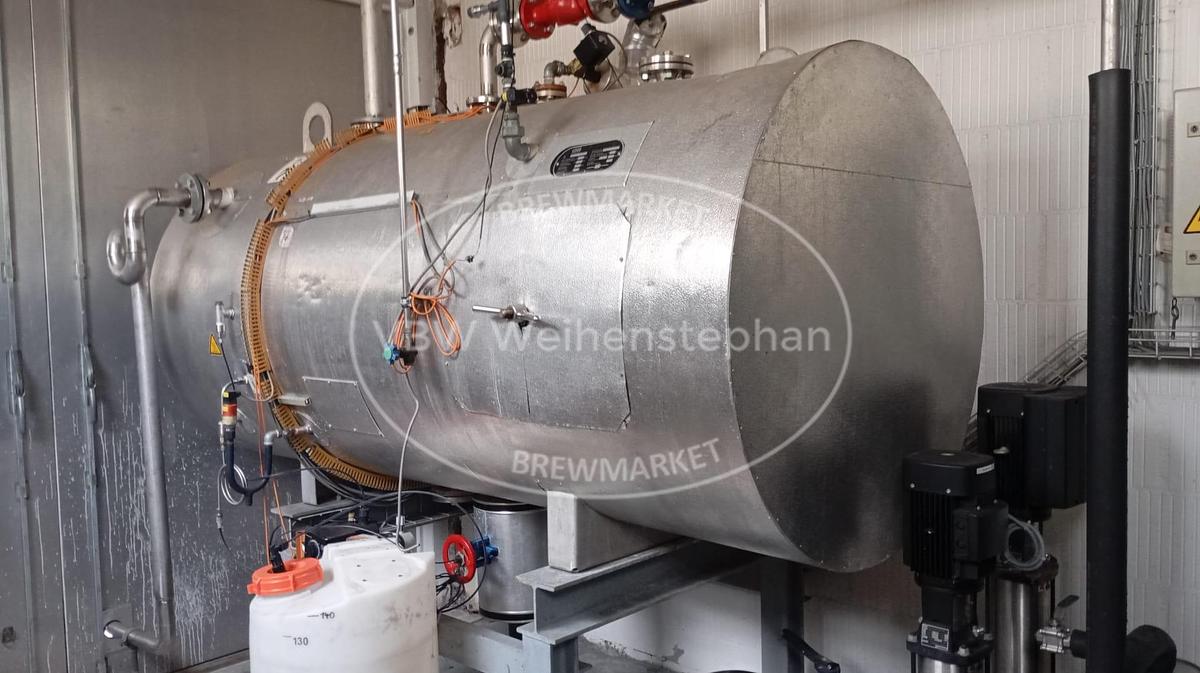

Steam generation plant, comprising the following main components:

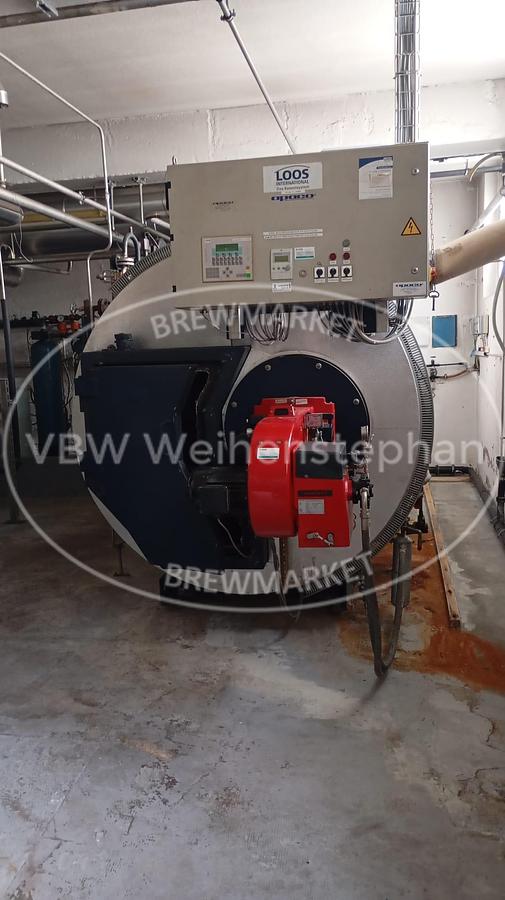

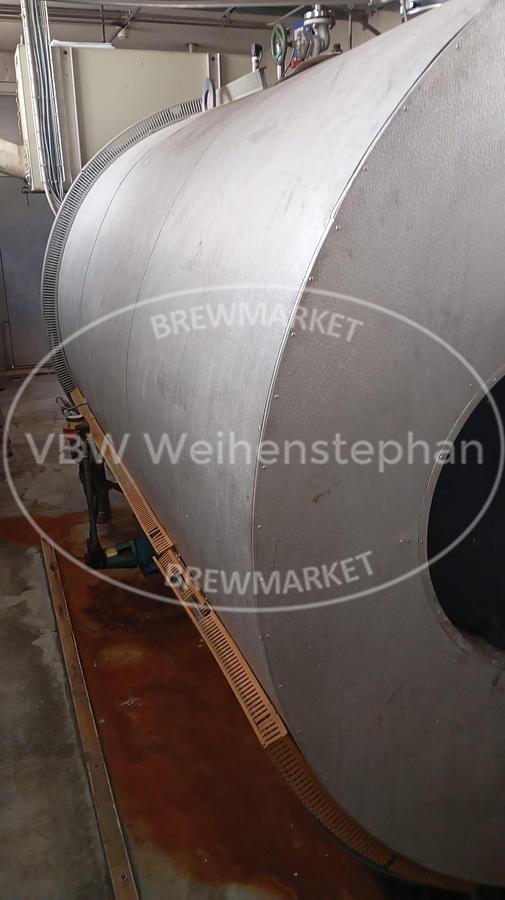

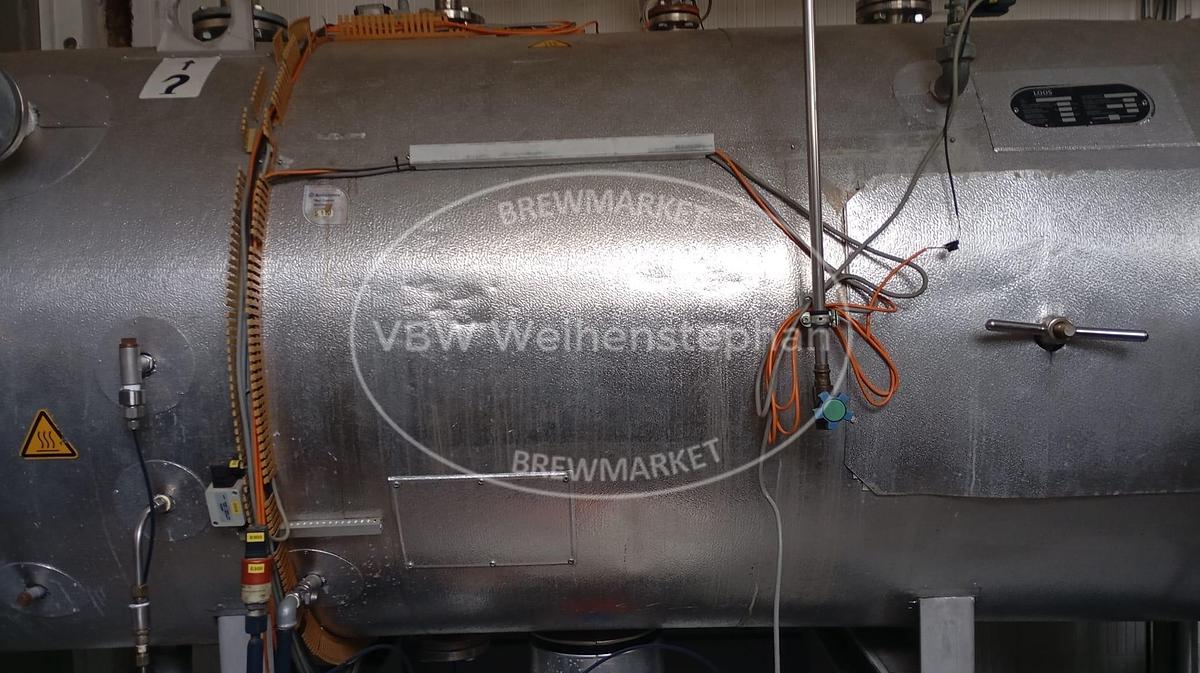

- Three-pass steam boiler (Loos) for the production of 2,000 kg/h of saturated steam at rated load

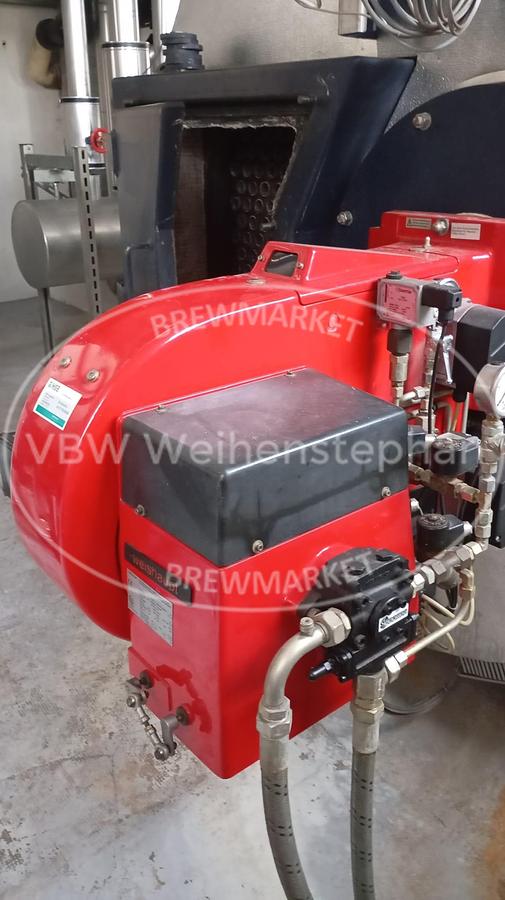

- Oil burner (Weishaupt) for EL heating oil with an output of up to 2,145 kW

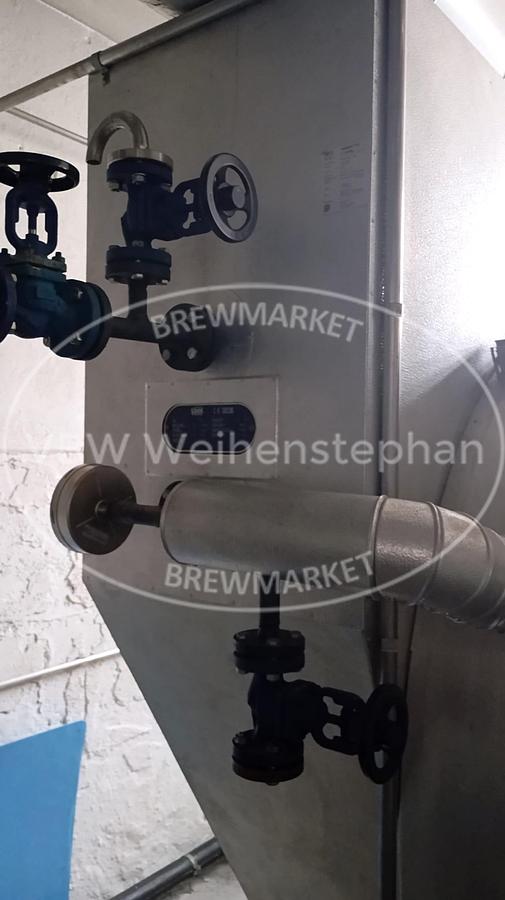

- Economiser (Loos) with approx. 30 m² of heat transfer surface area and an insulated casing

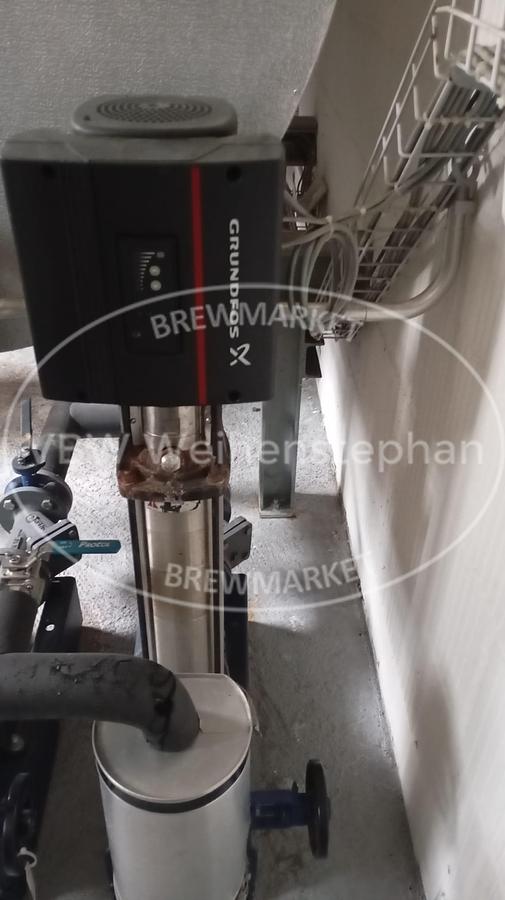

- 2 feedwater pumps (Grundfos)

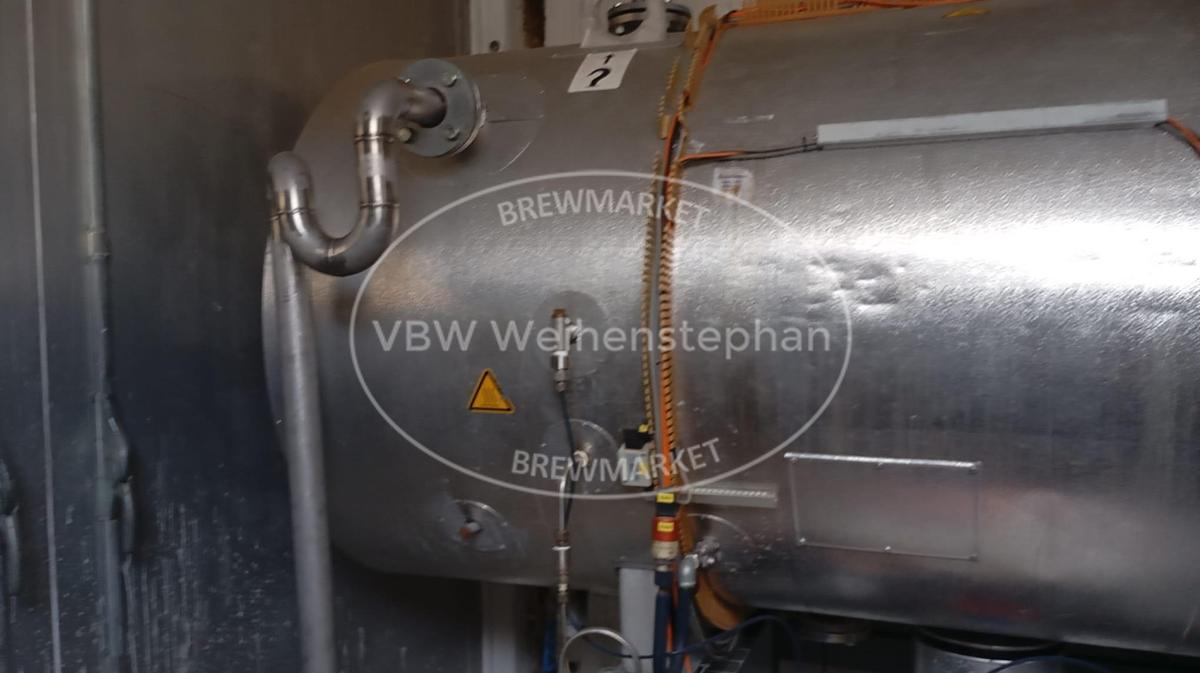

- 1,500 l insulated feedwater tank (Loos), horizontal, with feedwater degassing
Specifications

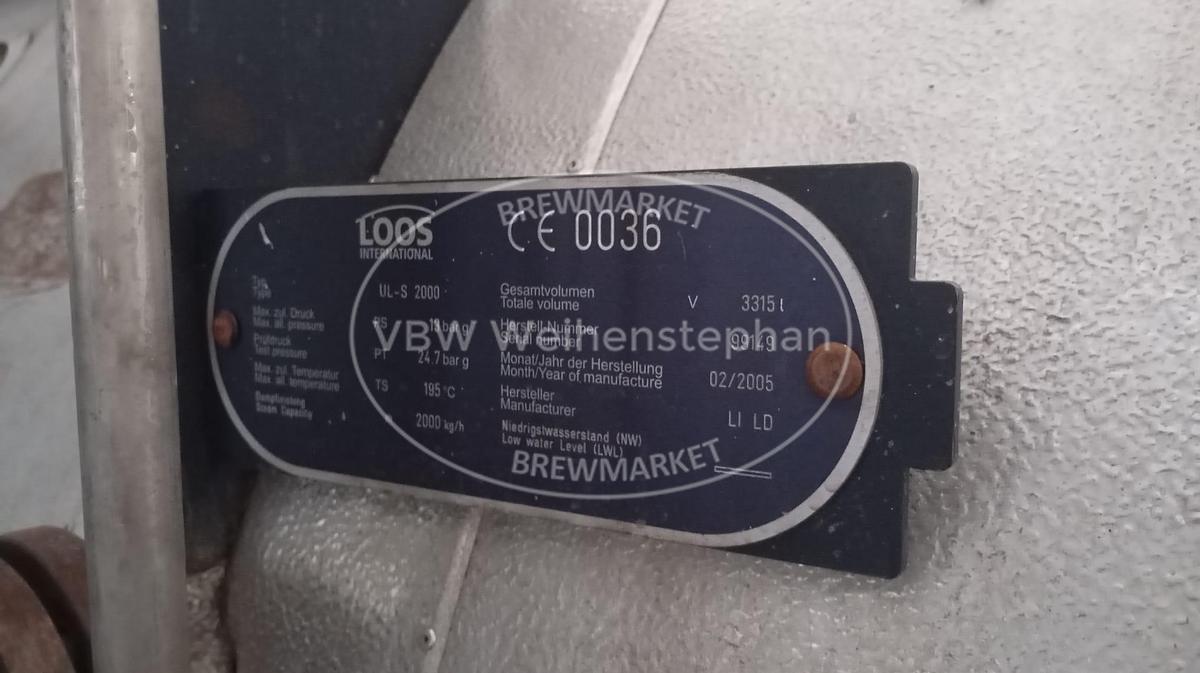

| Manufacturer | Loos |
| Year | 2005 |
| Condition | Used |
| Stock Number | 210922MW |
| Additional title | oil-fired three-pass steam boiler with economiser |
| Steam production capacity | 2000 kg/h ; corresponds to a gross heat output of 1,335 kW |
| Max. operating pressure | 13 bar |
| Max. operating temperature | 195 °C |
| Exhaust gas loss | 4,6 % |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Position | horizontal |
| Base construction | three-pass design |

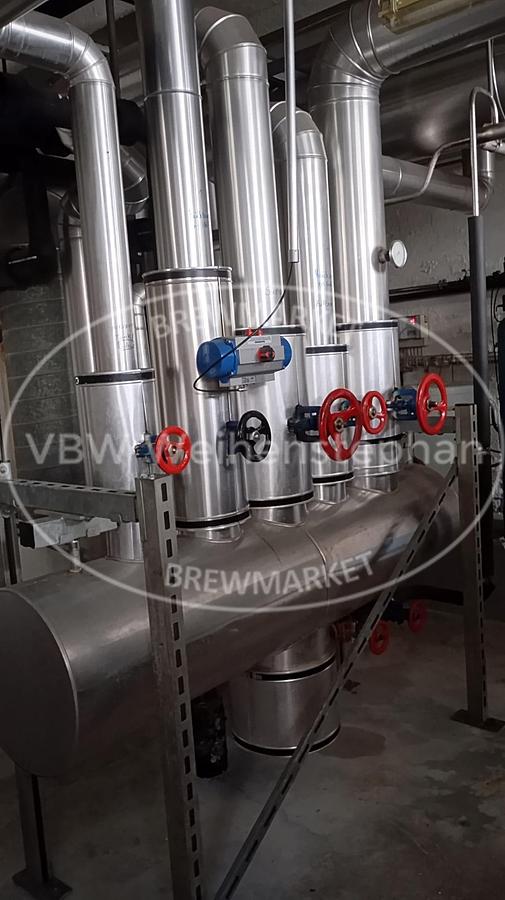

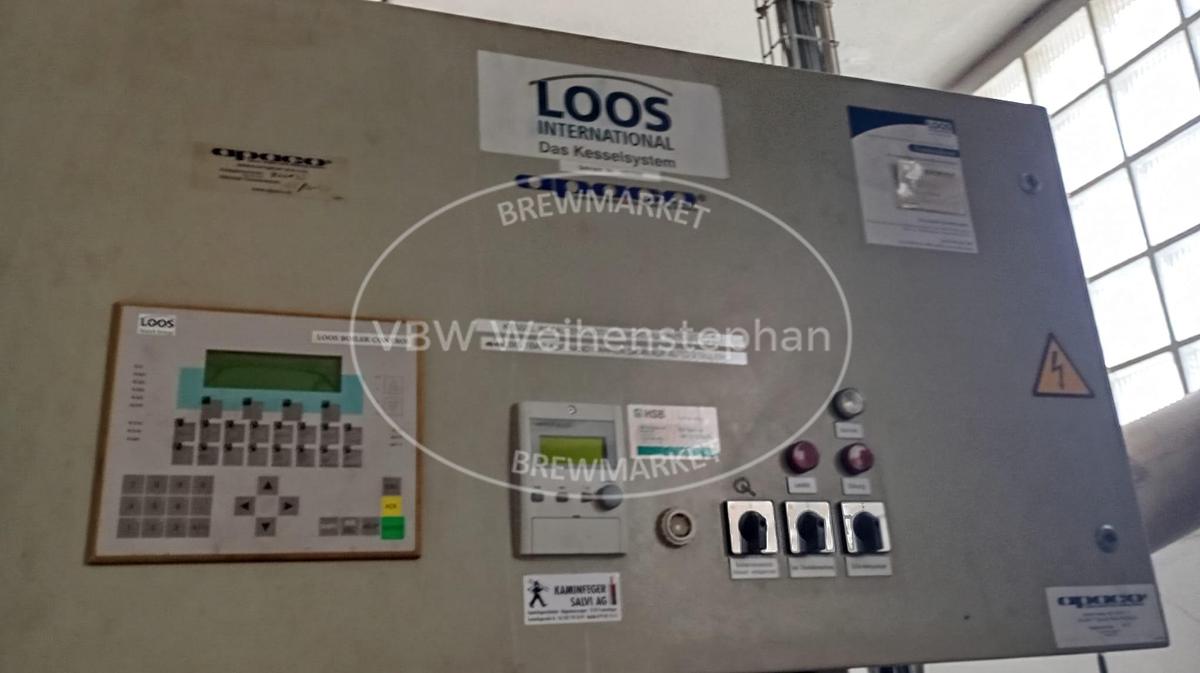

| Features | Steam boiler; oil burner; exhaust gas heat exchanger (economiser); feedwater tank; 2 x feedwater pumps; sensors; actuators; control cabinet; various pipes and valves |
