Description
NH3 refrigeration system.
Refrigeration system includes the following:

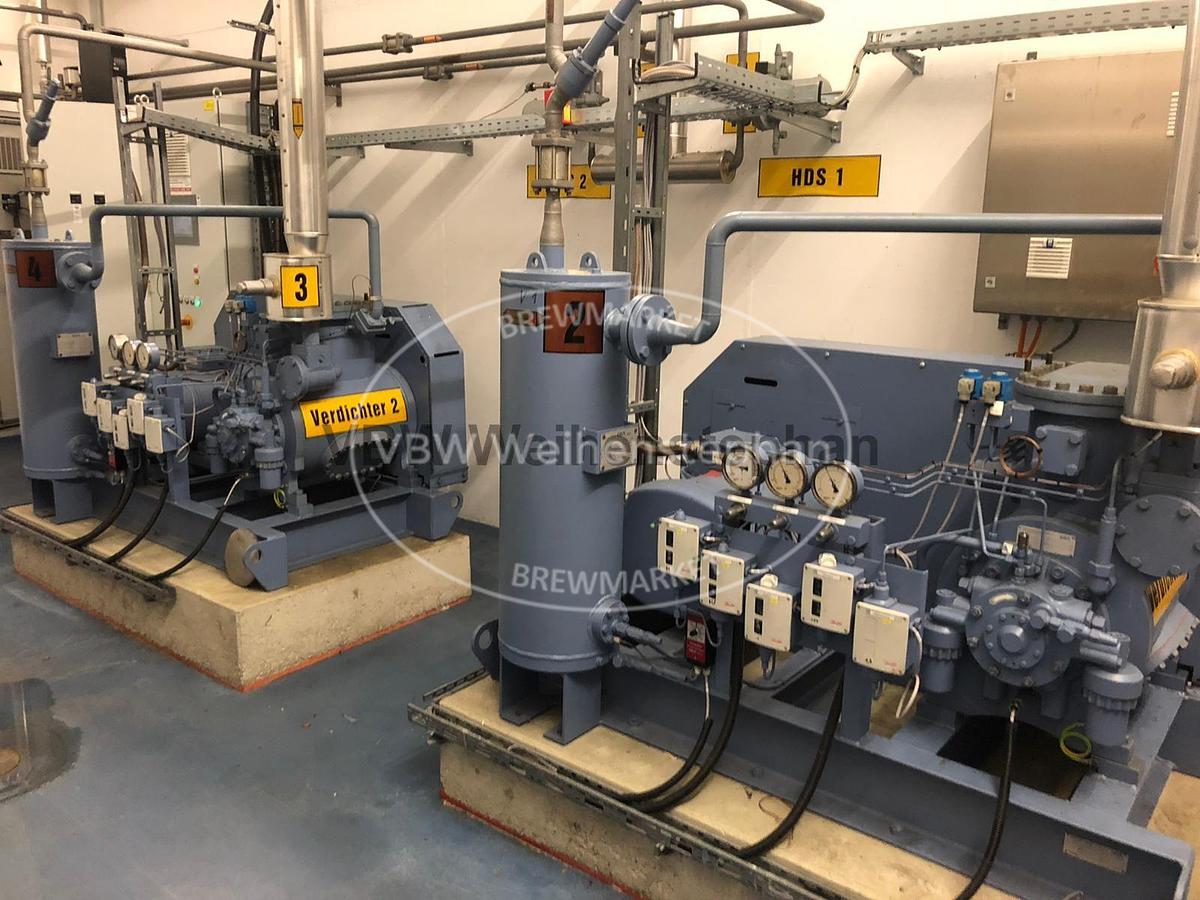

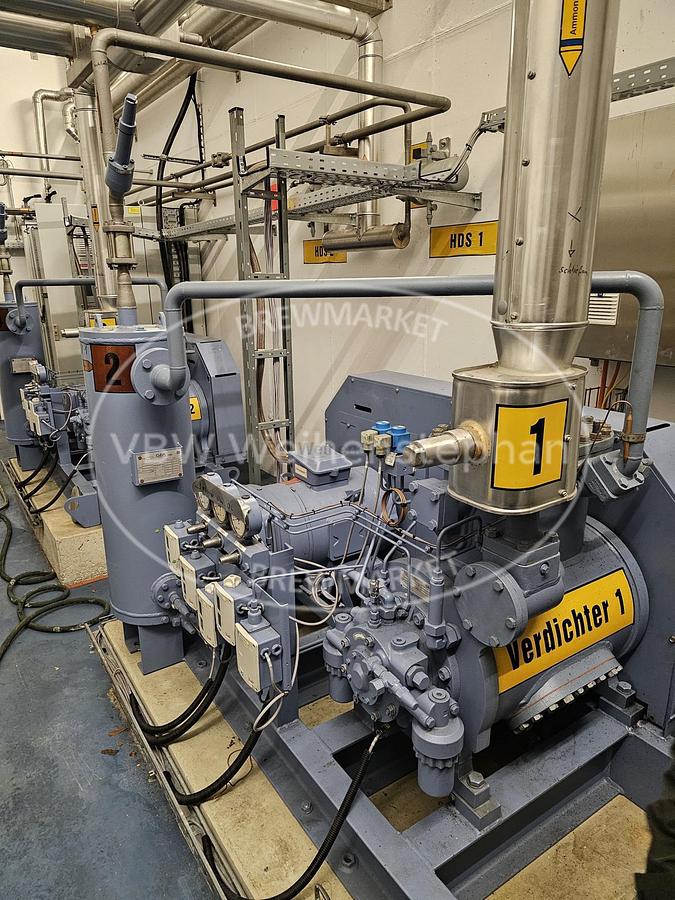

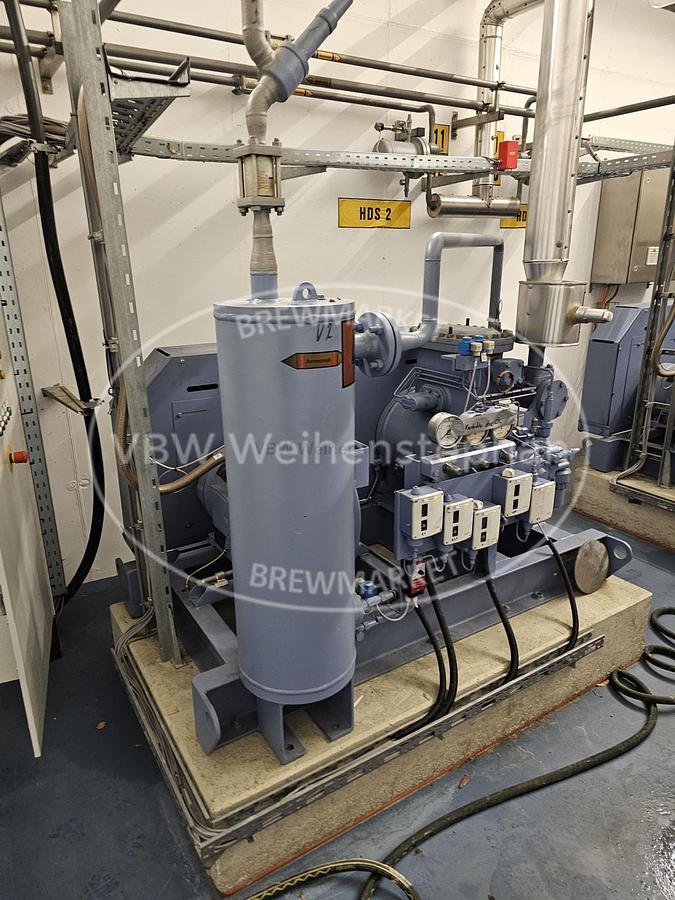

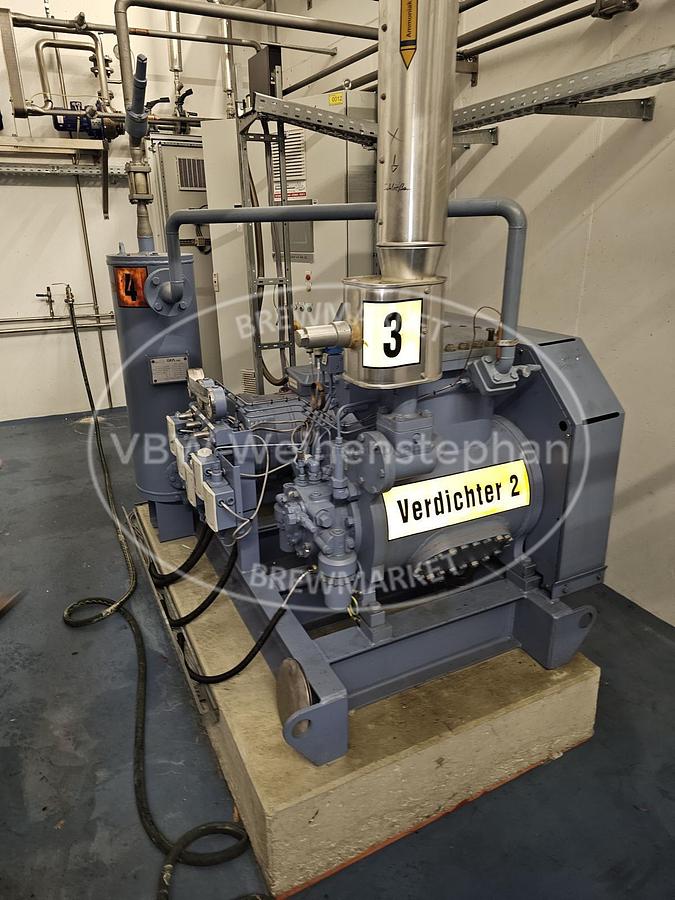

- Compressor 1, GEA Grasso type OS3
- Compressor 2, GEA Grasso type OS3

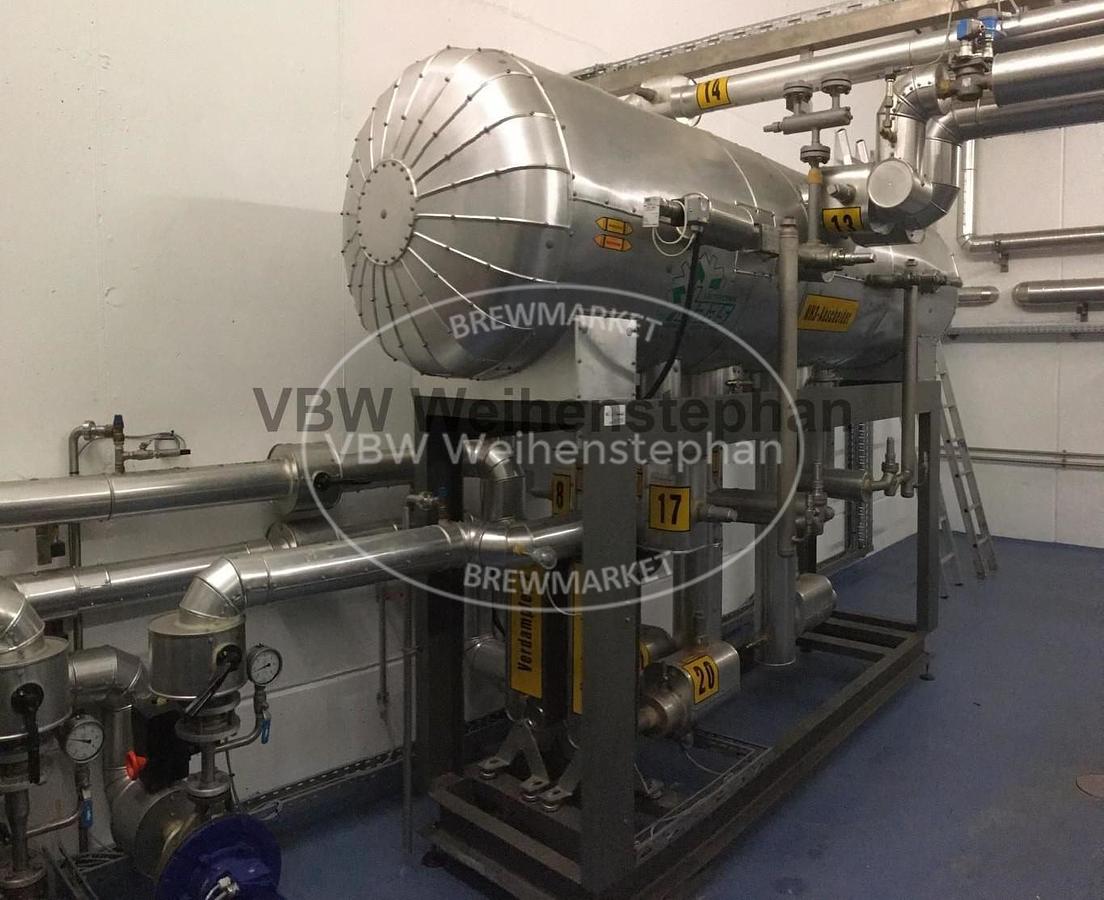

- NH3 separator

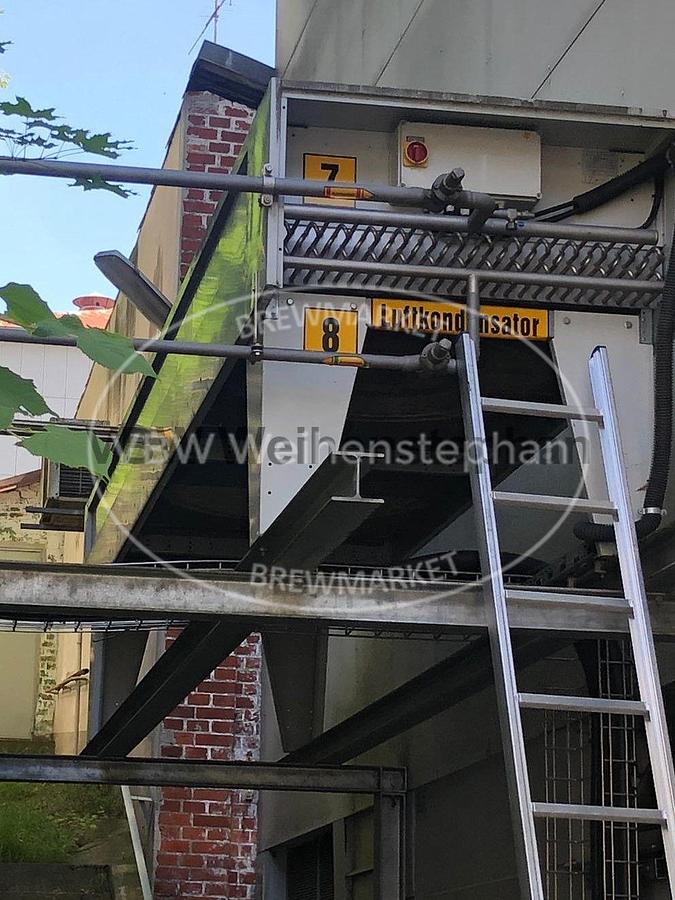

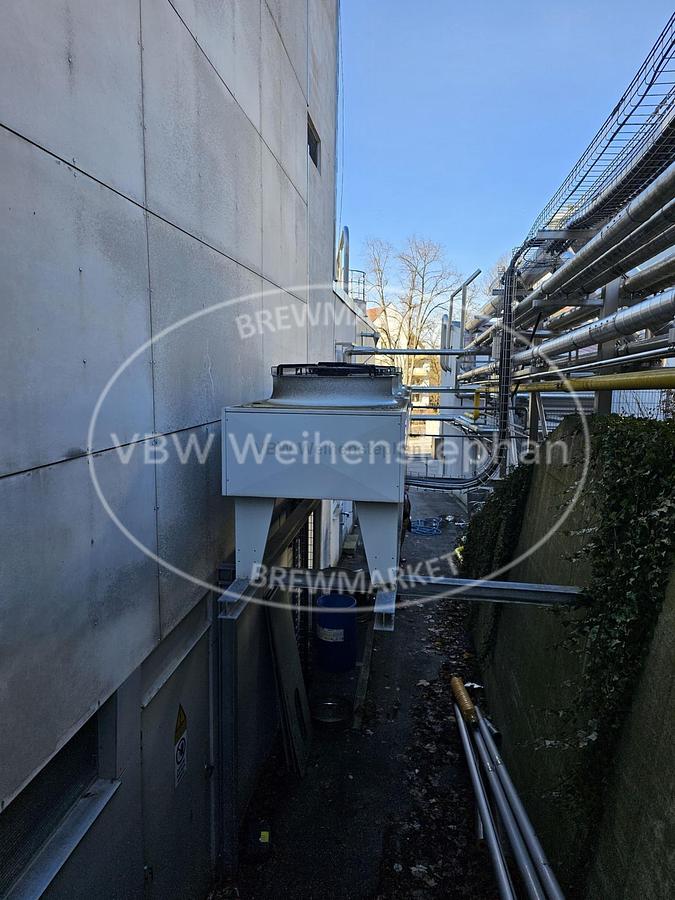

- Air condenser

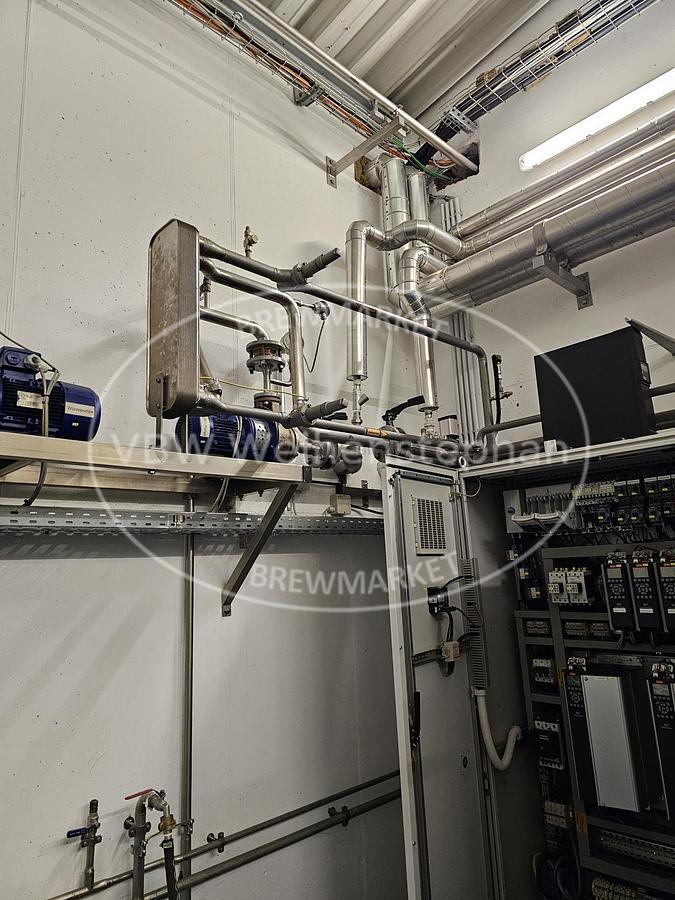

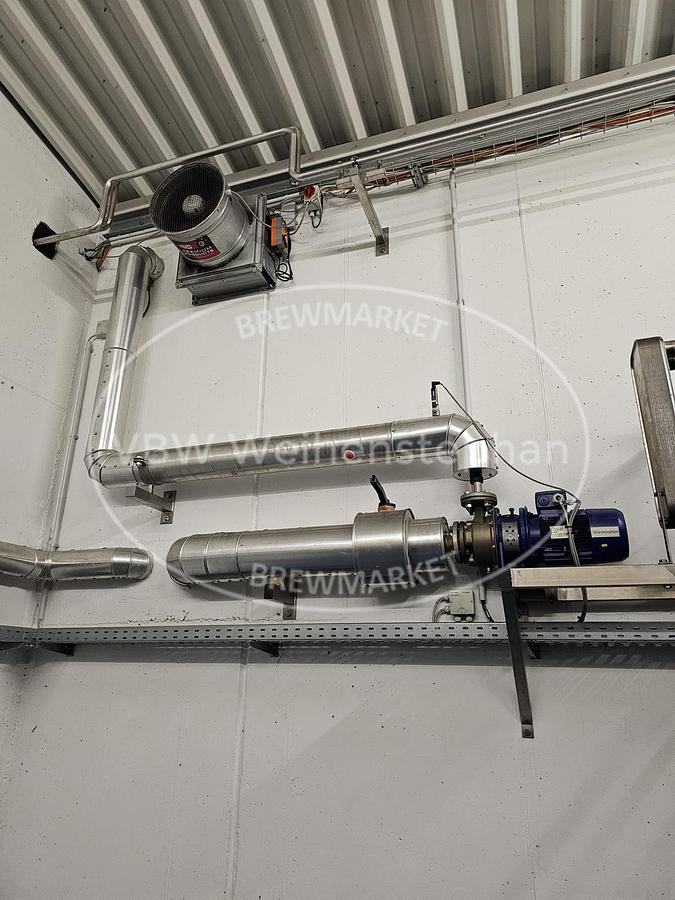

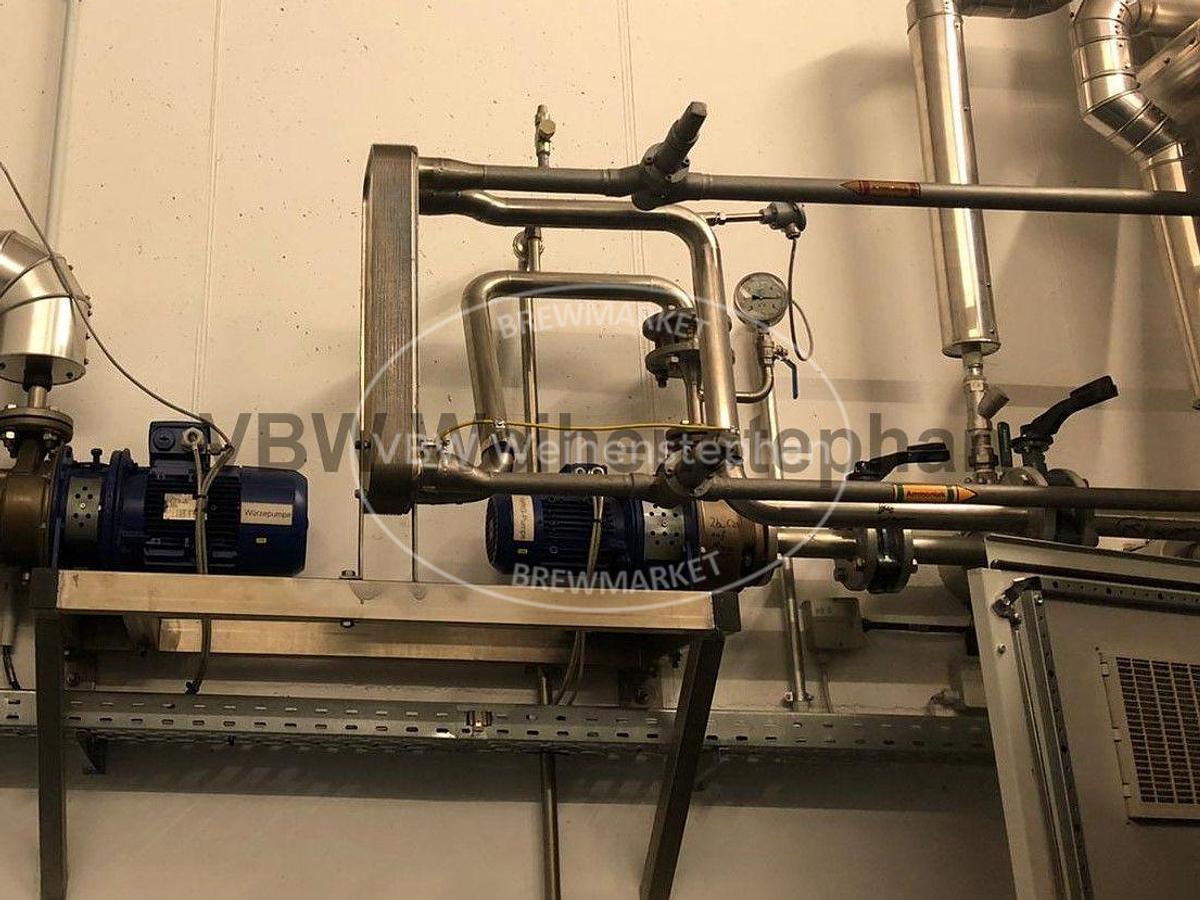

- Heat exchanger for energy recovery with pump

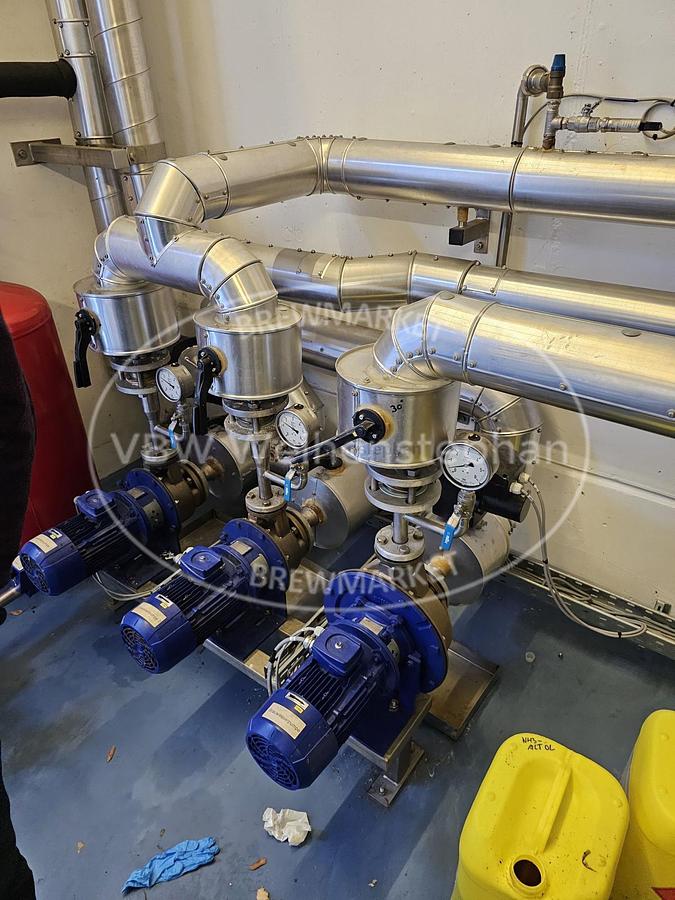

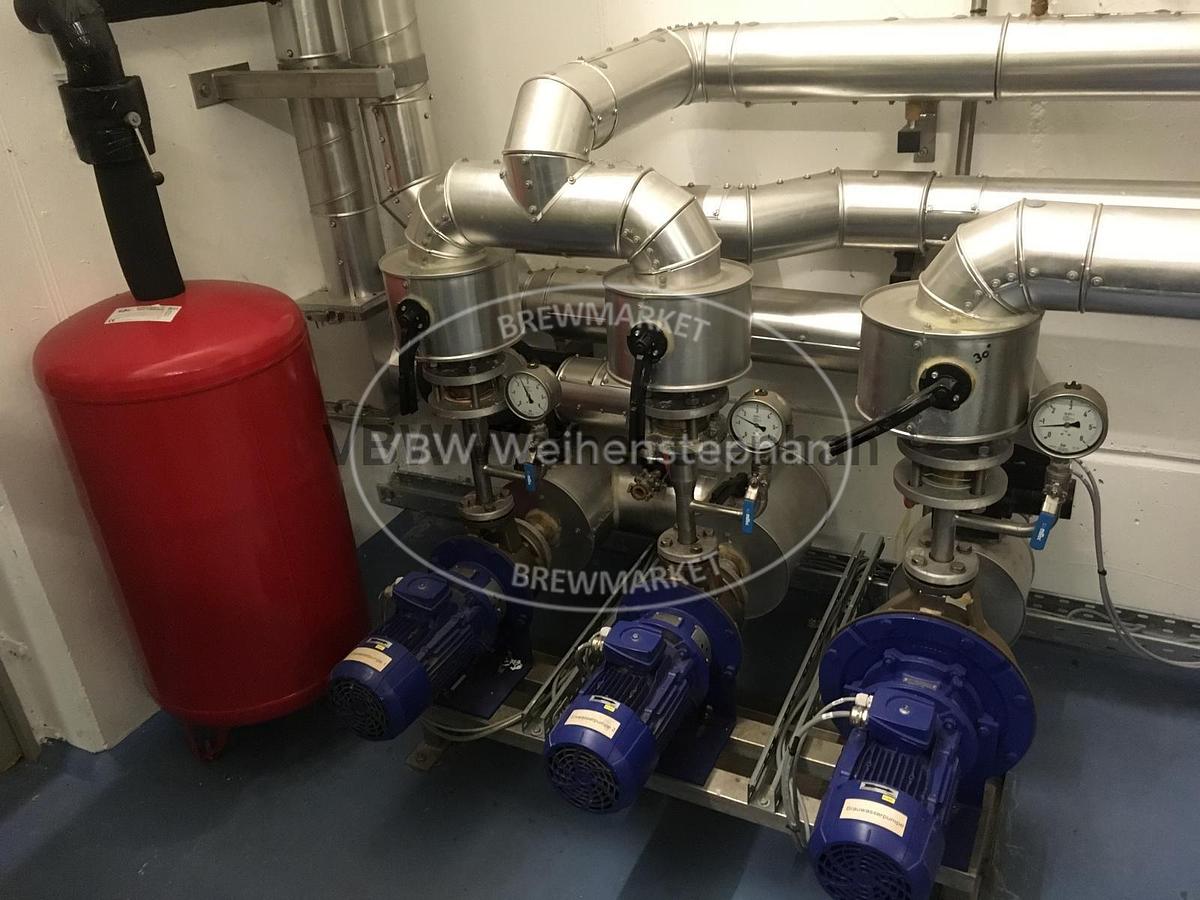

- 2 x ice water pumps
- Brewing water pump

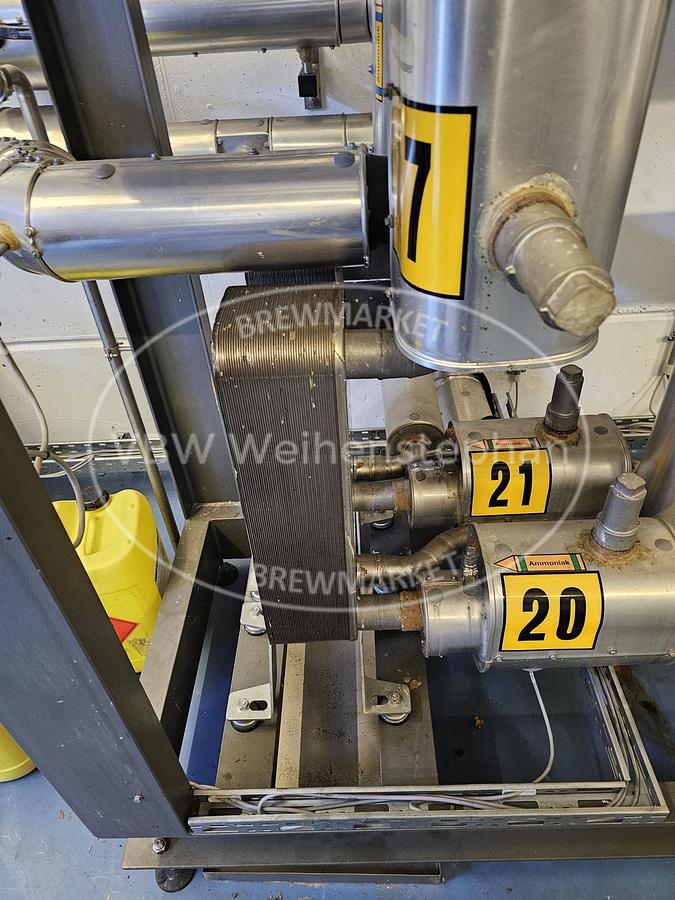

- 2 water coolers
- Expansion tank

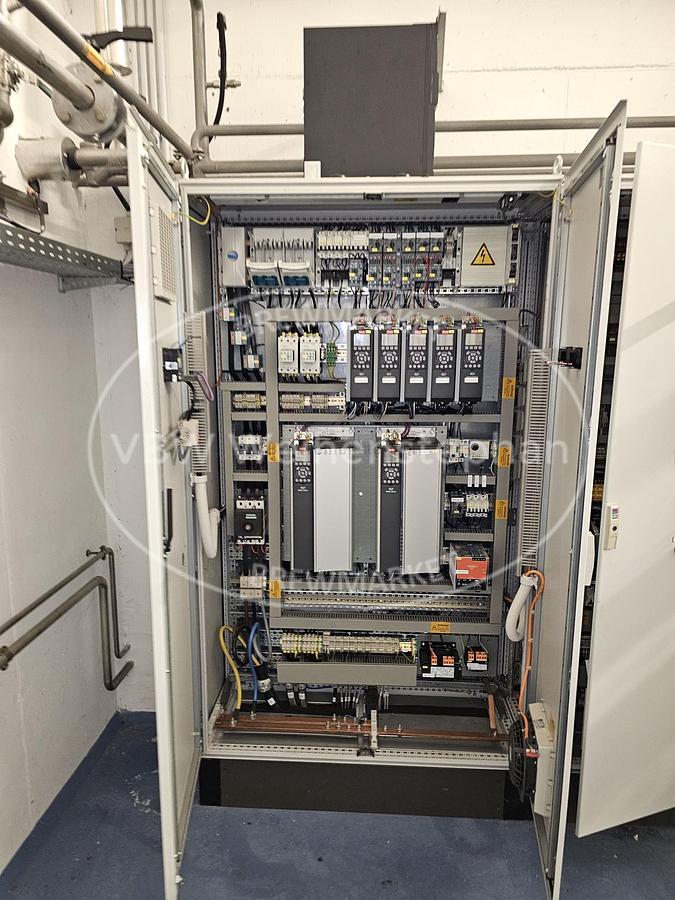

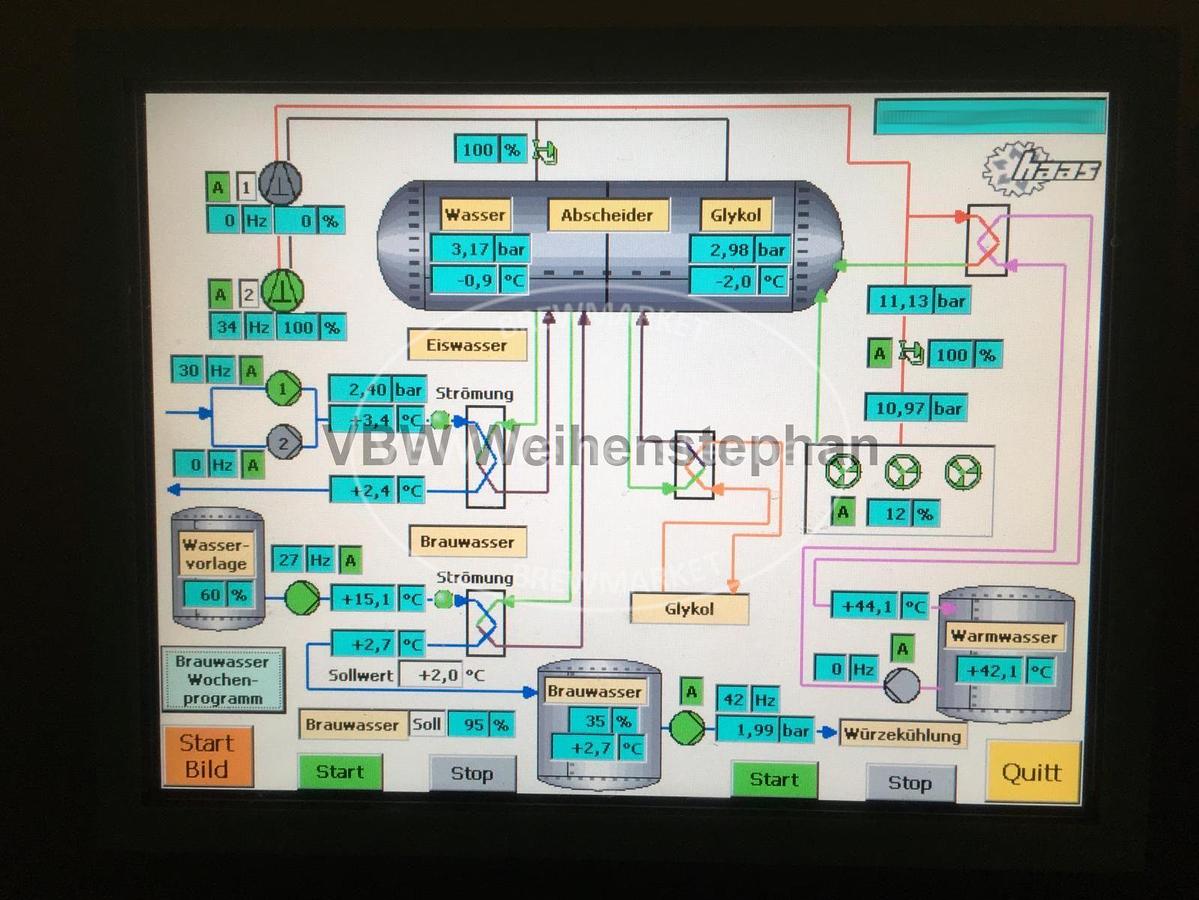

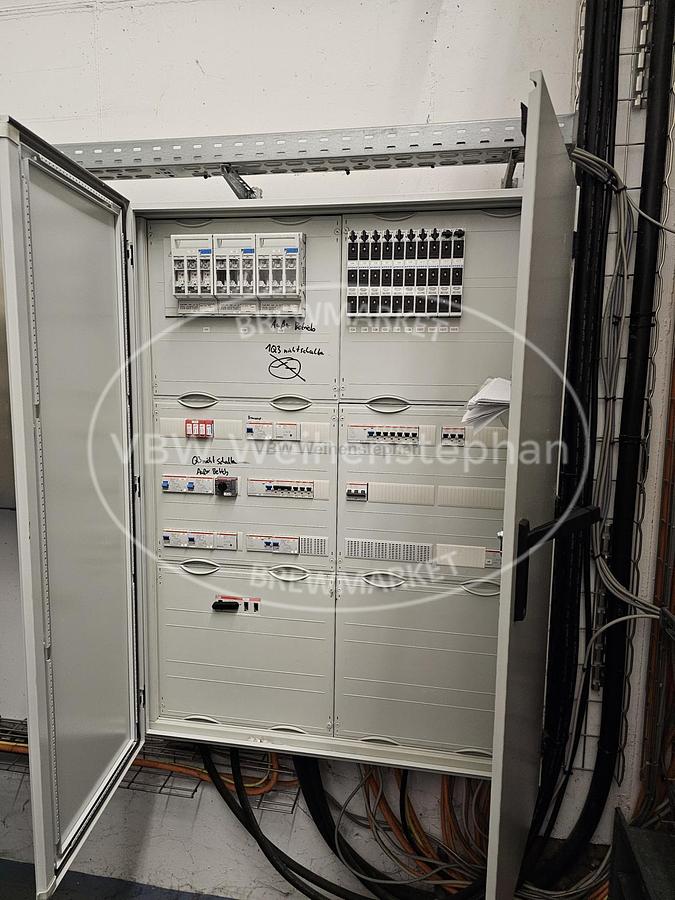

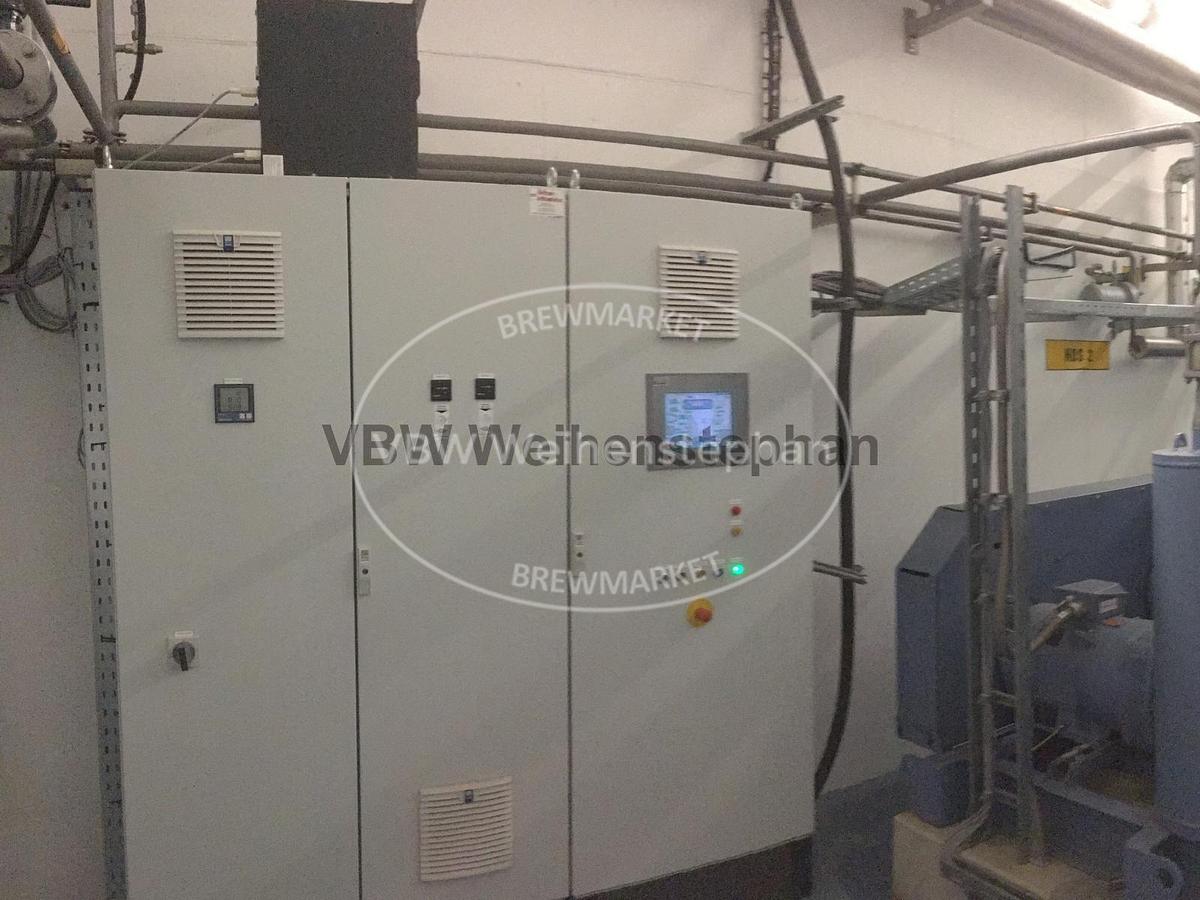

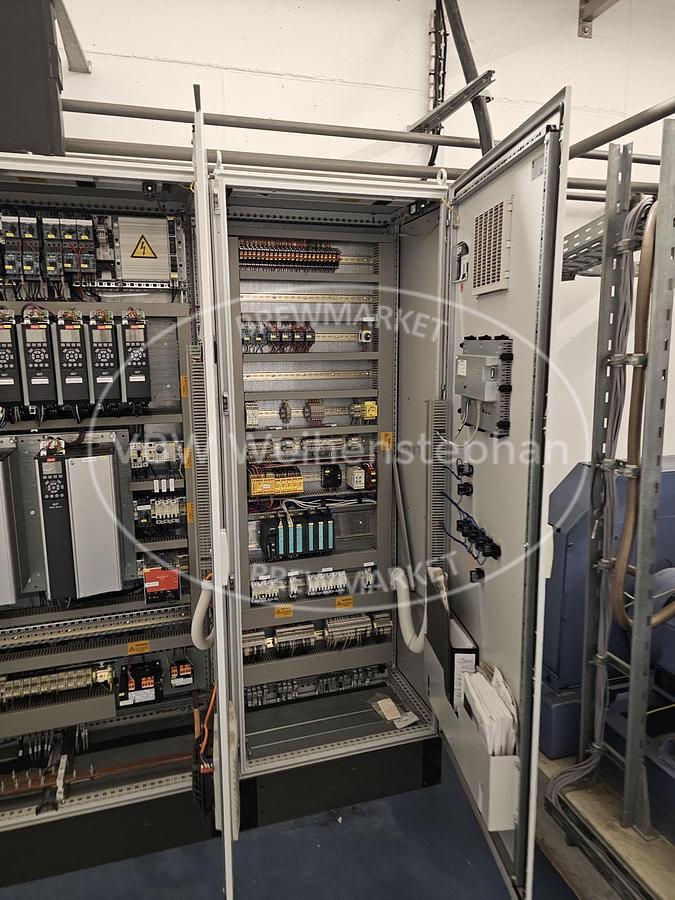

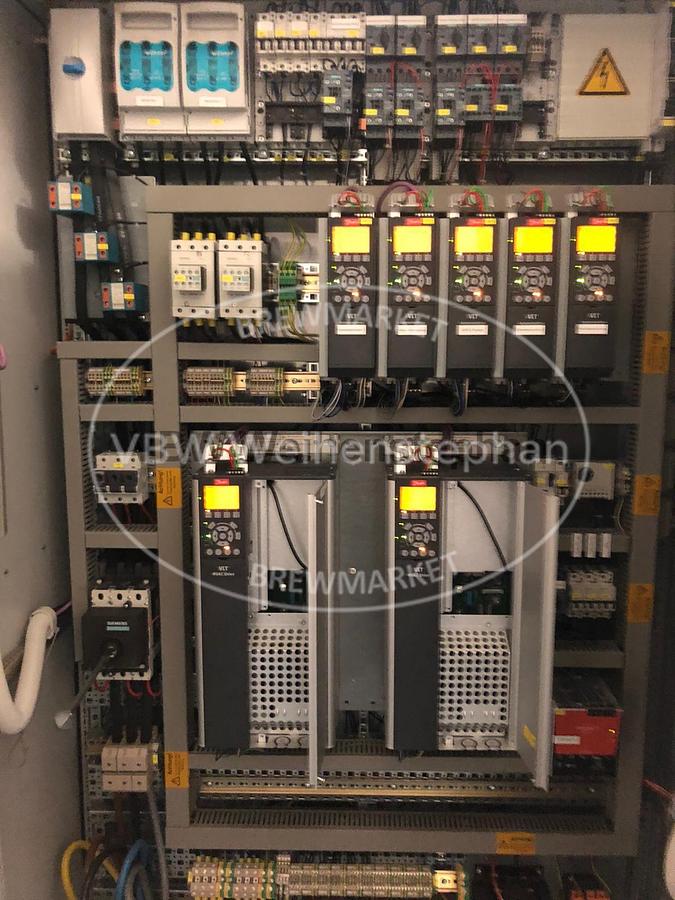

with control cabinet for NH3 separator and compressors 1 and 2, with SIMATIC MULTI PANEL touch control
Specifications
| Manufacturer | Haas GmbH Anlagenbau |
| Year | 2009 |
| Condition | Used |
| Stock Number | 207151QK |
| Additional title | refrigerant ammonia |
| Brew water flow | 5 m³/h 2 bar |
| Ice water flow | 15 m³/h 2 bar |
| Refrigerant capacity | 85 kg Ammonia |
| Compressor capacity | 145 m³/h |
| Power | Q0: 2 x 119 kW |
| Operation / Control | Siemens S7 |
| Features | 2 x compressors: 145 m³/h, 26 kW with Frequency Converter, 37 kW nominal output; ammonia separator mounted on frame, with brewing water-cooler and ice water-cooler; air condenser on frame 3 x 2.95 kW; heat-exchanger for recovery with pump; 2 x ice water pumps ( 2.2 kW, 15 m³/h, 2 bar ); brewing water pump ( 1.1 kW, 5 m³/h, 2 bar ); expansion tank, max. permissible operating pressure: high pressure side: 22 bar, low pressure side: 16 bar |
