Rinsing, filling and sealing machine
Rinsing, filling and sealing machine
or
Call +49 (0) 8161-48333
Description

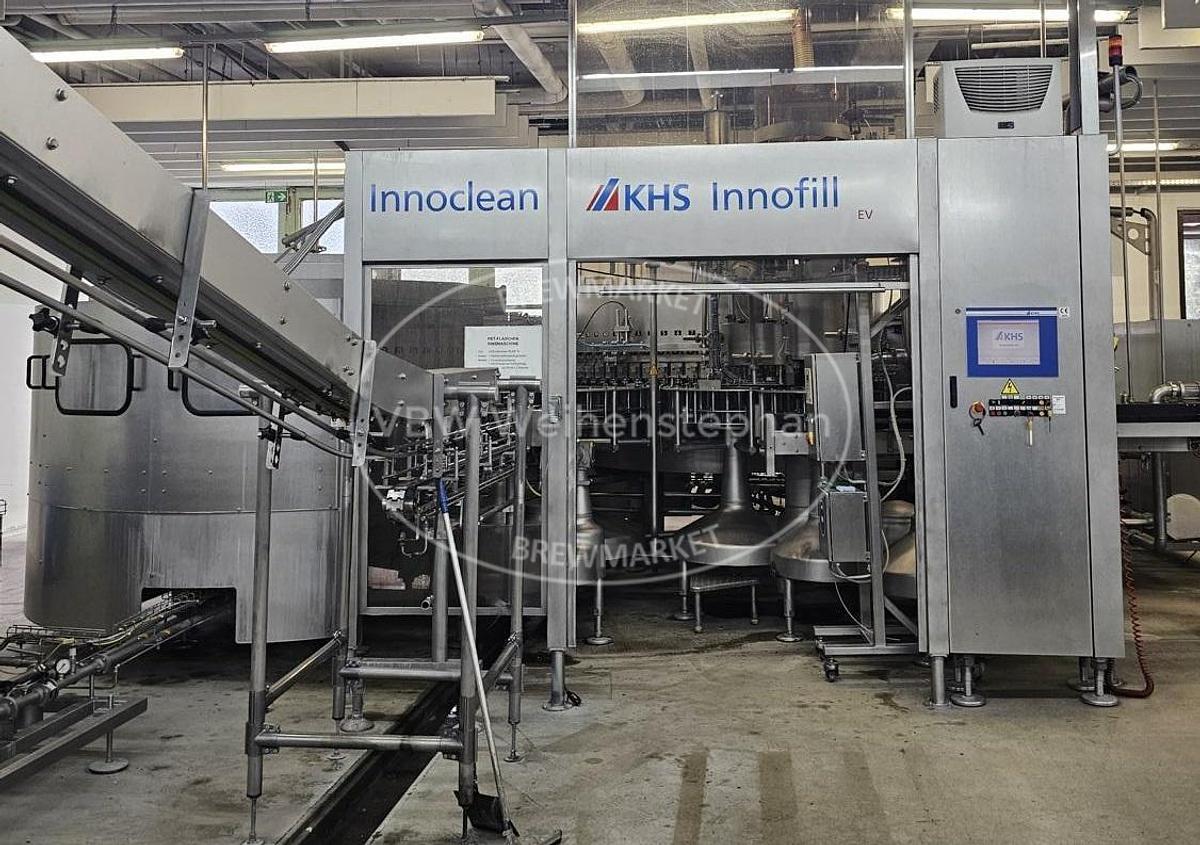

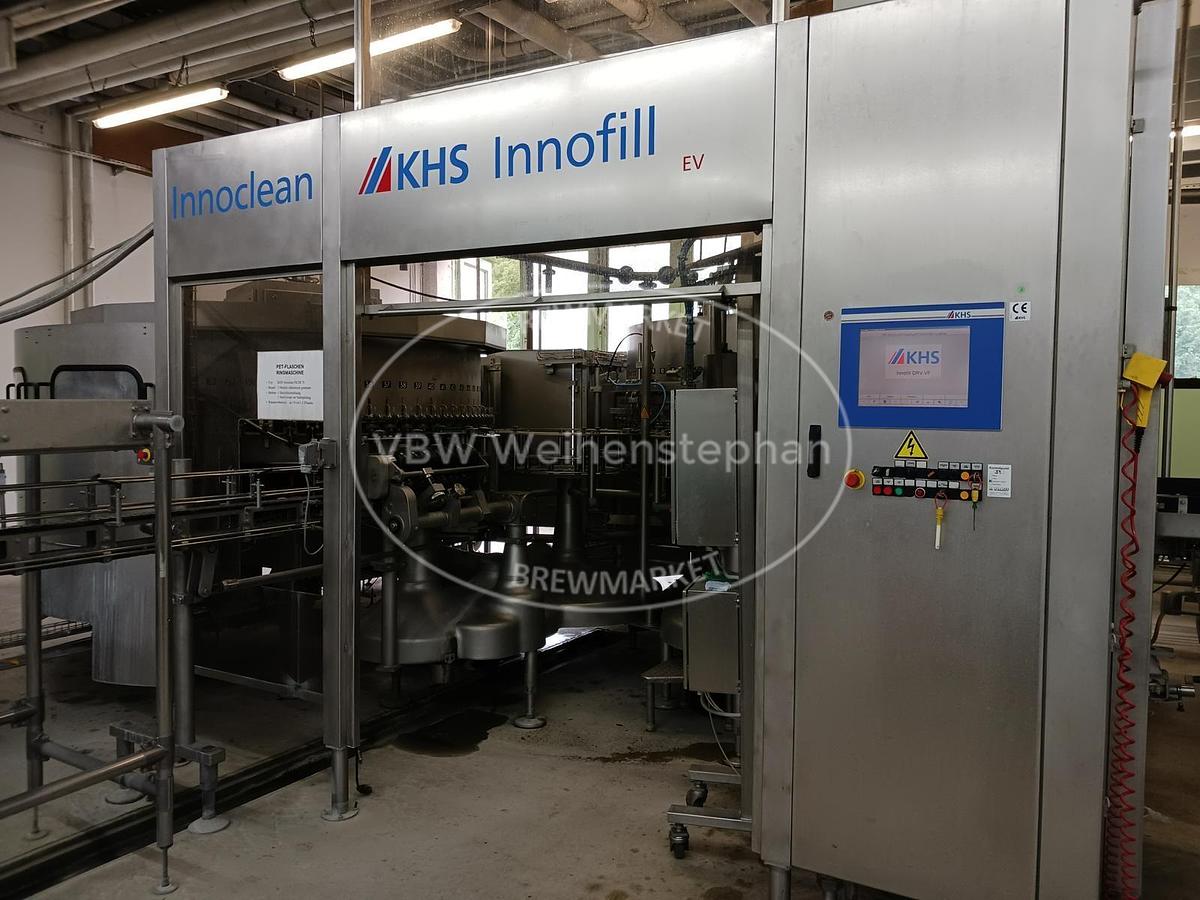

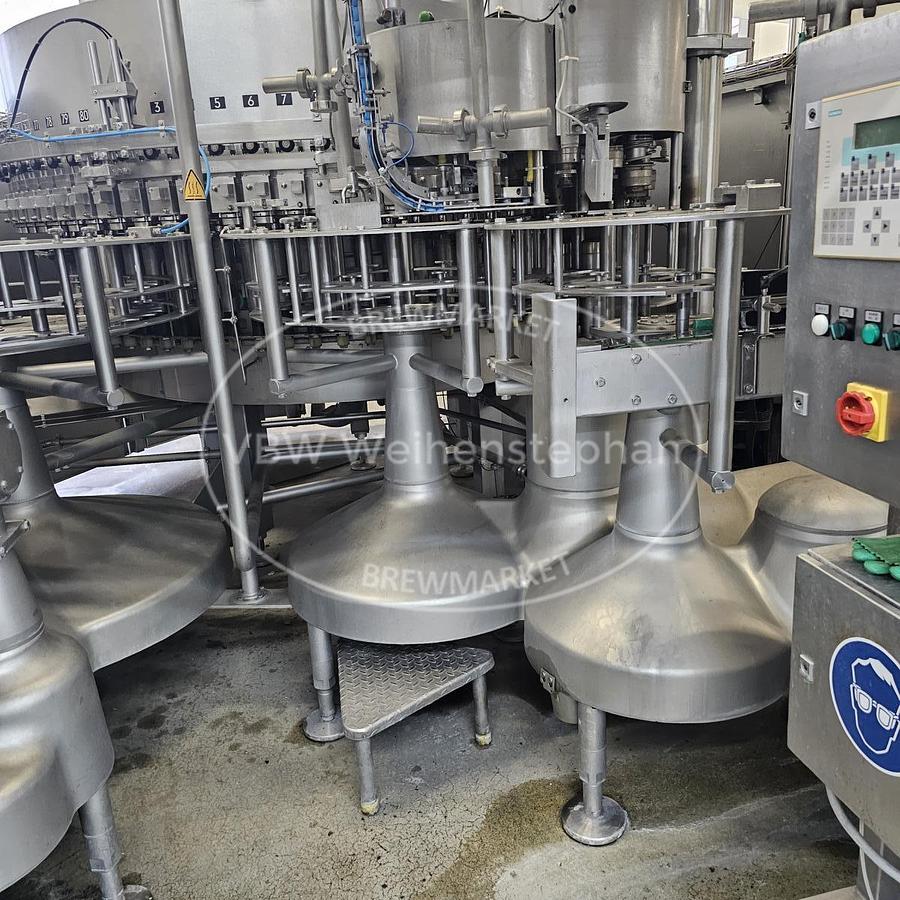

Combined rinser and filler for 0.5 litre, 1.0 litre and 1.5 litre PET bottles.
Output: 24,000 bottles/h

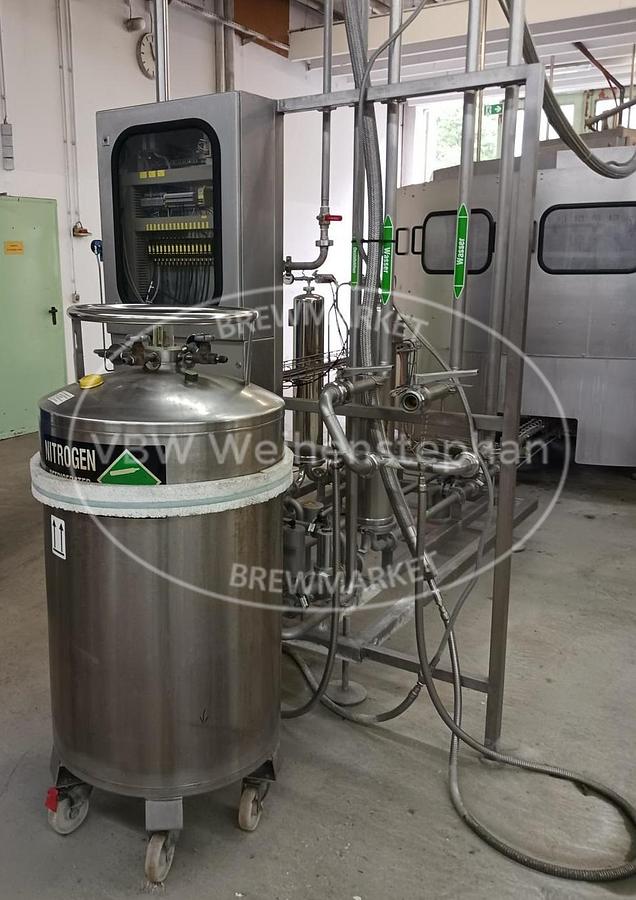

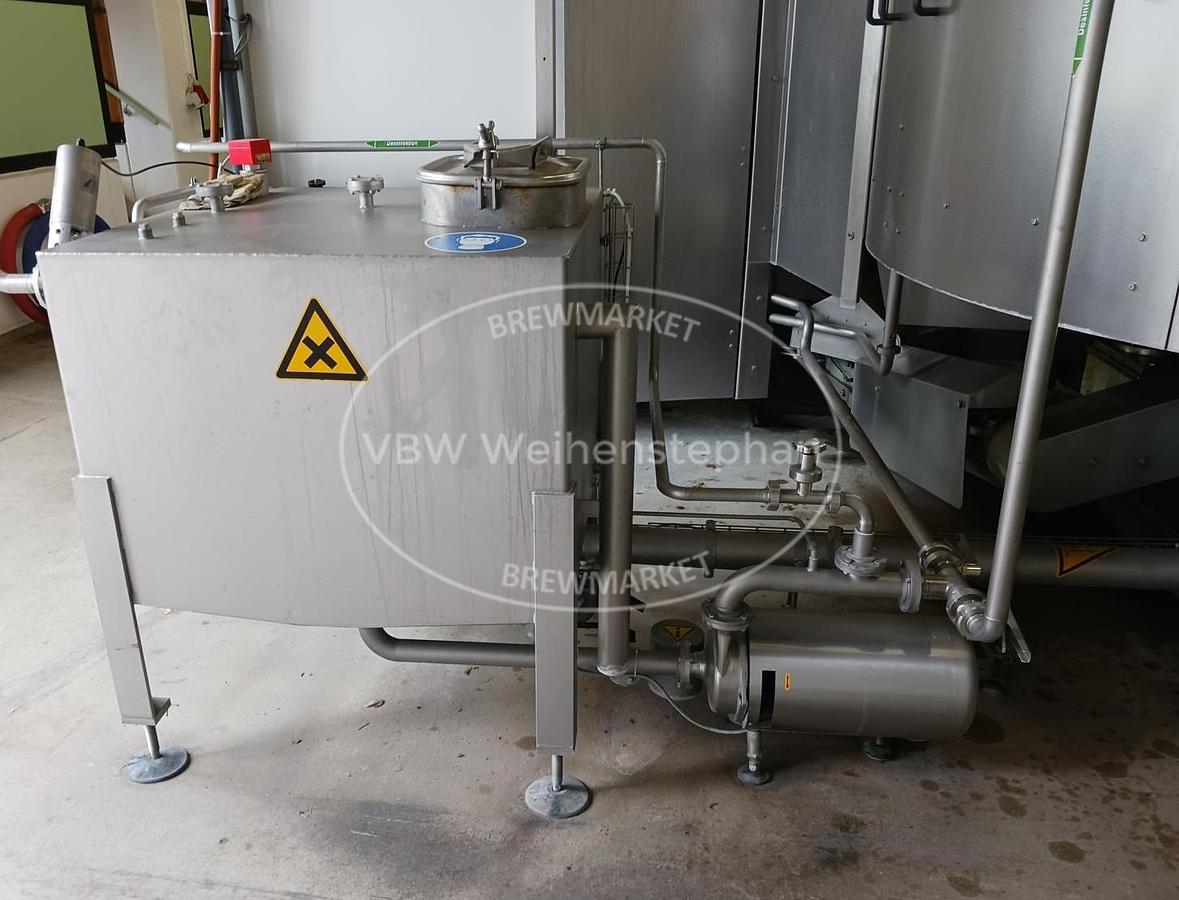

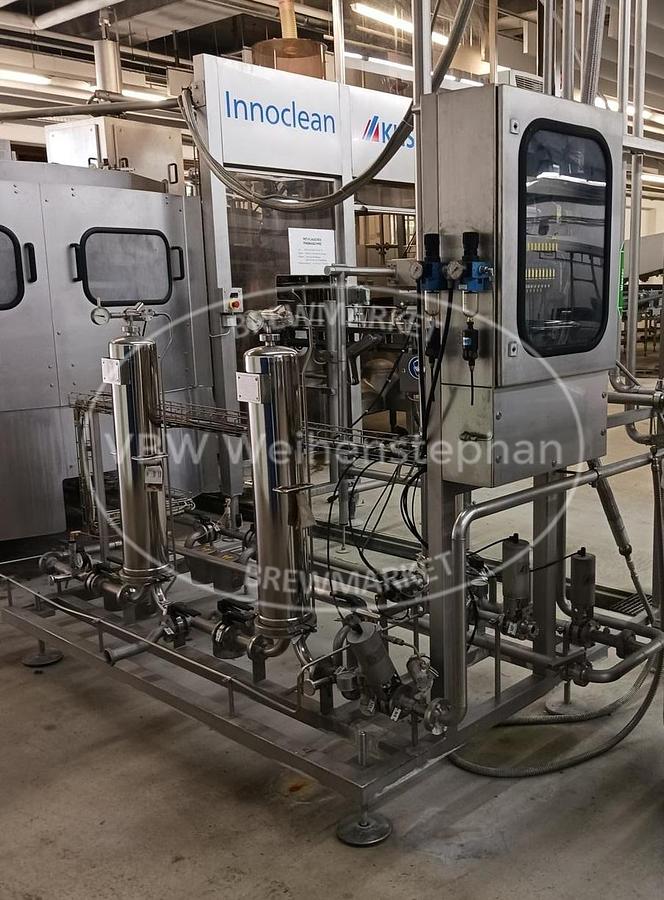

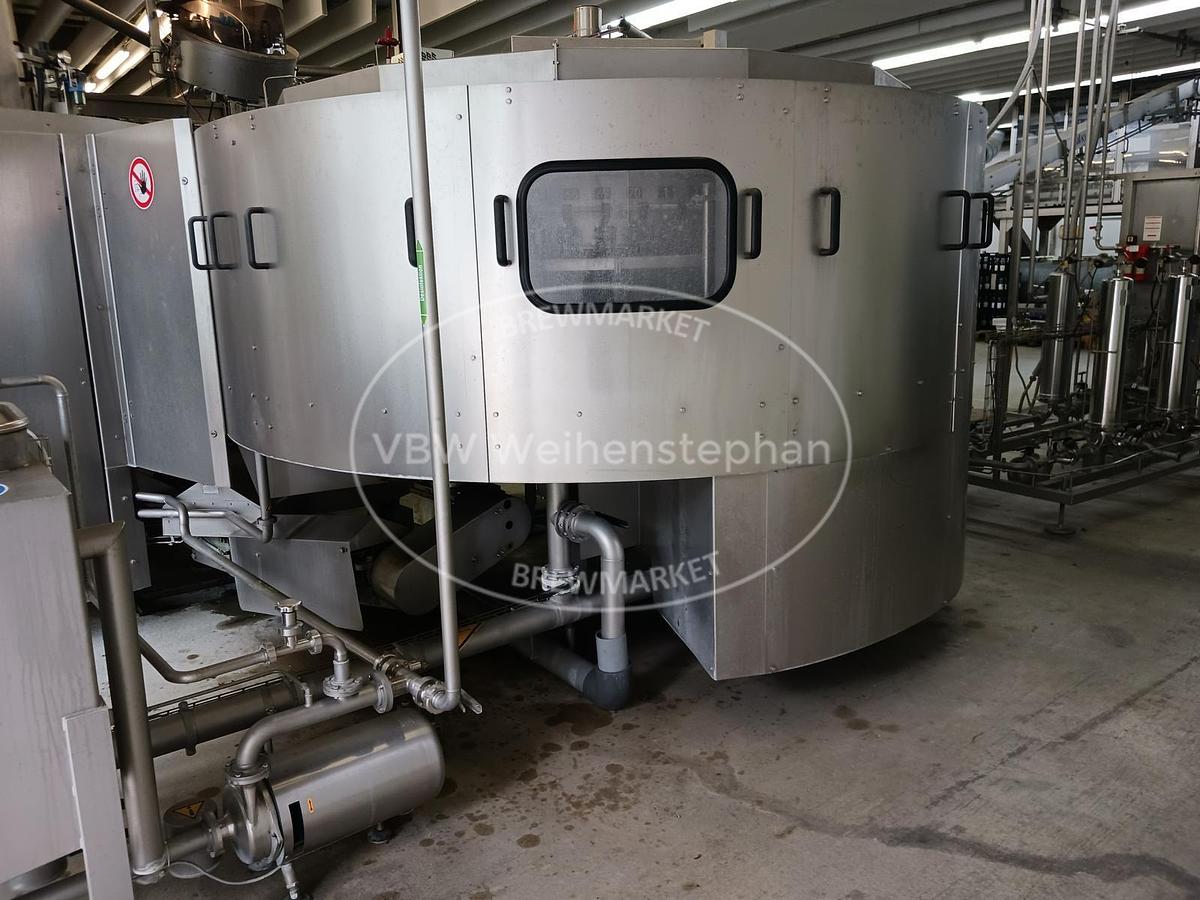

A chlorine dioxide dosing unit and a sterile water supply are connected to the rinser. The filler is equipped with a screw capper. The filling quantity is controlled via flow measurement. Liquid nitrogen dosing is possible via a mobile system.
Specifications
| Manufacturer | KHS |
| Year | 2001 |
| Condition | Used |
| Stock Number | 209855HG |
| Additional title | PET bottle sanitising and filling system |
| Capacity | 24000 b/h |
| Formats | 0,5 l, 1,0 l und 1,5 l PET-bottles |
| Running direction | left -> right |

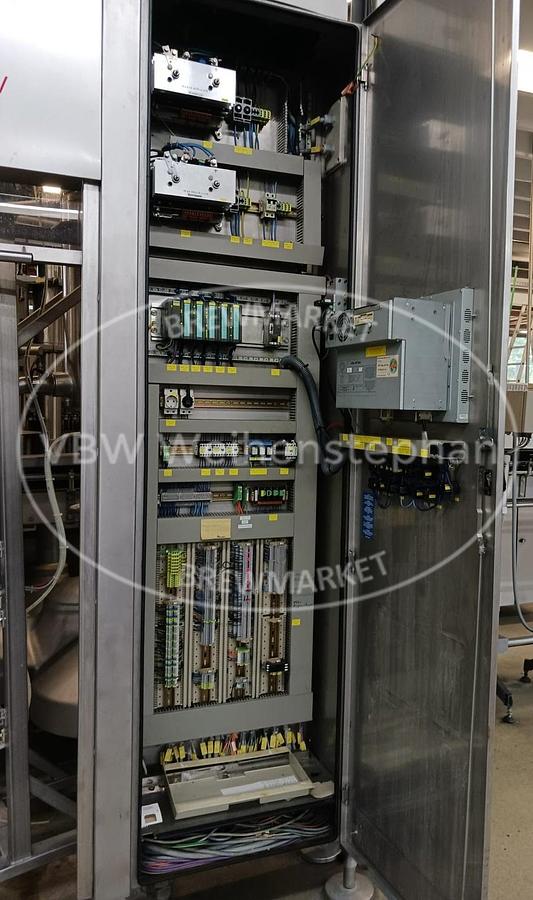

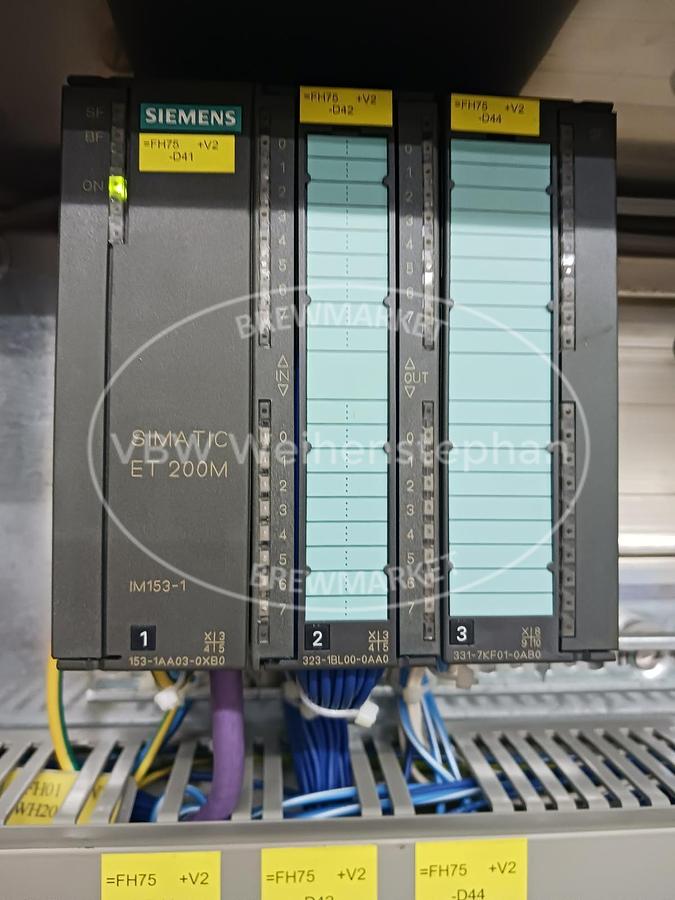

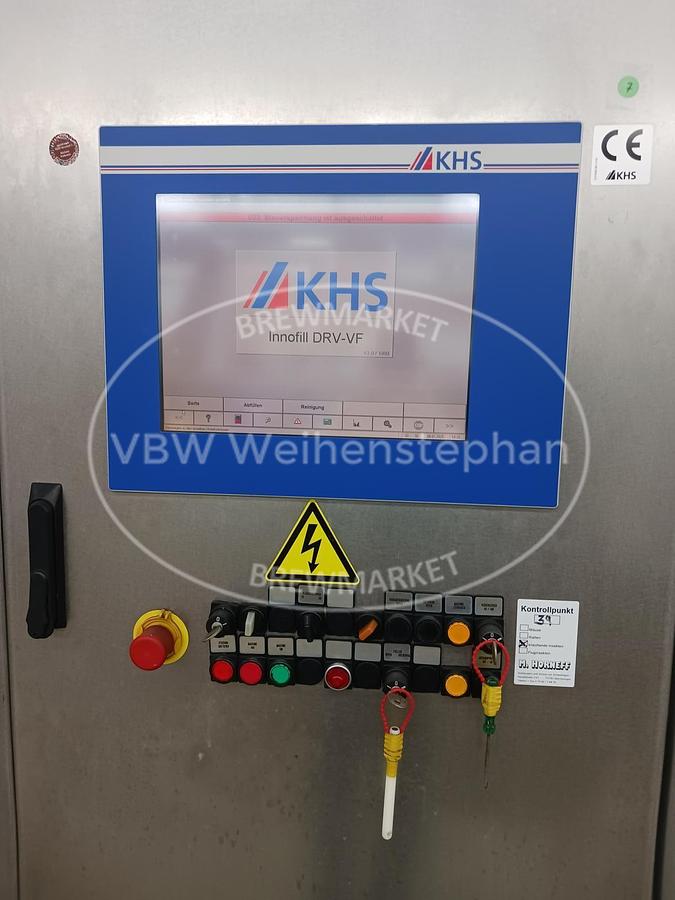

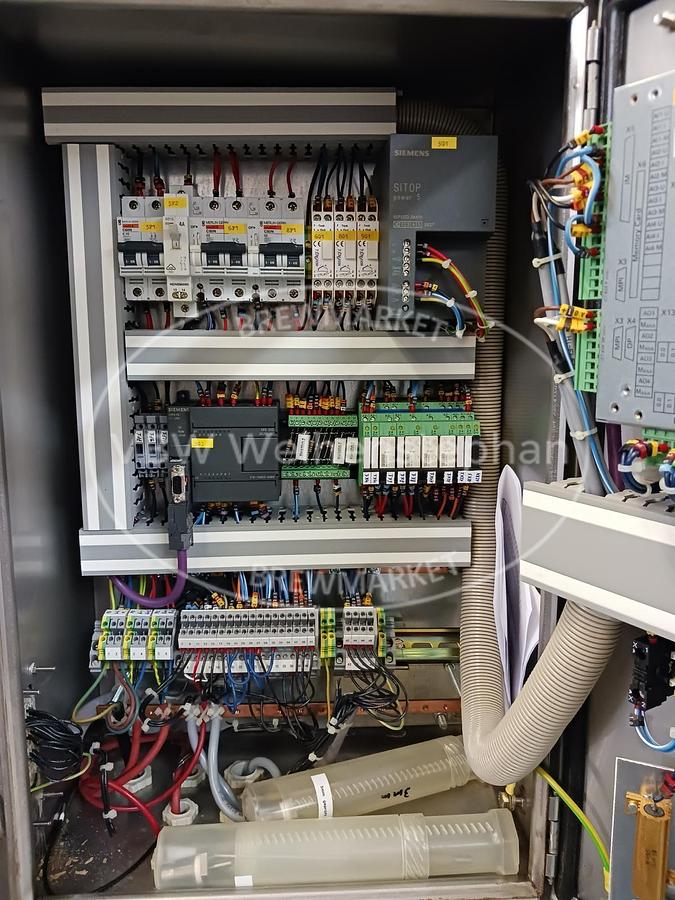

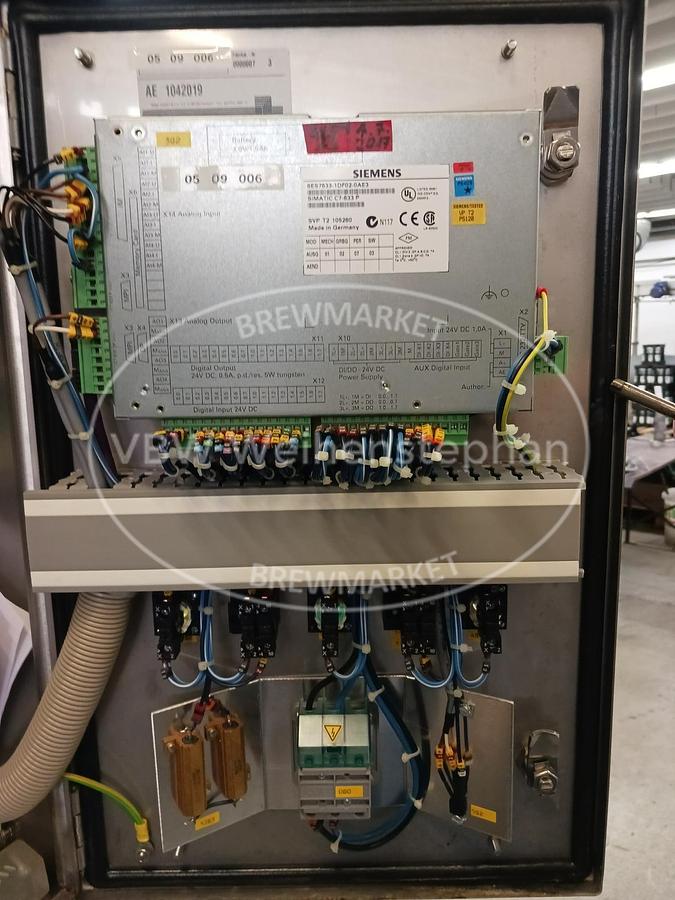

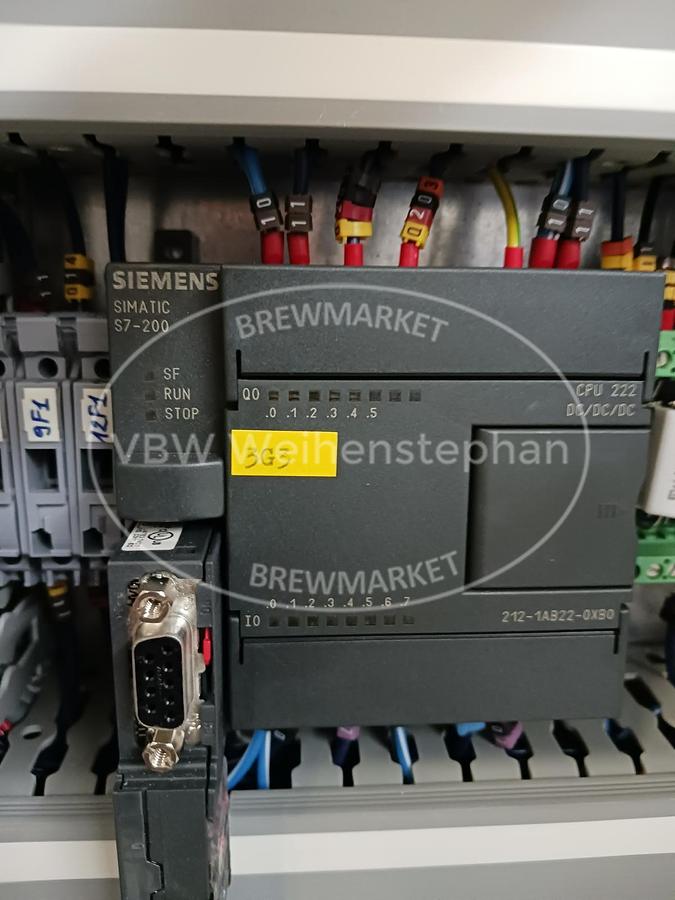

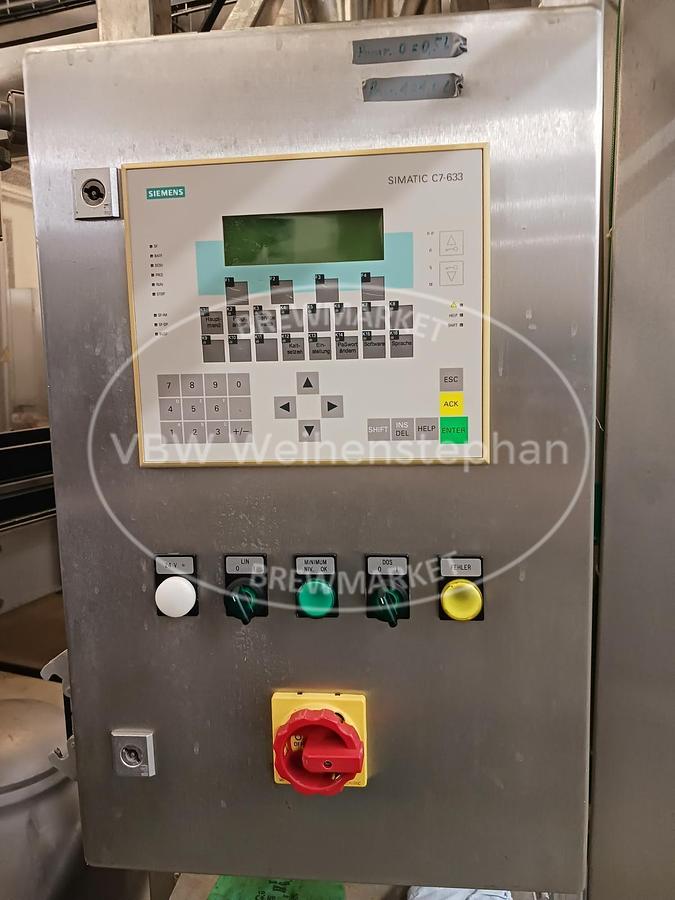

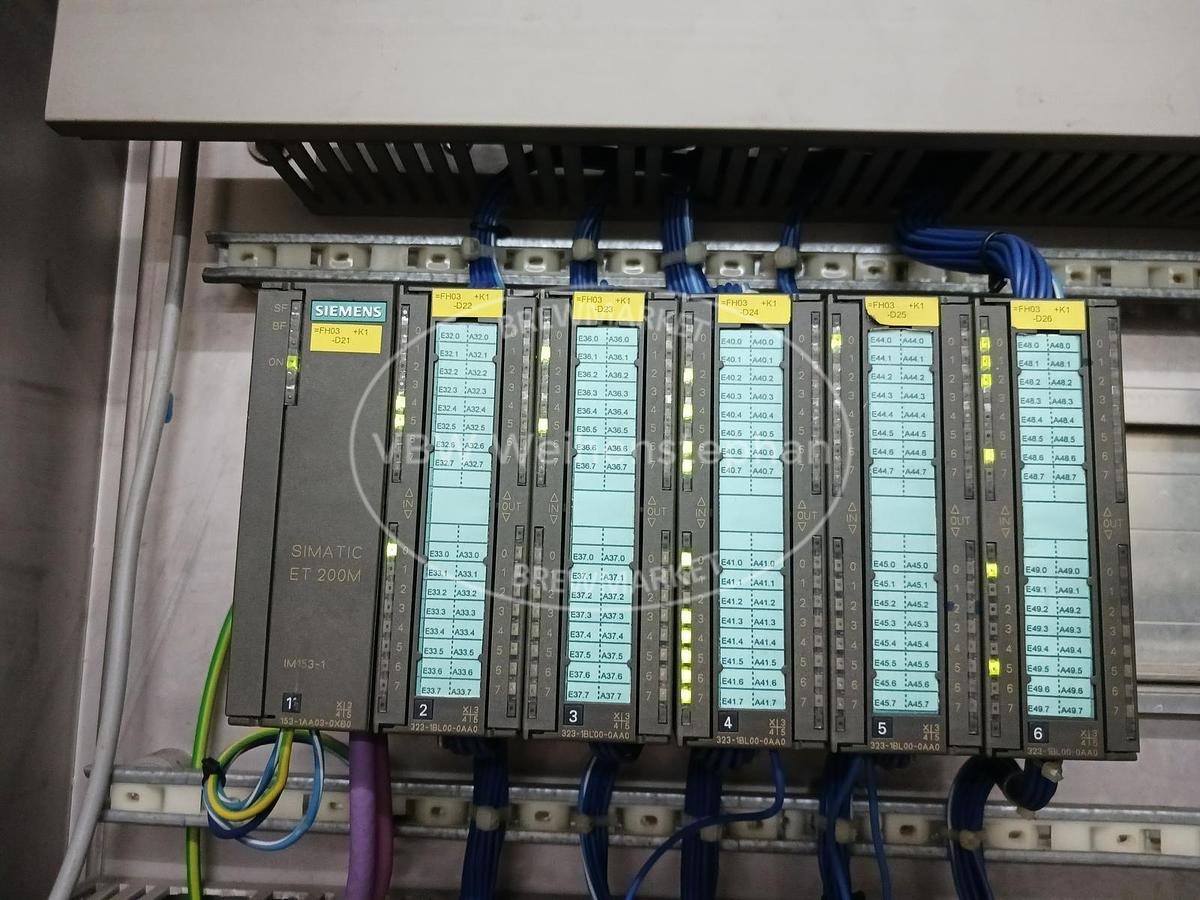

| Operation / Control | Touch-Panel / Simatic S 7 |
| Material | mainly stainless steel |
| Position | free standing |

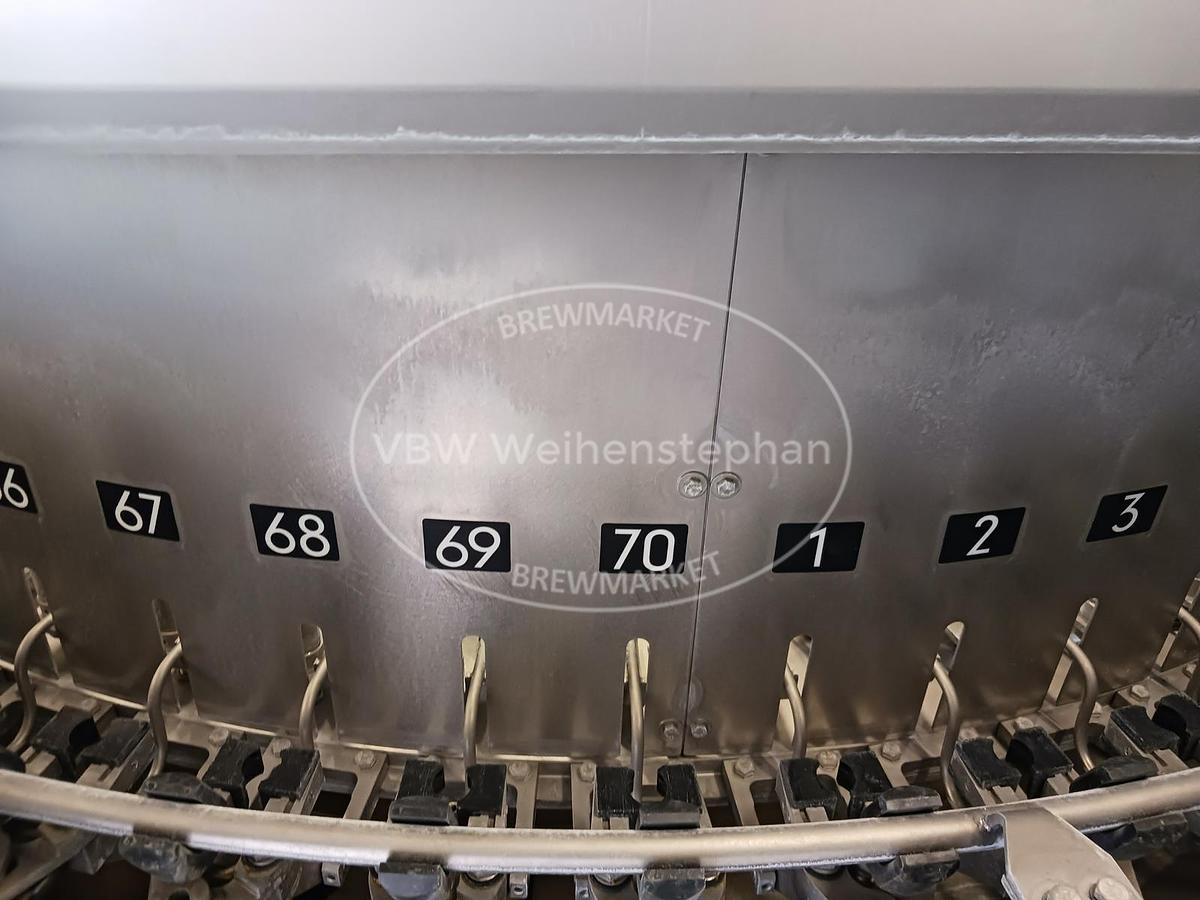

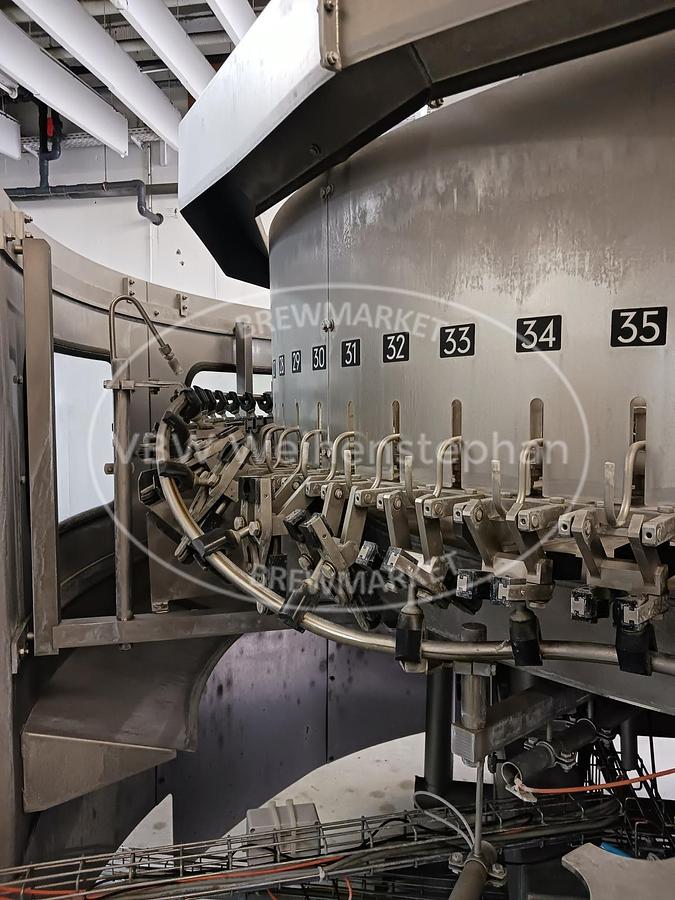

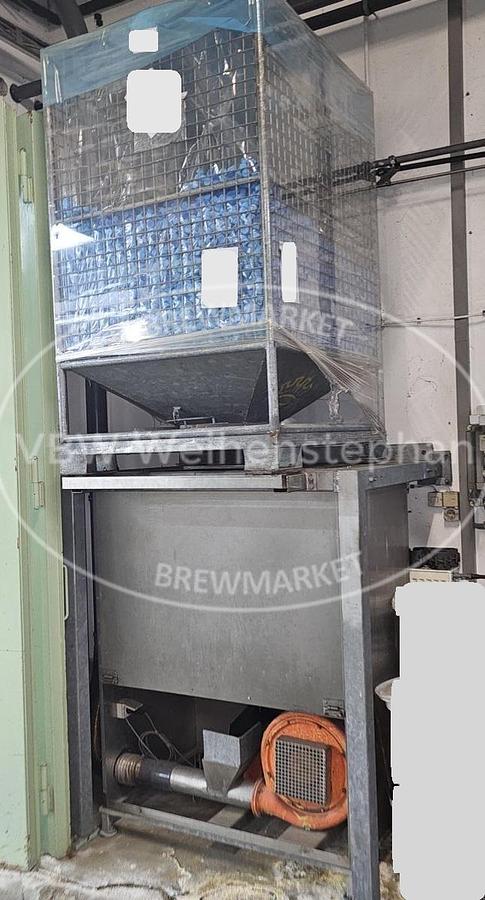

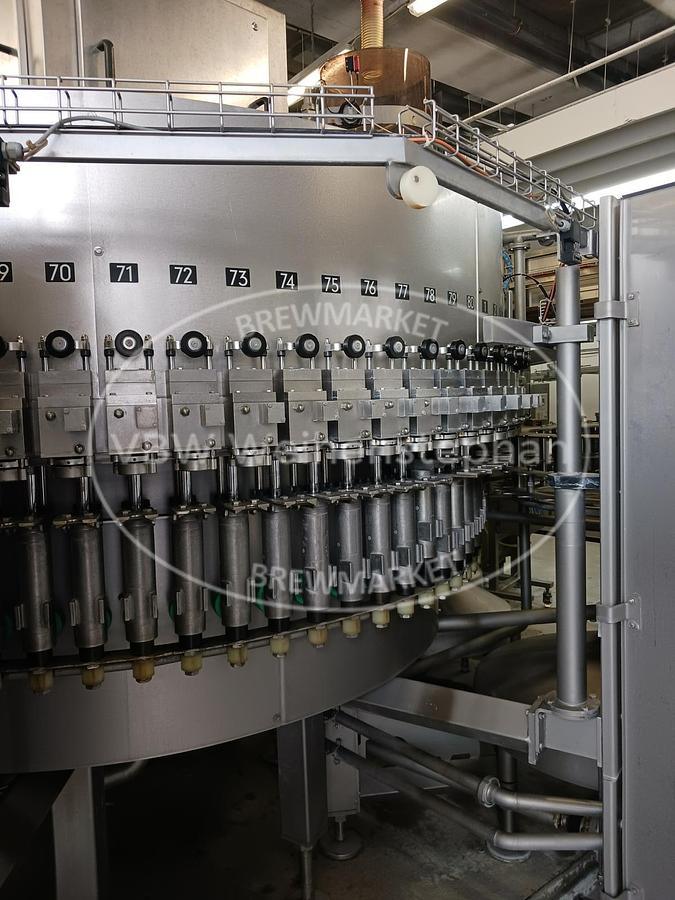

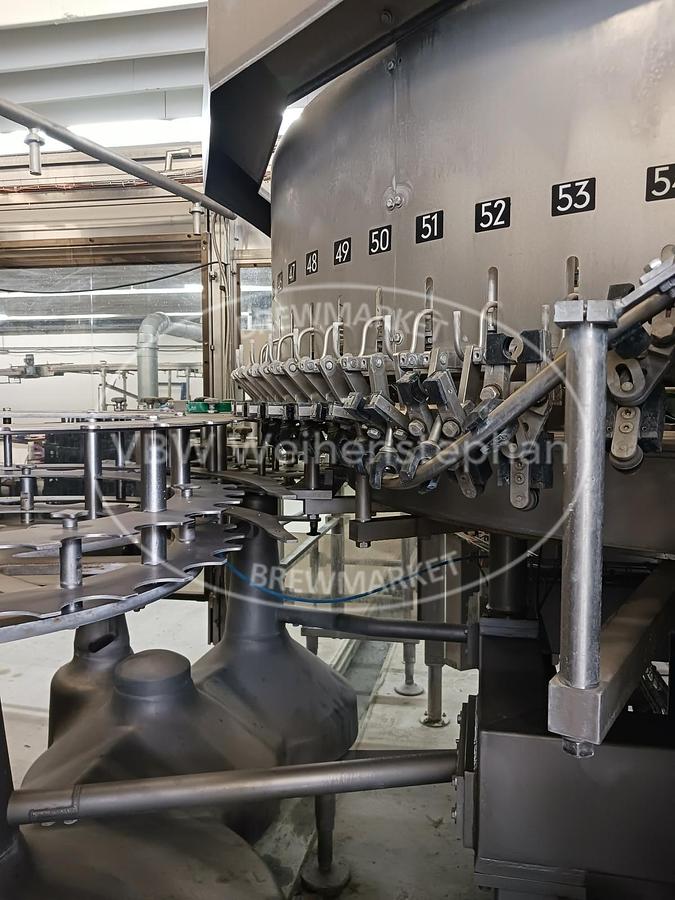

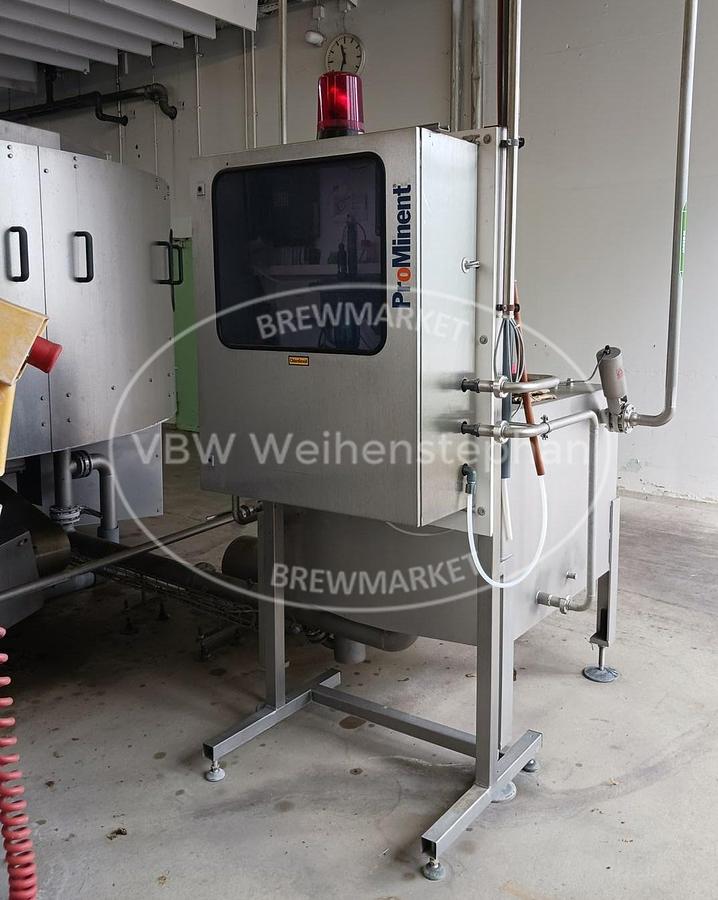

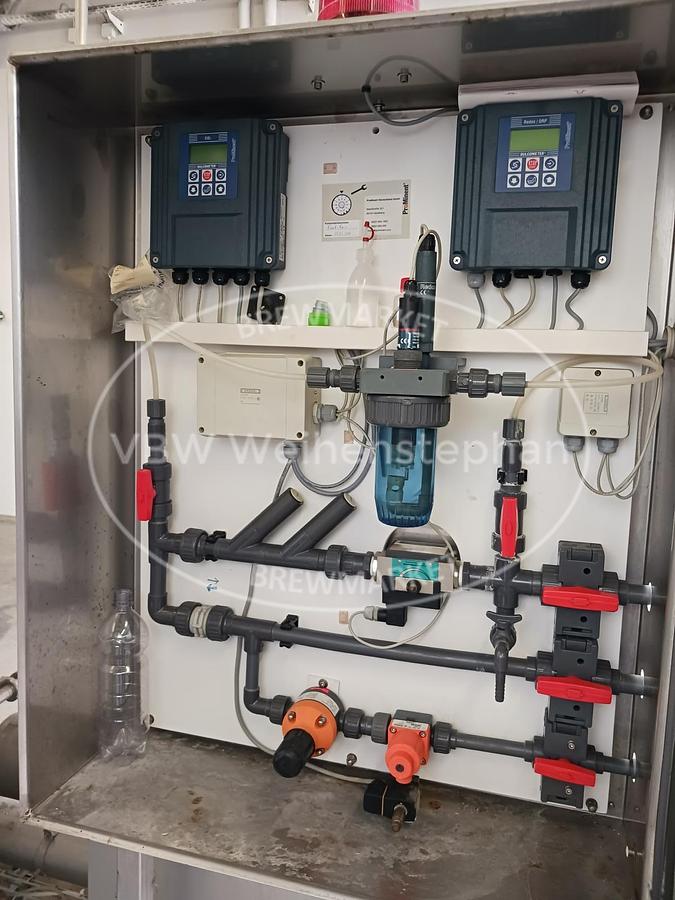

| Features | Stainless steel enclosure, plexiglass protective screen opening upwards; 70 rinsing valves on the rinser; 80 filling valves; filling quantity recording via IDM; Alcoa capper 28 mm Bericap; Prominent chlorine dioxide dosing; filtration system for sterile water, mobile liquid nitrogen dosing; pneumatic screw cap feed (approx. 25 m); 2 basements for a total of 3 mesh box pallets with screw caps |
