Crate packer
Crate packer
or
Call +49 (0) 8161-48333
Description
Packer
Manufacturer: SZA Federspiel
Model: Portropack-E
Year of construction: 2002
Specifications
| Manufacturer | SZA Federspiel |
| Year | 2002 |
| Condition | Used |
| Stock Number | 209875HG |
| Additional title | Packing machine for bottle crates |
| Capacity | 30000 Bottles/h |
| Air consumption | 7 m³/h |
| Current | 25 A |
| Voltage | 230 / 400 V AC |
| Compressed air | 5 bar |
| Length | 2300 mm |
| Width | 2800 mm |
| Height | 2400 mm |
| Formats | 0.33 l Vichy, 0,33 l Euro, 0.35 l lemonade, 0.5 l NRW bottles, modular crates and pin-partitioned crates, 8 packing heads (4x20 and 4x24) |
| Running direction | Module box in longitudinal run, from right to left |

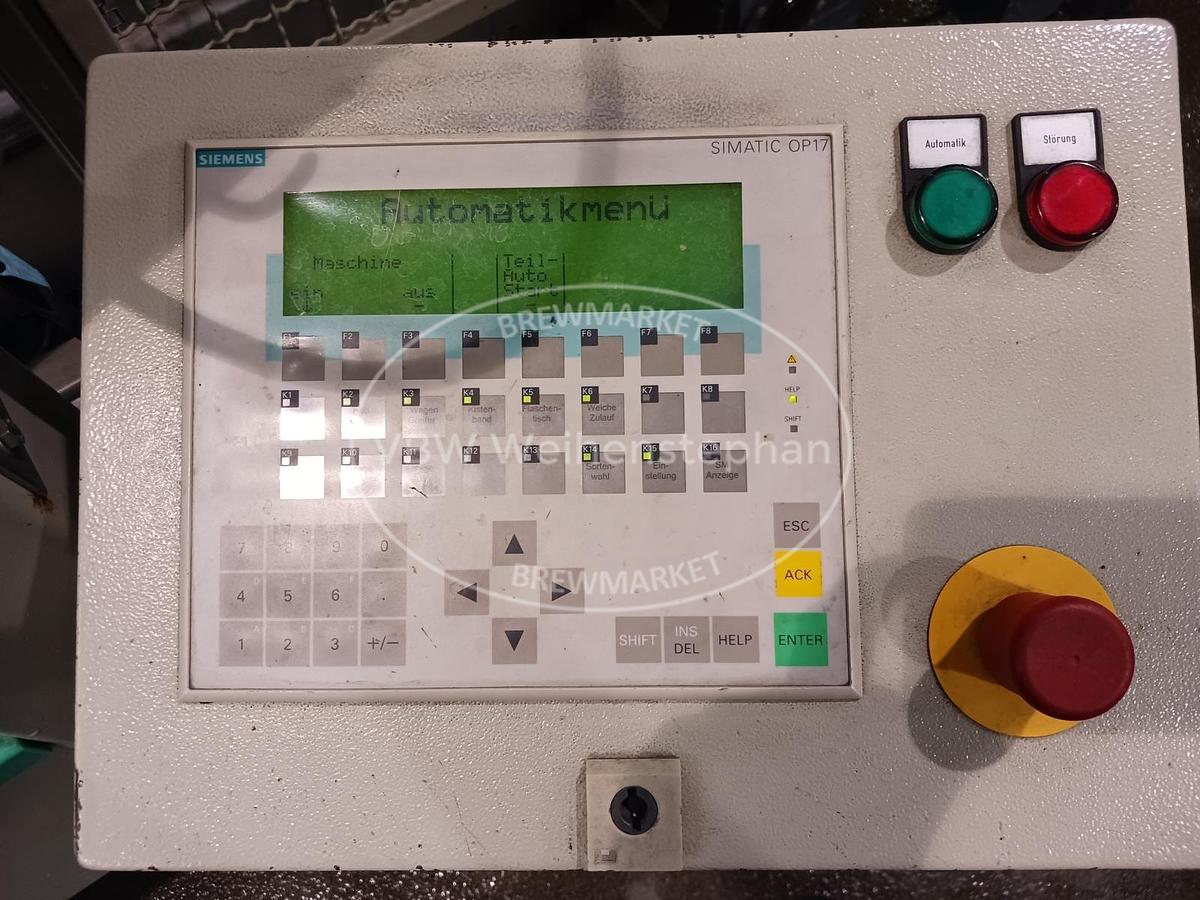

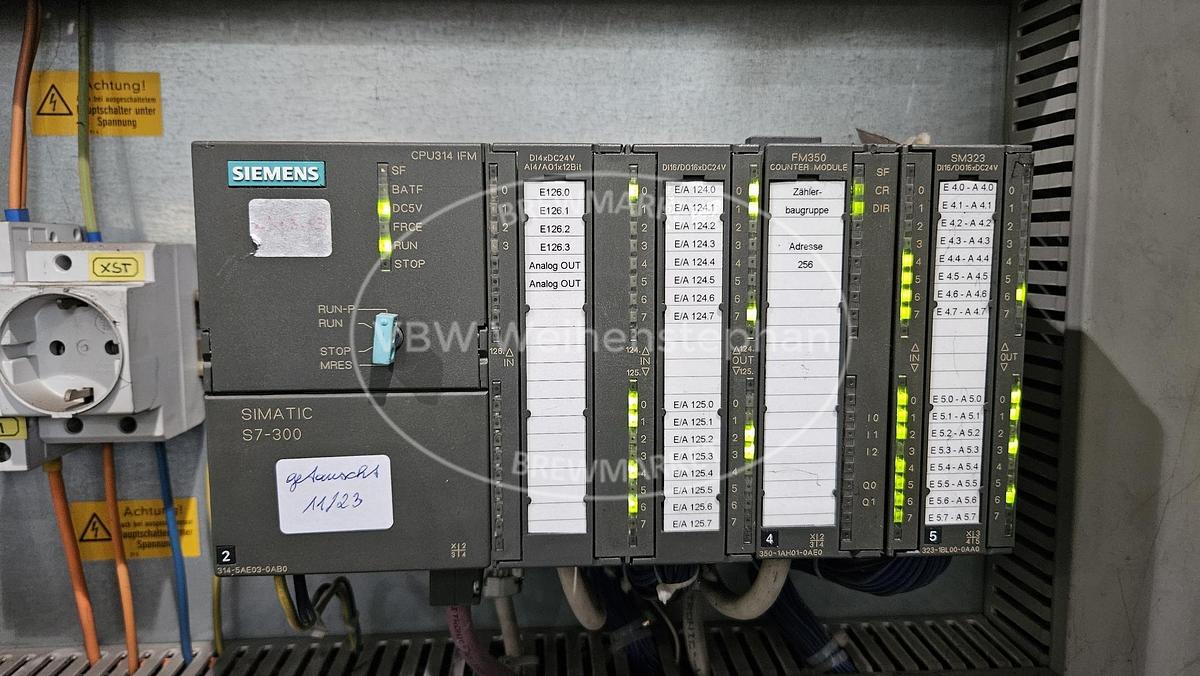

| Operation / Control | Simatic S7-300 / OP17 |
| Position | free standing |
| Base construction | Square frame construction painted on spherical feet |

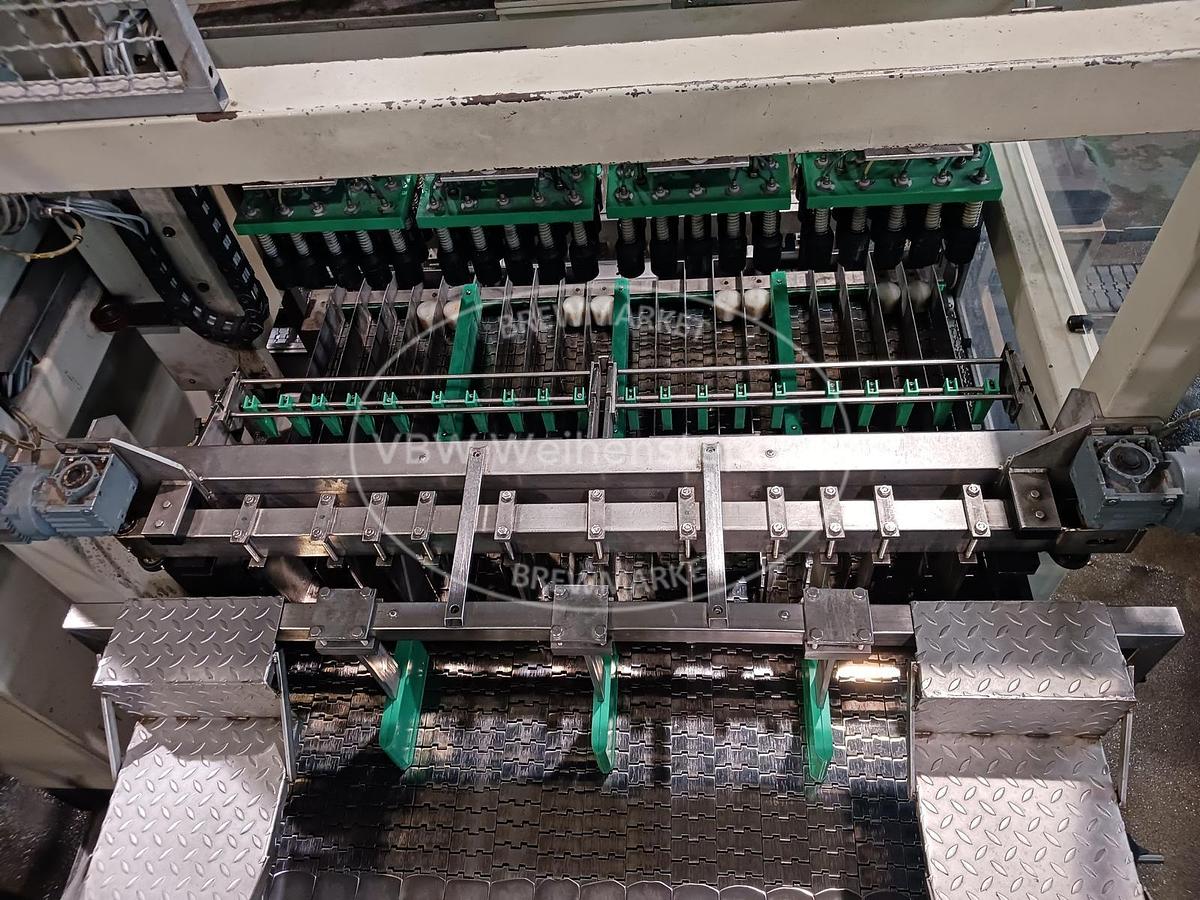

| Features | Gripper head carrier with pneumatic equipment, operating area covered with windows, container transport, pack transport, 2 gripper head sets, safety device, electrical and pneumatic equipment |
