Description

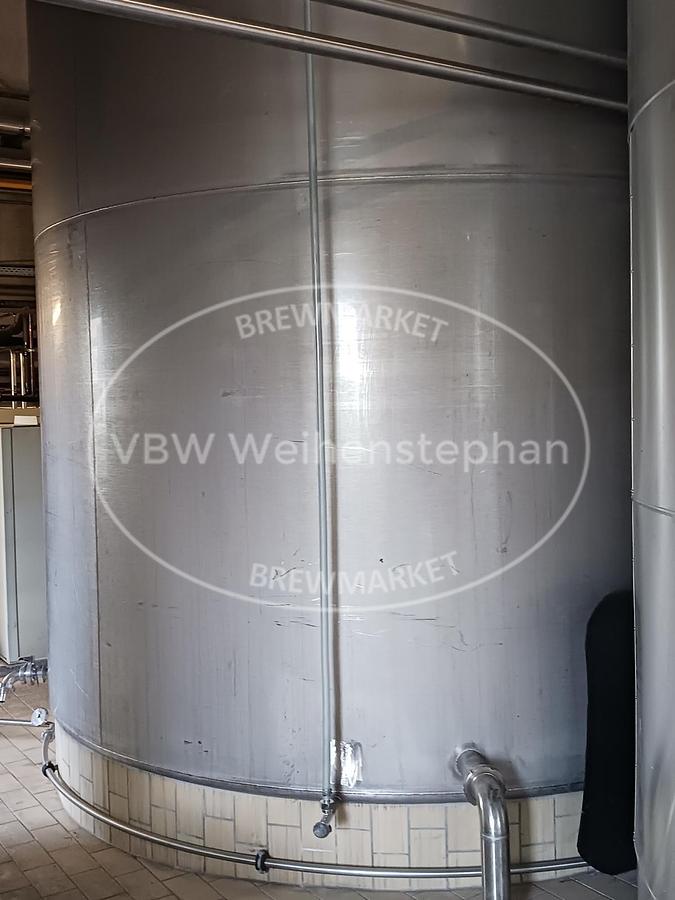

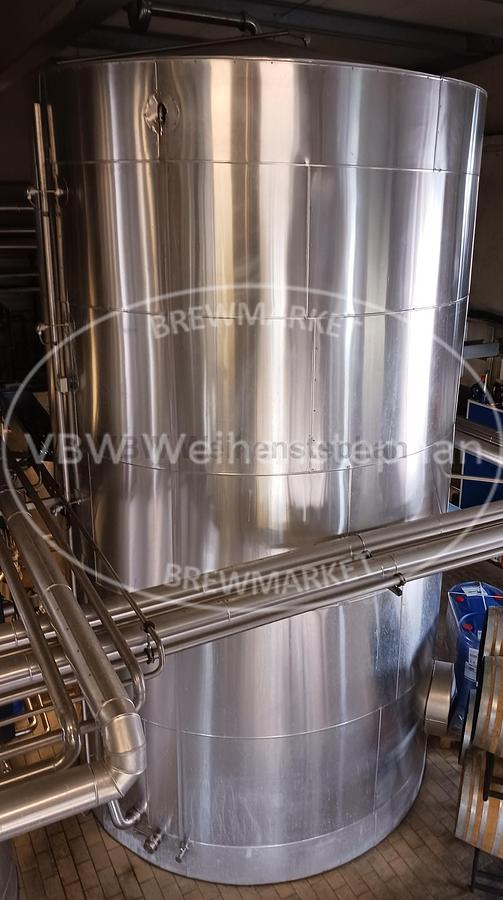

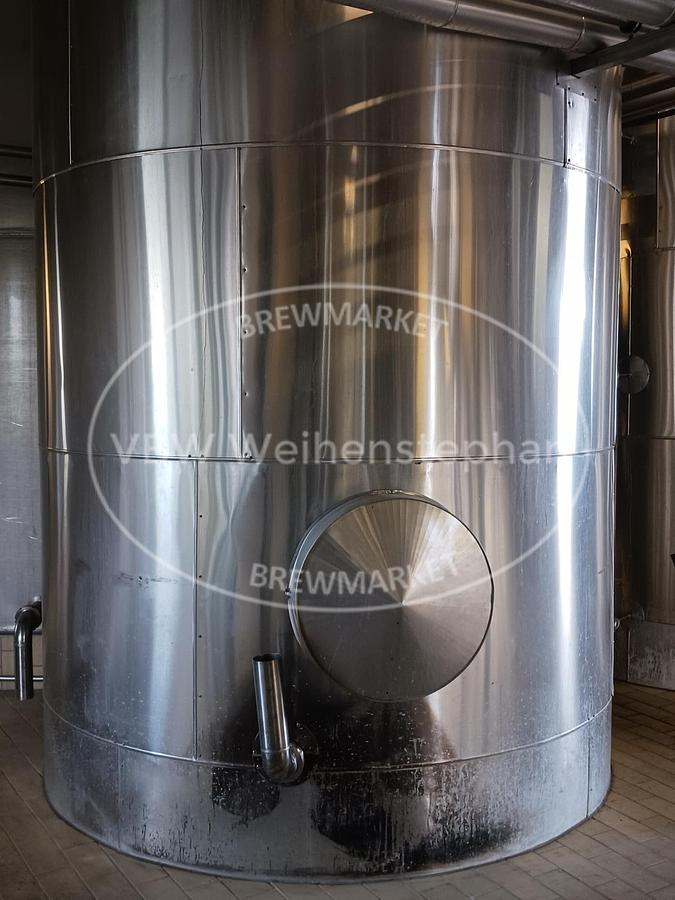

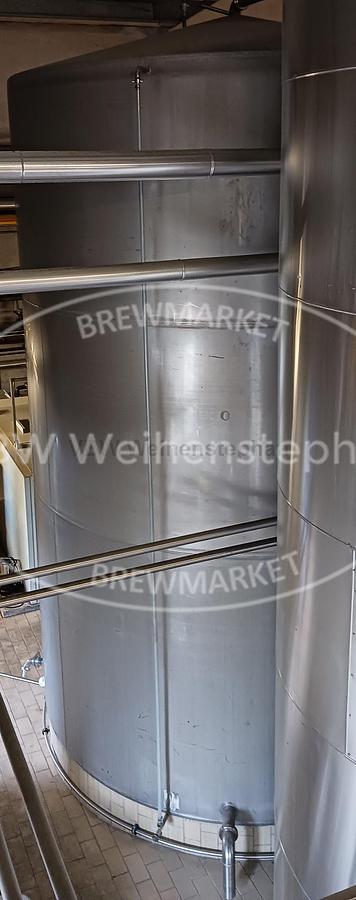

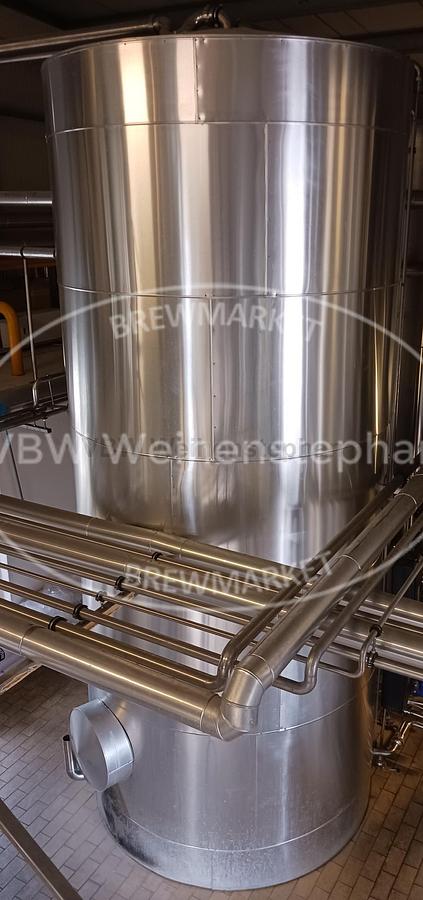

Water tanks for a 100 hl brewhouse.
Manufacturer: Jacob Carl
Year of construction: 1992
Consisting of:
1 brewing water tank:
D= approx. 2500 mm, capacity approx. 16.5 m³
with insulation and cladding
1 service water tank:
D=2800 mm capacity approx. 32 m³
with insulation and cladding
1 raw water storage tank:
D=3300 mm, capacity approx. 45 m³
The tanks have flat bottoms for placing on a concrete foundation.
Specifications
Manufacturer | Jacob Carl |
Year | 1992 |
Condition | Used |
Stock Number | 209754HG |
Additional title | for brewhouse |
Material | stainless steel |
Position | Tanks on concrete foundations |
Base construction | standing round tanks with flat bottom, side outlets and flat-conical cover |
Features | Manhole in the frame, brewing and process water tank with insulation and stainless steel sheet cladding, as well as with temperature sensors Pt100, all tanks have standpipe for content display |
